Descriere

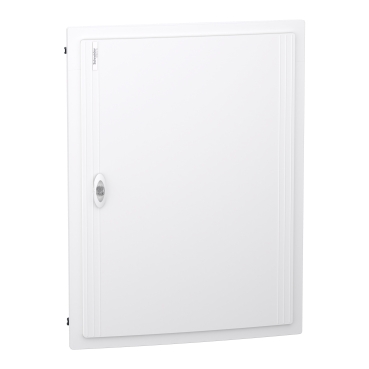

PrismaSet XS, Cofret cu montaj ingropat, 4x24 Module, material plastic, usa plina alba, cu 1 bloc terminal
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| With mounting plate | No |
| Mounting method | Flush-mounted |
| Measurements | |
| Built-in depth | 96 mm |
| Width in number of modular spacings | 24 |
| Built-in height | 780 mm |
| Height | 810 mm |
| Inner depth | 80 mm |
| Width | 610 mm |
| Built-in width | 570 mm |
| Depth | 151 mm |
| Model/type | |
| Type of covering | Door |
| Transparent cover/door | No |
| Type of closure | Other |
| Cover model | Closed |
| Number of rows | 4 |
| With lock | No |
| EMC-version | No |
| Earthing terminal block | Yes |
| Neutral terminal block | No |
| Options | |
| Extension possible | Yes |
| Signal passing door | No |
| DIN-rail | Yes |
| Colour | |
| RAL-number | 9003 |
| Colour | White |
| Protection | |
| Degree of protection (IP) | IP40 |
| Material | |
| Housing material | Other |
| Package 1 | |
| volume | 120582 cm3 |
| weight | 16,199 kg |
| length | 84 cm |
| width | 63,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481073150 |
| Package 2 | |
| volume | 979200 cm3 |
| weight | 74,5 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 4 |
| qmin | 4 |
| um | PF |
