Descriere

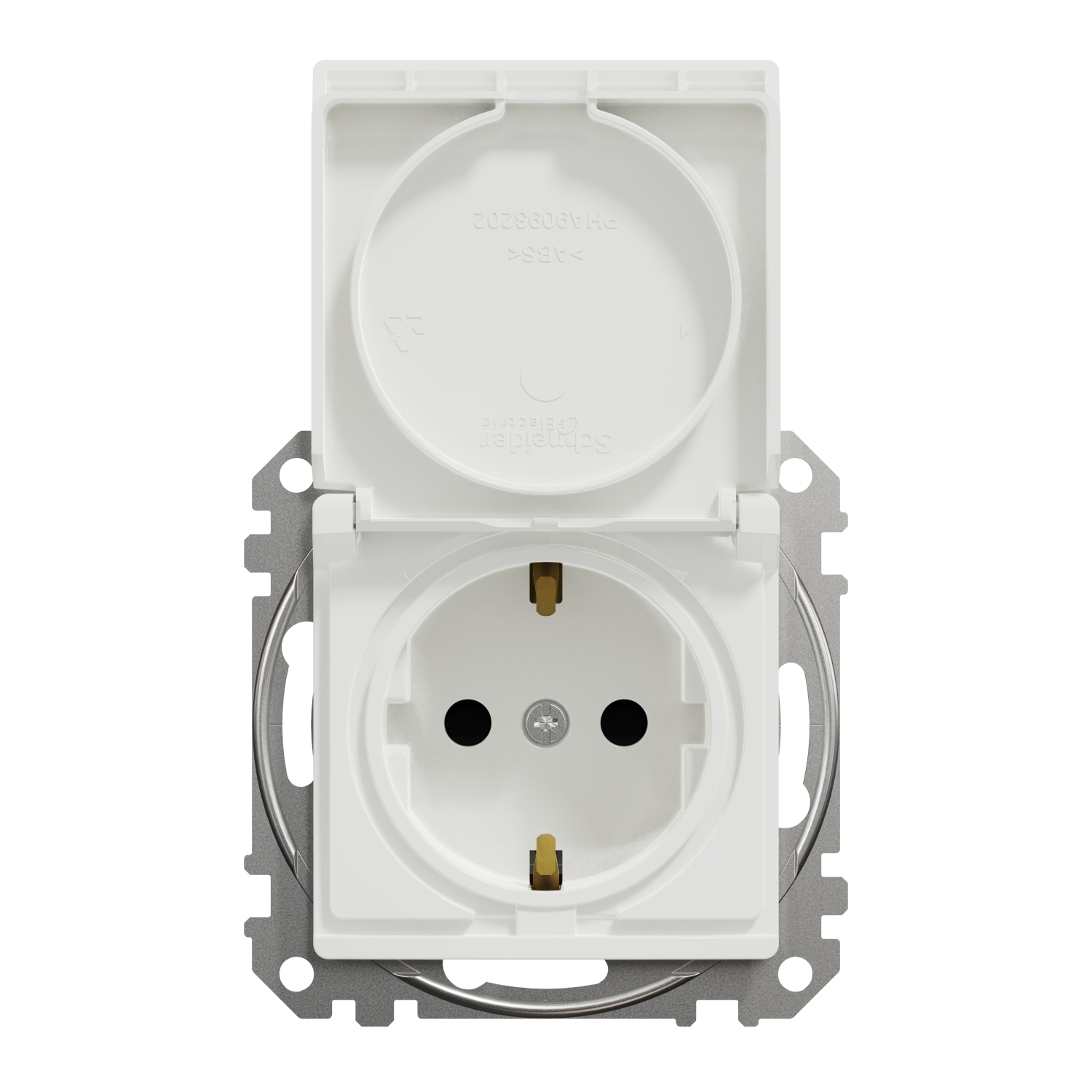

Acest dispozitiv Schneider Electric Sedna Design Elements are o priza, impamantare laterala, de culoare alba. Este o priza electrica standard europeana. Configuratia polului de priza al acestei prize este 2P+E cu obturator si capac. Are o tensiune de operare de 250Vca si un curent nominal de 16A cu 50 Hz. Intervalul de putere al acestei prize este de 3680W. Acest dispozitiv permite montarea incastrata. Dimensiunile sunt (W) 73mm x (H) 73mm x (D) 51mm. Cantareste 69g. Culoarea acestui dispozitiv este alba (RAL 9003) cu finisaj lucios. Este fabricat din material de policarbonat. Acesta atinge gradele de protectie IP20 si IK02. Sedna Design & Elements este o gama premium, cu culori si texturi contemporane care aduc aspectul de lemn, piatra, metal si sticla in locuintele clientilor dumneavoastra. Sedna Design & Elements ofera toate functiile moderne de care aveti nevoie pentru a depasi asteptarile clientilor dumneavoastra si a aduce un confort si comoditate sporit persoanelor de toate varstele. Acest dispozitiv este compatibil cu certificarea CE, VDE si standardul IEC 60884-1.
Documente
Specificatii
| Model/type | |
| With hinged lid | Yes |
| With signal lamp | No |
| Number of modules (module system) | - |
| With on/off switch | No |
| Model | Other |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With enhanced contact protection | No |
| With loop through function | No |
| With miniature fuse | No |
| Number of units | 1 |
| Protective earth pin round | No |
| Electrical | |
| Number of phases | 1 |
| With built-in USB power supply | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Overvoltage protection | No |
| Special power supply | No special power supply |
| Rated fault current | - |
| Type of USB power supply | - |
| Options | |
| Lockable | No |
| Eject-mechanism | No |
| Rotated central insert | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Label space/information surface | No |
| Other | |
| Imprint/indication | None |
| Impact strength | IK02 |
| Frequency | 50 Hz |
| Colour | |
| Colour | White |
| Metallic colour | No |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Measurements | |
| Device width | 73 mm |
| Device height | 73 mm |
| Device depth | 51 mm |
| Min. depth of built-in installation box | 40 mm |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP20 |
| Protective contact | Yes |
| Connection | |
| Connection type | Screwed terminal |
| Number of active contacts (flat) | 0 |
| Number of active contacts (round) | 2 |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Insulated mounting | No |
| Type of fastening | Mounting with claw and screw |
| Material | |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Package 1 | |
| volume | 288 cm3 |
| weight | 79 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481477941 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 871 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481477948 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 11,113 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481477945 |
| Package 4 | |
| weight | 56,452 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
