Descriere

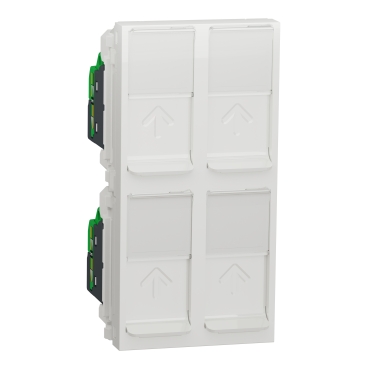

Noua Unica, Priza cvadrupla RJ45, CAT5 UTP,45x90,alb
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | No |
| Suitable for number of connectors | 4 |
| Model/type | |
| Mounting method shielding connection | Clip |
| Number of modules (module system) | - |
| With terminal resistor | - |
| With label space | Yes |
| With dust cover | Yes |
| Assembly arrangement | Modular device for domestic switching devices |
| With buses/couplings | Yes |
| Measurements | |
| Device depth | 40.5 mm |
| Device width | 45 mm |
| Device height | 90 mm |
| Options | |
| Mechanical coding | No |
| Shielded buses | No |
| Shielded housing | No |
| Compatible with third-party covers | Yes |
| Separate strain relief | Yes |
| Colour | |
| RAL-number | 9003 |
| Colour | White |
| Colour coding | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Engage (snap) |
| Floor box/subfloor mounted | No |
| Flush-mounted installation | - |
| Surface mounting | No |
| Other | |
| Category | 5E |
| Outlet direction | Straight |
| Package 1 | |
| volume | 162 cm3 |
| weight | 96 g |
| length | 4,5 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489468200 |
