Descriere

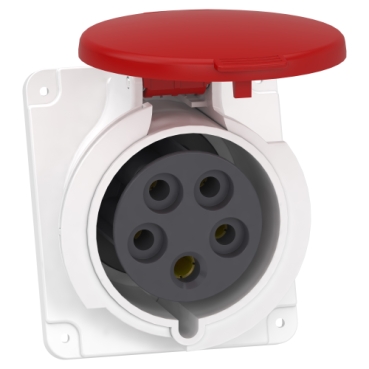

Priza Mureva, cu montare rap, unghi., 32A, 3P + N + E, 380, 415 V AC, panou
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Amperage according to UL/CSA (for UL-version) | - |
| IEC-amperage | 32 A |
| Rated voltage | 380 V |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Connection | |
| Cable entry | None |
| Connection system | Screwless terminal |
| Measurements | |
| Flange size vertical | 100 mm |
| Flange size horizontal | 90 mm |
| Other | |
| Insert direction | Angled |
| Rated frequency | 50 Hz |
| Clock hour position | 6 h |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Colour | |
| Identification colour | Red |
| RAL-number | 7035 |
| Mounting/installation | |
| Drill hole distance vertical | 85 mm |
| Drill hole distance horizontal | 77 mm |
| Protection | |
| Degree of protection (IP) | IP44 |
| Model/type | |
| Military model | No |
| Package 1 | |
| volume | 1023,5 cm3 |
| weight | 248 g |
| length | 11,5 cm |
| width | 8,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303432011123 |
| Package 2 | |
| volume | 12783,96 cm3 |
| weight | 1,892 kg |
| length | 27 cm |
| width | 26,6 cm |
| qmax | 7 |
| qmin | 7 |
| um | BX |
| gtin | 23303432011127 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 3,872 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 14 |
| qmin | 14 |
| um | CT |
| gtin | 43303432011121 |
| Package 4 | |
| weight | 41,776 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 112 |
| qmin | 112 |
| um | PF |
