Descriere

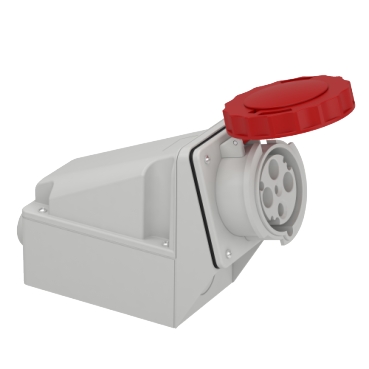

Priza Industriala Mureva, 63 A, 3P + E, 380, 415 V Ac, Ip67
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Amperage according to UL/CSA (for UL-version) | - |
| IEC-amperage | 63 A |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
| Number of poles | 4 |
| Connection | |
| Cable entry | Gland nut |
| Connection system | Screwed terminal |
| Mounting/installation | |
| Type of fastening | Inner lying mounting |
| Insulated mounting | No |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Colour | |
| Identification colour | Red |
| RAL-number | - |
| Protection | |
| Degree of protection (IP) | IP67 |
| Other | |
| Clock hour position | 6 h |
| Model/type | |
| Military model | No |
| Package 1 | |
| volume | 4856,25 cm3 |
| weight | 1,007 kg |
| length | 25 cm |
| width | 10,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430811824 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,435 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 43303430811822 |
| Package 3 | |
| volume | 480000 cm3 |
| weight | 54,28 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 40 |
| qmin | 40 |
| um | PF |
| gtin | 73303430811823 |
