Descriere

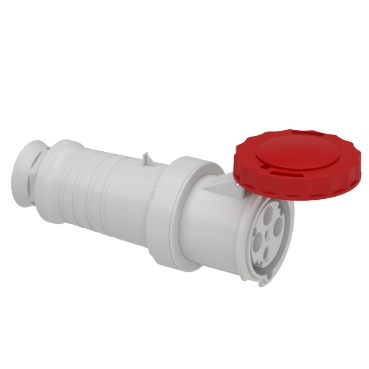

Priza Mobila Mureva, Dreapta, 63 A, 3P + E, 380, 415 V Ac, Ip67
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Amperage according to UL/CSA (for UL-version) | - |
| IEC-amperage | 63 A |
| Voltage according to EN 60309-2 | 380-415 V (50+60 Hz) red |
| Number of poles | 4 |
| Connection | |
| Cable entry | Gland nut |
| Connection system | Screwed terminal |
| Other | |
| Insert direction | Straight |
| Clock hour position | 6 h |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Colour | |
| Identification colour | Red |
| RAL-number | 7035 |
| Protection | |
| Degree of protection (IP) | IP67 |
| Model/type | |
| Military model | No |
| Package 1 | |
| volume | 3148,465 cm3 |
| weight | 752 g |
| length | 26,5 cm |
| width | 10,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430814825 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,007 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43303430814823 |
