Descriere

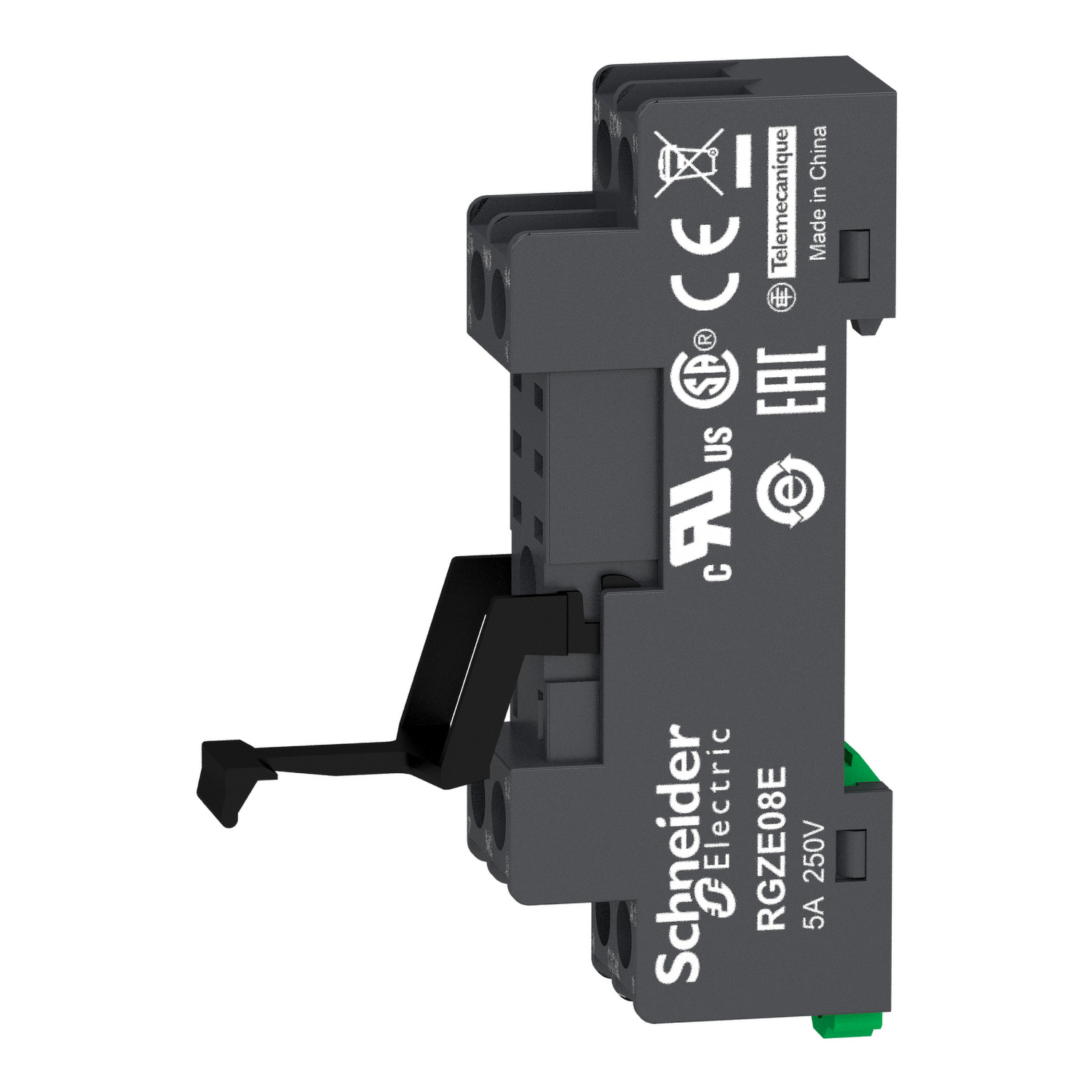

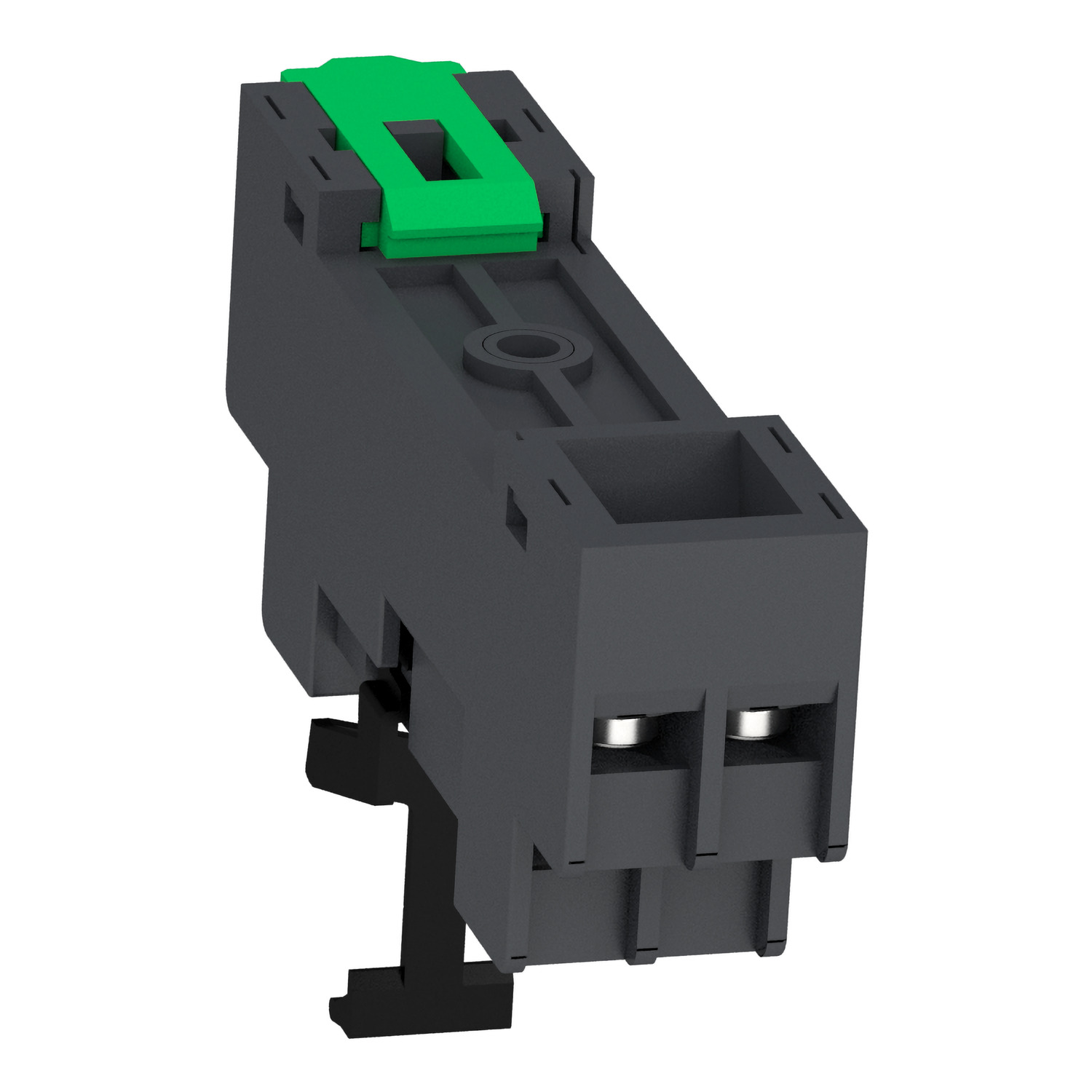

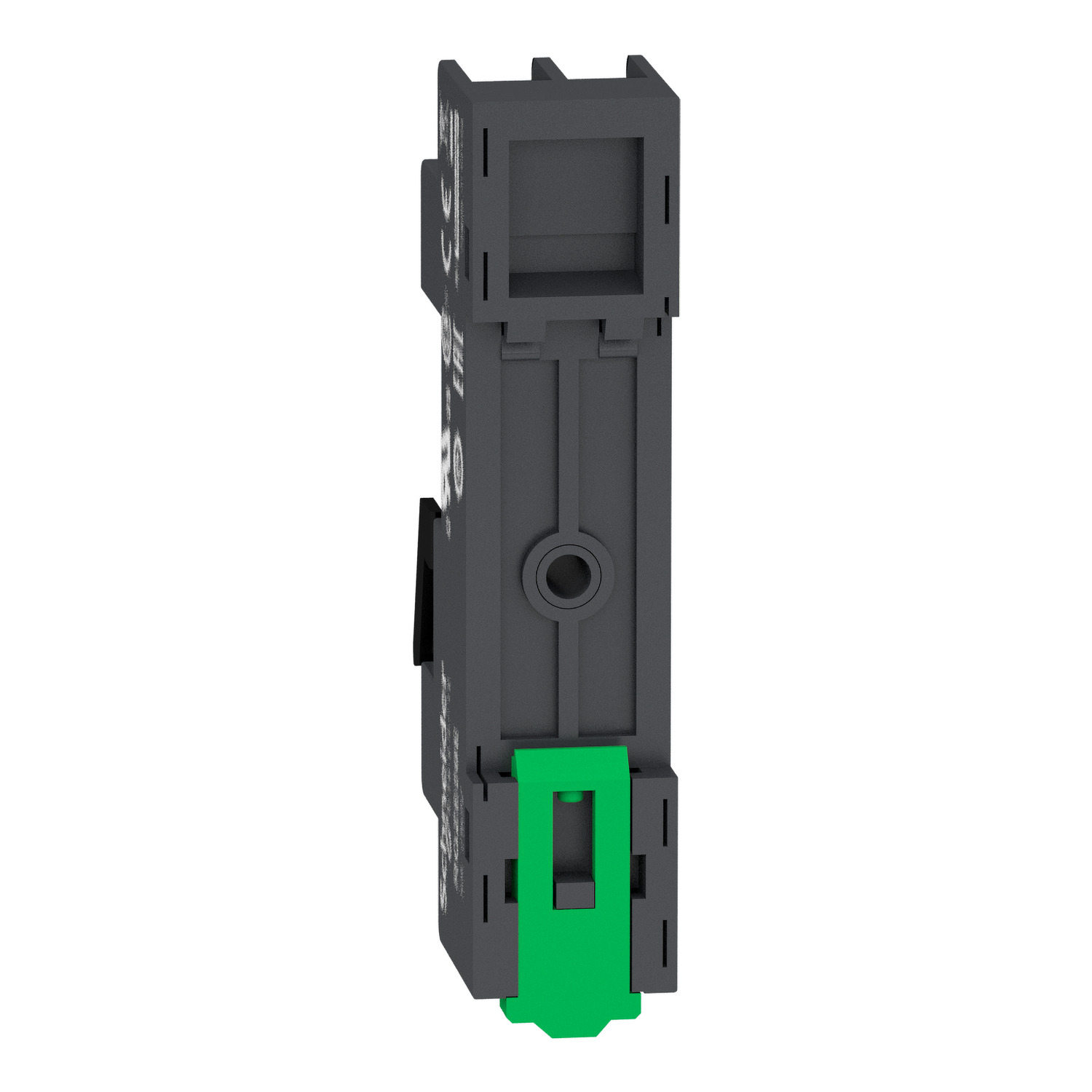

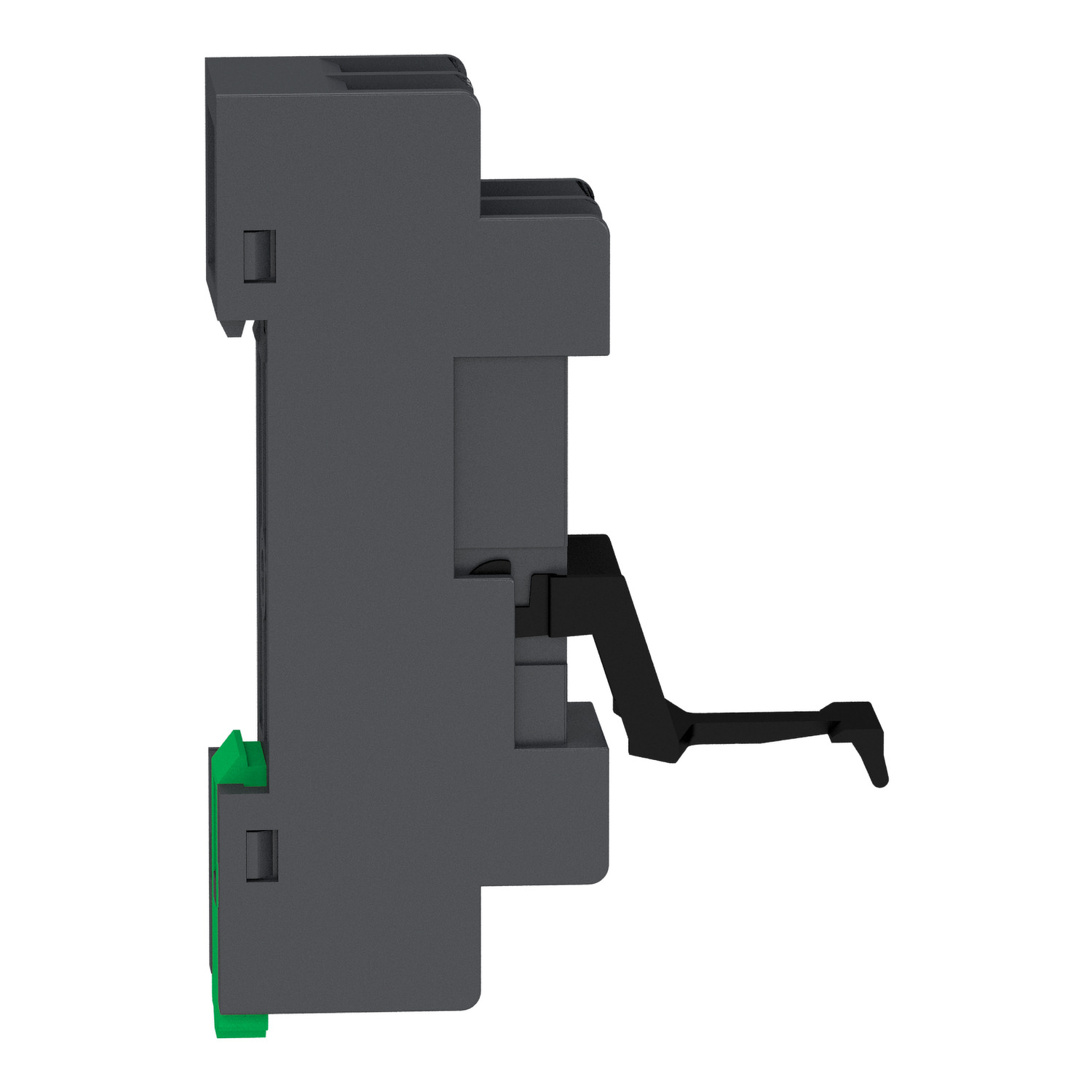

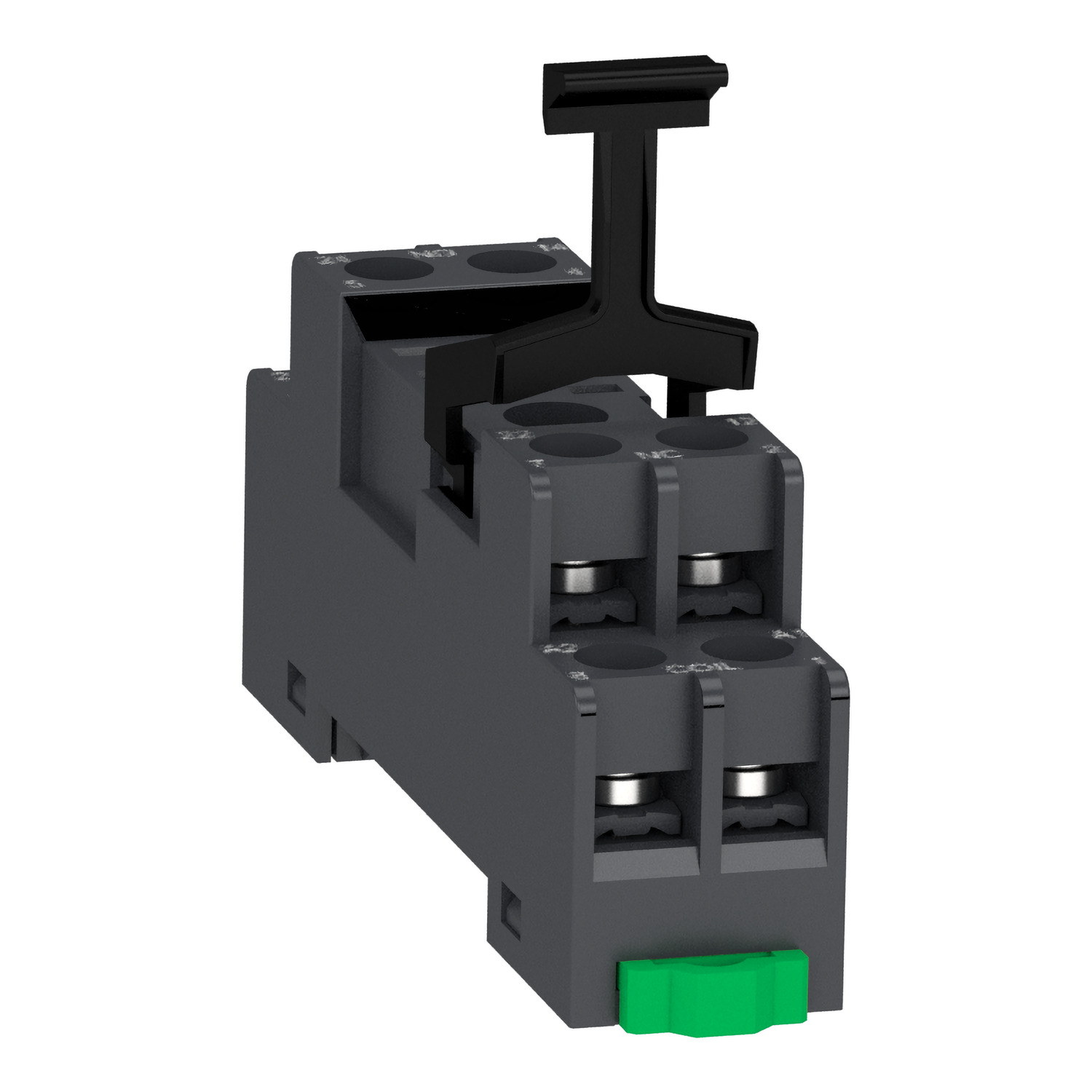

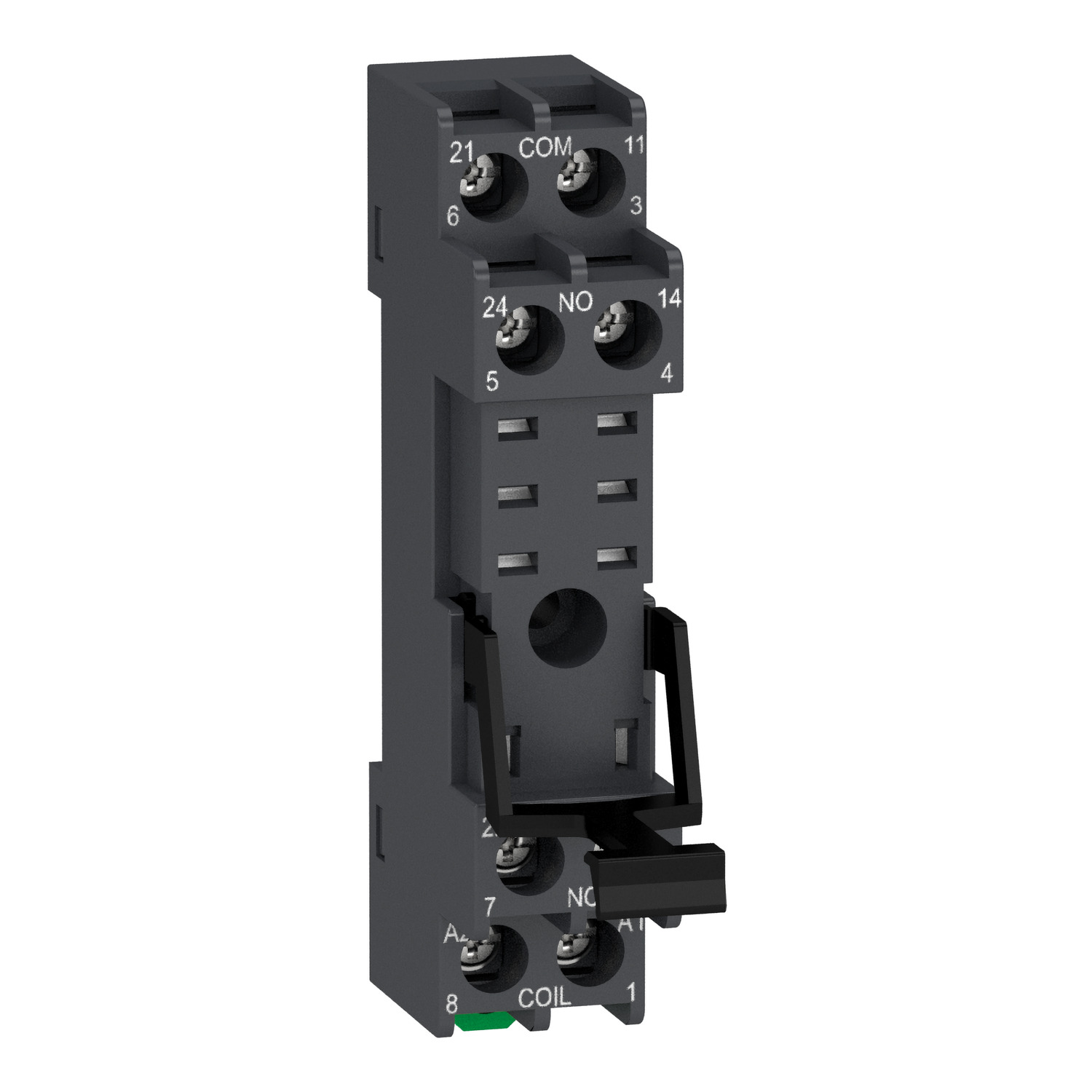

Priza relee electromecanice Harmony, borne cu surub, pentru relee RXG2, 5A, terminal de contact mixt
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | 16 mm |
| Height | 50.2 mm |
| Depth | 69.6 mm |
| Model/type | |
| Number of pins | 8 |
| With detachable clamps | Yes |
| Connection | |
| Type of electric connection | Screw connection |
| Options | |
| Function extension possible | No |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Package 1 | |
| volume | 42 cm3 |
| weight | 25 g |
| length | 7,5 cm |
| width | 3,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481465719 |
| Package 2 | |
| volume | 514,8 cm3 |
| weight | 280 g |
| length | 16,5 cm |
| width | 7,8 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481465716 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 10,608 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 360 |
| qmin | 360 |
| um | CT |
| gtin | 43606481465717 |
