Descriere

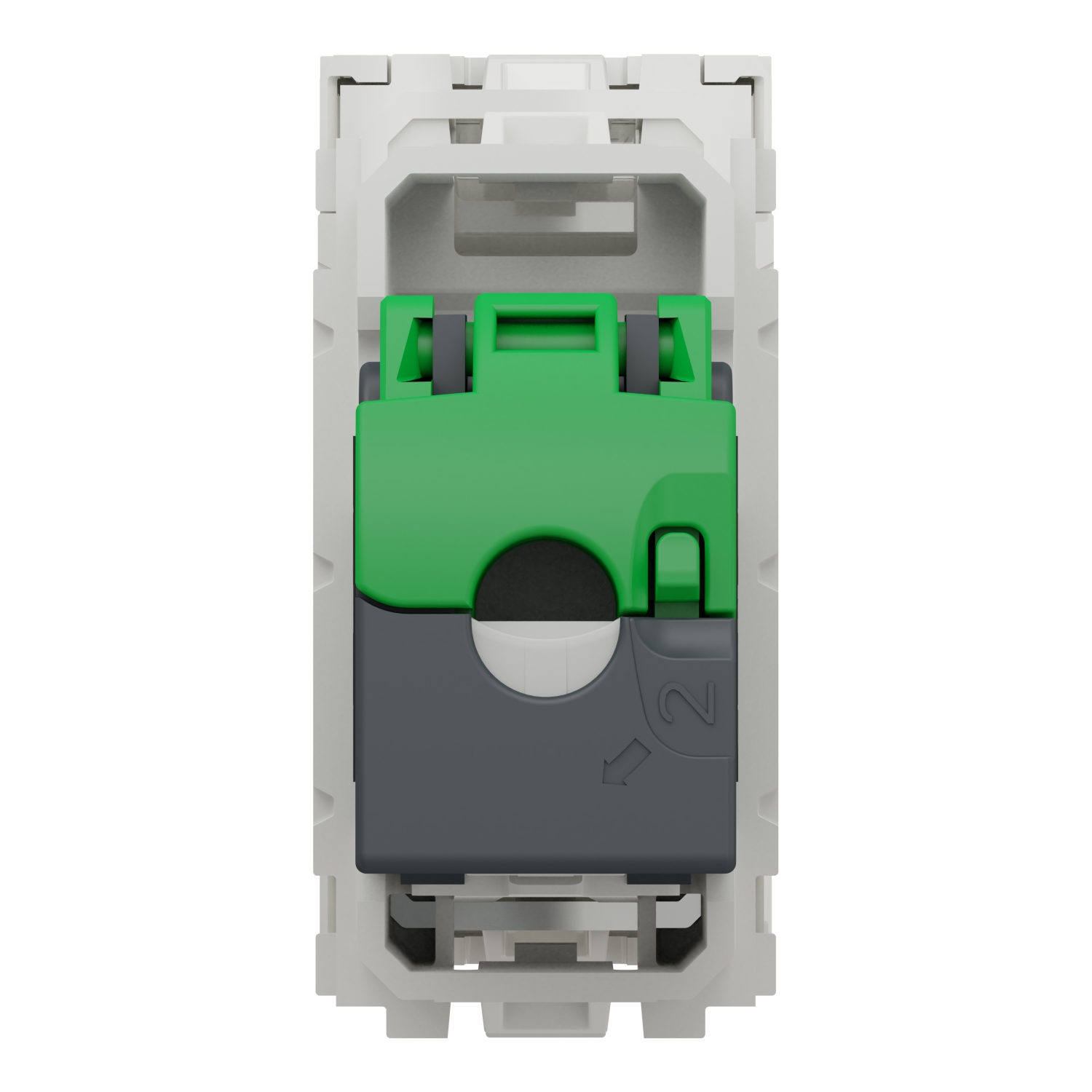

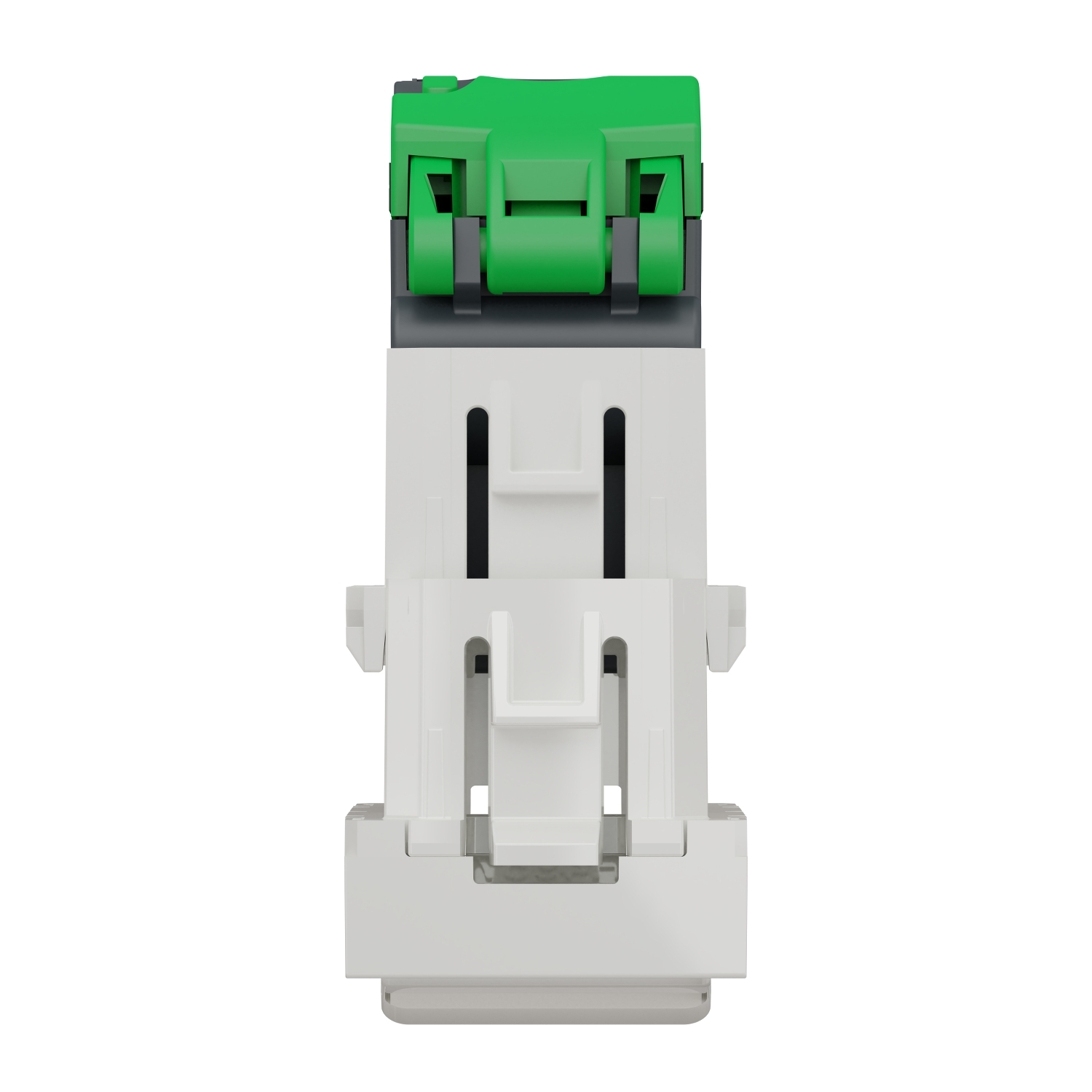

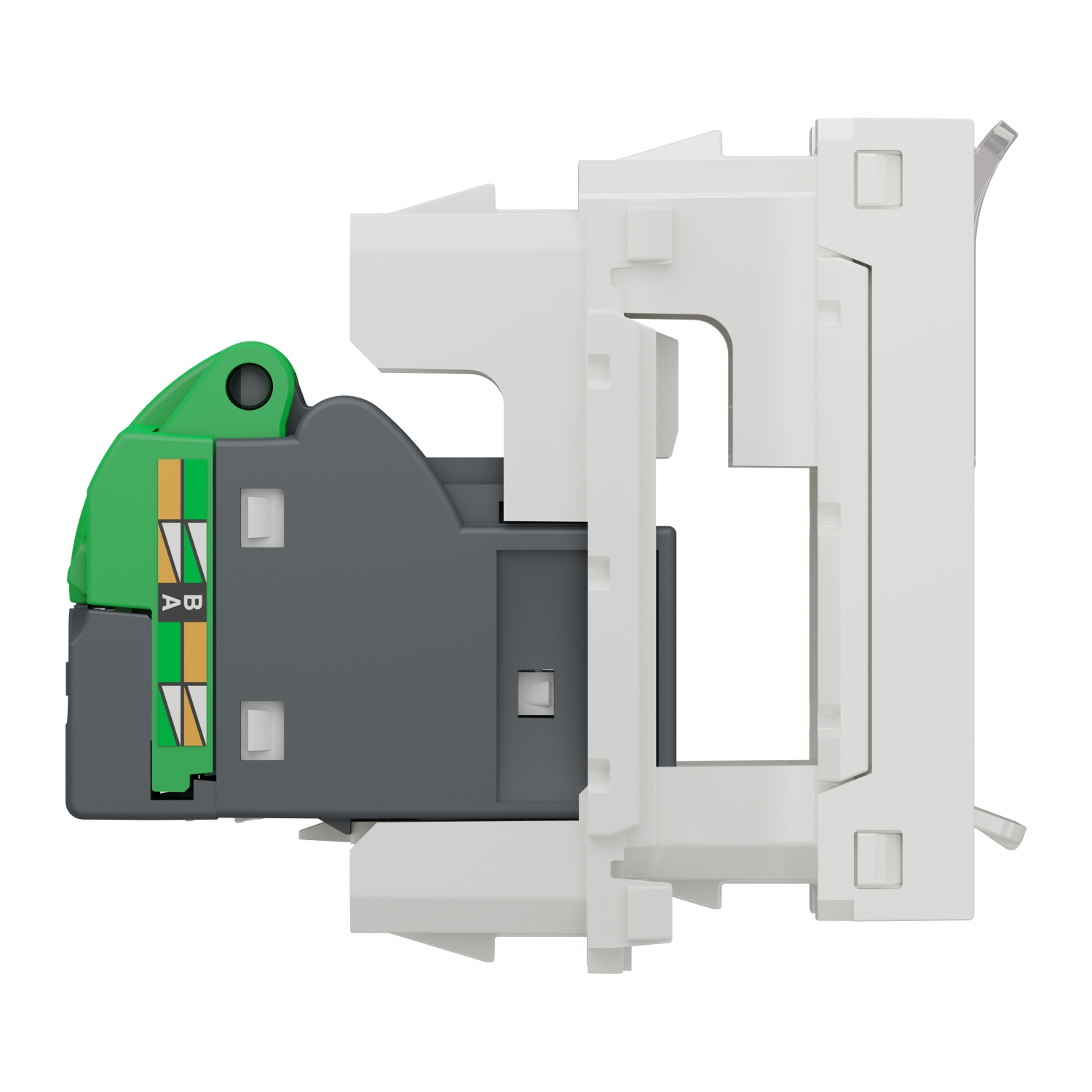

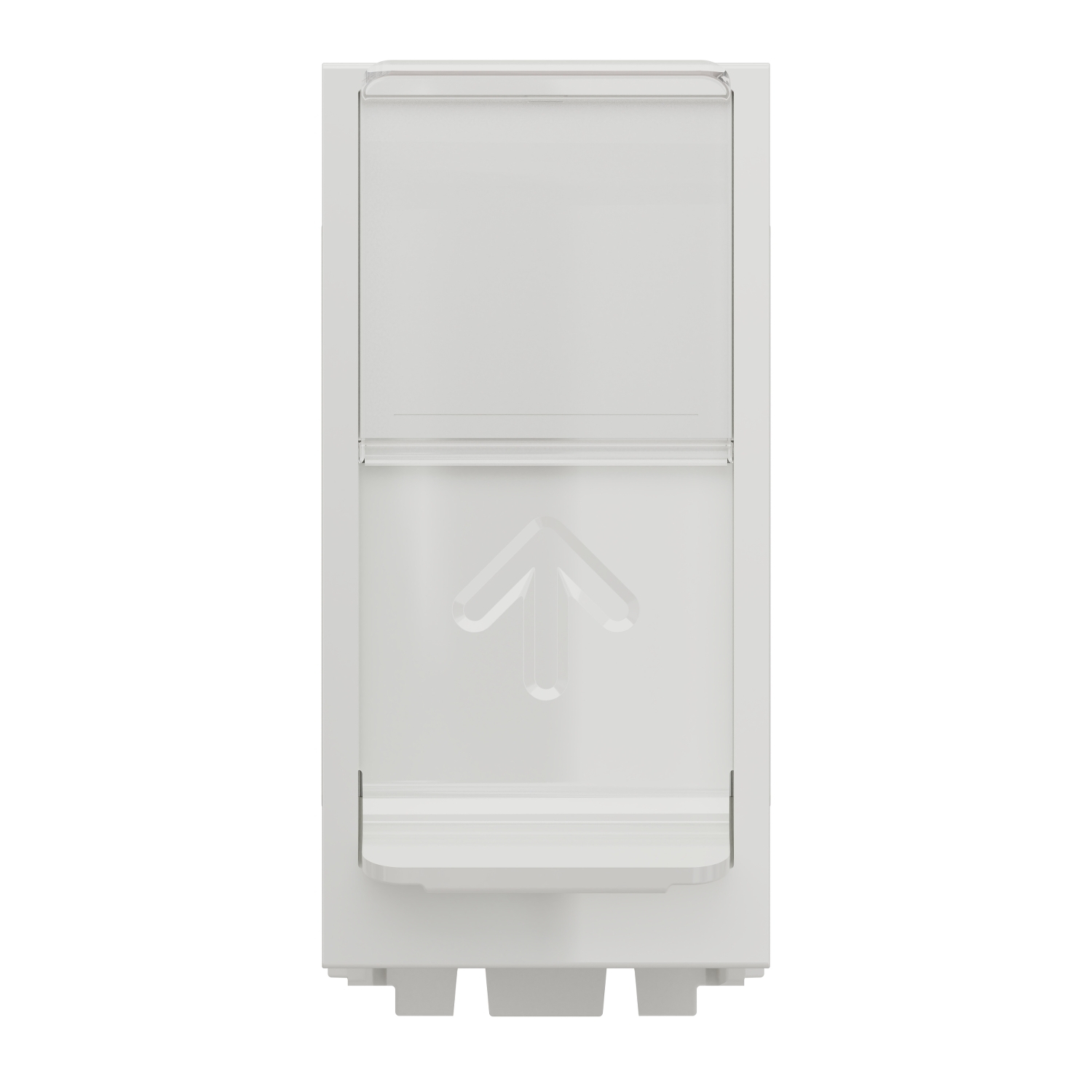

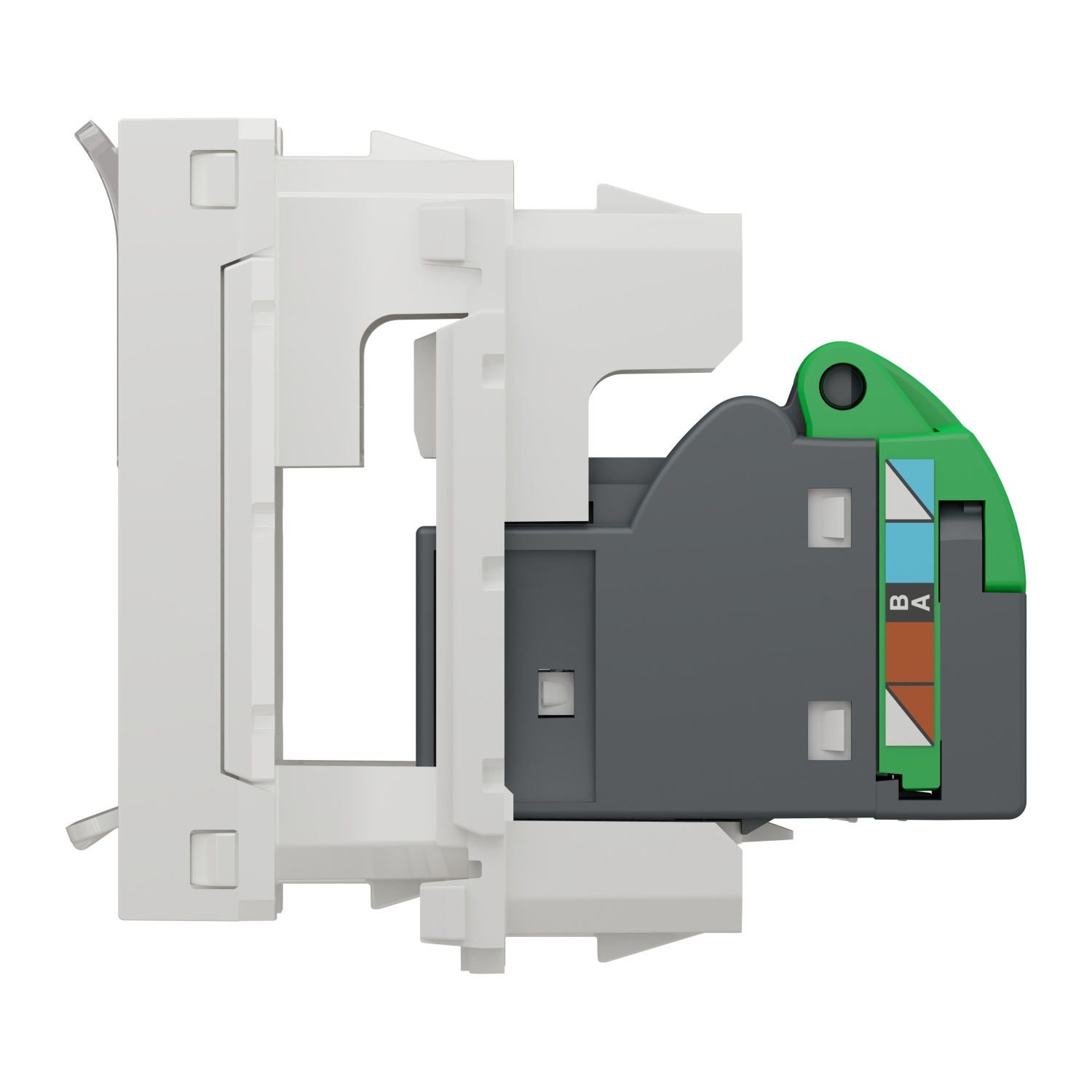

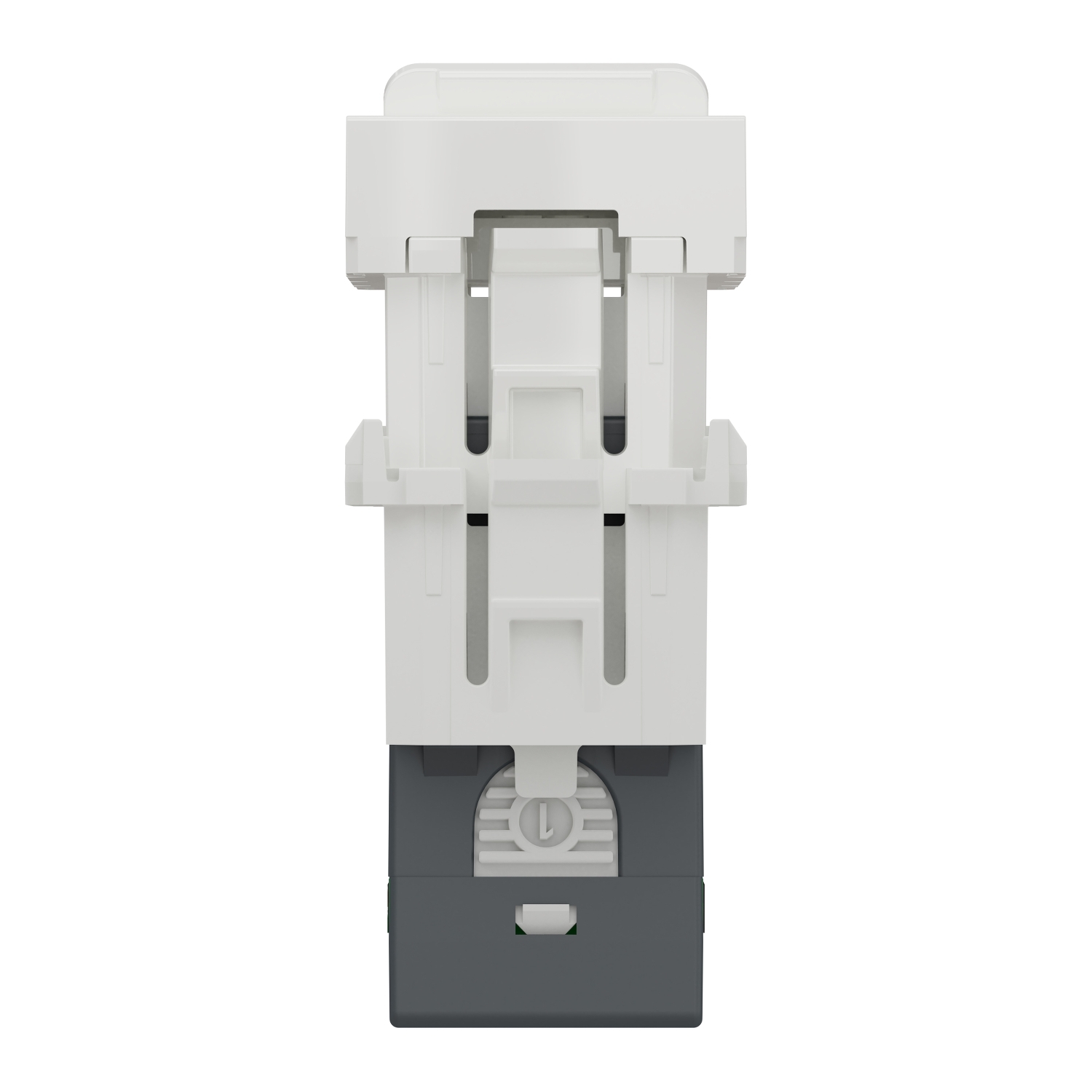

Noua Unica, Priza RJ45, CAT5 STP, 1m, alb
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | No |
| Suitable for number of connectors | 1 |
| Model/type | |
| Mounting method shielding connection | Clip |
| Number of modules (module system) | - |
| With terminal resistor | - |
| With label space | Yes |
| With dust cover | Yes |
| Assembly arrangement | Modular device for domestic switching devices |
| With buses/couplings | Yes |
| Measurements | |
| Device depth | 40.5 mm |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Options | |
| Mechanical coding | No |
| Shielded buses | Yes |
| Shielded housing | Yes |
| Compatible with third-party covers | Yes |
| Separate strain relief | Yes |
| Colour | |
| RAL-number | 9003 |
| Colour | White |
| Colour coding | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Engage (snap) |
| Floor box/subfloor mounted | No |
| Flush-mounted installation | - |
| Surface mounting | No |
| Other | |
| Category | 5E |
| Outlet direction | Straight |
| Package 1 | |
| volume | 42,435 cm3 |
| weight | 38 g |
| length | 2,3 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489466893 |
| Package 2 | |
| volume | 1485 cm3 |
| weight | 477 g |
| length | 27 cm |
| width | 10 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606489466890 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 1,154 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43606489466891 |
| Package 4 | |
| weight | 44,928 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 640 |
| qmin | 640 |
| um | PF |
