Descriere

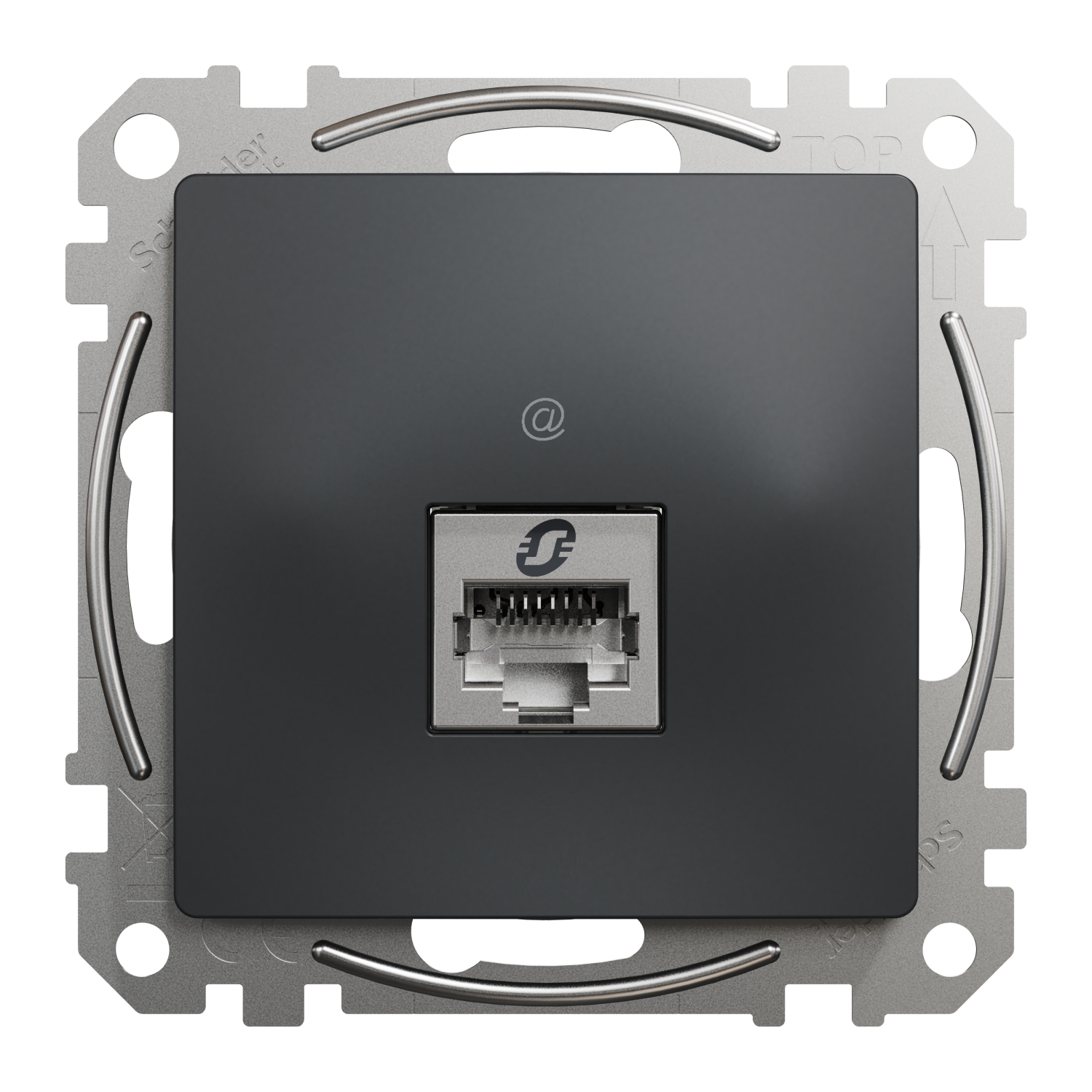

Sedna Design, Priza RJ45 Cat6 STP, antracit
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | No |
| Suitable for number of connectors | 1 |
| Model/type | |
| Mounting method shielding connection | None |
| Number of modules (module system) | - |
| With terminal resistor | No |
| With label space | No |
| With dust cover | No |
| Assembly arrangement | Basic element with central cover plate |
| With buses/couplings | Yes |
| Measurements | |
| Device depth | 35 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Options | |
| Mechanical coding | No |
| Shielded buses | Yes |
| Shielded housing | No |
| Compatible with third-party covers | Yes |
| Separate strain relief | No |
| Colour | |
| RAL-number | 7021 |
| Colour | Anthracite |
| Colour coding | Yes |
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Other |
| Floor box/subfloor mounted | No |
| Flush-mounted installation | Yes |
| Surface mounting | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Category | 6 |
| Outlet direction | Straight |
| Package 1 | |
| volume | 288 cm3 |
| weight | 81 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481467232 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 938 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481467239 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 2,127 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 23606481467236 |
| Package 4 | |
| weight | 46,032 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 320 |
| qmin | 320 |
| um | PF |
