Descriere

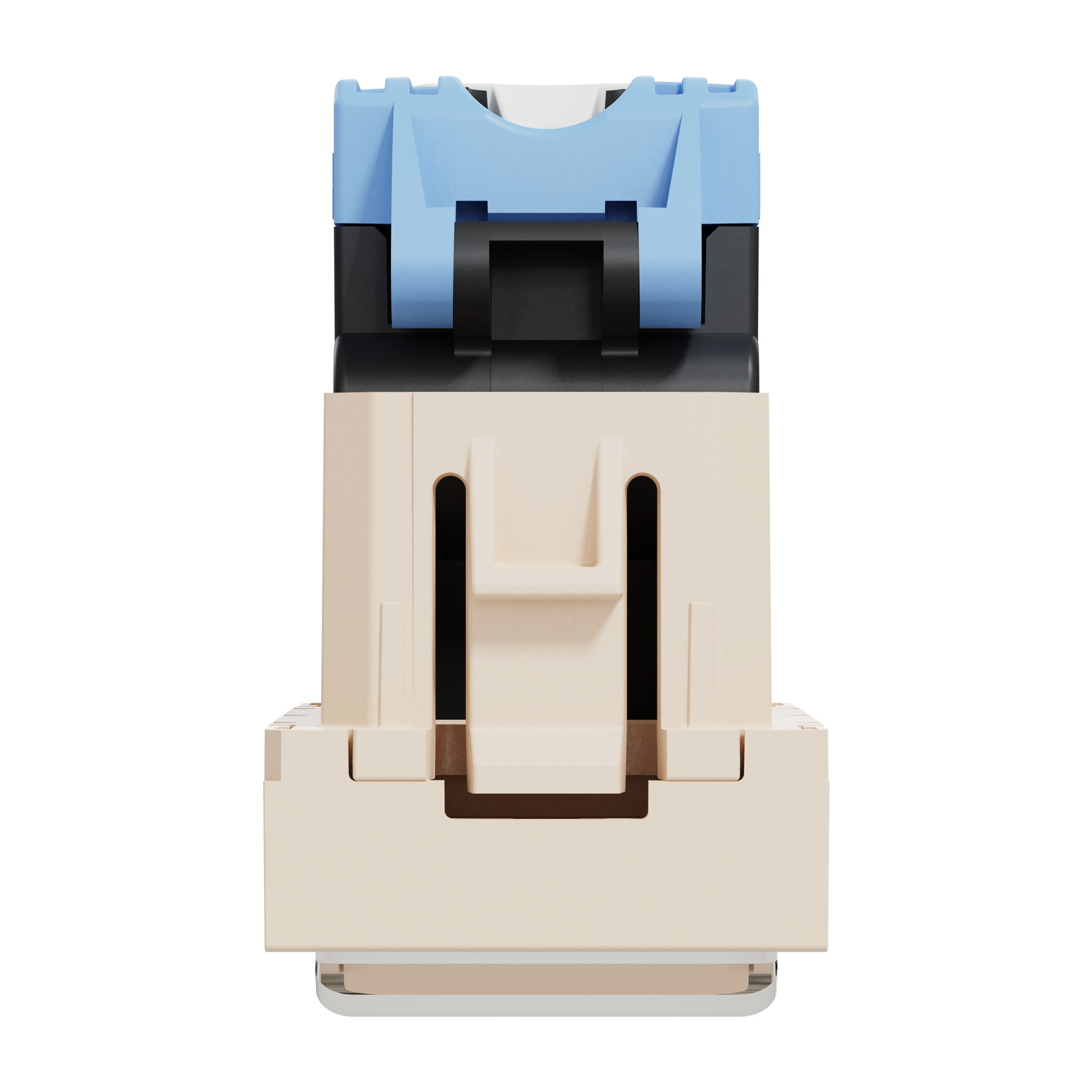

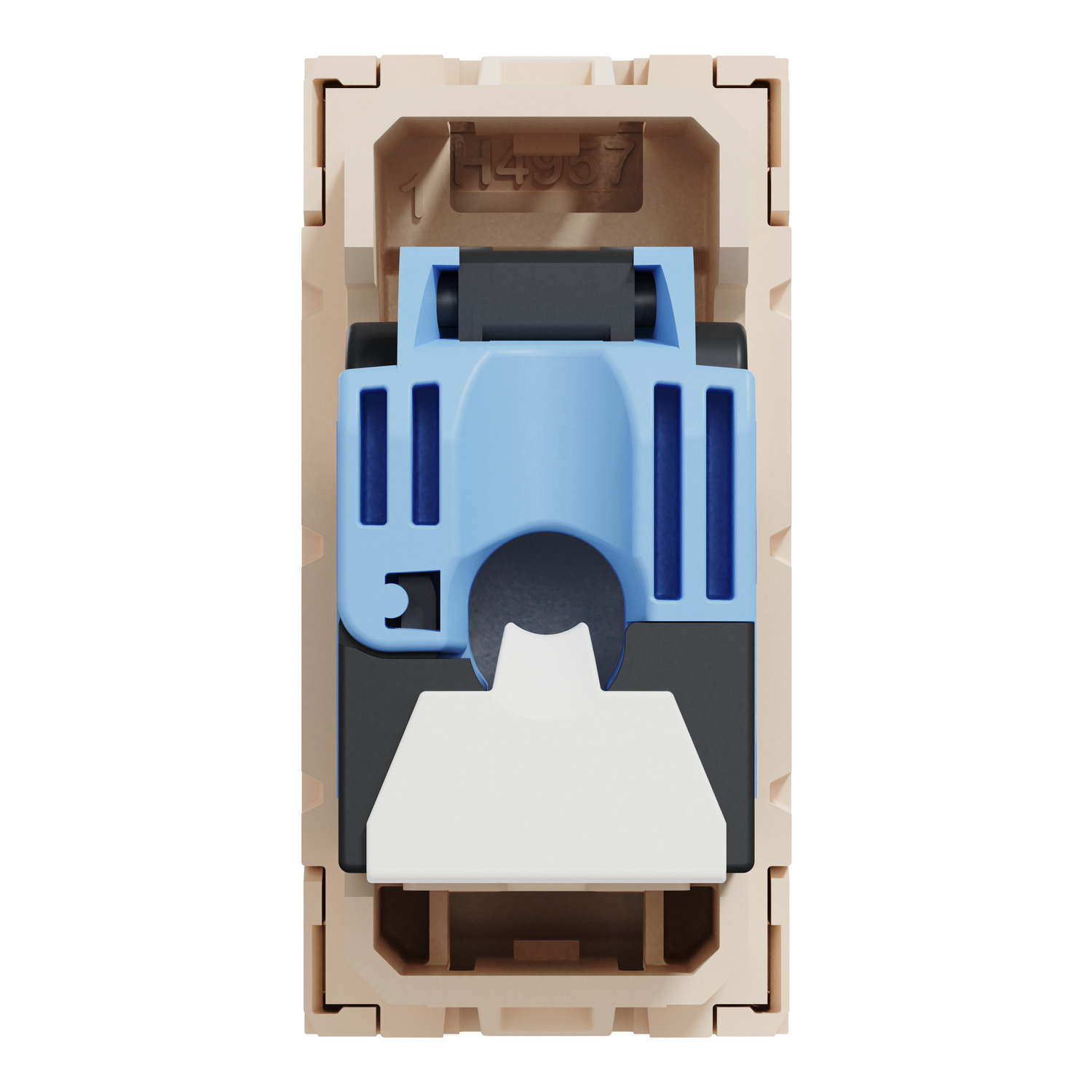

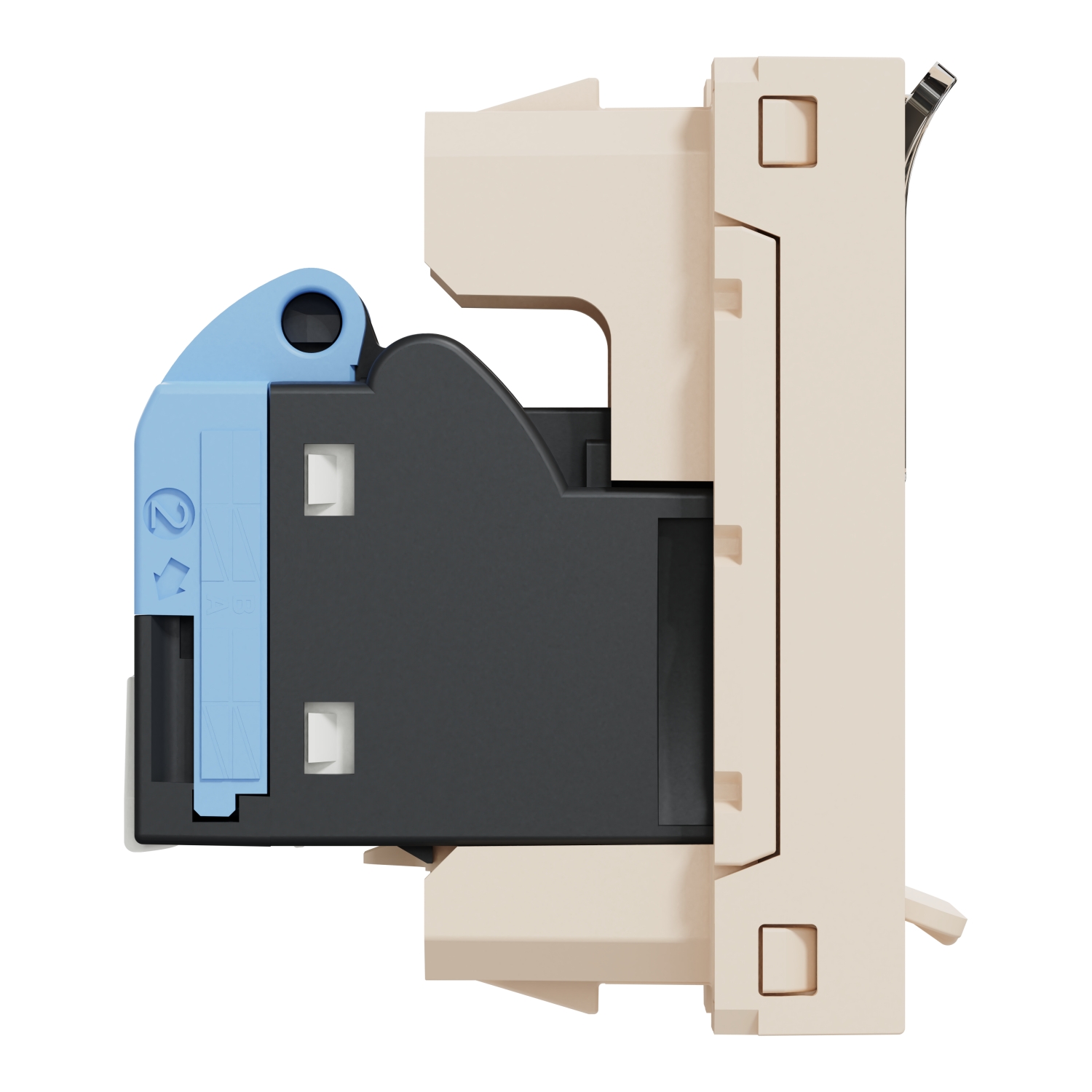

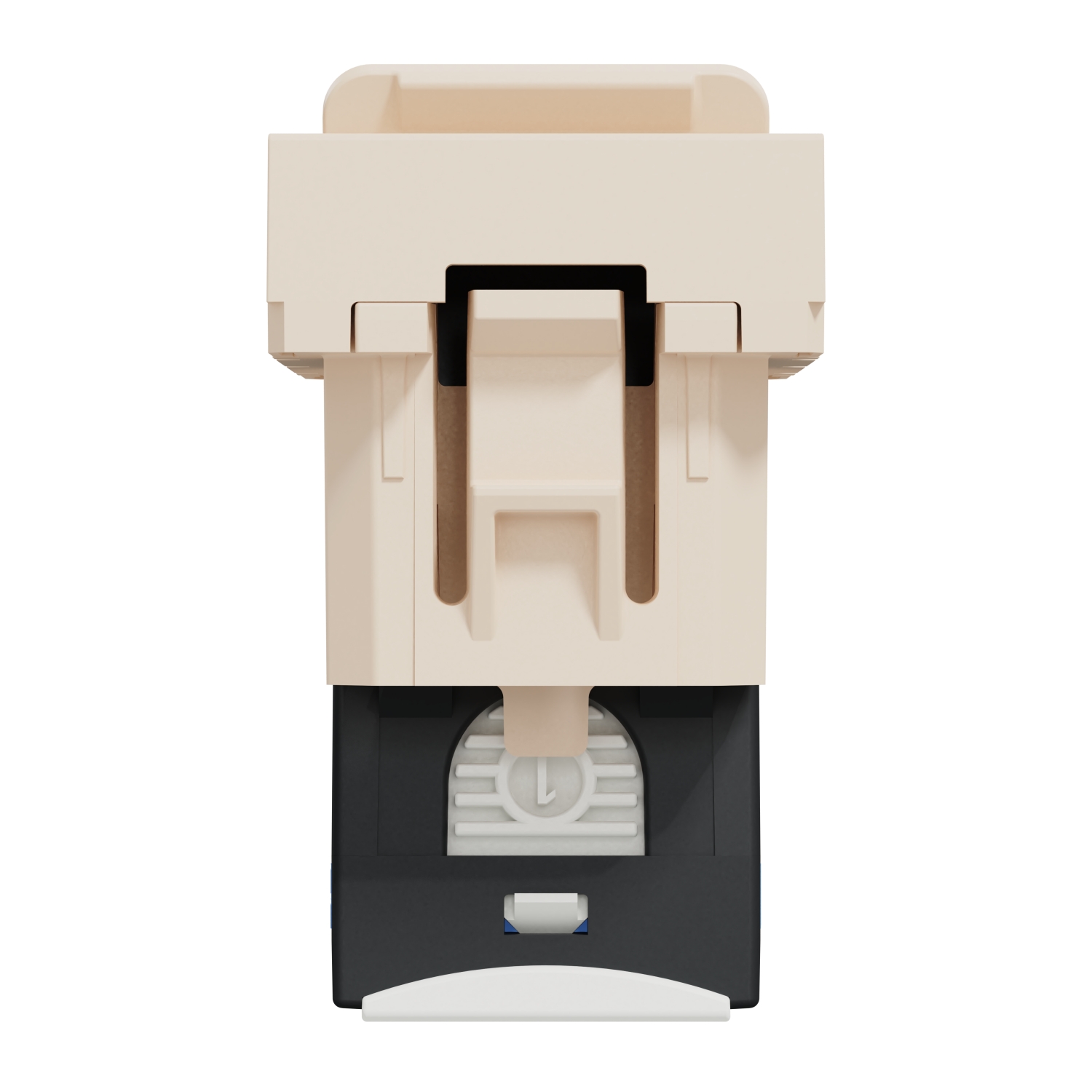

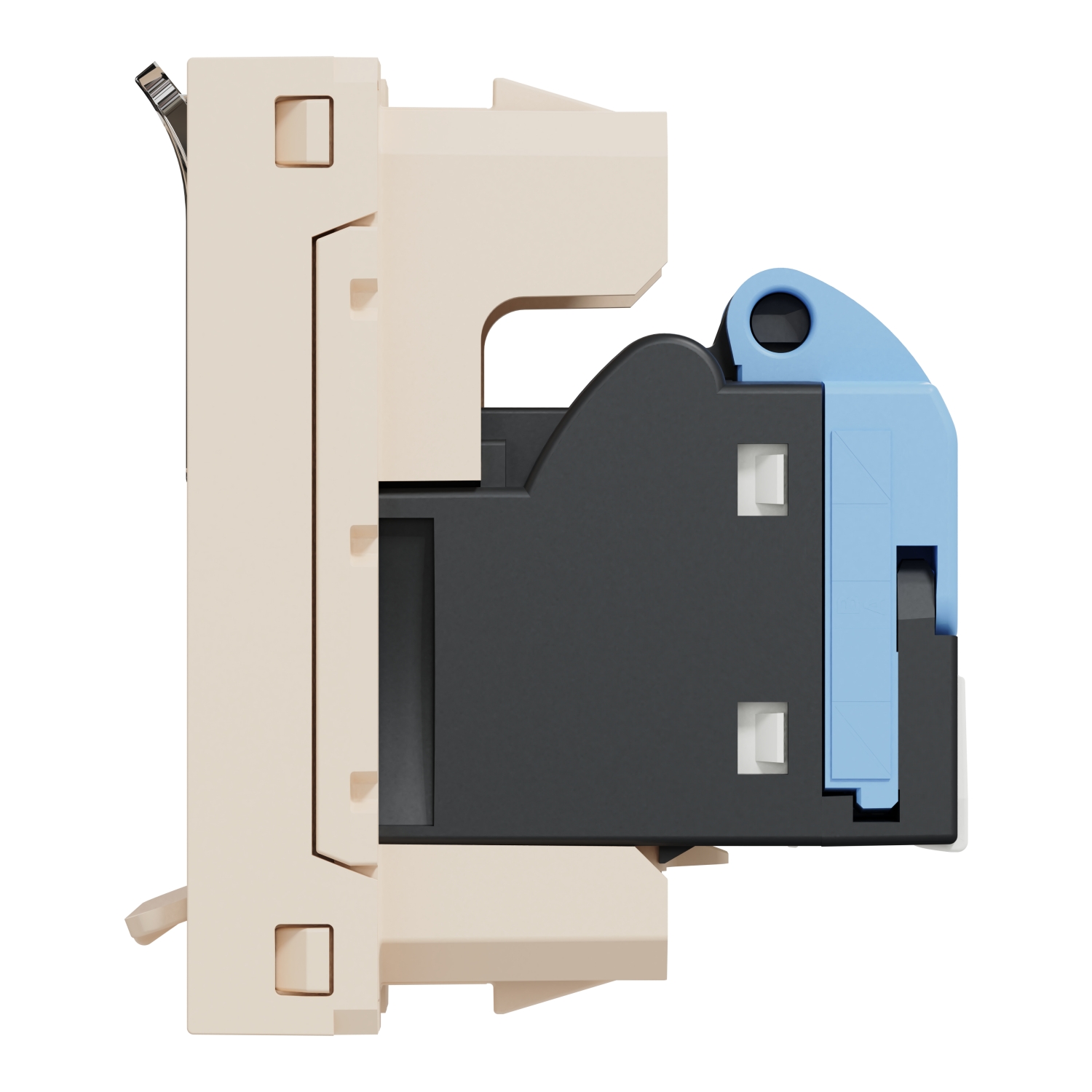

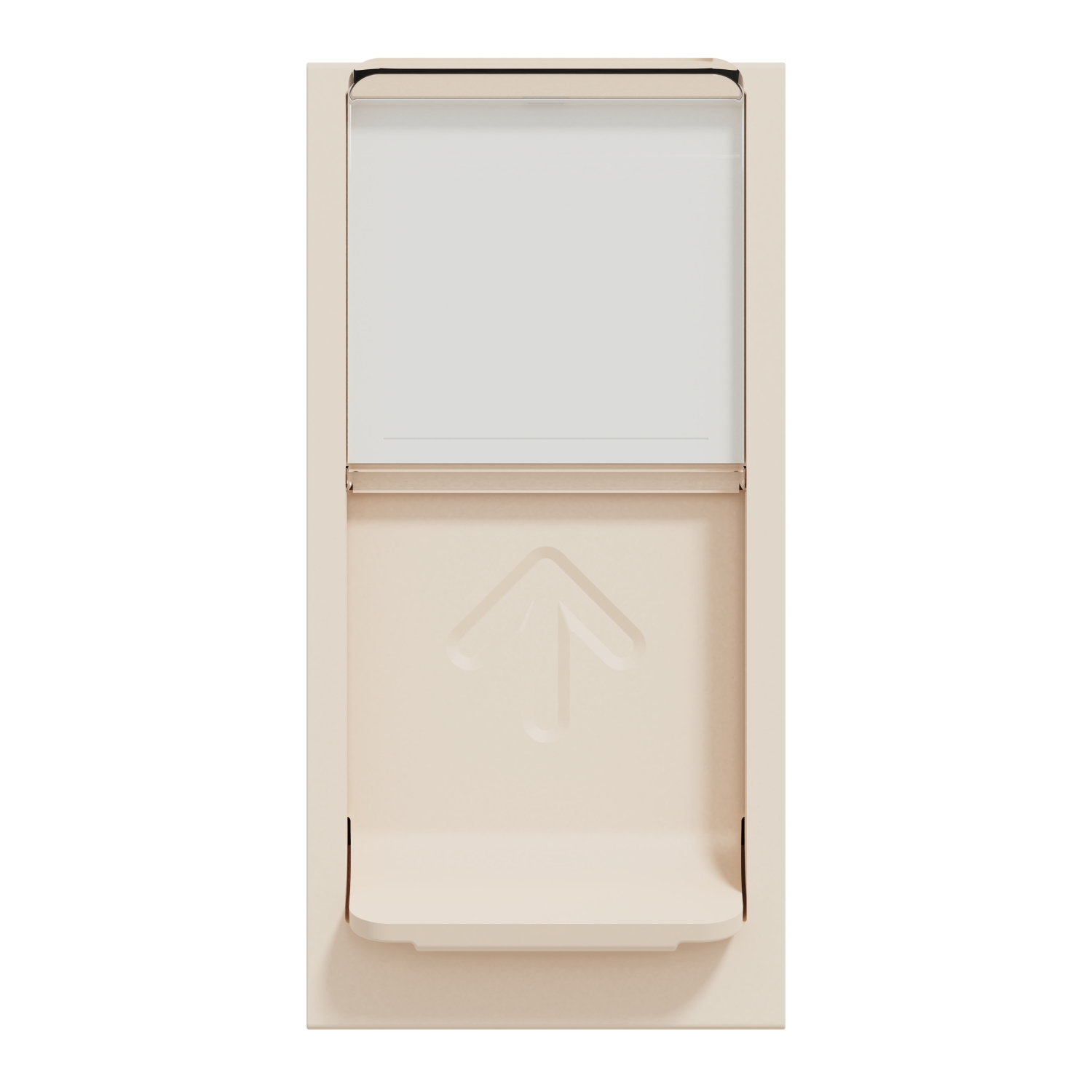

Noua Unica, Priza RJ45, CAT6 UTP, 1m, bej
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | No |
| Suitable for number of connectors | 1 |
| Model/type | |
| Mounting method shielding connection | Clip |
| Number of modules (module system) | 1 |
| With terminal resistor | No |
| With label space | Yes |
| With dust cover | Yes |
| Assembly arrangement | Modular device for domestic switching devices |
| With buses/couplings | Yes |
| Measurements | |
| Device depth | 40.5 mm |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Options | |
| Mechanical coding | No |
| Shielded buses | No |
| Shielded housing | No |
| Compatible with third-party covers | Yes |
| Separate strain relief | Yes |
| Colour | |
| RAL-number | 1013 |
| Colour | Beige |
| Colour coding | Yes |
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Engage (snap) |
| Floor box/subfloor mounted | No |
| Flush-mounted installation | Yes |
| Surface mounting | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Category | 6 |
| Outlet direction | Straight |
| Package 1 | |
| volume | 39,375 cm3 |
| weight | 16 g |
| length | 4,5 cm |
| width | 3,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481955142 |
| Package 2 | |
| volume | 2262 cm3 |
| weight | 237 g |
| length | 26 cm |
| width | 14,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481955149 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 2,751 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 23606481955146 |
| Package 4 | |
| weight | 30,008 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 800 |
| qmin | 800 |
| um | PF |
