Descriere

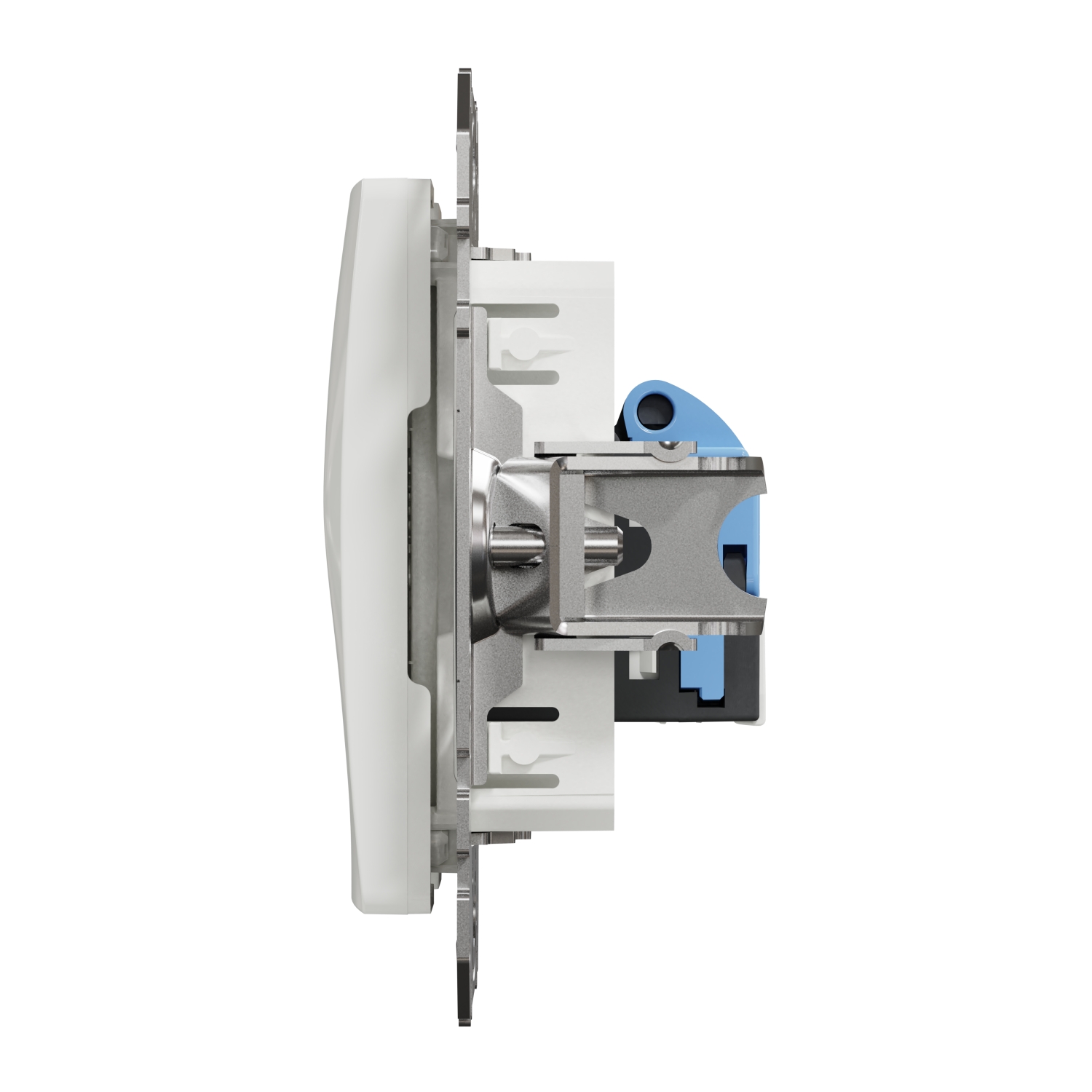

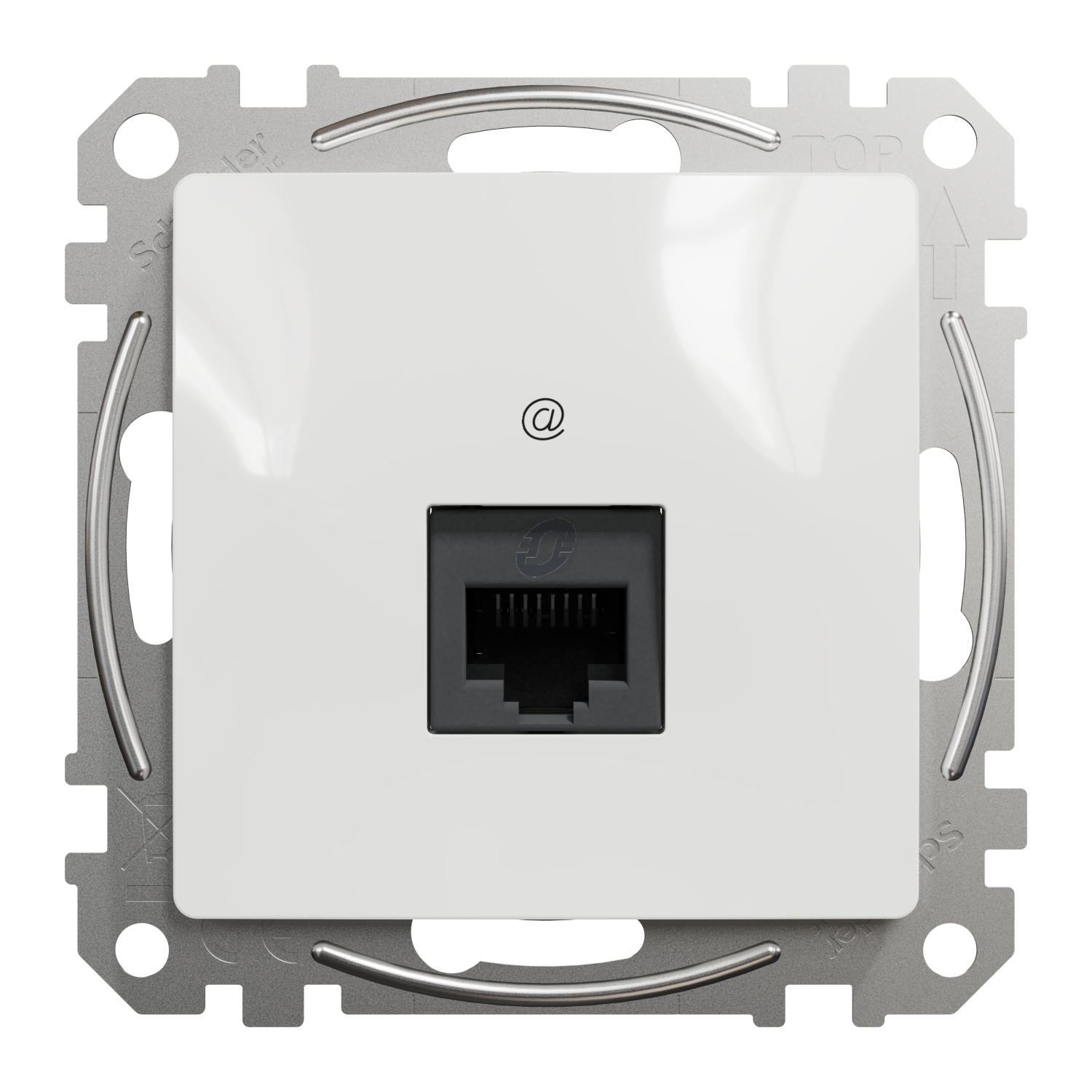

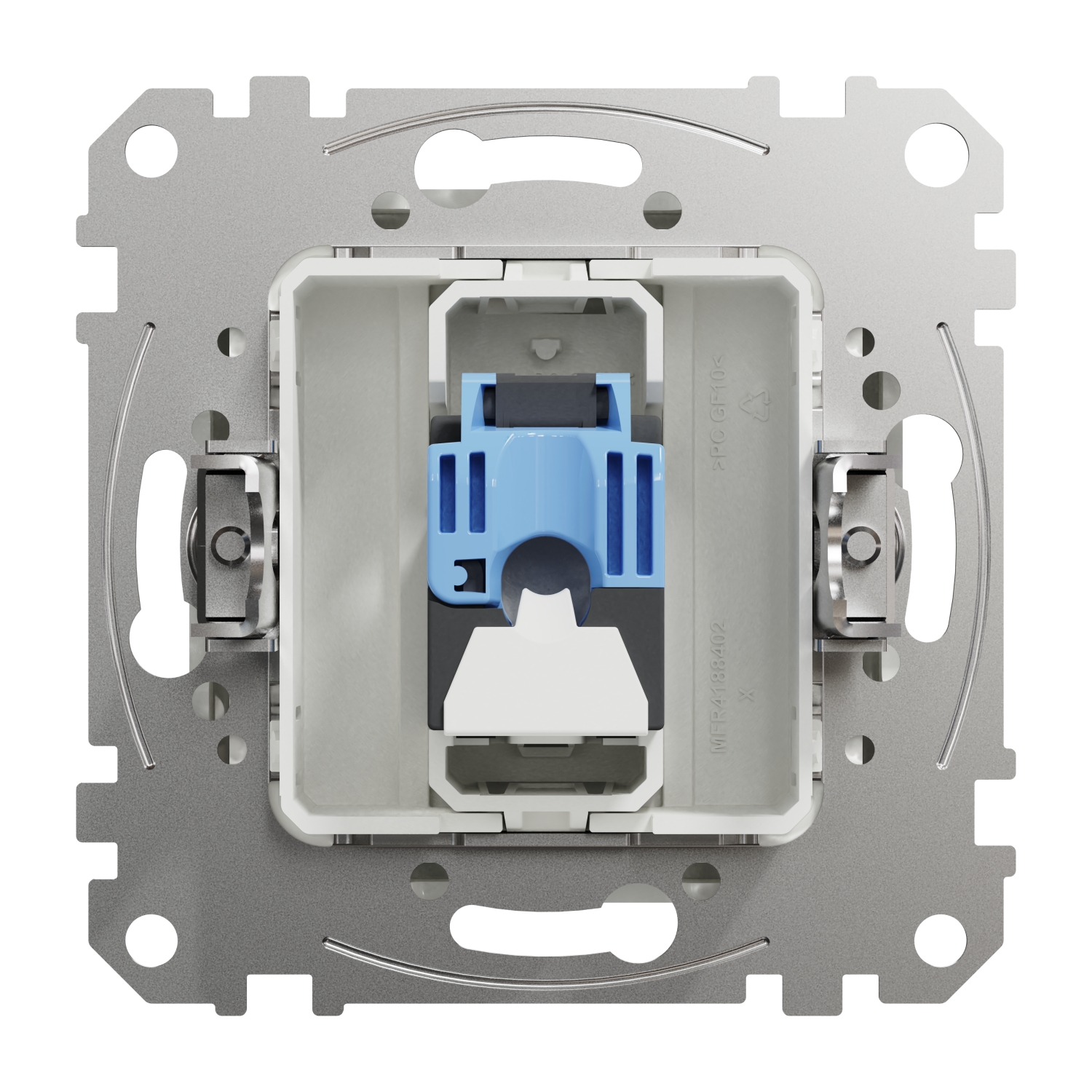

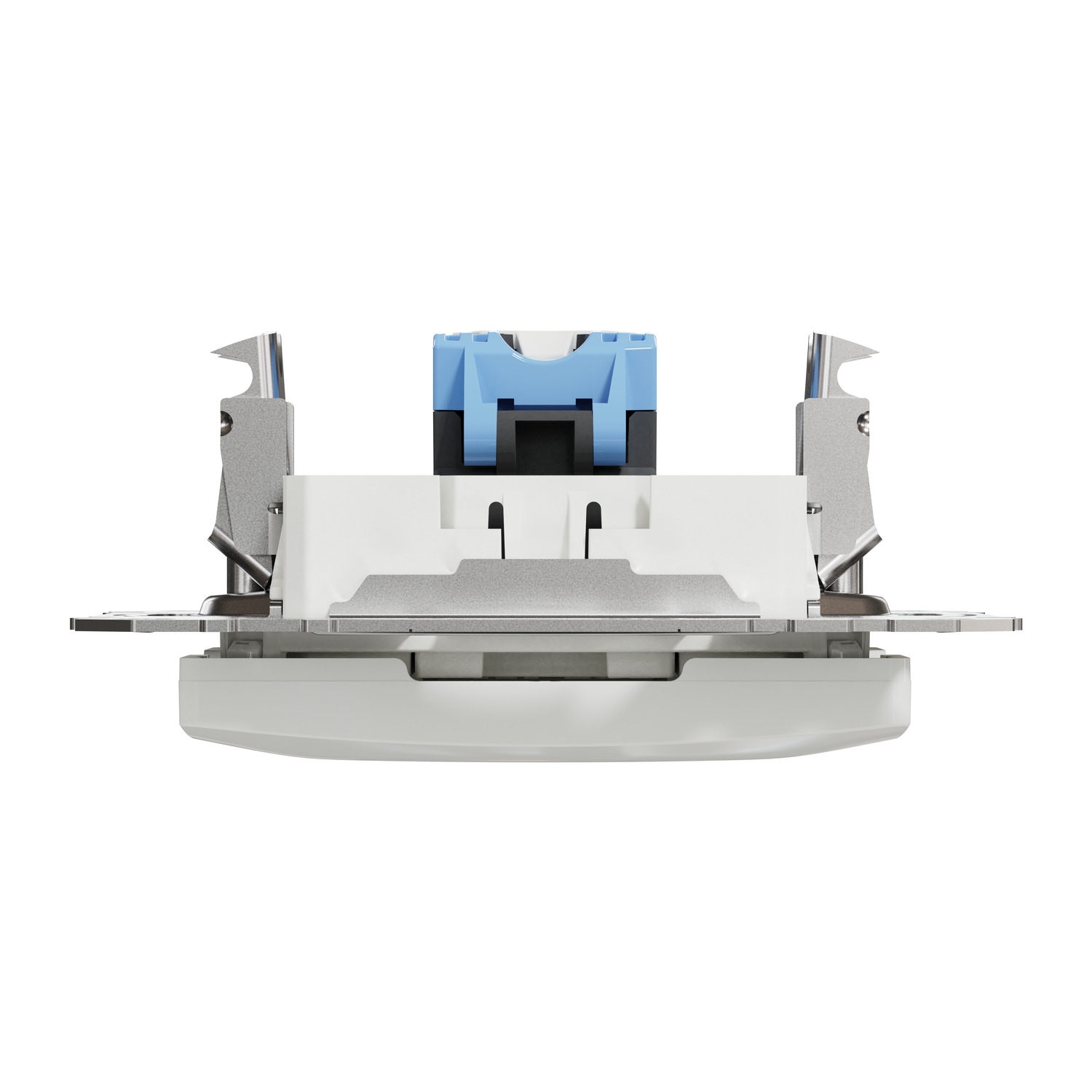

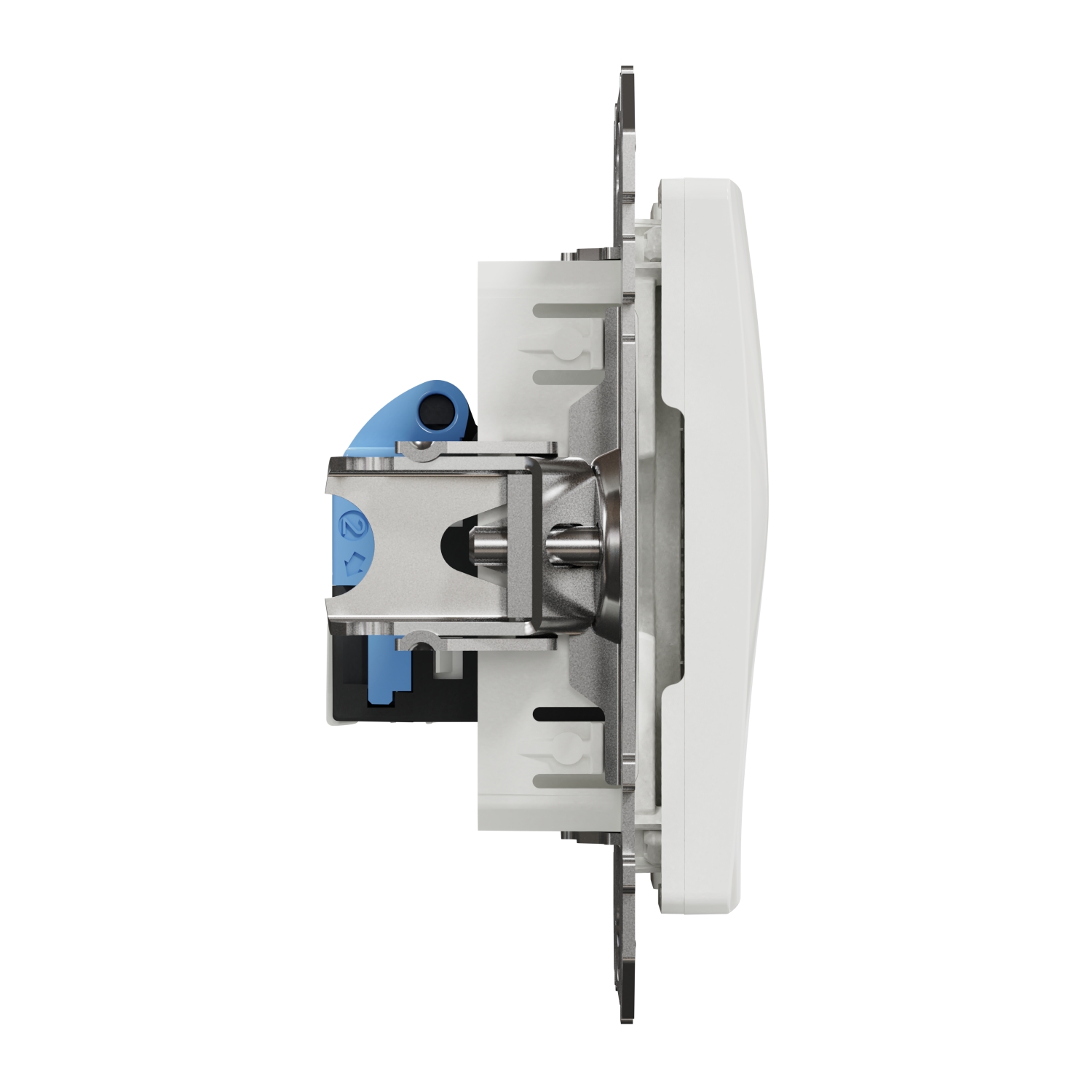

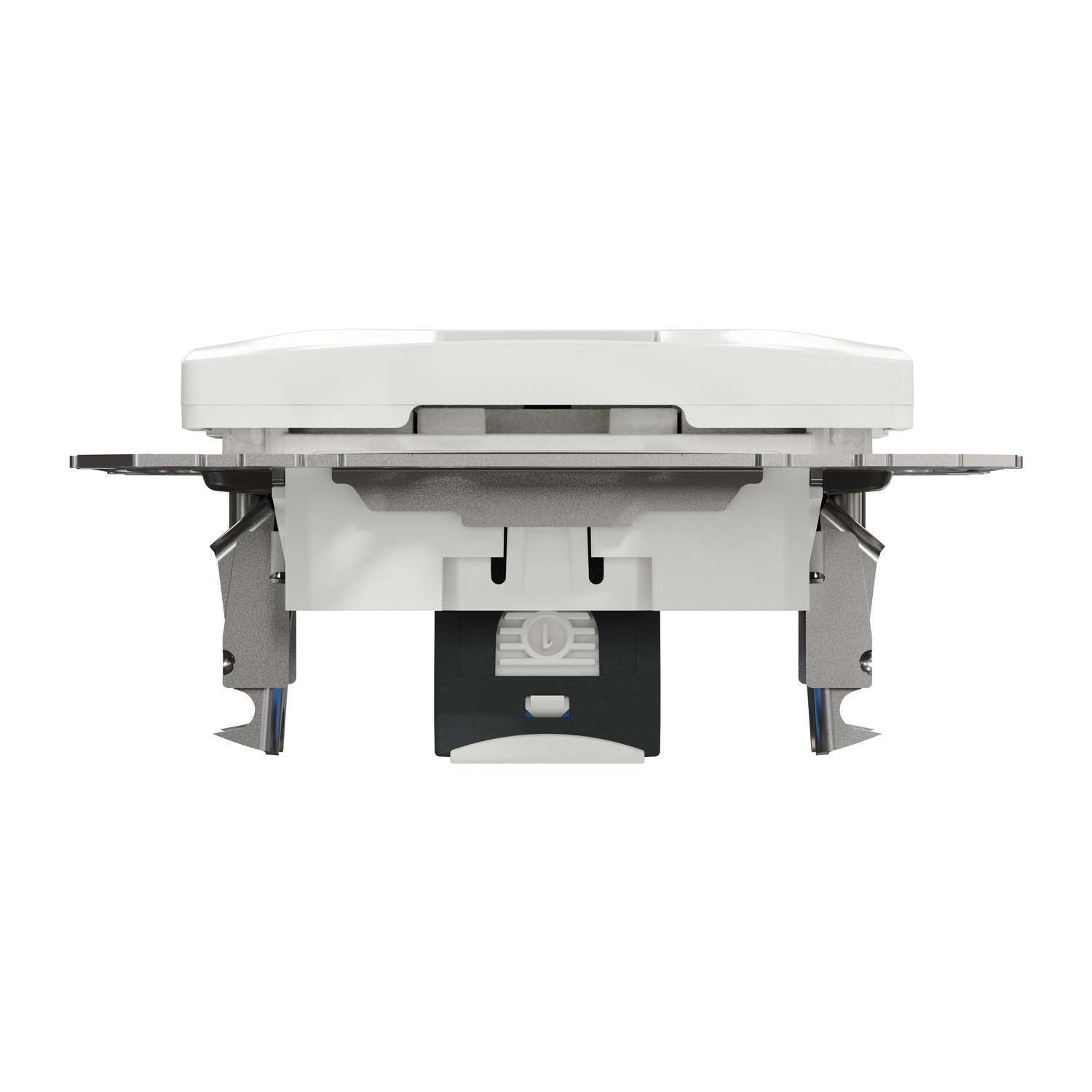

Priza de date Sedna Design Elements de la Schneider Electric este un mecanism cu rama de fixare si placa de acoperire in scopuri de comunicare. Este prevazut cu priza de date RJ45 de categoria 6 UTP(pereche torsadata, neecranata). Cutia de montaj potrivita poate fi infundata pe suprafata peretelui cu incastrare. Dimensiunile produsului sunt (W) 73mm x (H) 73mm x (D) 35mm. Este fabricat din ABS-UV termoplastic stabilizat. Culoarea produsului este alb (RAL 9003) cu finisaj lucios de suprafata. Temperatura ambianta pentru functionare este de la -25°C pana la +55°C. Acesta atinge gradul de protectie IP20. Sedna Design Elements este o noua generatie de comutatoare electrice inspirate de moda bspandnbspinterior design. Cu linii moderne care reflecta tendintele de astazi si o estetica rafinata, nbspSedna este mai mult decat un gand ulterior. Sedna Design Elements merge chiar mai departe in ceea ce priveste ergonomia, usurinta in instalare si utilizare, fiabilitatea si calitatea finisajelor. Produsul este conform cu standardul ISO 8877.
Documente
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | No |
| Suitable for number of connectors | 1 |
| Model/type | |
| Mounting method shielding connection | None |
| Number of modules (module system) | - |
| With terminal resistor | No |
| With label space | No |
| With dust cover | No |
| Assembly arrangement | Basic element with central cover plate |
| With buses/couplings | Yes |
| Measurements | |
| Device depth | 35 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Options | |
| Mechanical coding | No |
| Shielded buses | No |
| Shielded housing | No |
| Compatible with third-party covers | Yes |
| Separate strain relief | No |
| Colour | |
| RAL-number | 9003 |
| Colour | White |
| Colour coding | Yes |
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Other |
| Floor box/subfloor mounted | No |
| Flush-mounted installation | Yes |
| Surface mounting | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Category | 6 |
| Outlet direction | Straight |
| Package 1 | |
| volume | 256 cm3 |
| weight | 58 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481465962 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 703 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481465969 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 9,077 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481465966 |
