Descriere

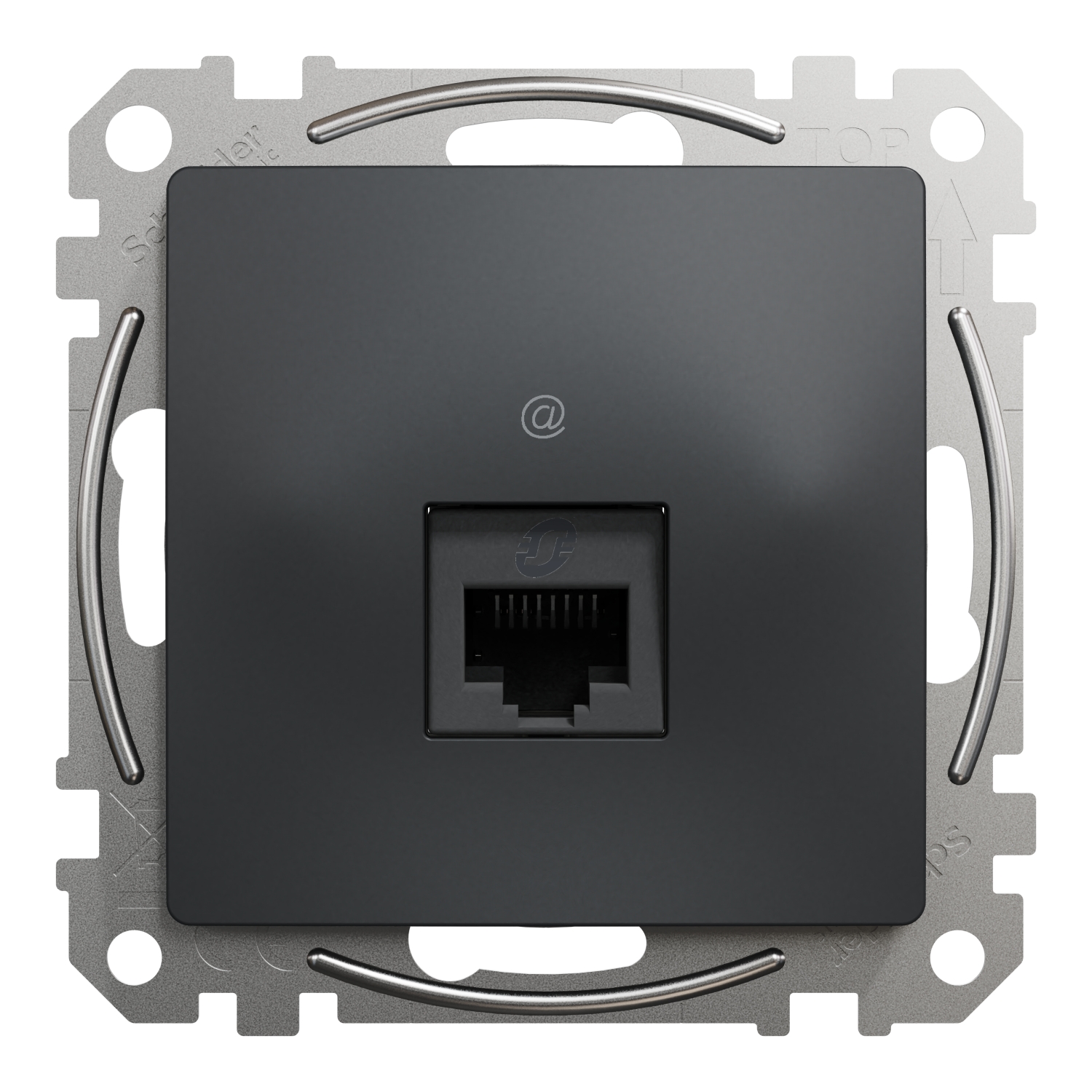

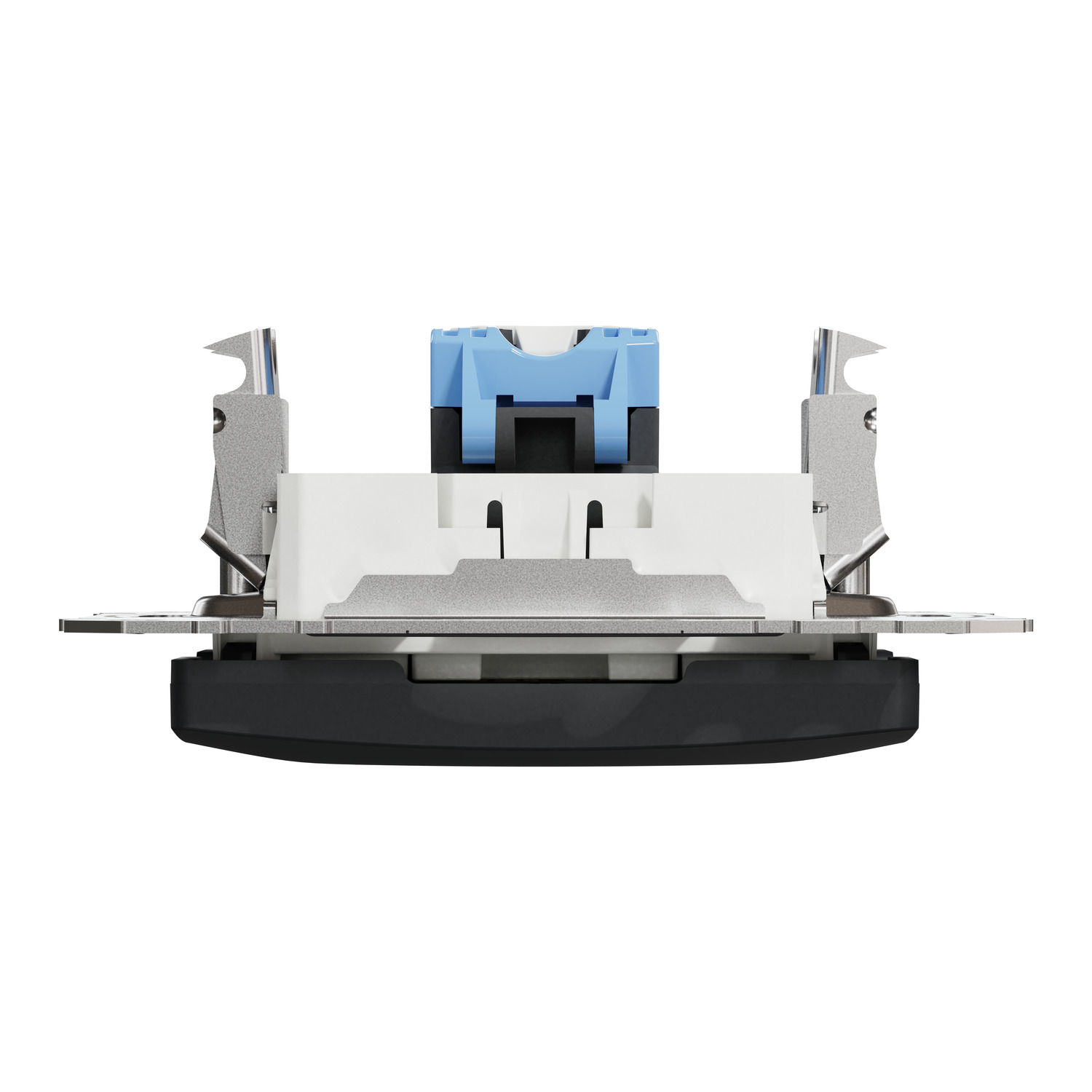

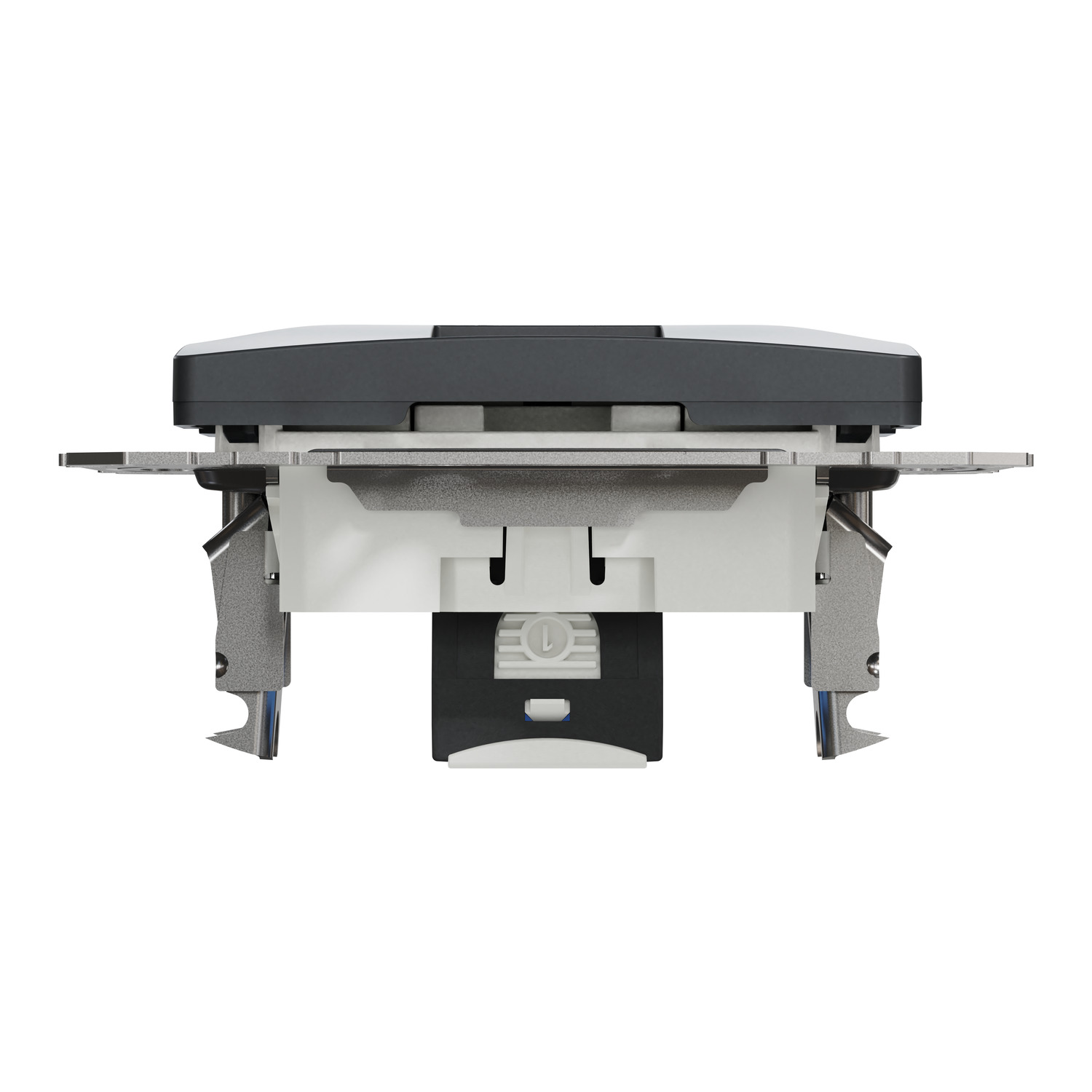

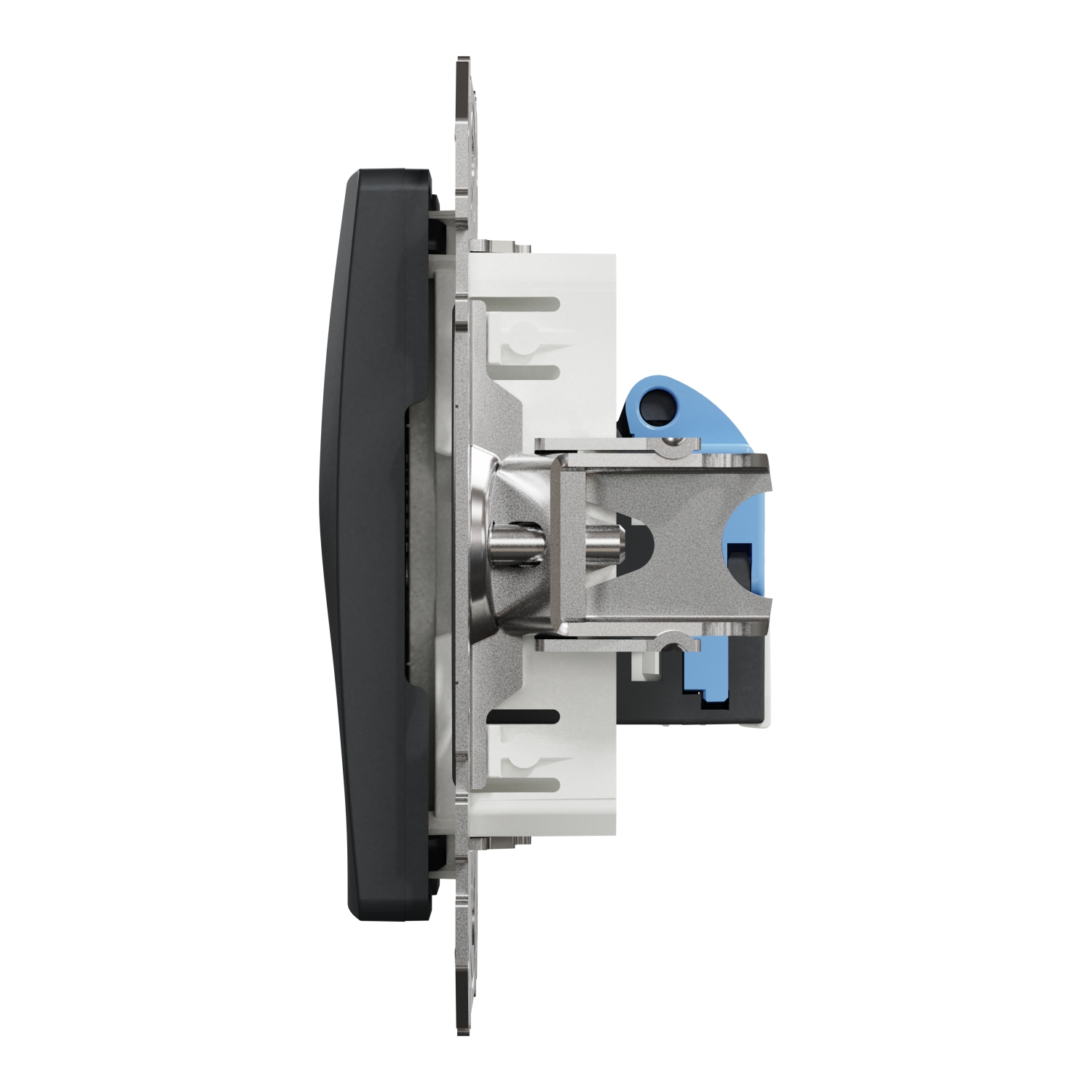

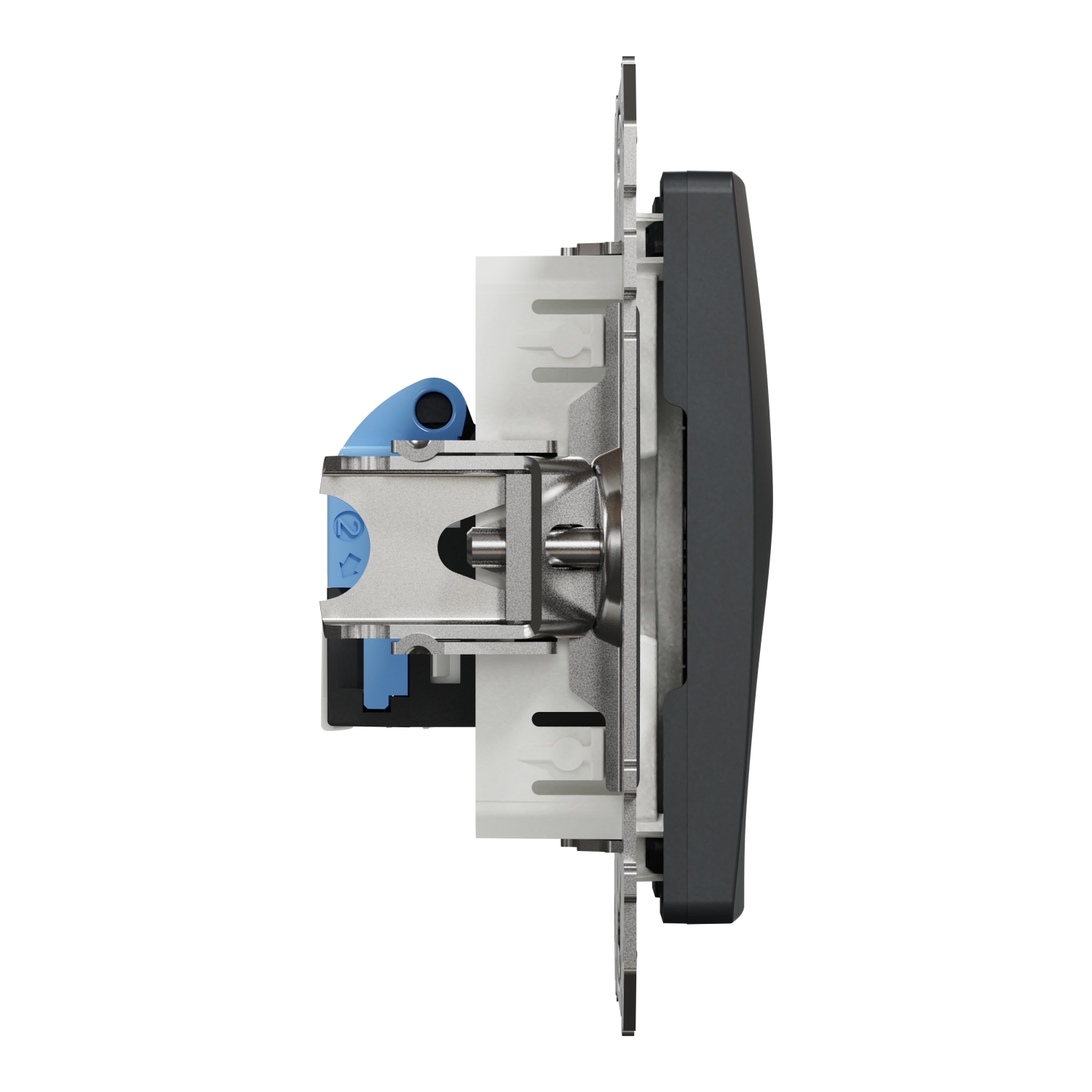

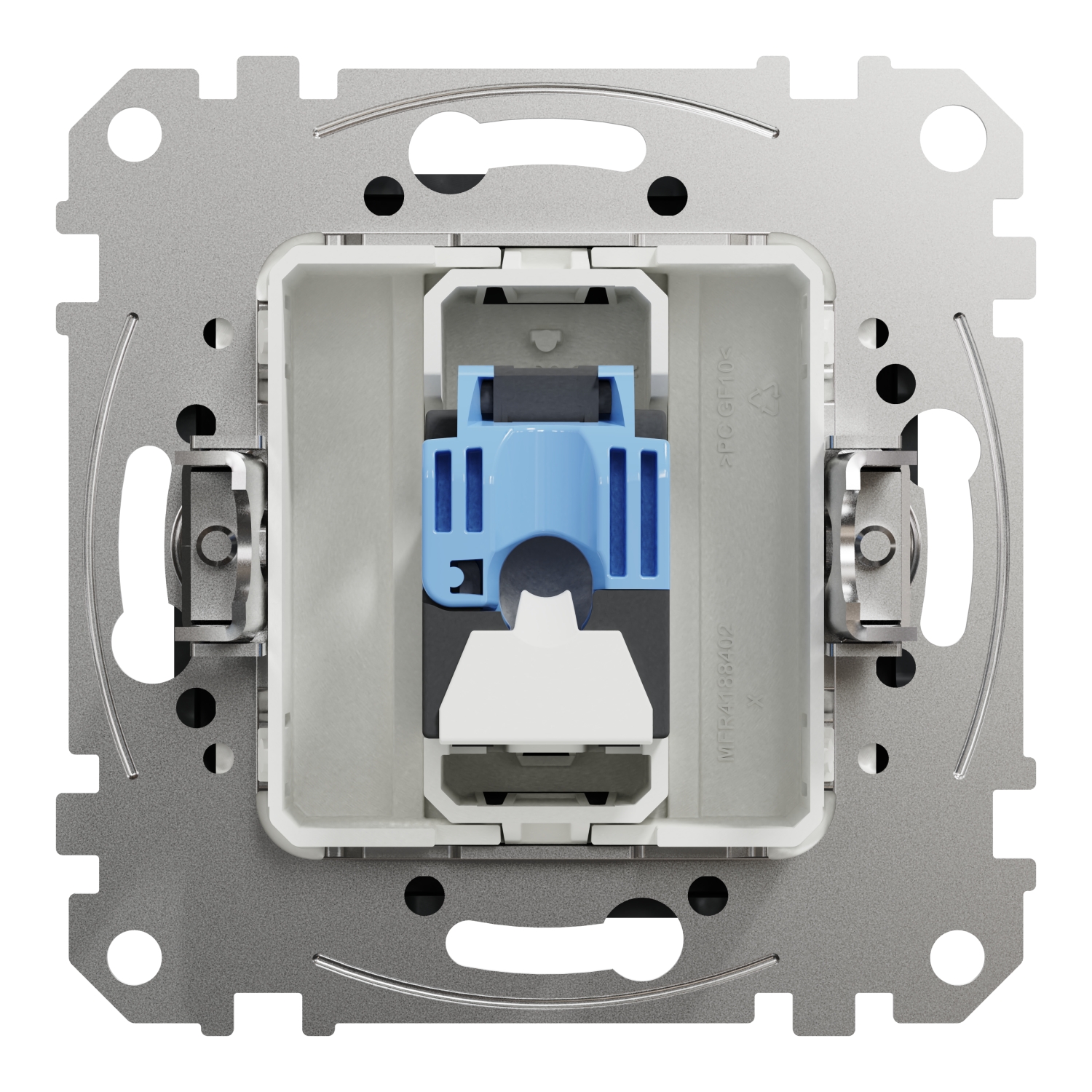

Priza de date Sedna Design Elements de la Schneider Electric este un mecanism cu suport de fixare si placa de acoperire in scopuri de comunicare. Este prevazut cu priza de date RJ45 de categoria 6 UTP (pereche torsadata, neecranata). Doza de montaj adecvata poate fi incastrata in suprafata peretelui cu tipul de montaj incastrat. Dimensiunile produsului sunt (l) 73 mm x (H) 73 mm x (A) 35 mm. Este fabricat din ABS-UV termoplastic stabilizat. Culoarea produsului este antracit (RAL 7021) cu finisaj mat. Temperatura ambientala pentru functionare este de la -25 pana la +55 °C. Acesta atinge gradul de protectie IP20. Sedna Design Elements este o noua generatie de prize si intrerupatoare inspirate de designul vestimentar si de interior. Cu linii moderne care reflecta tendintele de astazi si o estetica rafinata, Sedna este mai mult decat o completare ulterioara. Sedna Design Elements merge chiar mai departe in ceea ce priveste ergonomia, usurinta in instalare si utilizare, fiabilitatea si calitatea finisajelor. Produsul este conform cu standardul ISO 8877.
Documente
Specificatii
| Connection | |
| Type of connector | RJ45 8(8) |
| Connection type | Insulation displacement connector |
| Separate earthing connection | No |
| Suitable for number of connectors | 1 |
| Model/type | |
| Mounting method shielding connection | None |
| Number of modules (module system) | - |
| With terminal resistor | No |
| With label space | No |
| With dust cover | No |
| Assembly arrangement | Basic element with central cover plate |
| With buses/couplings | Yes |
| Measurements | |
| Device depth | 35 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Options | |
| Mechanical coding | No |
| Shielded buses | No |
| Shielded housing | No |
| Compatible with third-party covers | Yes |
| Separate strain relief | No |
| Colour | |
| RAL-number | 7021 |
| Colour | Anthracite |
| Colour coding | Yes |
| Mounting/installation | |
| Duct installation | No |
| Floor box/subfloor mounted | No |
| Type of fastening | Other |
| Flush-mounted installation | Yes |
| Surface mounting | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Category | 6 |
| Outlet direction | Straight |
| Package 1 | |
| volume | 288 cm3 |
| weight | 58 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481467225 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 701 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481467222 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 9,059 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481467229 |
| Package 4 | |
| weight | 48,236 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
