Descriere

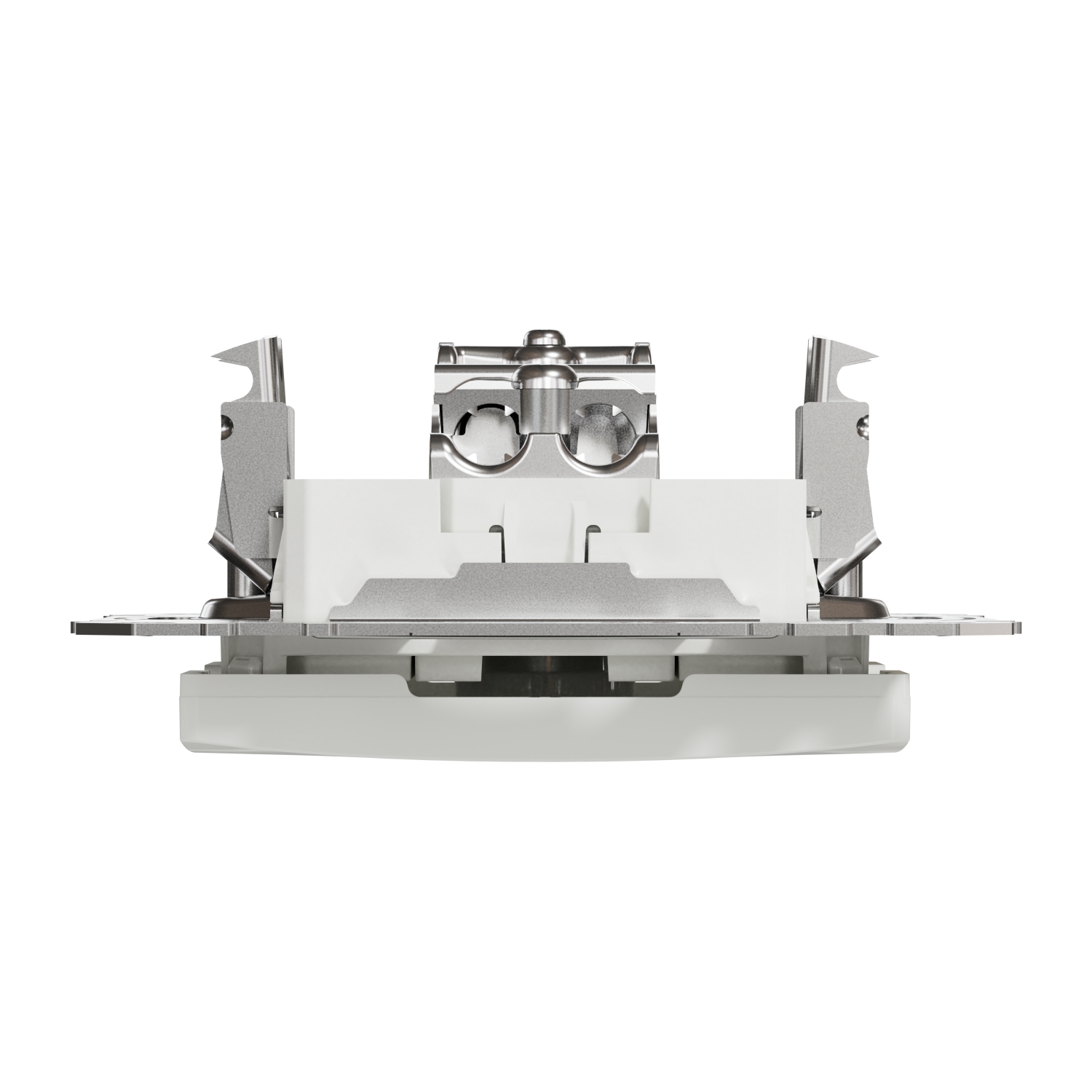

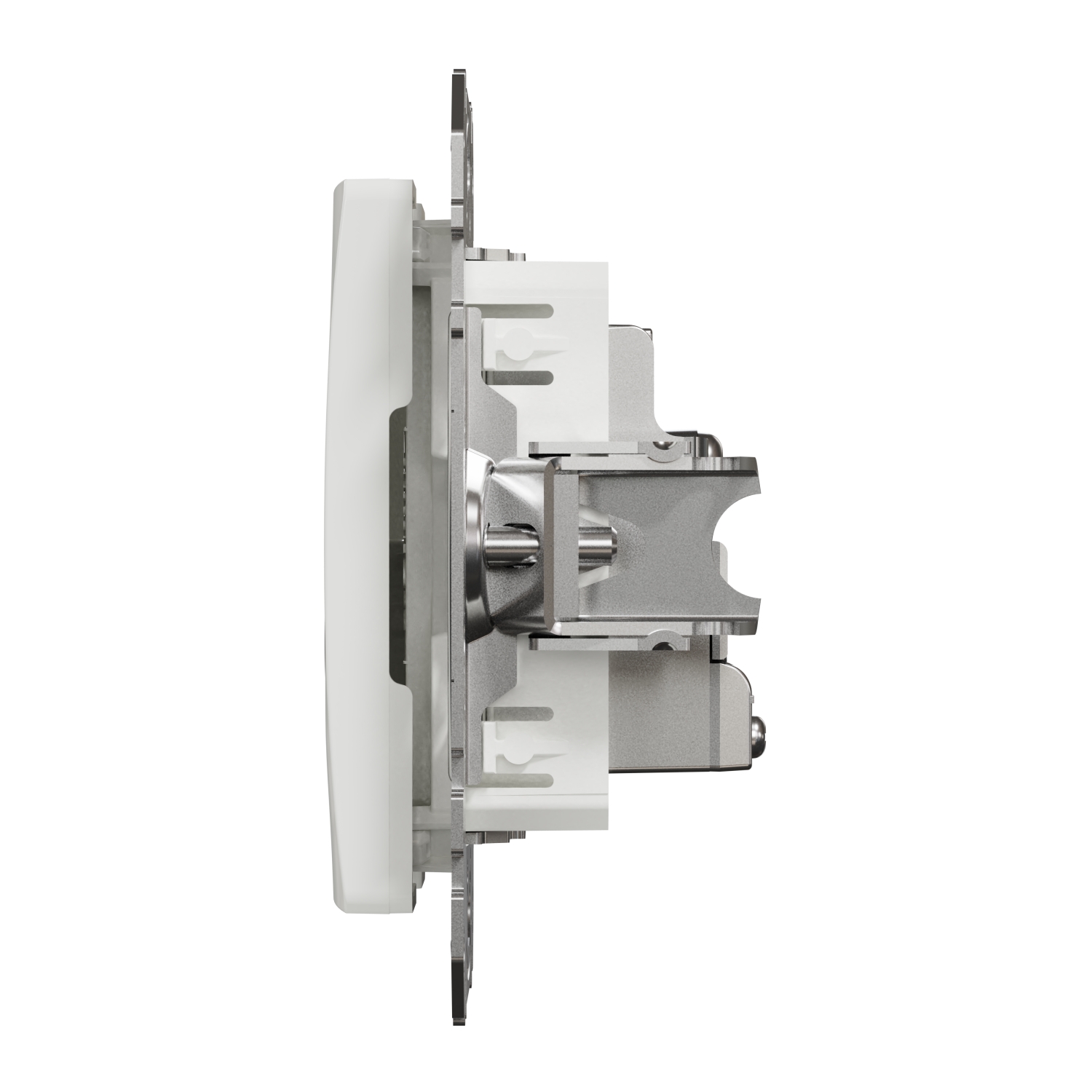

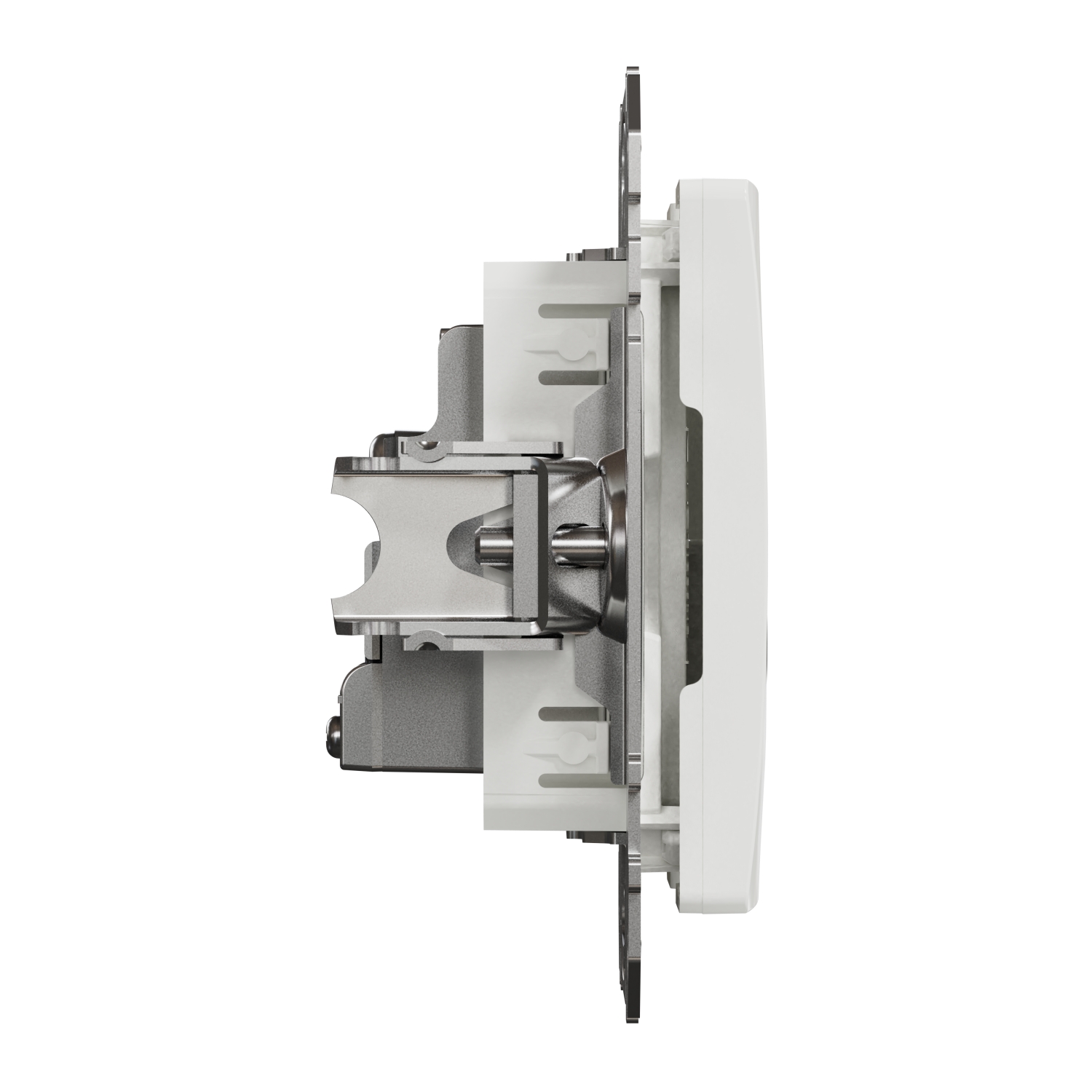

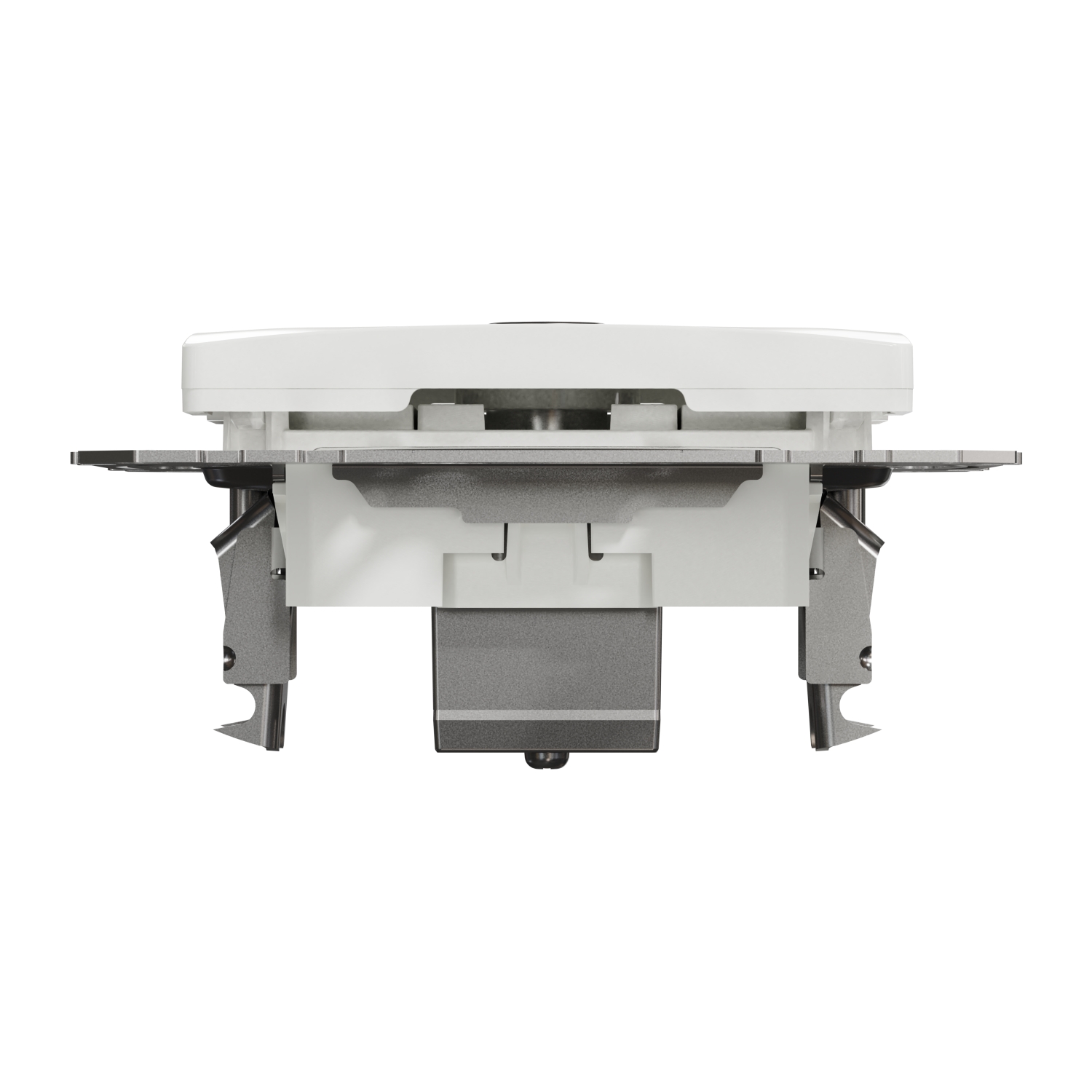

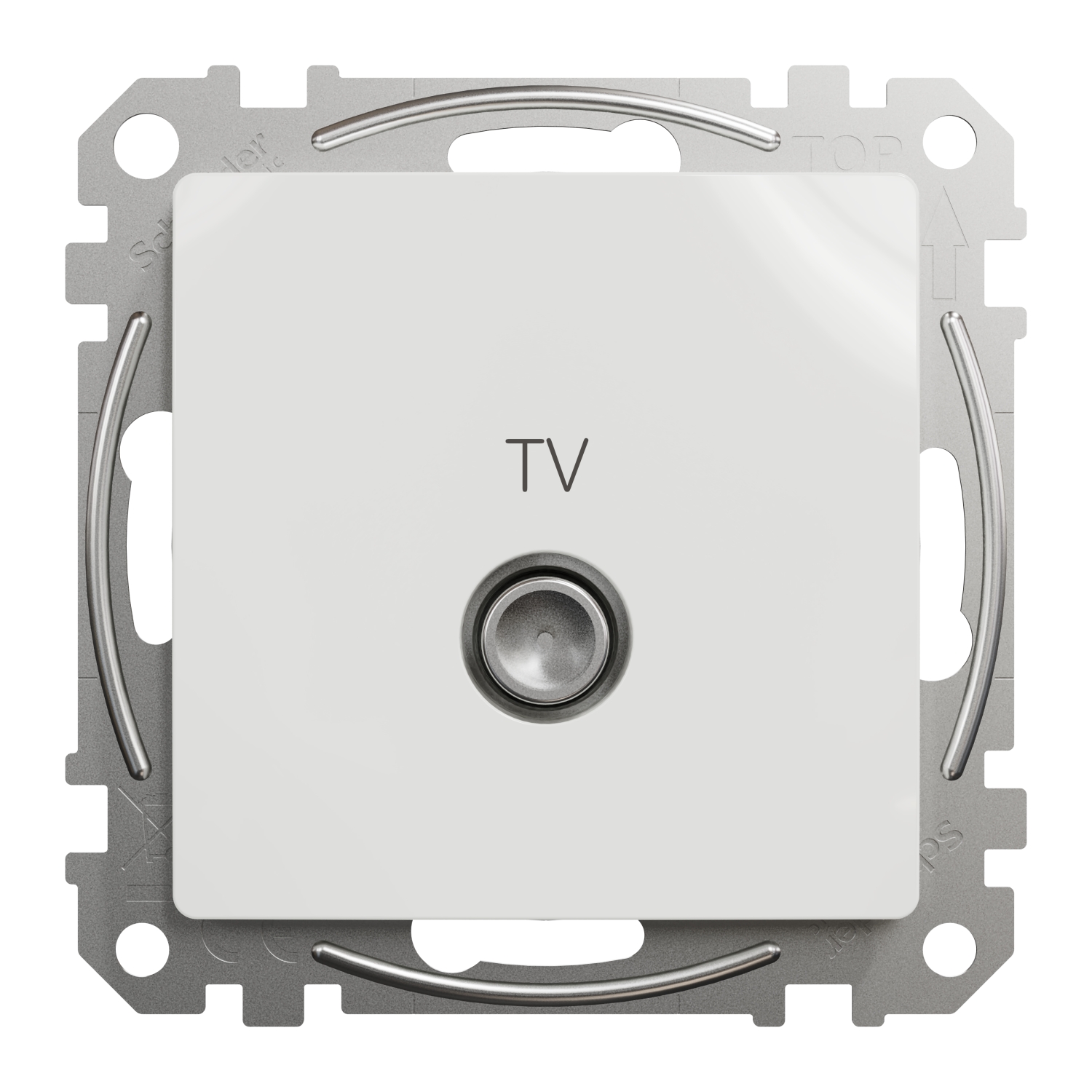

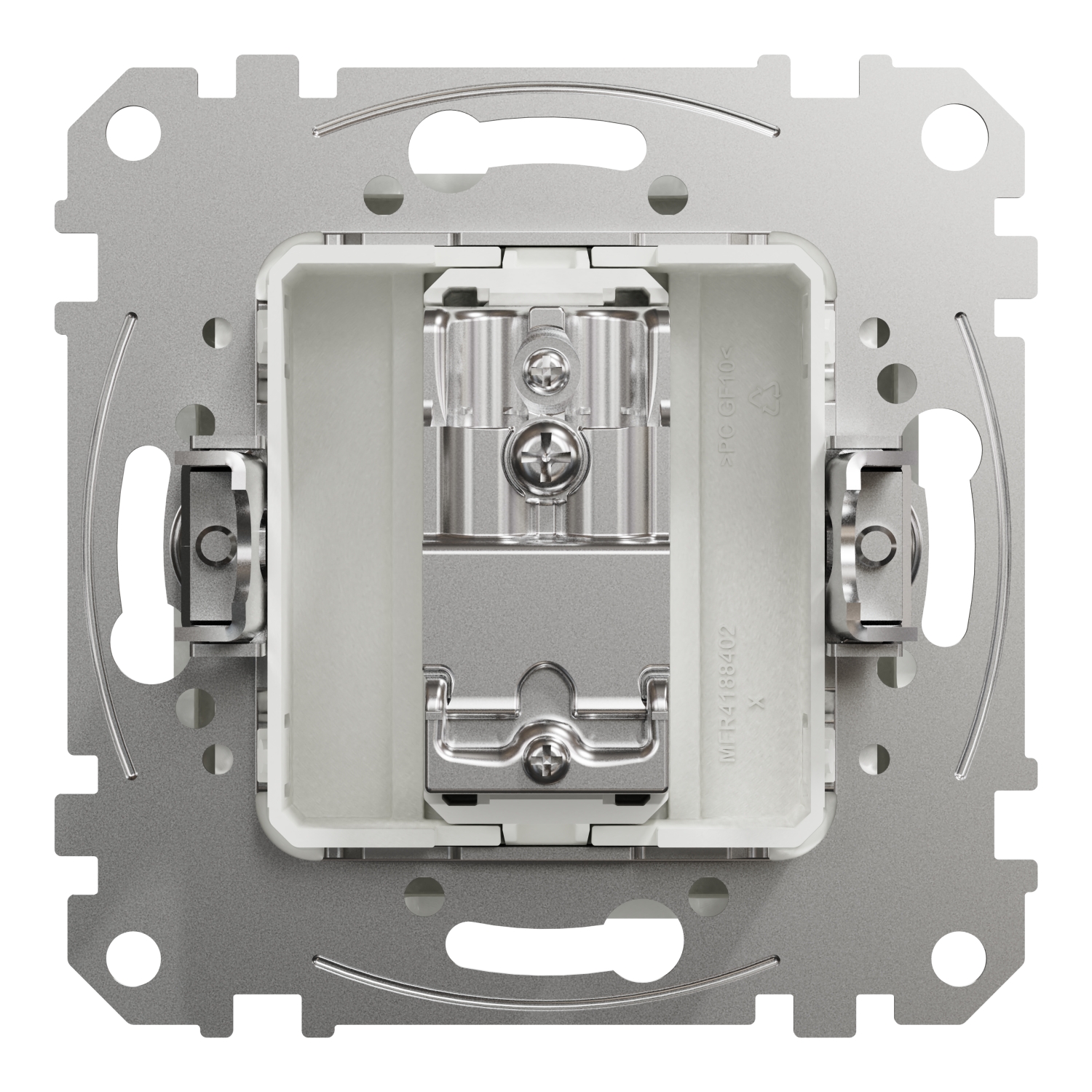

Priza TV Sedna Design Elements de la Schneider Electric este un mecanism cu rama de fixare si placa de acoperire pentru suport si comunicare cu dispozitive media. Are o priza TV de tip terminal. Acesta este prevazut cu conector TV de tip IEC tata, cu 4 decibeli de atenuare a caii. Cutia de montaj potrivita poate fi infundata pe suprafata peretelui cu incastrare. Dimensiunile produsului sunt (W) 73mm x (H) 73mm x (D) 35mm. Este fabricat din ABS-UV termoplastic stabilizat. Culoarea produsului este alb (RAL 9003) cu finisaj lucios de suprafata. Atinge gradul de protectie IP20 cu rezistenta la impact IK02. Sedna Design Elements este o noua generatie de comutatoare electrice inspirate de moda bspandnbspinterior design. Cu linii moderne care reflecta tendintele de astazi si o estetica rafinata, nbspSedna este mai mult decat un gand ulterior. Sedna Design Elements merge chiar mai departe in ceea ce priveste ergonomia, usurinta in instalare si utilizare, fiabilitatea si calitatea finisajelor. Produsul este conform cu etichetele CE de calitate.
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With hinged lid | No |
| With strain relief | No |
| With lighting | No |
| Number of modules (module system) | - |
| With dust cover | No |
| With imprint | Yes |
| Assembly arrangement | Basic element with central cover plate |
| With buses/couplings | Yes |
| Options | |
| Luster terminal | No |
| Support ring | Yes |
| Imprintable label | Without indication field |
| Shielded buses | No |
| Shielded housing | No |
| Anti-bacterial treatment | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Application | |
| Utilization | Other |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Measurements | |
| Device depth | 35 mm |
| Min. depth of built-in installation box | 22.5 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Mounting/installation | |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Other | |
| Outlet direction | Straight |
| Impact strength | IK02 |
| Connection | |
| Suitable for number of connectors | 1 |
| Package 1 | |
| volume | 256 cm3 |
| weight | 84 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481466068 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 957 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481466065 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 12,123 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481466062 |
| Package 4 | |
| weight | 108,984 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 960 |
| qmin | 960 |
| um | PF |
