Descriere

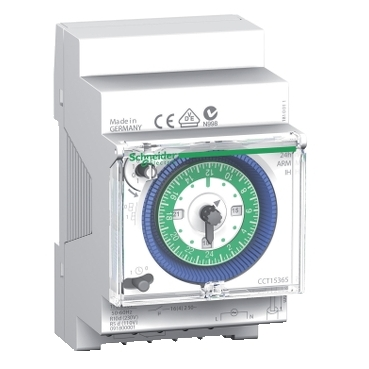

Ih, Temporizator Electromecanic, 1 Canal, 24 H, 200 H Memorie
Documente
Fisa tehnica
Altele
Specificatii
| Application | |
| Suitable for manual operation | Yes |
| Setting/control | |
| Automatic switching summer/winter time | No |
| Switching preselection | Yes |
| Shortest switching time channel 2 | - |
| Mains synchronous | No |
| Shortest switching time channel 1 | 15 min |
| 24 h program | Yes |
| 60 min program | No |
| Weekly program | No |
| Annual program | No |
| Options | |
| Potential free switch contact | Yes |
| Electrical | |
| Voltage type (supply voltage) | AC |
| Nominal switching current at 250 V AC | 16 A |
| Frequency supply voltage | 50 Hz |
| Supply voltage | 110 V |
| Max. switching power LED | - |
| Measurements | |
| Width in number of modular spacings | 3 |
| Height | 90 mm |
| Width | 54 mm |
| Depth | 66 mm |
| Connection | |
| Quartz controlled | No |
| Model/type | |
| Contact type | Change-over contact |
| Number of channels | 1 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Autonomy in years | - |
| Autonomy in hours | 150 |
| Accuracy per day | 1 s |
| Program shift divide 2 | - |
| Program shift divide 1 | 15 min |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| volume | 511,875 cm3 |
| weight | 152 g |
| length | 10,5 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480179587 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,943 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 43606480179585 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 57,544 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 288 |
| qmin | 288 |
| um | PF |
