Descriere

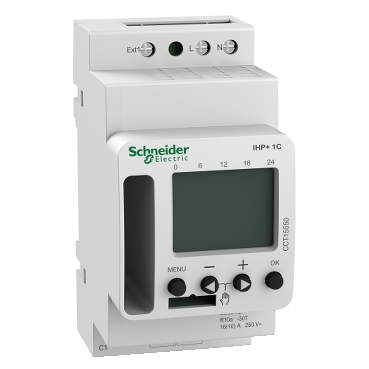

Acti9 IHP+ 1C (24h/7d) SMARTe programmable time switch
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Application | |
| Suitable for manual operation | Yes |
| Setting/control | |
| Automatic switching summer/winter time | Yes |
| External programming | Yes |
| Switching preselection | Yes |
| Impulse program | Yes |
| Cycle program | Yes |
| Shortest switching time channel 2 | - |
| Mains synchronous | Yes |
| Shortest switching time channel 1 | 0.017 min |
| Radio-controlled | No |
| Random program | Yes |
| Holiday program | Yes |
| Radio-controlled (DCF77) | No |
| 24 h program | Yes |
| 60 min program | Yes |
| Weekly program | Yes |
| Annual program | No |
| Options | |
| Potential free switch contact | Yes |
| Hour meter | Yes |
| GPS (global positioning system) | No |
| External push button input | Yes |
| Astro program | No |
| Text guidance in display | Yes |
| Electrical | |
| Voltage type (supply voltage) | AC |
| Nominal switching current at 250 V AC | 16 A |
| Frequency supply voltage | 50 Hz |
| Supply voltage | 230 V |
| Max. switching power LED | - |
| Measurements | |
| Width in number of modular spacings | 2.5 |
| Height | 92.6 mm |
| Width | 45 mm |
| Depth | 67 mm |
| Model/type | |
| With memory card | No |
| Contact type | - |
| Number of channels | 1 |
| Number of contacts | - |
| Number of memory locations | 84 |
| Connection | |
| Quartz controlled | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Autonomy in years | 10 |
| Autonomy in hours | 87600 |
| Accuracy per day | 0.25 s |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| volume | 511,875 cm3 |
| weight | 158 g |
| length | 10,5 cm |
| width | 6,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489524487 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,832 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 13606489524484 |
