Descriere

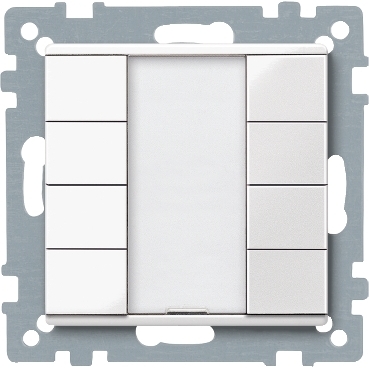

Push-button KNX, 8 clapete, Alb polar, Sistem M
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| With bus connection | Yes |
| Model/type | |
| With display | No |
| With IR sensor | No |
| With anti-theft/dismantling protection | No |
| With LED indication | Yes |
| With room temperature controller | No |
| With label area | Yes |
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Other |
| Colour | |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Colour | White |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Setting/control | |
| Number of actuation points | 8 |
| Number of buttons | 8 |
| Measurements | |
| Min. depth of built-in installation box | 46 mm |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Options | |
| Radio frequency bidirectional | No |
| Package 1 | |
| volume | 253,748 cm3 |
| weight | 66 g |
| length | 7,9 cm |
| width | 7,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485099453 |
| Package 2 | |
| volume | 23293,4 cm3 |
| weight | 4,28 kg |
| length | 40,3 cm |
| width | 28,9 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606485099451 |
