Descriere

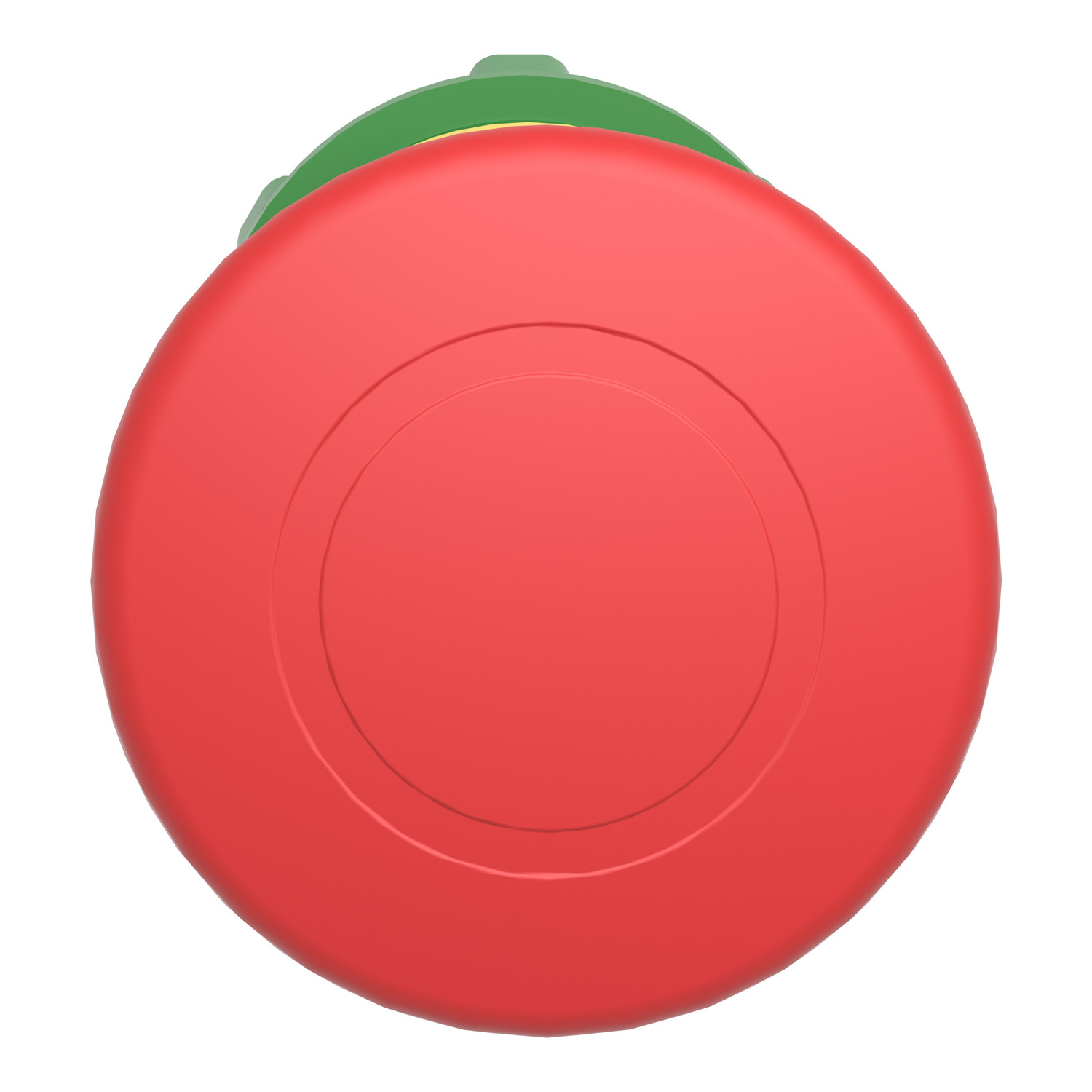

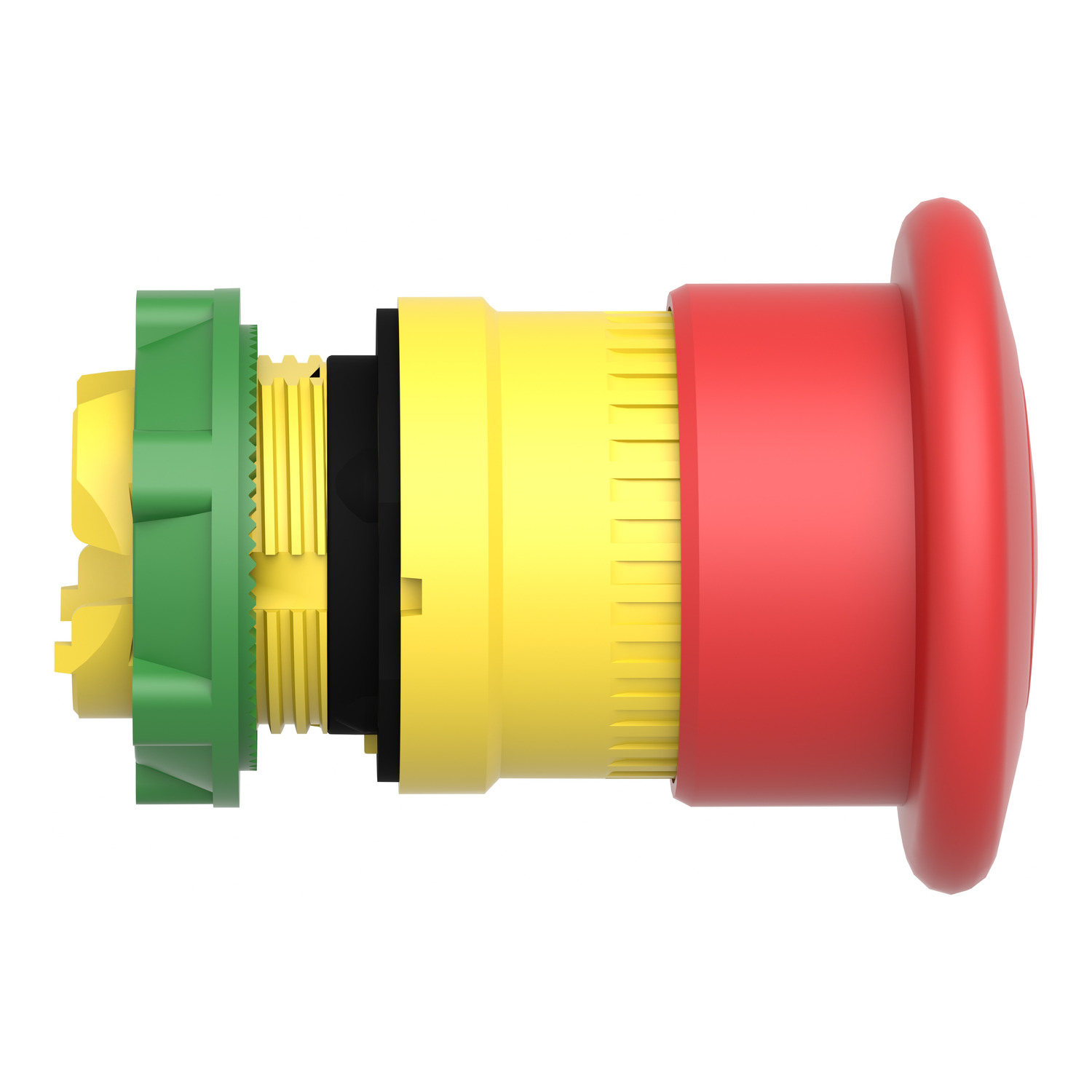

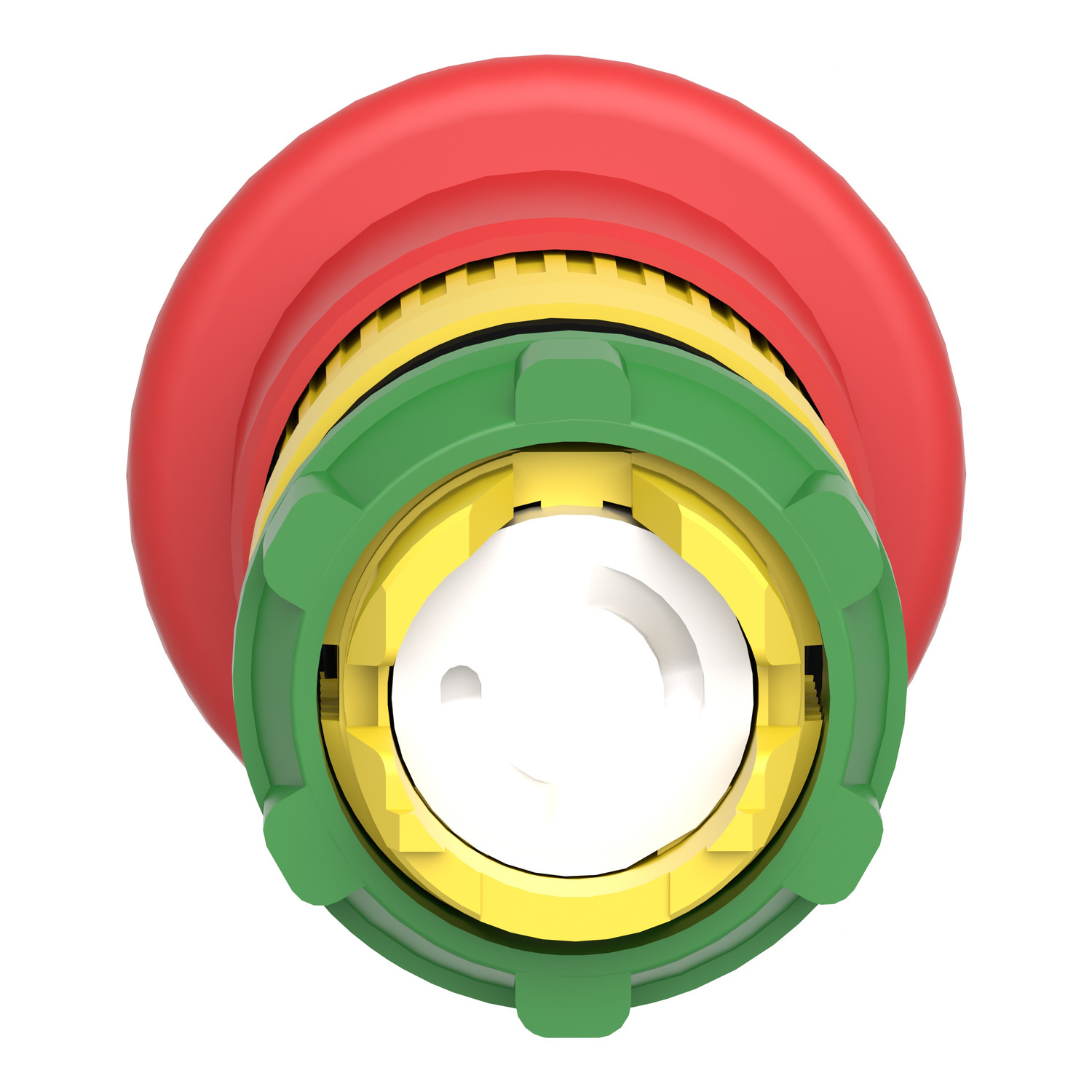

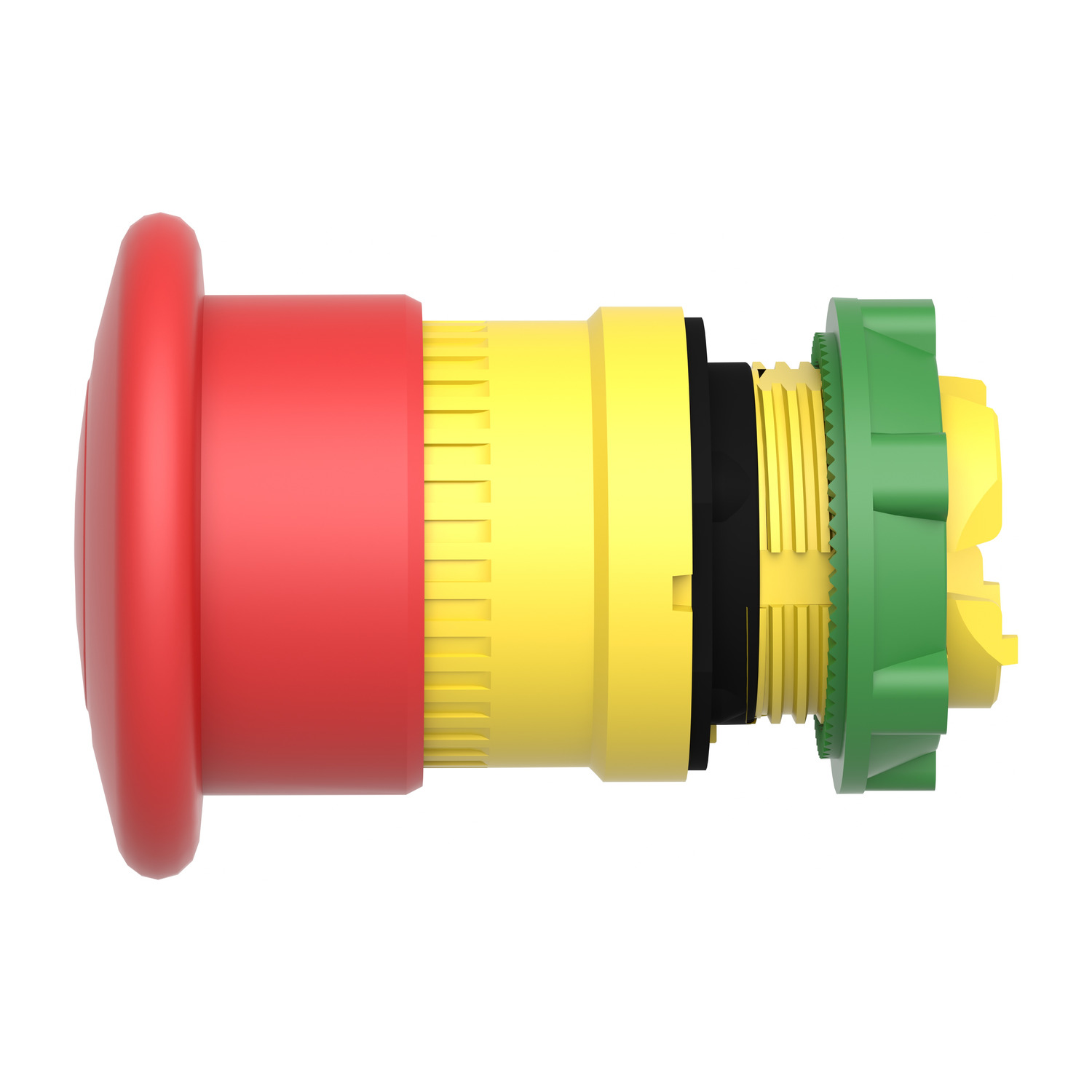

Cap Ciuperca Rotund, Oprire de Urgenta Ø 40, In Contratimp, Ø 22, Rosu
Documente
Specificatii
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Colour | |
| Colour front ring | Black |
| Colour button | Red |
| Model/type | |
| With lighting | No |
| Type of button | High |
| Construction type lens | Round |
| With front ring | Yes |
| Electrical | |
| Supply voltage lamp | - |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Diameter cap | 40 mm |
| Height opening | - |
| Material | |
| Material front ring | Plastic |
| Application | |
| Suitable for emergency stop | Yes |
| Suitable for lighting | No |
| Other | |
| Unlocking method | Pull-release |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 213,84 cm3 |
| weight | 47 g |
| length | 8,8 cm |
| width | 5,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110907742 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 2,319 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 42 |
| qmin | 42 |
| um | CT |
| gtin | 43389110907740 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 49,38 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 672 |
| qmin | 672 |
| um | PF |
