Descriere

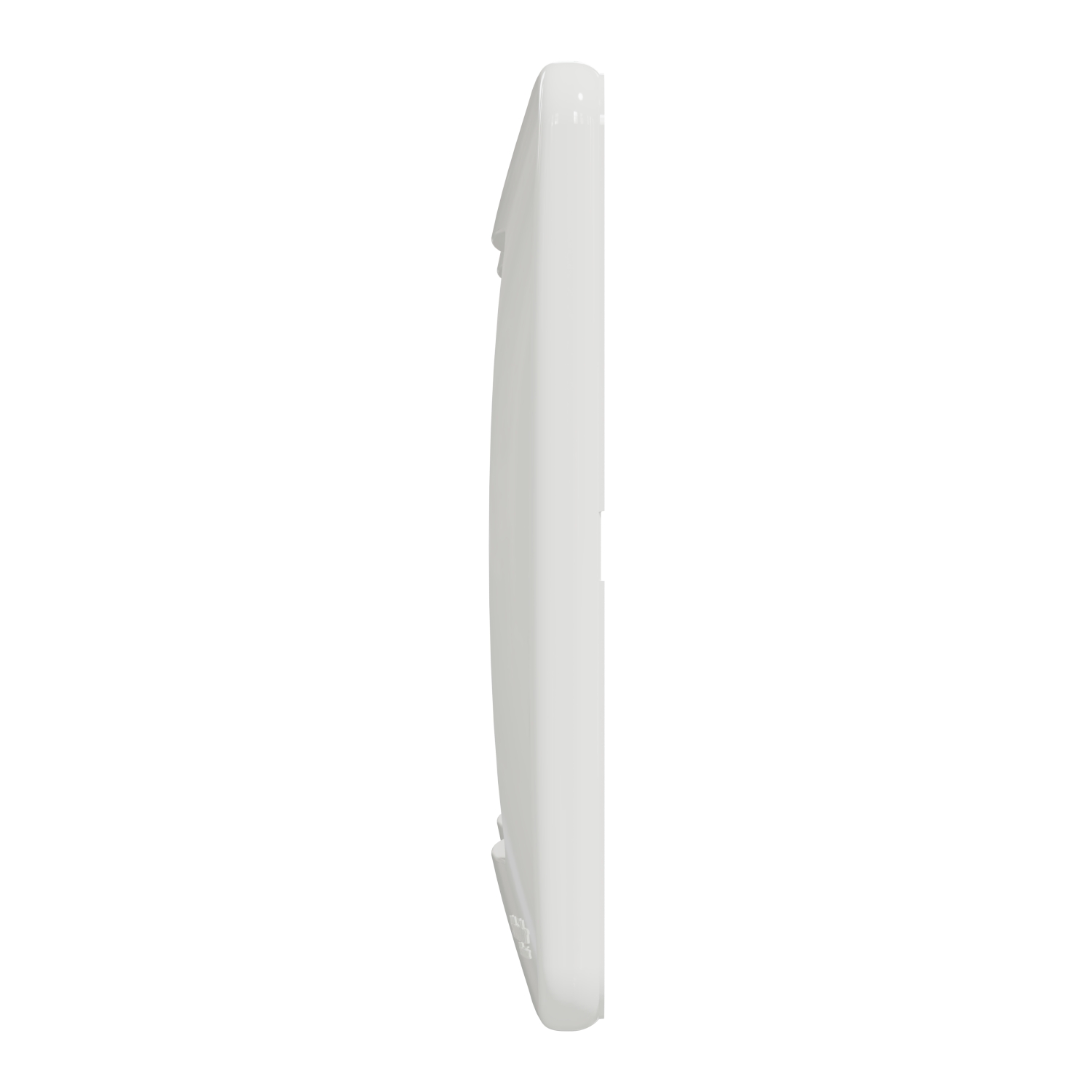

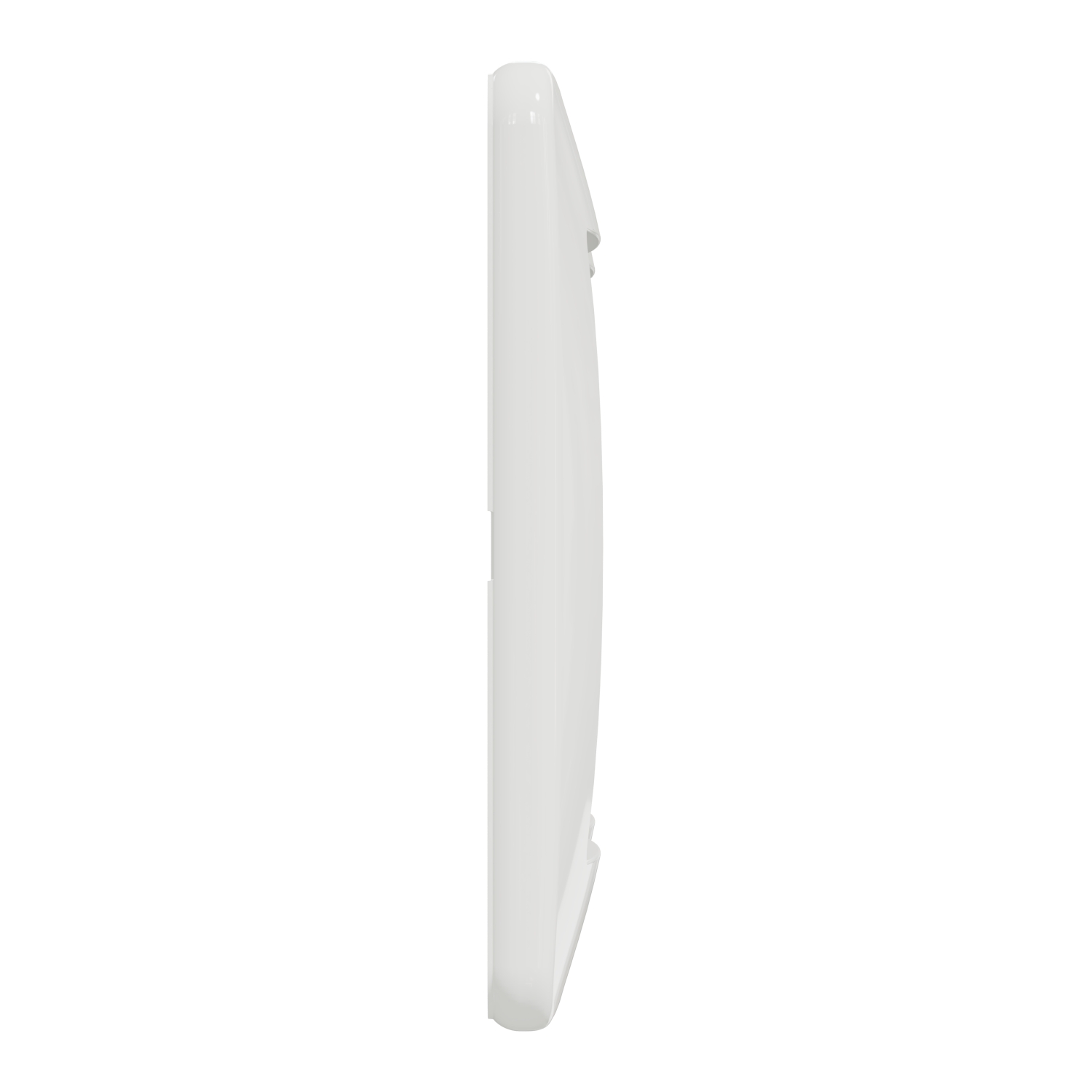

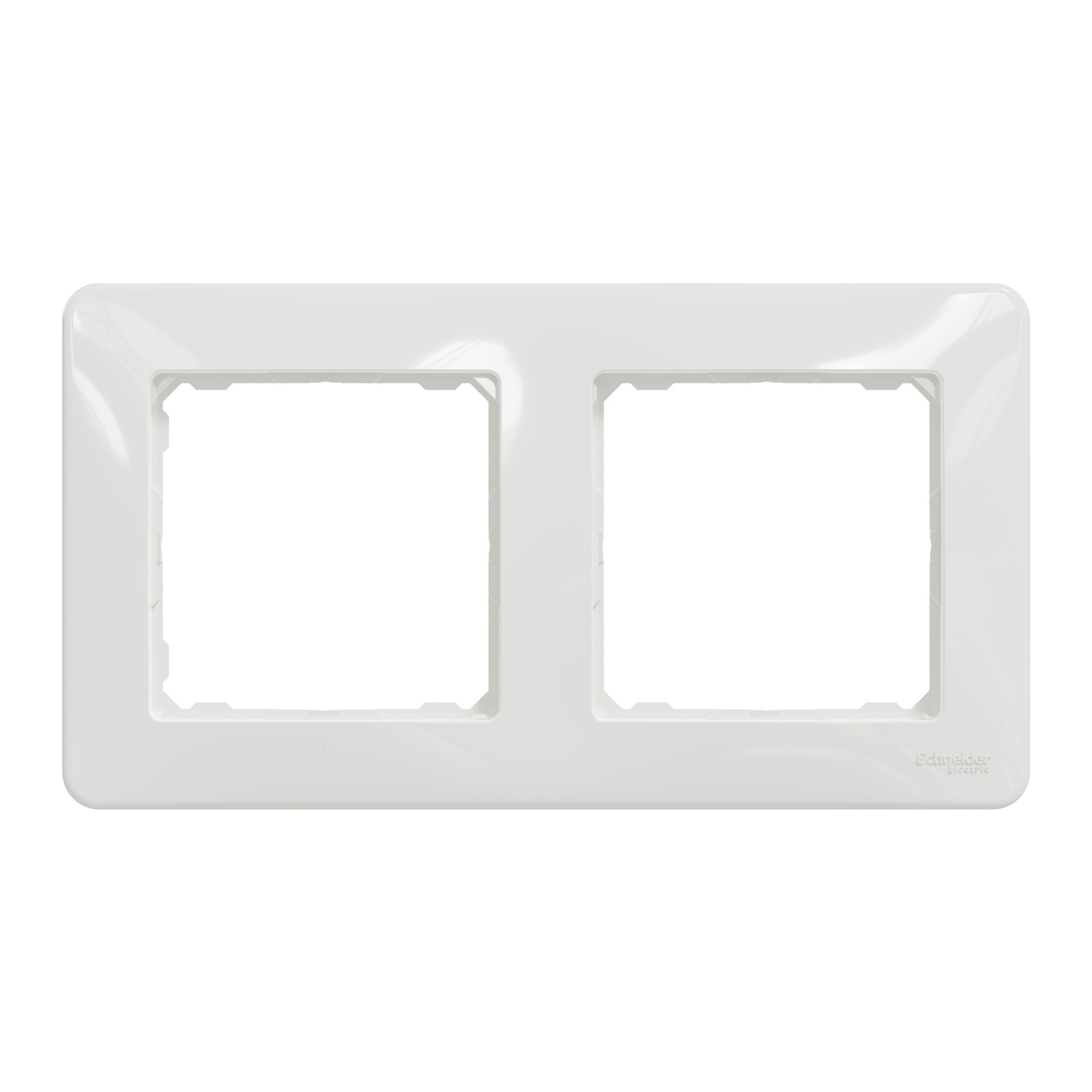

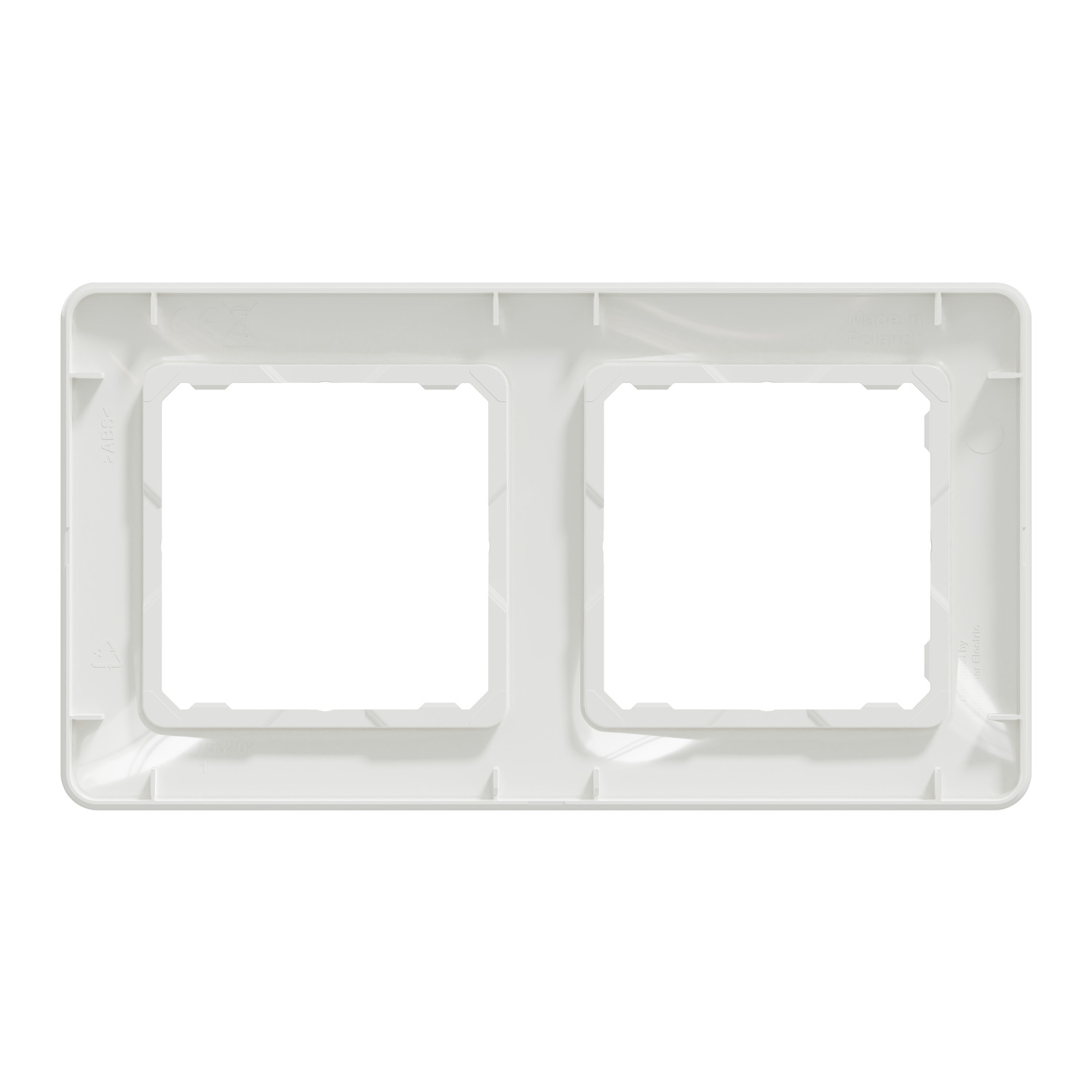

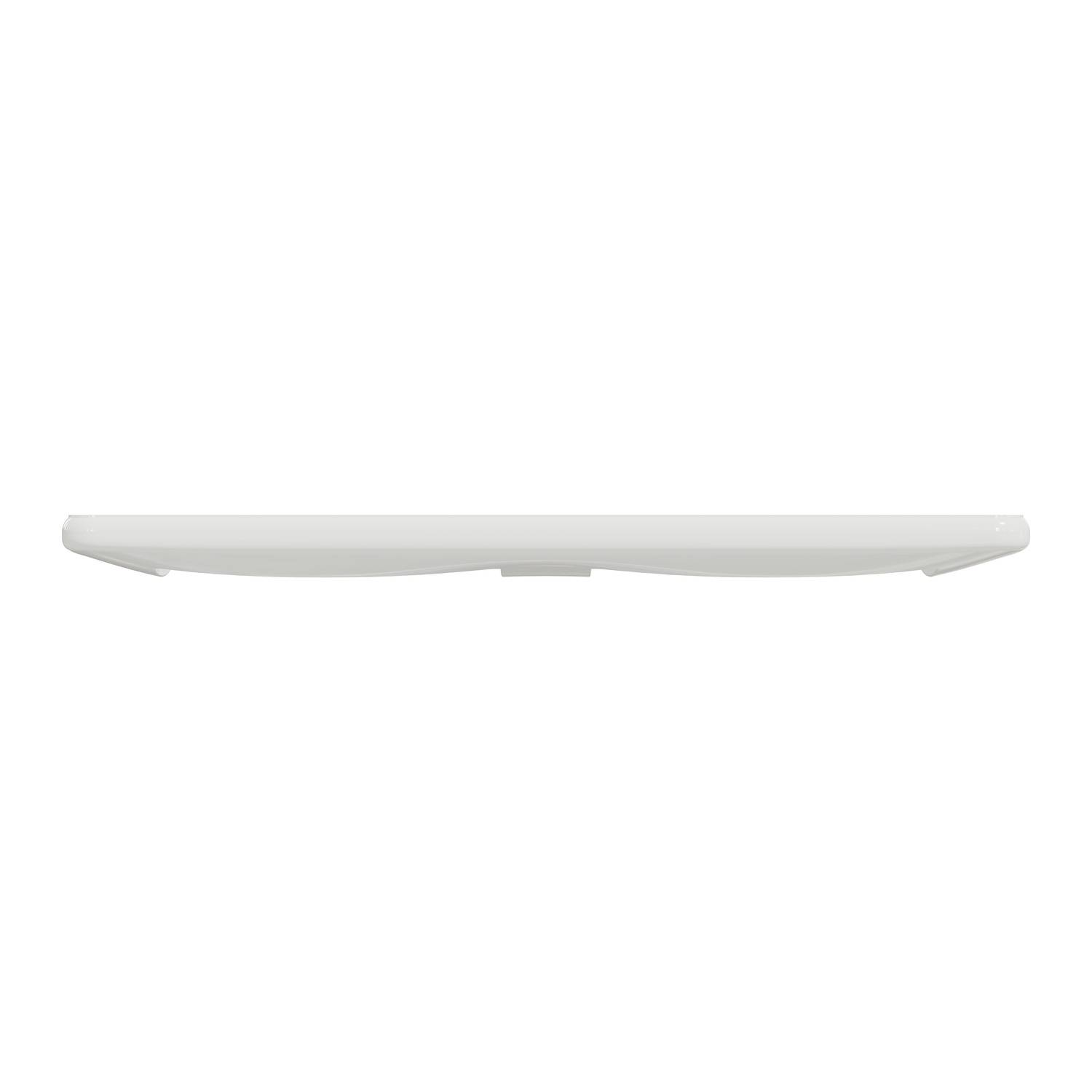

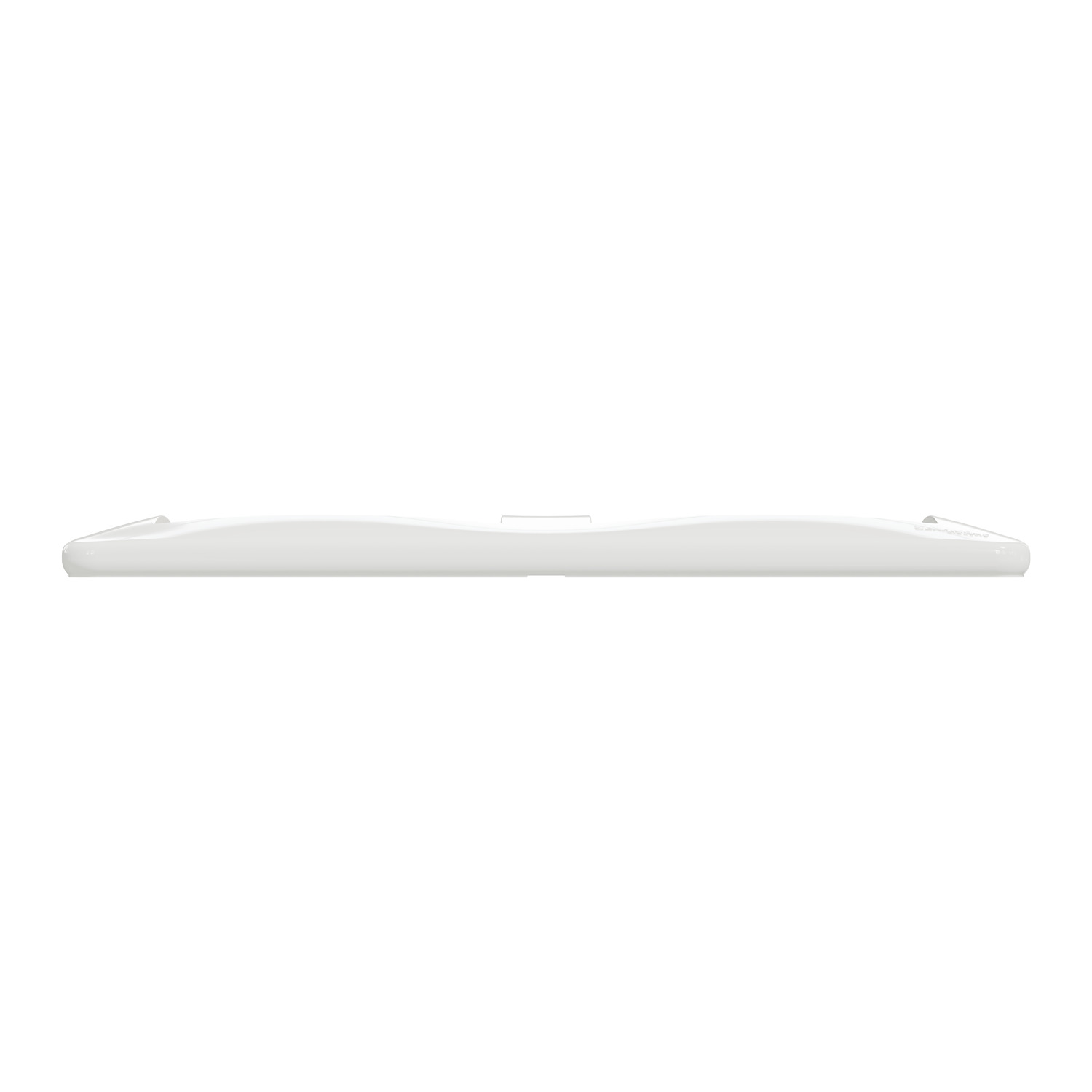

Rama decorativa Sedna Design & Elements de la Schneider Electric va imbunatateste spatiul prin imbinarea perfecta a functionalitatii cu designul. Doza de montaj adecvata poate fi incastrata in perete. Acest suport de fixare cu interblocare va permite sa aliniati cu usurinta mai multe dispozitive. De asemenea, are sloturi cu surub pentru a compensa dozele de instalare care au fost aliniate necorespunzator. Marginile ramei decorative sunt rotunjite, curbandu-se in jurul peretelui. Forma a fost conceputa special pentru a preveni depunerea prafului. Aceste rame decorative universale pot fi instalate orizontal sau vertical. Aceste rame decorative cu 2 posturi sunt disponibile in toate finisajele si pot fi mixate si asortate cu toate culorile de mecanisme. Acest dispozitiv permite montarea incastrata. Dimensiunile sunt (Latime) 85 mm x (Inaltime) 156 mm x (Adancime) 10 mm. Greutatea este de 17g. Culoarea produsului este alb (RAL 9003), cu un finisaj lucios care ofera eleganta unei incaperi. Este fabricat din termoplastic stabilizat ABS-UV. Acesta ajunge la un grad de protectie IP20. Sedna Design & Elements este o gama de aparataj cu o varietate de culori si texturi contemporane care aduc aspectul de lemn, piatra, metal si sticla in casele clientilor dumneavoastra. Sedna merge si mai departe in ceea ce priveste ergonomia, usurinta in instalare si utilizare, fiabilitatea si calitatea finisajelor.
Documente
Specificatii
| Model/type | |
| With hinged lid | No |
| Number of device inserts horizontal | 2 |
| Number of device inserts vertical | 2 |
| Number of switch inserts | 2 |
| Number of modules vertical (module system) | - |
| Number of modules horizontal (module system) | - |
| Number of units | 1 |
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Mounting/installation | |
| Mounting direction | Horizontal and vertical |
| With mounting grid | No |
| Suitable for built-in installation | No |
| Type of fastening | Clamping/screw mounting |
| Flush-mounted installation | Yes |
| Suitable for wall duct | No |
| Application | |
| Suitable for subfloor installation duct box | No |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Measurements | |
| Built-in height | - |
| Height | 156 mm |
| Diameter bore hole (opening) | - |
| Width | 85 mm |
| Built-in width | - |
| Depth | 10 mm |
| Protection | |
| Degree of protection (IP) | Other |
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Other | |
| Impact strength | IK02 |
| Package 1 | |
| volume | 148,5 cm3 |
| weight | 20 g |
| length | 16,5 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481482303 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 590 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 25 |
| qmin | 25 |
| um | BX |
| gtin | 13606481482300 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 7,719 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 300 |
| qmin | 300 |
| um | CT |
| gtin | 23606481482307 |
| Package 4 | |
| weight | 104,628 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 3600 |
| qmin | 3600 |
| um | PF |
