Descriere

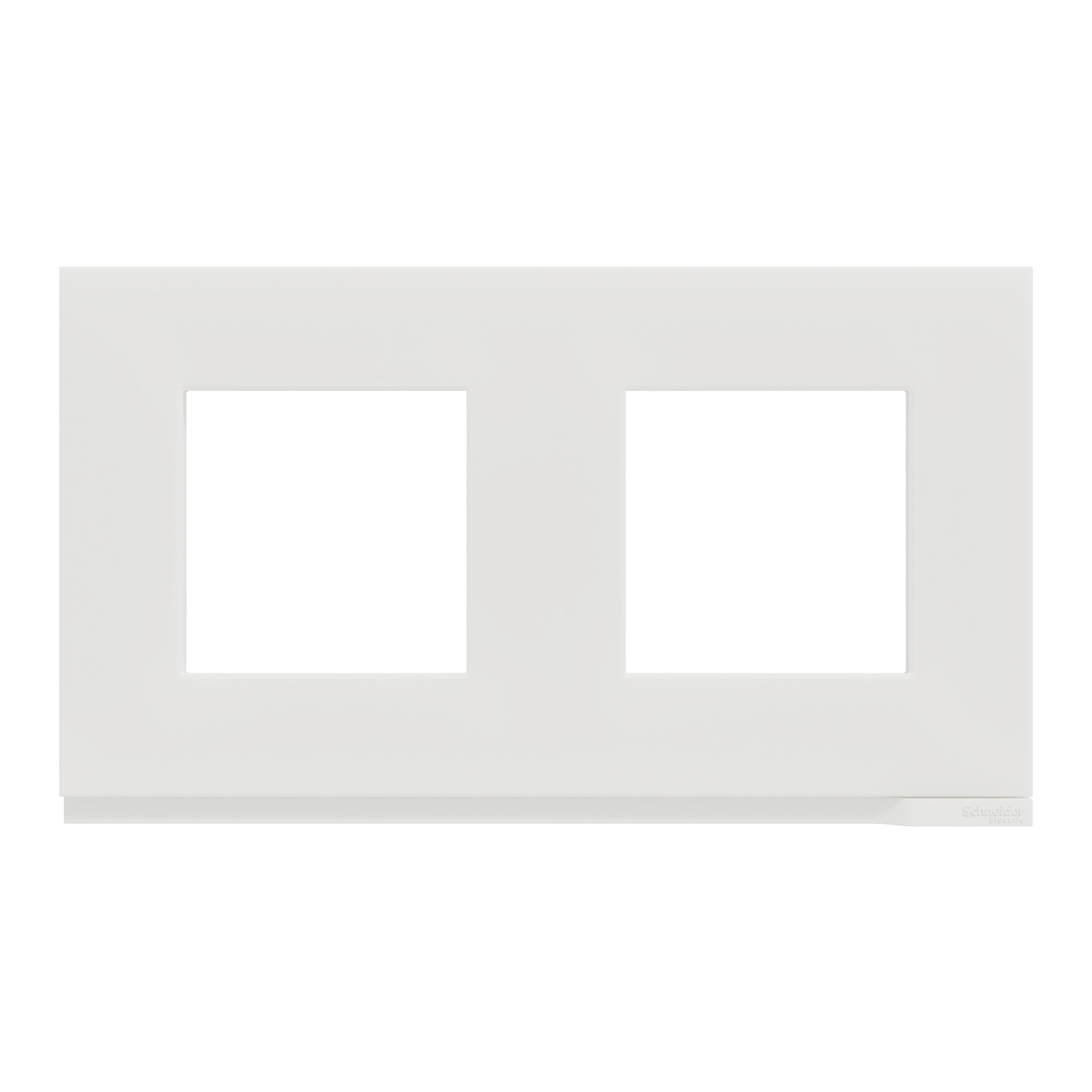

Noua Unica, Rama Unica Pure 2post alb translucid
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Model/type | |
| With hinged lid | No |
| Number of device inserts horizontal | 2 |
| Number of device inserts vertical | 1 |
| Number of switch inserts | 4 |
| Number of modules vertical (module system) | 1 |
| Number of modules horizontal (module system) | 4 |
| Number of units | 2 |
| Material | |
| Surface protection | Other |
| Surface finishing | Matt |
| Material | Other |
| Halogen free | Yes |
| Material quality | Plastic glass |
| Mounting/installation | |
| Mounting direction | Horizontal |
| With mounting grid | No |
| Suitable for built-in installation | No |
| Type of fastening | Engage (snap) |
| Flush-mounted installation | Yes |
| Suitable for wall duct | No |
| Application | |
| Suitable for subfloor installation duct box | No |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | White |
| Measurements | |
| Built-in height | - |
| Height | 90 mm |
| Diameter bore hole (opening) | 65 mm |
| Width | 156 mm |
| Built-in width | - |
| Depth | 11 mm |
| Protection | |
| Degree of protection (IP) | IP21 |
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Other | |
| Impact strength | IK01 |
| Package 1 | |
| volume | 552,9 cm3 |
| weight | 101 g |
| length | 22,8 cm |
| width | 9,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489526085 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 3,925 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 35 |
| qmin | 35 |
| um | CT |
| gtin | 43606489526083 |
