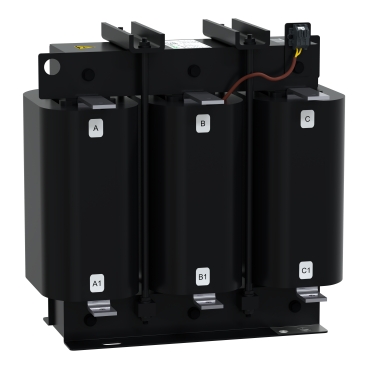

Bobina de Reactanta 400V 50HZ 100KVAR 190HZ
Documente
Specificatii
| Other | |
| Rated operating frequency | 50 Hz |
| Filtering factor | 7 % |
| Resonance frequency, electric filter | - |
| Electrical | |
| Filter bank performance | 100 kvar |
| Max. rated operation voltage Ue | 400 V |
| Rated current AC | 144.33 A |
| Max. rated current (Ith) at rated voltage AC | 172 A |
| Protection | |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | - |
| Model/type | |
| Number of poles, primary side | 3 |
| Package 1 | |
| volume | 134400 cm3 |
| weight | 44 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480541537 |
| Package 2 | |
| volume | 240000 cm3 |
| weight | 96,5 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 2 |
| qmin | 2 |
| um | PF |
