Descriere

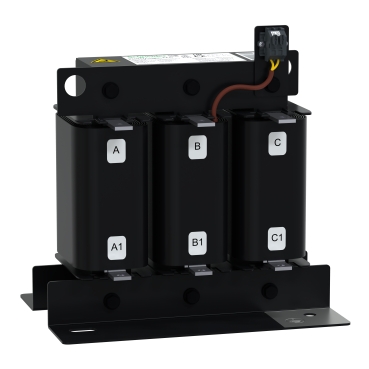

Bobina de Reactanta 400V 50HZ 25KVAR 190HZ
Documente
Specificatii
| Other | |
| Filtering factor | 7 % |
| Rated operating frequency | 50 Hz |
| Resonance frequency, electric filter | - |
| Electrical | |
| Filter bank performance | 25 kvar |
| Rated current AC | 36.08 A |
| Max. rated operation voltage Ue | 400 V |
| Max. rated current (Ith) at rated voltage AC | 43 A |
| Protection | |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | - |
| Model/type | |
| Number of poles, primary side | 3 |
| Package 1 | |
| volume | 22862,5 cm3 |
| weight | 14,316 kg |
| length | 31 cm |
| width | 29,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480541483 |
| Package 2 | |
| volume | 1008000 cm3 |
| weight | 400 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 24 |
| qmin | 24 |
| um | PF |
