Descriere

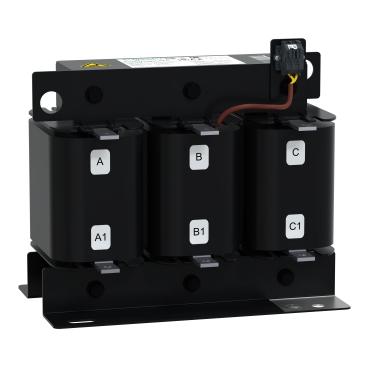

Bobina de Reactanta 400V 50HZ 25KVAR 210HZ
Documente
Specificatii
| Other | |
| Rated operating frequency | 50 Hz |
| Filtering factor | 5.7 % |
| Resonance frequency, electric filter | - |
| Electrical | |
| Filter bank performance | 25 kvar |
| Max. rated operation voltage Ue | 400 V |
| Rated current AC | 36.08 A |
| Max. rated current (Ith) at rated voltage AC | 47 A |
| Protection | |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | - |
| Model/type | |
| Number of poles, primary side | 3 |
| Package 1 | |
| volume | 24115,2 cm3 |
| weight | 16,807 kg |
| length | 31,4 cm |
| width | 30 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480541469 |
| Package 2 | |
| volume | 480000 cm3 |
| weight | 213,684 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 12 |
| qmin | 12 |
| um | PF |
| gtin | 73606480541468 |
