Descriere

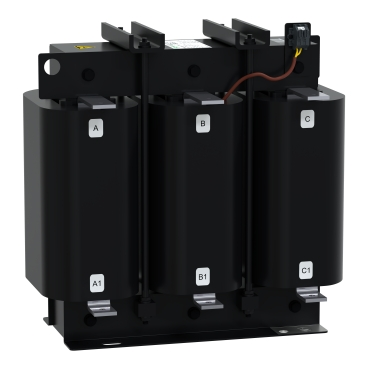

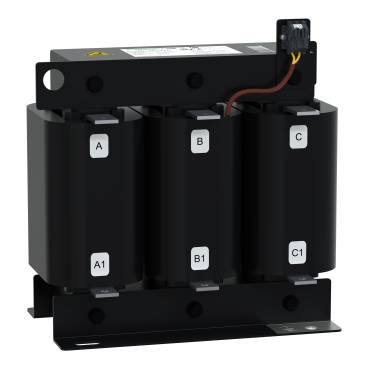

Bobina de Reactanta 400V 50HZ 50KVAR 135HZ
Documente
Specificatii
| Other | |
| Filtering factor | 14 % |
| Rated operating frequency | 50 Hz |
| Resonance frequency, electric filter | - |
| Electrical | |
| Filter bank performance | 50 kvar |
| Max. rated operation voltage Ue | 400 V |
| Rated current AC | 72.16 A |
| Max. rated current (Ith) at rated voltage AC | 80 A |
| Protection | |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | - |
| Model/type | |
| Number of poles, primary side | 3 |
| Package 1 | |
| volume | 110400 cm3 |
| weight | 40 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480541490 |
| Package 2 | |
| volume | 240000 cm3 |
| weight | 88,5 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 2 |
| qmin | 2 |
| um | PF |
