Descriere

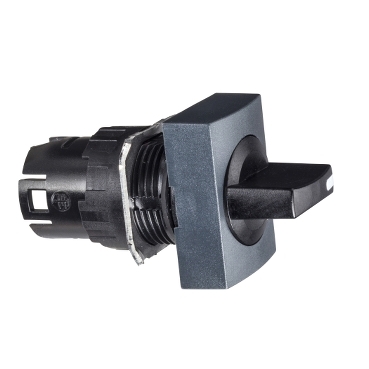

Cap de Selector Dreptung. Ø 16, 3 Pozitii 60°, Negru
Documente
Altele
Declaratie de conformitate
Specificatii
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Colour | |
| Colour front ring | Black |
| Colour control element | Black |
| Colour indicator light cap | - |
| Model/type | |
| Type of control element | Short rotary handle |
| Construction type lens | Rectangular |
| With front ring | Yes |
| Setting/control | |
| Number of switch positions | 3 |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 16.2 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA) | Other |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 148,5 cm3 |
| weight | 17 g |
| length | 6 cm |
| width | 5,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110776874 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 1,614 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 75 |
| qmin | 75 |
| um | CT |
| gtin | 53389110776879 |
