Descriere

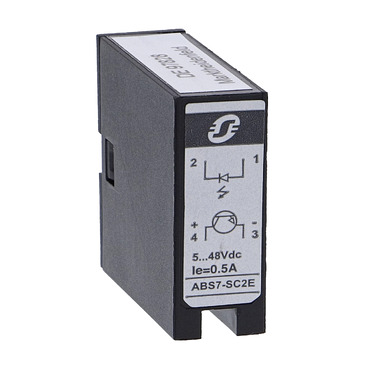

Releu Static Pe Soclu, 10 Mm, Iesire, 5, 48 V Cc, 0.5 A
Documente
Fisa tehnica
Instructiuni
Altele
Specificatii
| Electrical | |
| Frequency control voltage 1 | - |
| Rated current | 0.5 A |
| Type of control voltage 2 | AC/DC |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | - |
| Voltage type (supply voltage) | AC/DC |
| Supply voltage | 5 V |
| Max. incandescent lamp load | - |
| Max. load fluorescent lamp | - |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 19 V |
| Type of control voltage 1 | AC/DC |
| Max. switching current (cos phi = 0.6) | - |
| Control voltage 2 | 24 V |
| Measurements | |
| Built-in depth | 55 mm |
| Width in number of modular spacings | 0 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Completely electronic |
| Package 1 | |
| volume | 92,4 cm3 |
| weight | 6 g |
| length | 6 cm |
| width | 4,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110644791 |
| Package 2 | |
| volume | 92,4 cm3 |
| weight | 29 g |
| length | 6 cm |
| width | 4,4 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13389110644798 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 1,165 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 128 |
| qmin | 128 |
| um | CT |
| gtin | 43389110644799 |
