Descriere

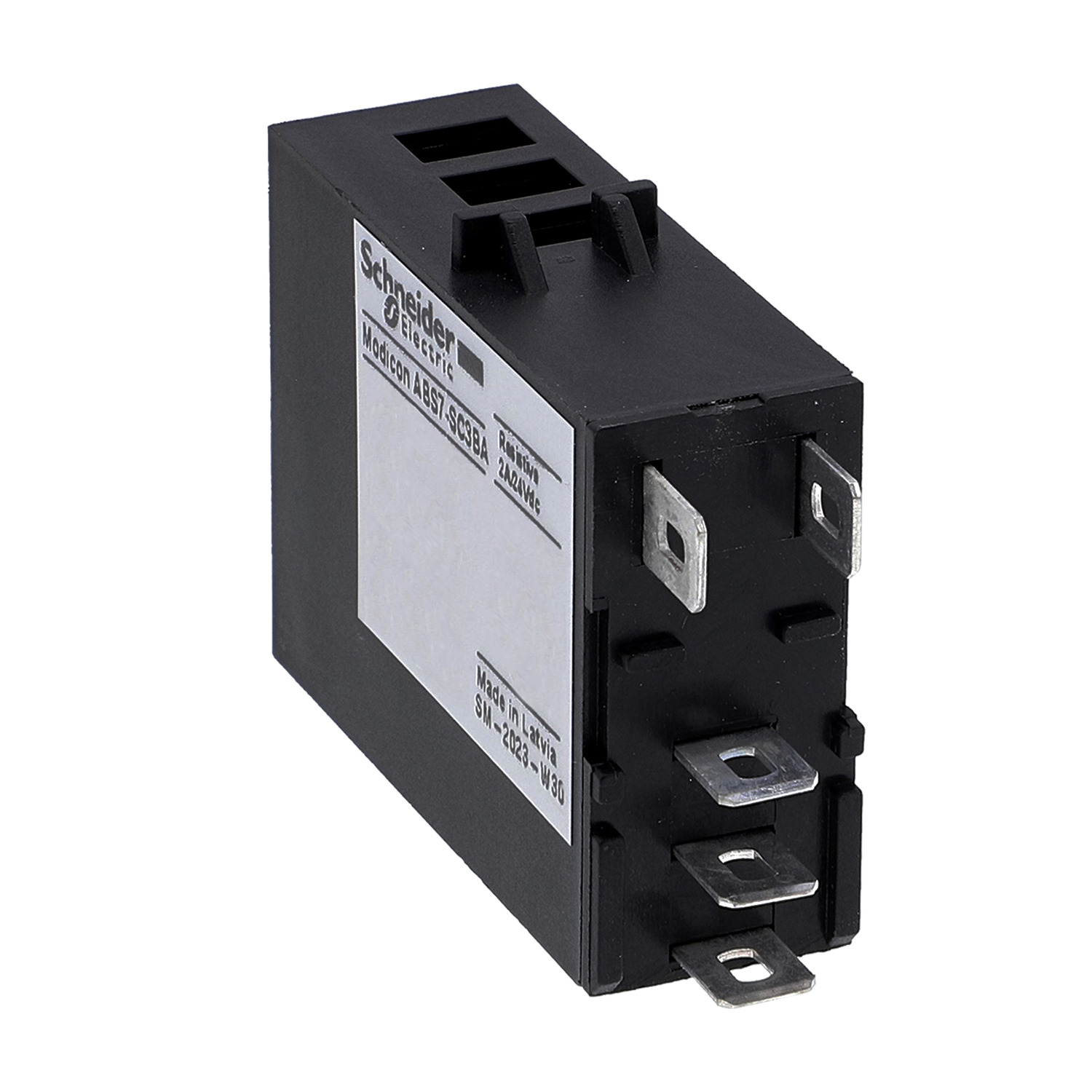

Releu Static Pe Soclu, 12.5 Mm, Iesire, 24 V Cc, 2 A
Documente
Fisa tehnica
Instructiuni
Altele
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Rated current | 2 A |
| Type of control voltage 2 | - |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | - |
| Max. incandescent lamp load | - |
| Supply voltage | 24 V |
| Voltage type (supply voltage) | DC |
| Max. load fluorescent lamp | - |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 24 V |
| Type of control voltage 1 | DC |
| Max. switching current (cos phi = 0.6) | - |
| Control voltage 2 | - |
| Measurements | |
| Built-in depth | 12 mm |
| Width in number of modular spacings | - |
| Mounting/installation | |
| Mounting method | Other |
| Connection | |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | - |
| Model/type | |
| Function | Other |
| Package 1 | |
| volume | 14,4 cm3 |
| weight | 11 g |
| length | 4,5 cm |
| width | 1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110720761 |
| Package 2 | |
| volume | 560 cm3 |
| weight | 70 g |
| length | 10 cm |
| width | 8 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13389110720768 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 2,833 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 128 |
| qmin | 128 |
| um | CT |
| gtin | 43389110720769 |
