Descriere

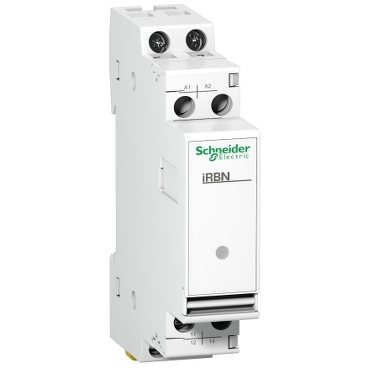

Releu Interfata Nivel Inferior Irbn, 5Ma/5Vac-Dc, 2A/250Vca, 230Vac
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Rated current | 5 A |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 2 | - |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | - |
| Supply voltage | 5 V |
| Voltage type (supply voltage) | AC |
| Max. incandescent lamp load | - |
| Max. load fluorescent lamp | - |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 230 V |
| Type of control voltage 1 | AC |
| Max. switching current (cos phi = 0.6) | 5 A |
| Control voltage 2 | - |
| Measurements | |
| Built-in depth | 65.5 mm |
| Width in number of modular spacings | 2 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Partially electronic |
| Package 1 | |
| volume | 102,51 cm3 |
| weight | 64 g |
| length | 8,5 cm |
| width | 1,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480097737 |
| Package 2 | |
| volume | 1573,2 cm3 |
| weight | 819 g |
| length | 23 cm |
| width | 9,5 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480097734 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 8,171 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 108 |
| qmin | 108 |
| um | CT |
| gtin | 43606480097735 |
