Descriere

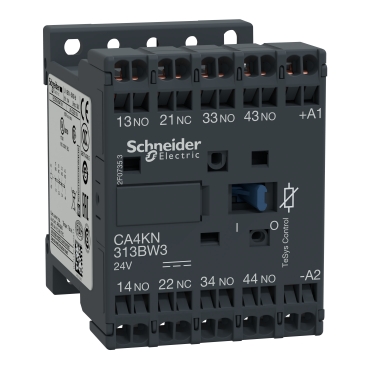

Contactor auxiliar TeSys K - 3 ND + 1 NI - <= 690 V - bobină consum redus 24 Vcc
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Application | |
| Suitable for manual operation | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation current Ie, 400 V | 10 A |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| Connection | |
| Interface | No |
| Number of auxiliary contacts as normally closed contact | 1 |
| Connection type auxiliary circuit | Spring clamp connection |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Model/type | |
| With LED indication | No |
| Mounting/installation | |
| Mounting method | DIN-rail/screw |
| Package 1 | |
| volume | 193,44 cm3 |
| weight | 223 g |
| length | 6,2 cm |
| width | 4,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110241839 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,396 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389110241837 |
