Descriere

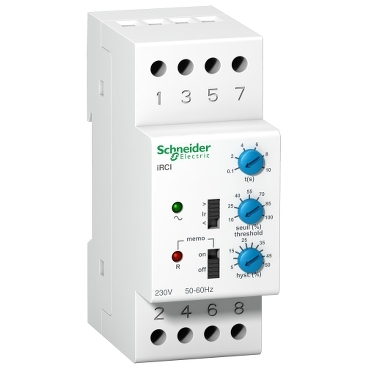

Releu Comanda curent Irci, 8 A, 230 V 50/60Hz, 1 Oc
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Electrical | |
| Three-phase overcurrent possible | No |
| Three-phase under current possible | No |
| Current measuring range | 0.15 A |
| Single-phase overcurrent possible | Yes |
| Single-phase under current possible | Yes |
| Voltage type for actuating | AC |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated control supply voltage DC | - |
| Options | |
| Contains function DC-voltage under current | Yes |
| External current transformer | - |
| Single-phase hysteresis possible | Yes |
| Three-phase hysteresis possible | No |
| Function DC-current hysteresis | Yes |
| Contains function DC-voltage overcurrent | Yes |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Measurements | |
| Height | 88.1 mm |
| Width | 36 mm |
| Depth | 67 mm |
| Operating conditions | |
| Max. permitted delay-on energization time | 10 s |
| Max. permitted off-delay time | 0.1 s |
| Model/type | |
| With detachable clamps | No |
| Setting/control | |
| Min. adjustable delay-on energization time | 0.1 s |
| Min. adjustable off-delay time | 0.1 s |
| Package 1 | |
| volume | 309,12 cm3 |
| weight | 243 g |
| length | 9,2 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480377501 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 8,959 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 43606480377509 |
