Descriere

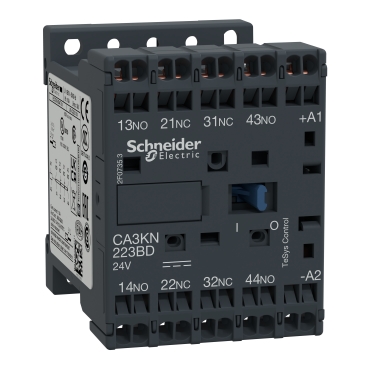

Releu de control TeSys K, 4 contacte (2NO + 2NC), 10 A/690 V, pentru controlul sarcinilor electromagnetice AC-15/DC-13. Ofera un circuit de comanda de 24 V c.c. fara consum la anclansare, conexiune prin borne cu arc. Pentru rate de operare ridicate de pana la 180 de cicluri/min si temperatura ambientala de -25/+50 °C, asigura o fiabilitate si durabilitate ridicate. Compact (latime de 45 mm), pentru prindere pe sina DIN de 35 mm sau fixare cu surub. Certificat conform mai multor standarde (IEC, UL, CSA, CCC, EAC).
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Application | |
| Suitable for manual operation | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated operation current Ie, 400 V | 10 A |
| Rated control supply voltage DC | 24 V |
| Voltage type for actuating | DC |
| Connection | |
| Interface | No |
| Number of auxiliary contacts as normally closed contact | 2 |
| Connection type auxiliary circuit | Spring clamp connection |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Model/type | |
| With LED indication | No |
| Mounting/installation | |
| Mounting method | DIN-rail/screw |
| Package 1 | |
| volume | 193,44 cm3 |
| weight | 226 g |
| length | 6,2 cm |
| width | 4,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110241754 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,39 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389110241752 |
