Descriere

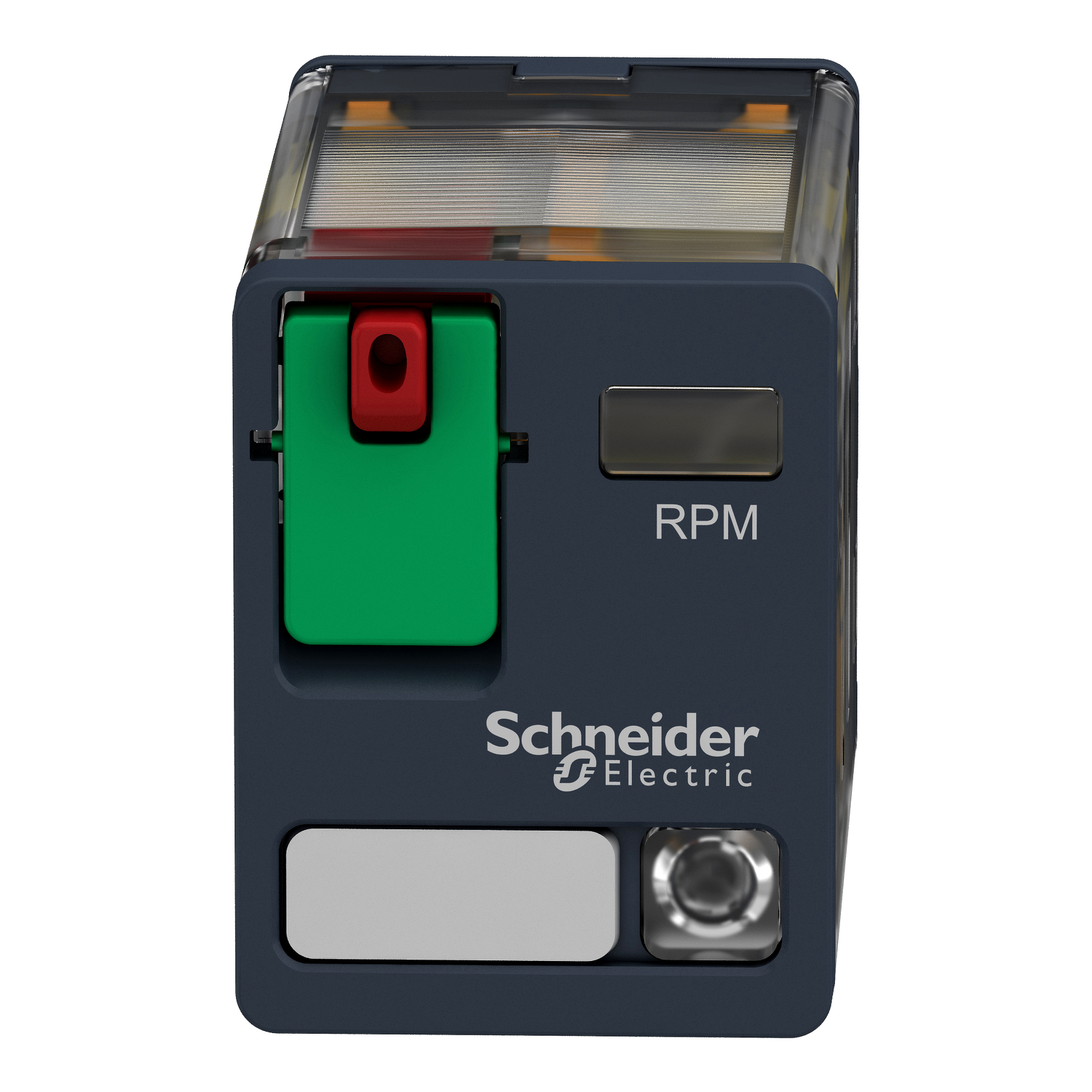

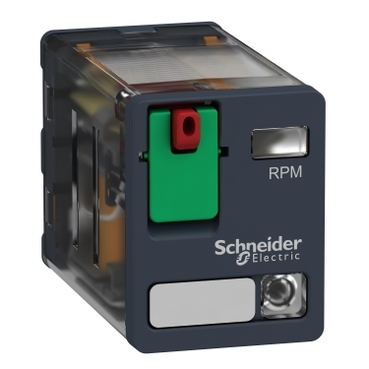

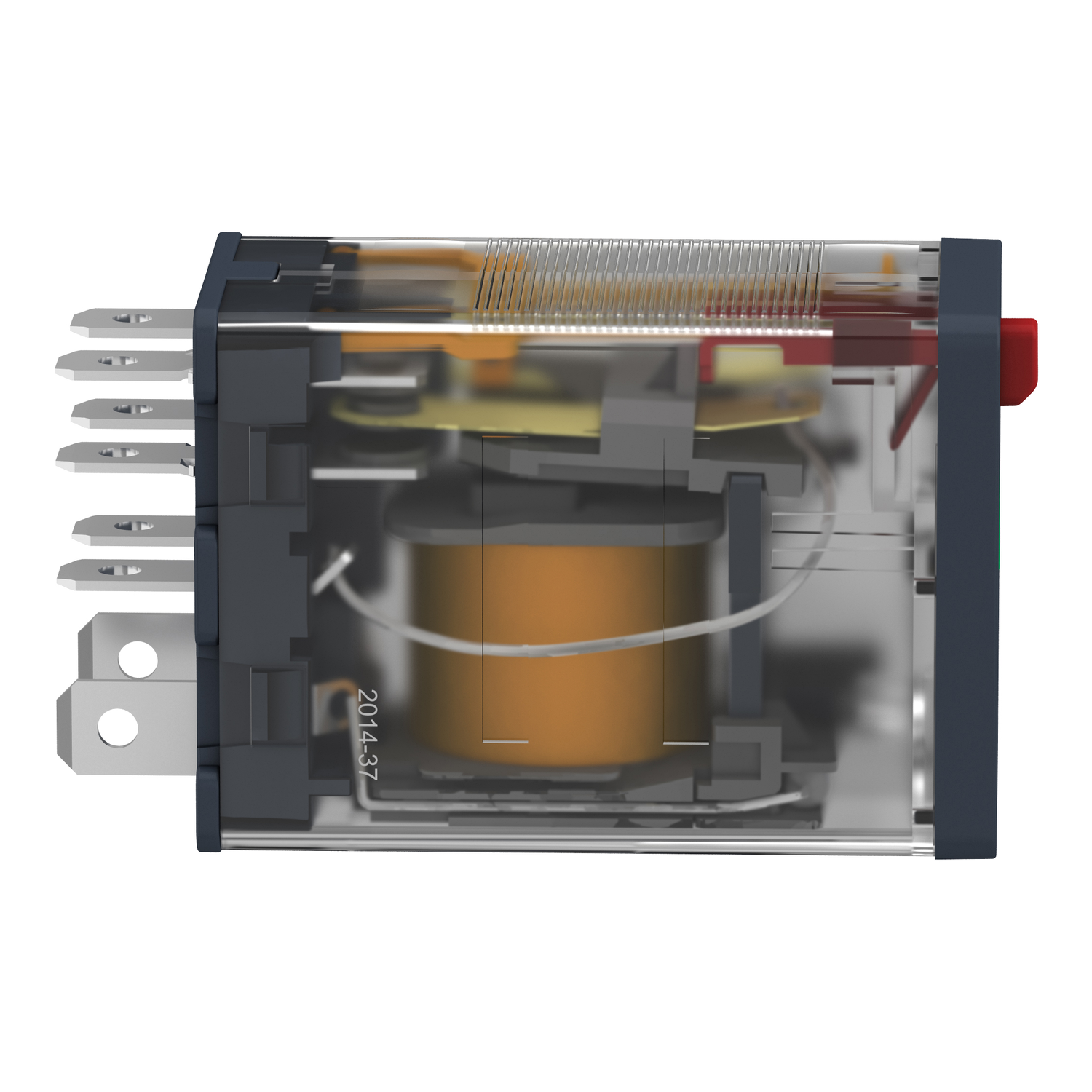

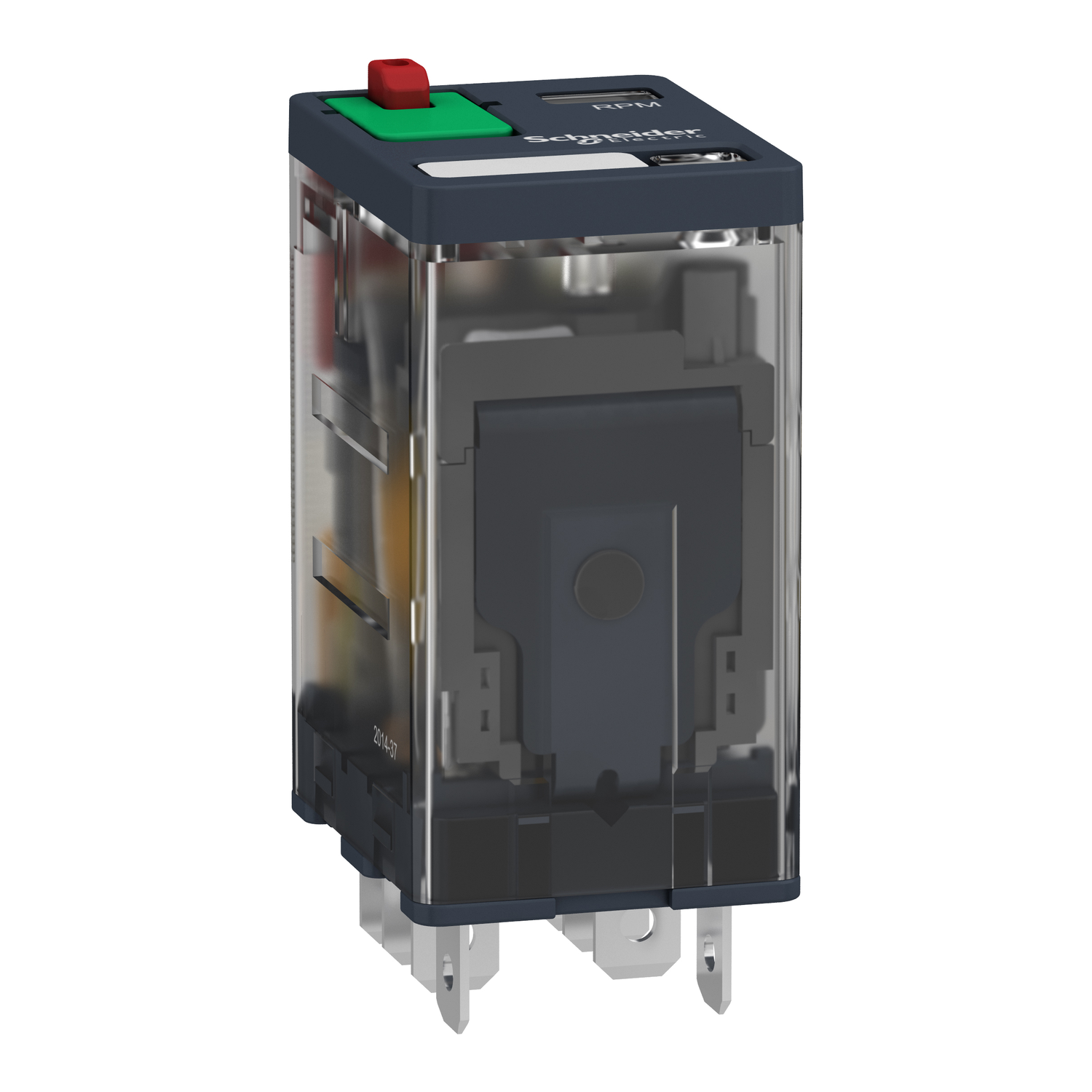

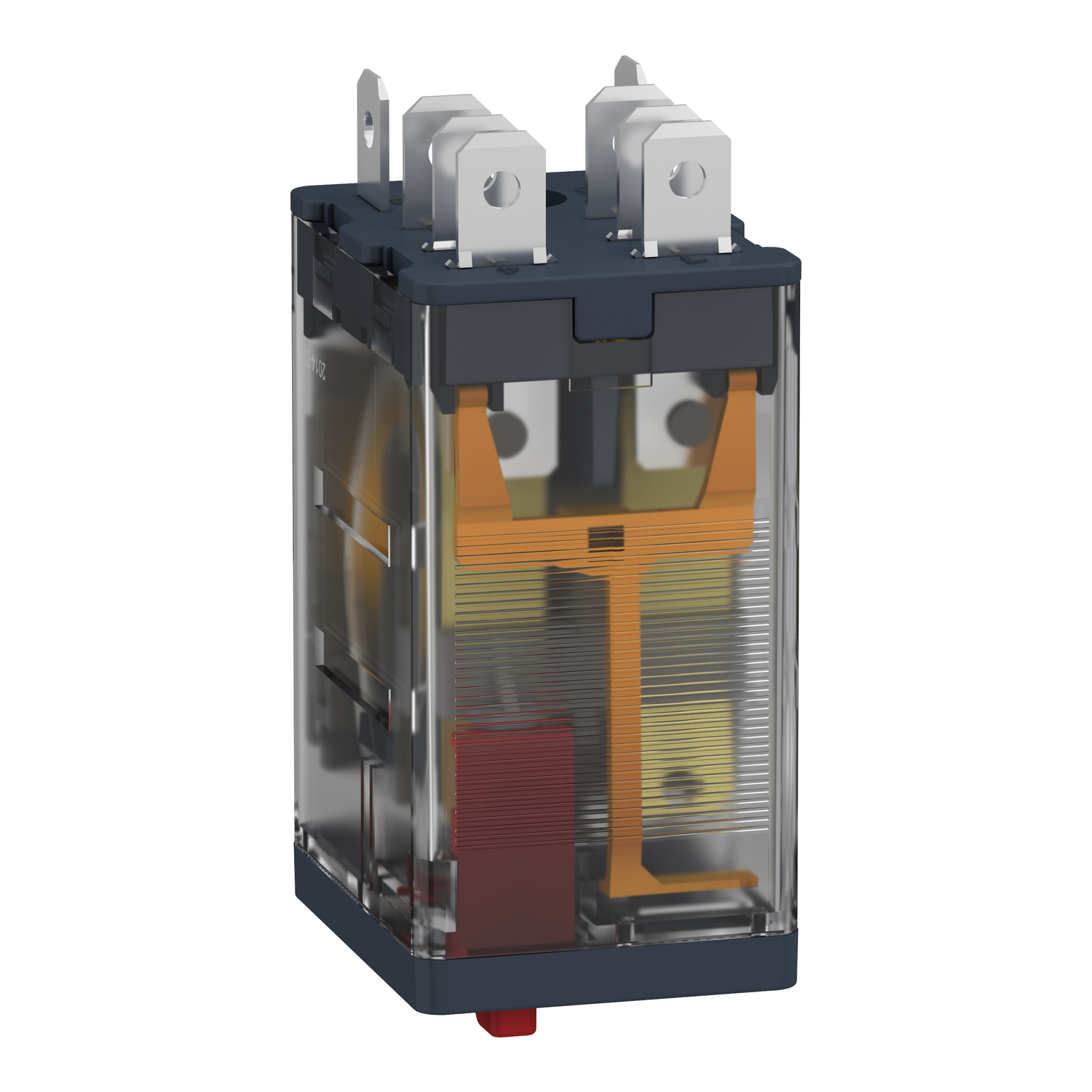

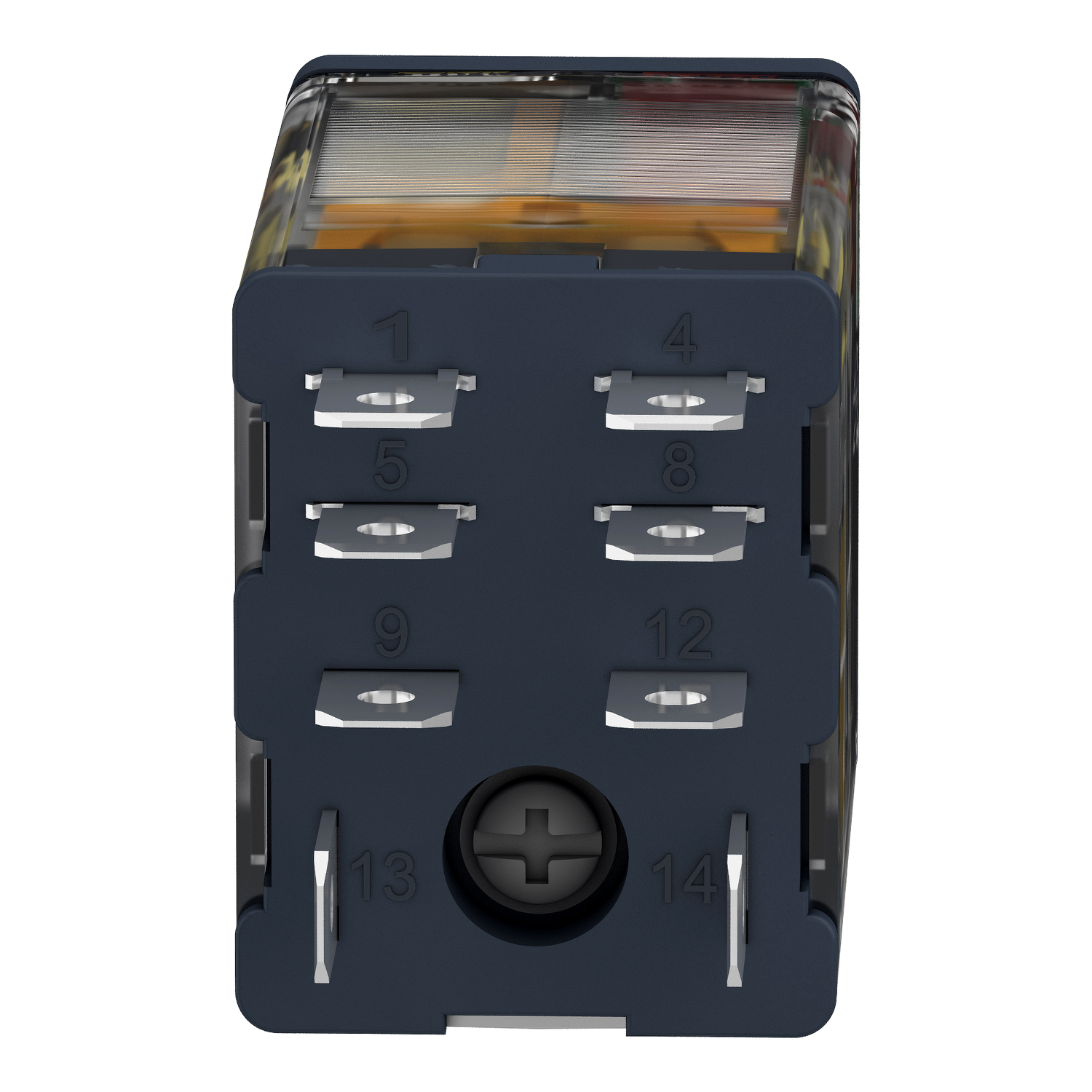

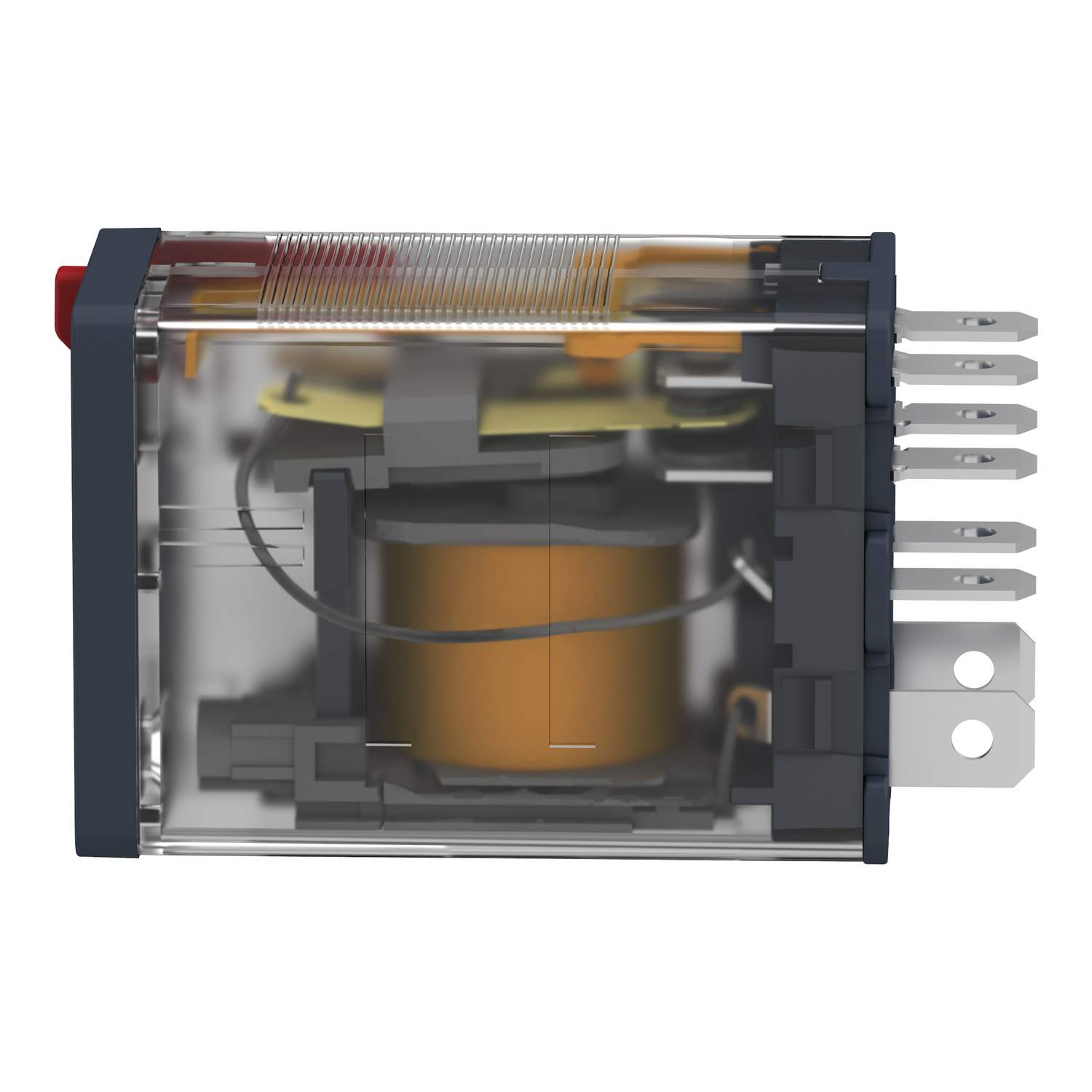

Releu de Interfata, Zelio Rpm, 2 C/O, 230 V C.A., 15 A, cu Led
Documente
Specificatii
| Measurements | |
| Width | 21 mm |
| Depth | 53 mm |
| Height | 27 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Nominal current | 15 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| With forced-guided contacts | Yes |
| With LED indication | Yes |
| Type of switch contact | Double contact |
| With detachable clamps | Yes |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact insert | Other |
| Material of contact surface | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 26,612 cm3 |
| weight | 40 g |
| length | 4,645 cm |
| width | 2,723 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119401951 |
| Package 2 | |
| volume | 408,24 cm3 |
| weight | 400 g |
| length | 13,5 cm |
| width | 10,8 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119401958 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 10,07 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 240 |
| qmin | 240 |
| um | CT |
| gtin | 43389119401959 |

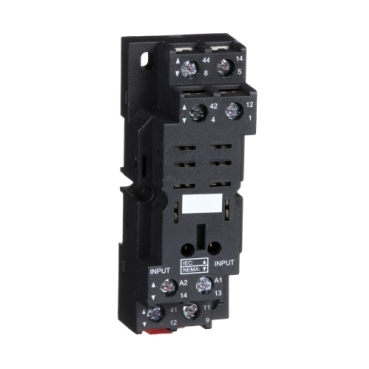

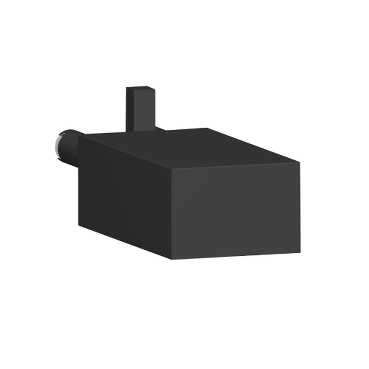

Accesorii
