Descriere

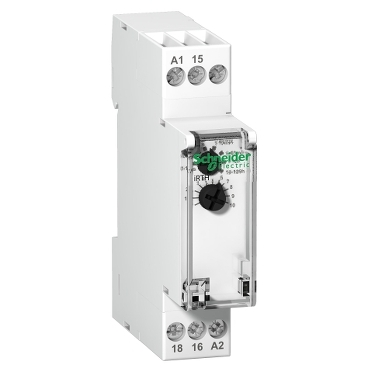

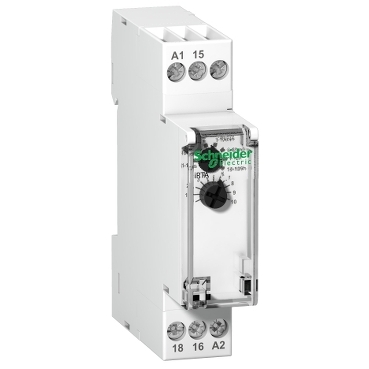

Irta Releu, Temporizare La Energizarea Unei Sarcini-1C/O, Uc 24-240 Vac/24Vdc
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 2 | DC |
| Frequency control voltage 2 | 0 Hz |
| Voltage type (supply voltage) | AC |
| Nominal switching current at 250 V AC | 21 A |
| Control voltage 1 | 24 V |
| Type of control voltage 1 | AC |
| Switch capacity incandescent lamps | - |
| Control voltage 2 | 24 V |
| Switch capacity fluorescent lamp DUO | - |
| Switch capacity fluorescent lamp parallel | - |
| Switch capacity fluorescent lamp inductive | - |
| Supply voltage | 24 V |
| Measurements | |
| Width in number of modular spacings | 1 |
| Built-in height | 81 mm |
| Other | |
| 2nd interval | - |
| 2nd interval unit | - |
| 1st interval unit | Seconds/hours |
| 1st interval | 0.1 |
| Setting/control | |
| Type of excitation | Analogue with single function |
| Number of changeover switches | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Operating delay |
| Package 1 | |
| volume | 182,928 cm3 |
| weight | 80 g |
| length | 10,3 cm |
| width | 7,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480377419 |
