Descriere

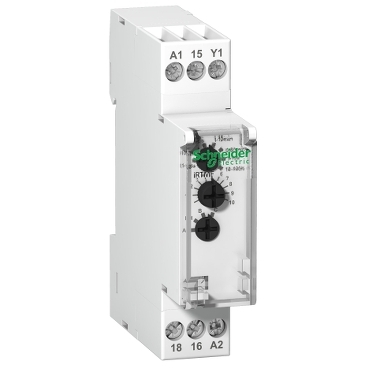

Irtmf Releu Temporizare Temporala Multifunctional, 1 Oc, 12-240 Vac/Dc
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 2 | DC |
| Frequency control voltage 2 | 0 Hz |
| Voltage type (supply voltage) | AC |
| Nominal switching current at 250 V AC | 8 A |
| Control voltage 1 | 12 V |
| Type of control voltage 1 | AC |
| Switch capacity incandescent lamps | - |
| Control voltage 2 | 24 V |
| Switch capacity fluorescent lamp DUO | - |
| Switch capacity fluorescent lamp parallel | - |
| Switch capacity fluorescent lamp inductive | - |
| Supply voltage | 12 V |
| Measurements | |
| Width in number of modular spacings | 1 |
| Built-in height | 81 mm |
| Other | |
| 2nd interval | - |
| 2nd interval unit | - |
| 1st interval unit | Seconds/hours |
| 1st interval | 0.1 |
| Setting/control | |
| Type of excitation | Analogue with multi function |
| Number of changeover switches | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Multi function |
| Package 1 | |
| volume | 166,056 cm3 |
| weight | 83 g |
| length | 10,2 cm |
| width | 7,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480377464 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,814 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43606480377462 |
