Descriere

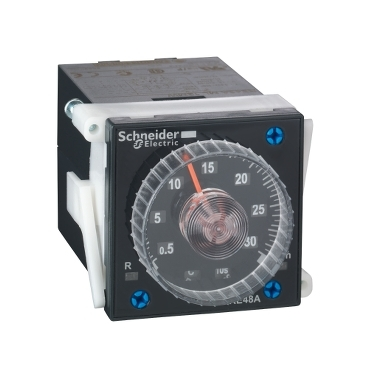

Releu Temporizare cu 2 Functii, 0,02 S, 300 Ore, 24, 240 V C.A., 2 Oc
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Number of outputs, delayed, normally open contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, delayed, change-over contact | 2 |
| Outputs, reversible delayed/undelayed | No |
| Options | |
| Function delay on de-energization | Yes |
| Clock function, starting with pause, variable | No |
| Clock function, starting with pulse, variable | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | Yes |
| Function delay-on energization | Yes |
| Function floating contact on energization | No |
| Function star-delta | No |
| Function flashing, starting with pause, fixed time | Yes |
| Function flashing, starting with pulse, fixed time | Yes |
| Mounting/installation | |
| Pluggable on auxiliary contact block | No |
| Suitable for front mounting | Yes |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Nominal current | 5 A |
| Rated control supply voltage DC | 24 V |
| Measurements | |
| Height | 48 mm |
| Width | 48 mm |
| Depth | 80 mm |
| Model/type | |
| With semiconductor output | No |
| With plug-in socket | Yes |
| Setting/control | |
| Remote operation possible | No |
| Suitable as remote control | No |
| Other | |
| Time range | 0.02 s |
| Package 1 | |
| volume | 371,07 cm3 |
| weight | 130 g |
| length | 10,5 cm |
| width | 6,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110649598 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,35 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 23389110649592 |
