Descriere

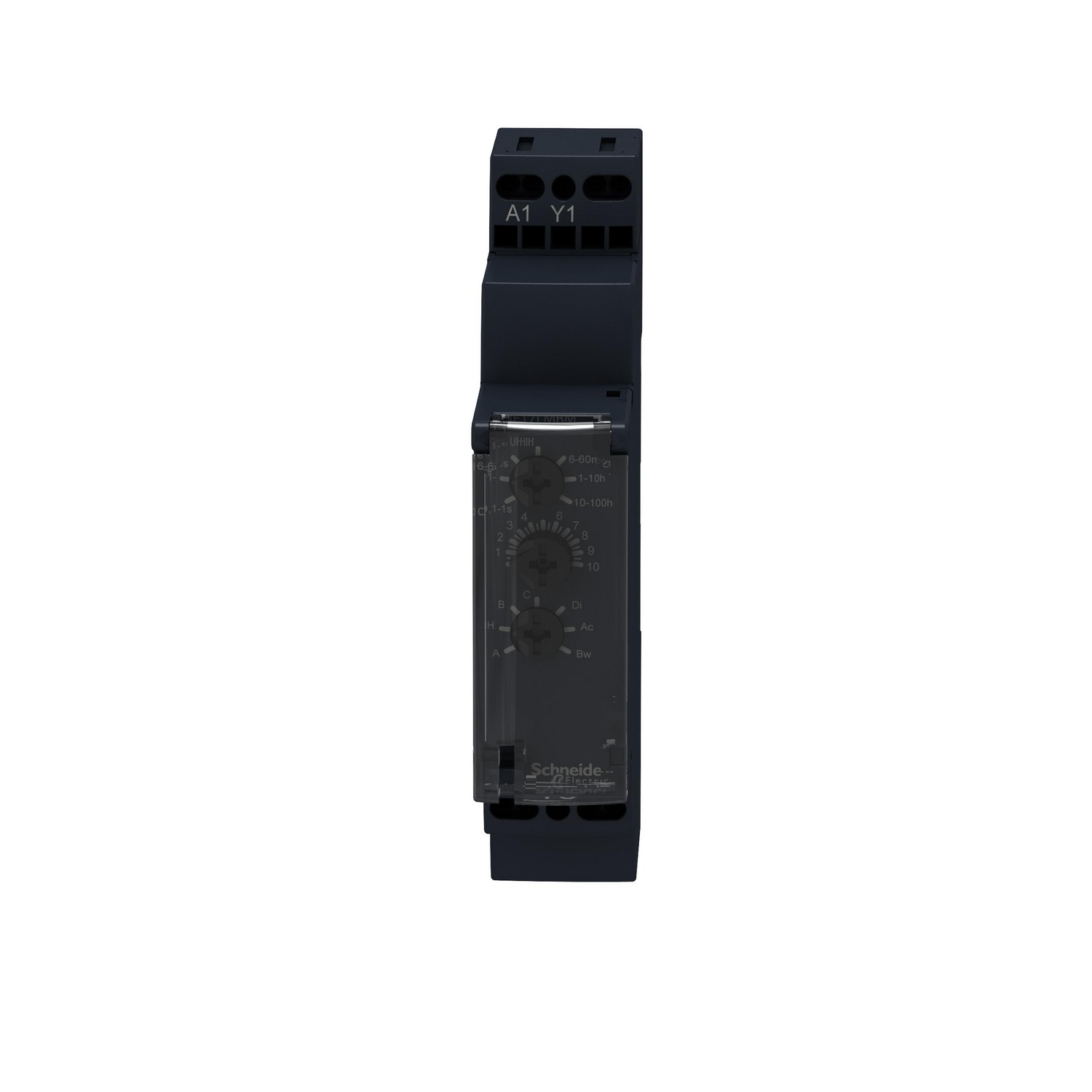

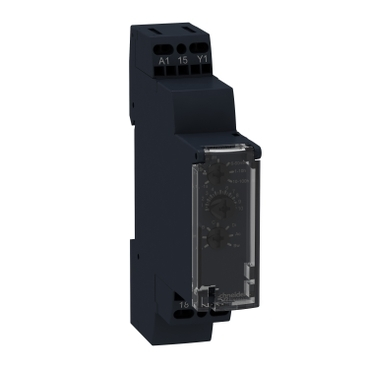

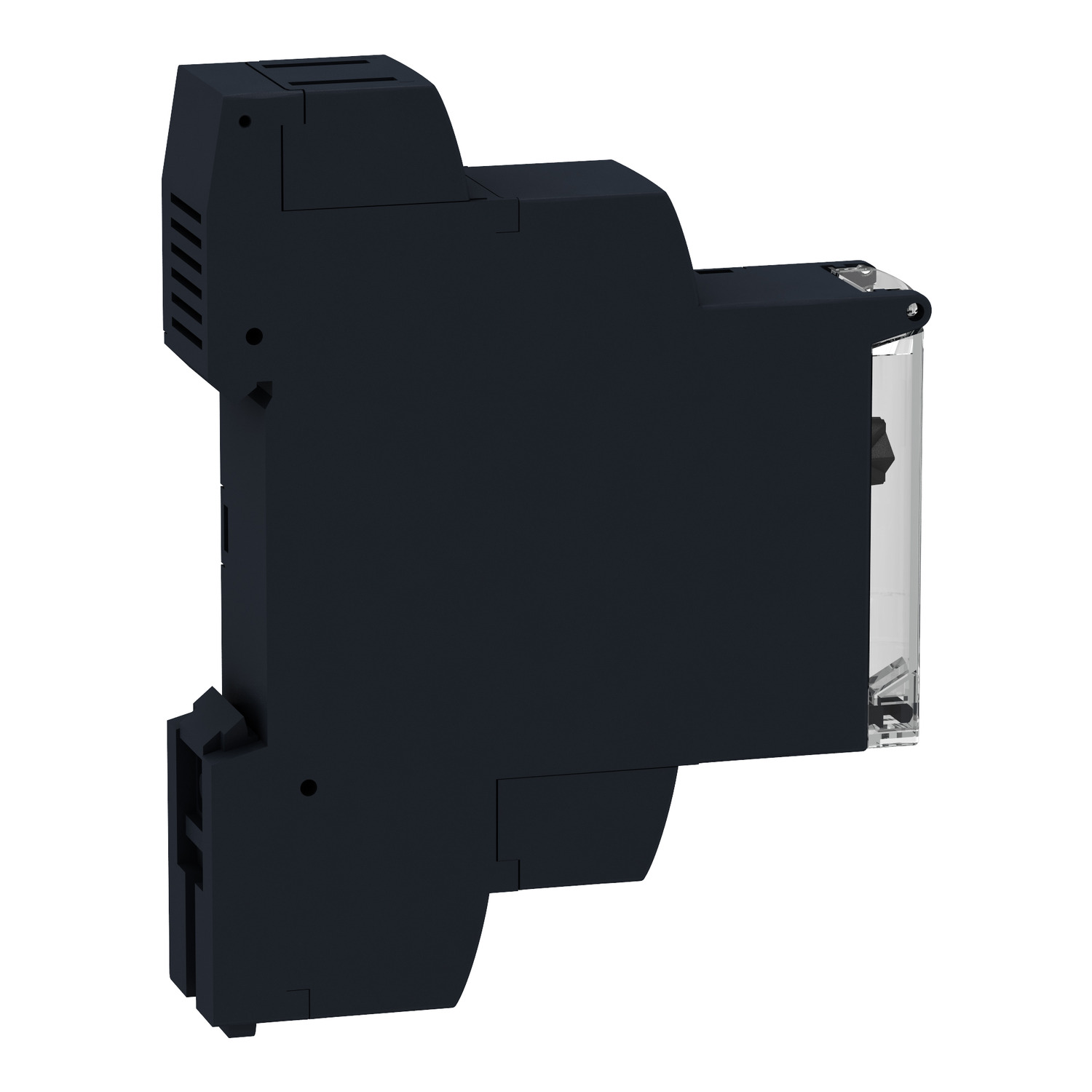

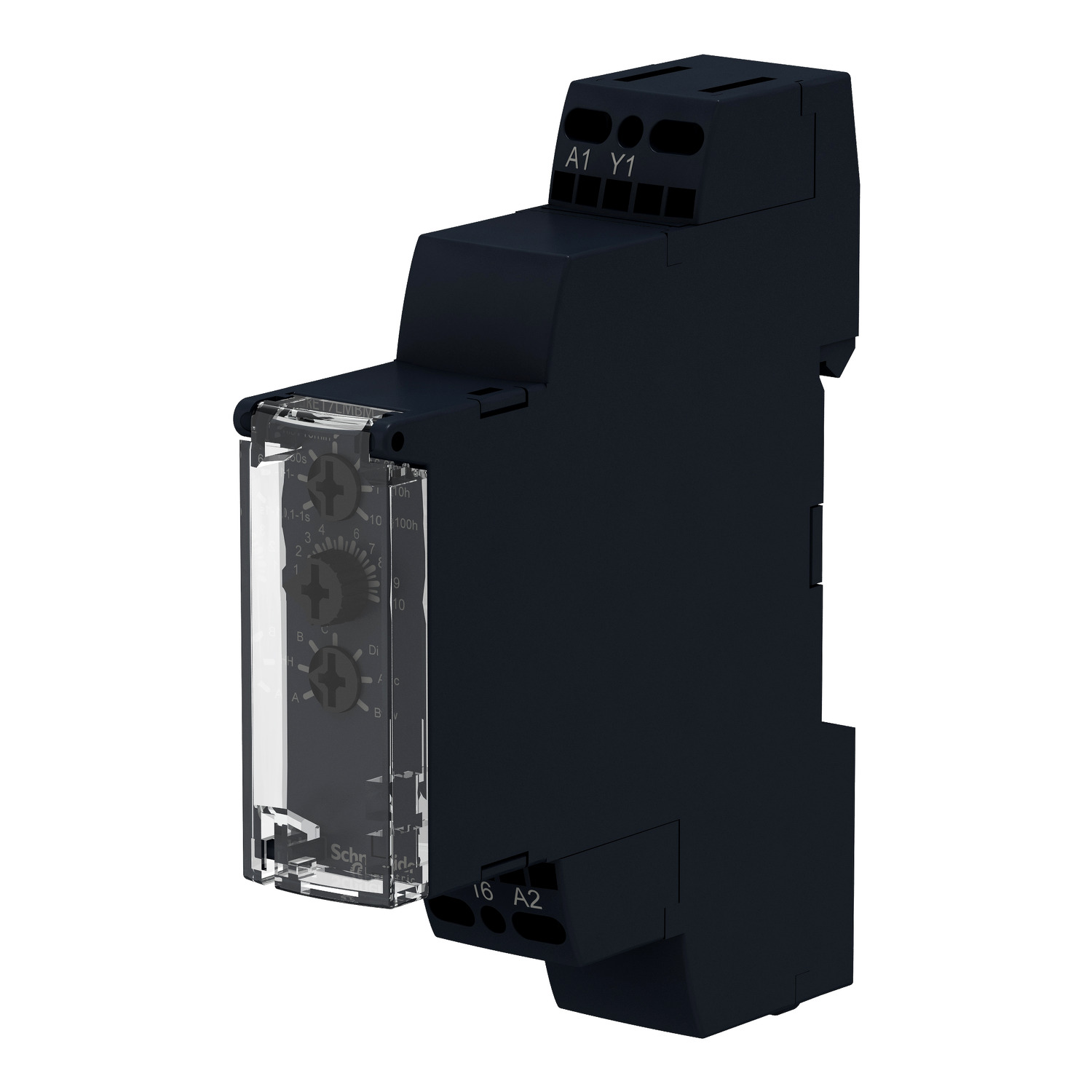

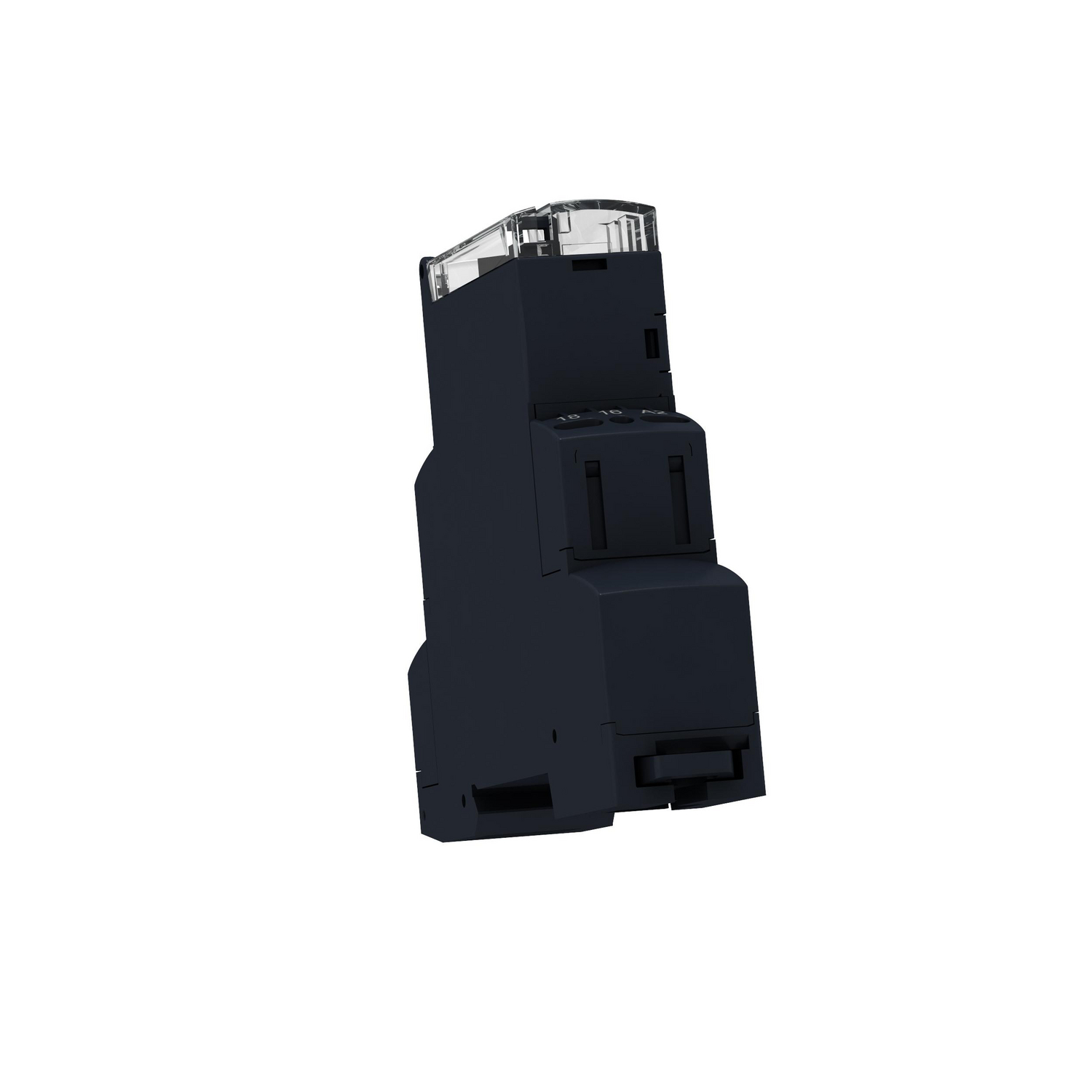

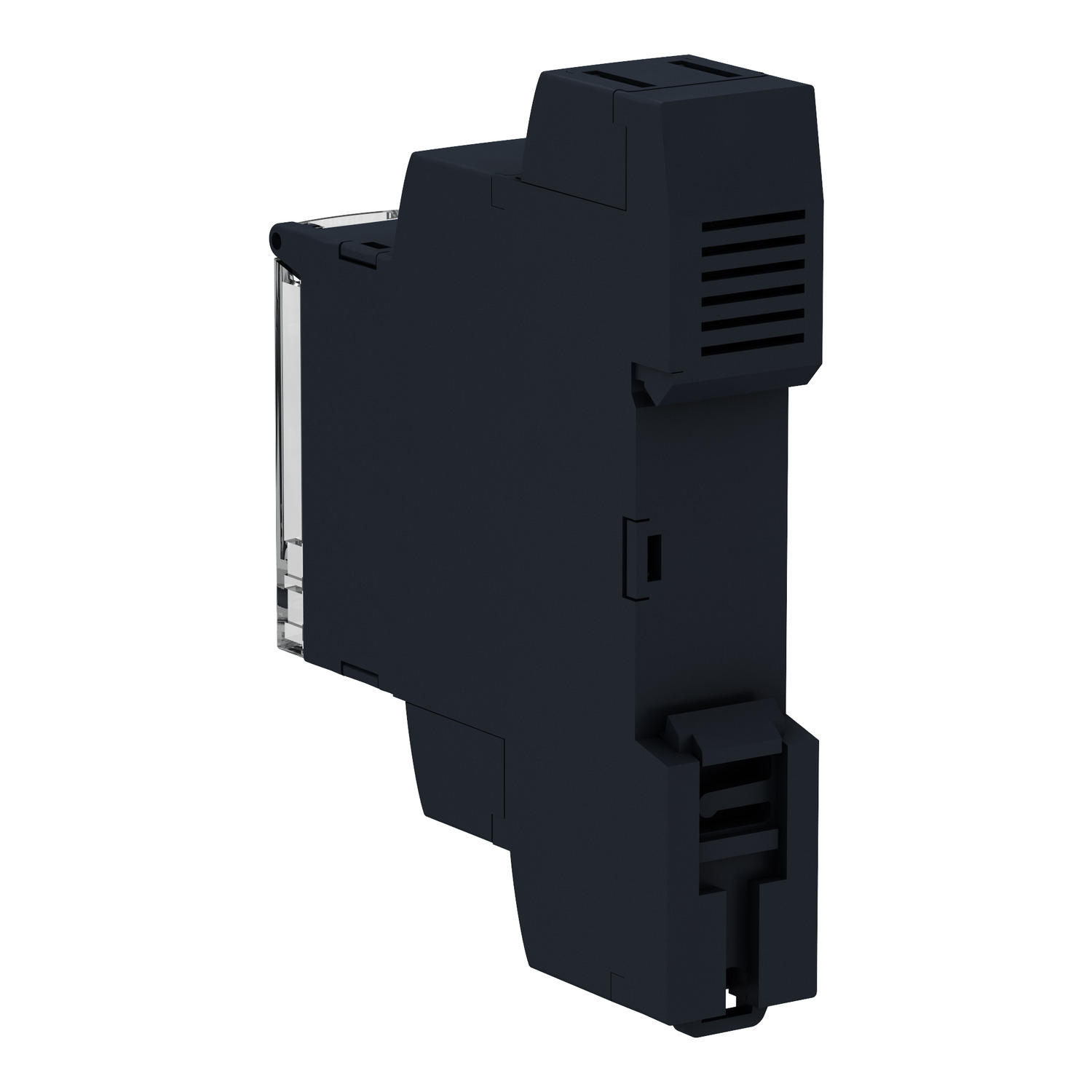

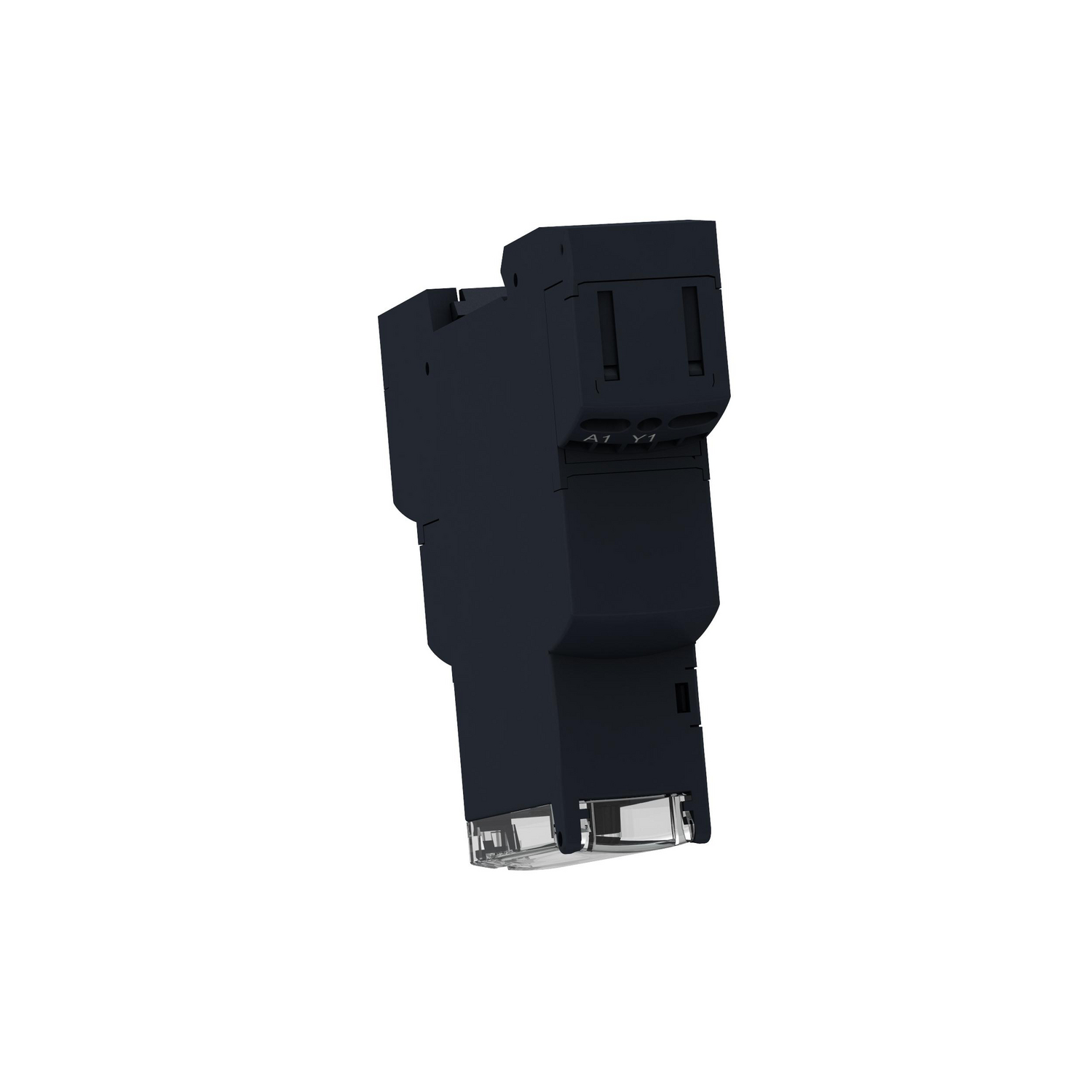

Releu de Temporizare 10 Functii, 1 S, 100 H, 24, 240 V, Iesire Statica
Documente
Specificatii
| Connection | |
| Number of outputs, delayed, normally open contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, delayed, change-over contact | 0 |
| Outputs, reversible delayed/undelayed | No |
| Options | |
| Function delay on de-energization | No |
| Clock function, starting with pause, variable | Yes |
| Clock function, starting with pulse, variable | Yes |
| Function floating contact on de-energization | No |
| Function pulse shaping | Yes |
| Function delay-on energization | Yes |
| Function floating contact on energization | Yes |
| Function star-delta | No |
| Function flashing, starting with pause, fixed time | Yes |
| Function flashing, starting with pulse, fixed time | Yes |
| Mounting/installation | |
| Pluggable on auxiliary contact block | No |
| Suitable for front mounting | No |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Measurements | |
| Height | 90 mm |
| Width | 17.5 mm |
| Depth | 72 mm |
| Electrical | |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Nominal current | - |
| Rated control supply voltage DC | - |
| Model/type | |
| With semiconductor output | Yes |
| With plug-in socket | No |
| Setting/control | |
| Remote operation possible | No |
| Suitable as remote control | No |
| Other | |
| Time range | 0.1 s |
| Package 1 | |
| volume | 205,296 cm3 |
| weight | 72 g |
| length | 9,4 cm |
| width | 7,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480552663 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,222 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43606480552661 |
