Releu electronic de suprasarcina termic,

Cod produs: LR9G225

▶

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606481912541

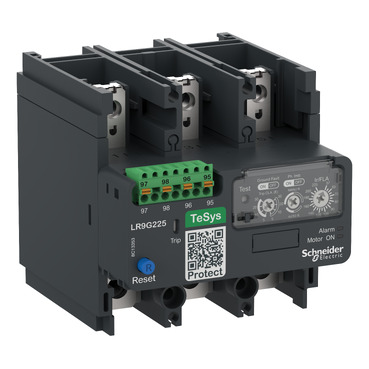

Releu electronic de suprasarcina termic, TeSys Giga, 57..225A, clasa 5E..30E, conexiuni push-in

Fisa tehnica

Instructiuni

Altele

Declaratie de conformitate

Alte surse

Options
Reset function automatic	Yes
Reset function input	Yes
Reset function push-button	Yes
Connection
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as change-over contact	0
Electrical
Max. rated operation voltage Ue	1000 V
Adjustable current range	57 A
Other
Release class	CLASS 10
Mounting/installation
Mounting method	Direct attachment/single positioning
Package 1
volume	7140 cm3
weight	1,425 kg
length	21 cm
width	20 cm
qmax	1
qmin	1
um	C62
gtin	3606481912541
Package 2
volume	36000 cm3
weight	3,383 kg
length	40 cm
width	30 cm
qmax	2
qmin	2
um	CT
gtin	13606481912548
Package 3
volume	360000 cm3
weight	35,624 kg
length	80 cm
width	60 cm
qmax	16
qmin	16
um	PF
