Descriere

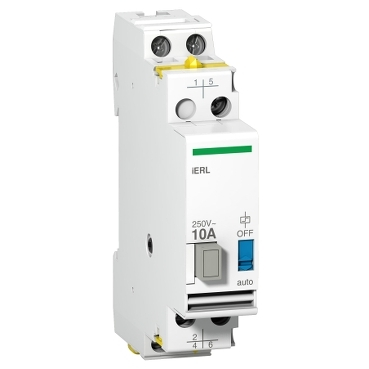

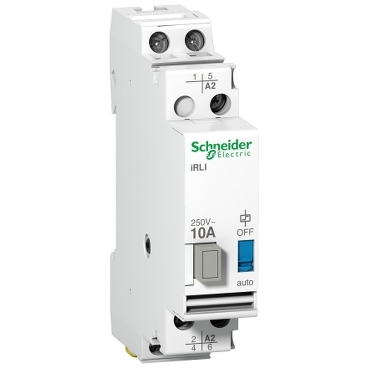

Releu Schimbare Irli 10A 2P Uc 230V-240Vac Ue 250Vac
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Rated current | 10 A |
| Type of control voltage 2 | - |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | - |
| Voltage type (supply voltage) | AC |
| Supply voltage | 230 V |
| Max. incandescent lamp load | 2300 W |
| Max. load fluorescent lamp | - |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 230 V |
| Max. switching current (cos phi = 0.6) | - |
| Type of control voltage 1 | AC |
| Control voltage 2 | - |
| Measurements | |
| Built-in depth | 65.5 mm |
| Width in number of modular spacings | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Mechanical |
| Package 1 | |
| volume | 108,375 cm3 |
| weight | 112 g |
| length | 8,5 cm |
| width | 1,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480377310 |
| Package 2 | |
| volume | 1762,815 cm3 |
| weight | 1,404 kg |
| length | 22,3 cm |
| width | 9,3 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480377317 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 17,05 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 144 |
| qmin | 144 |
| um | CT |
| gtin | 43606480377318 |
