Descriere

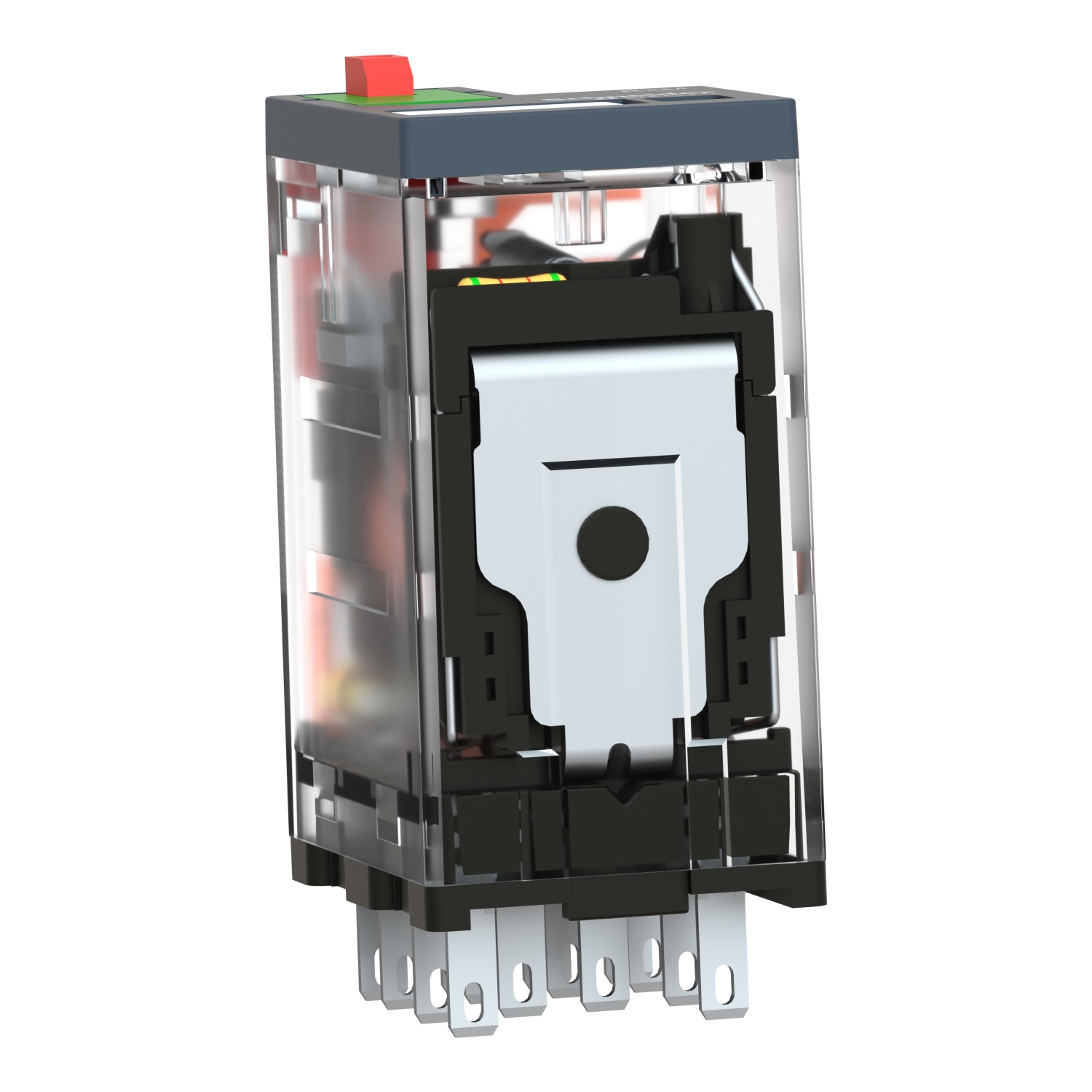

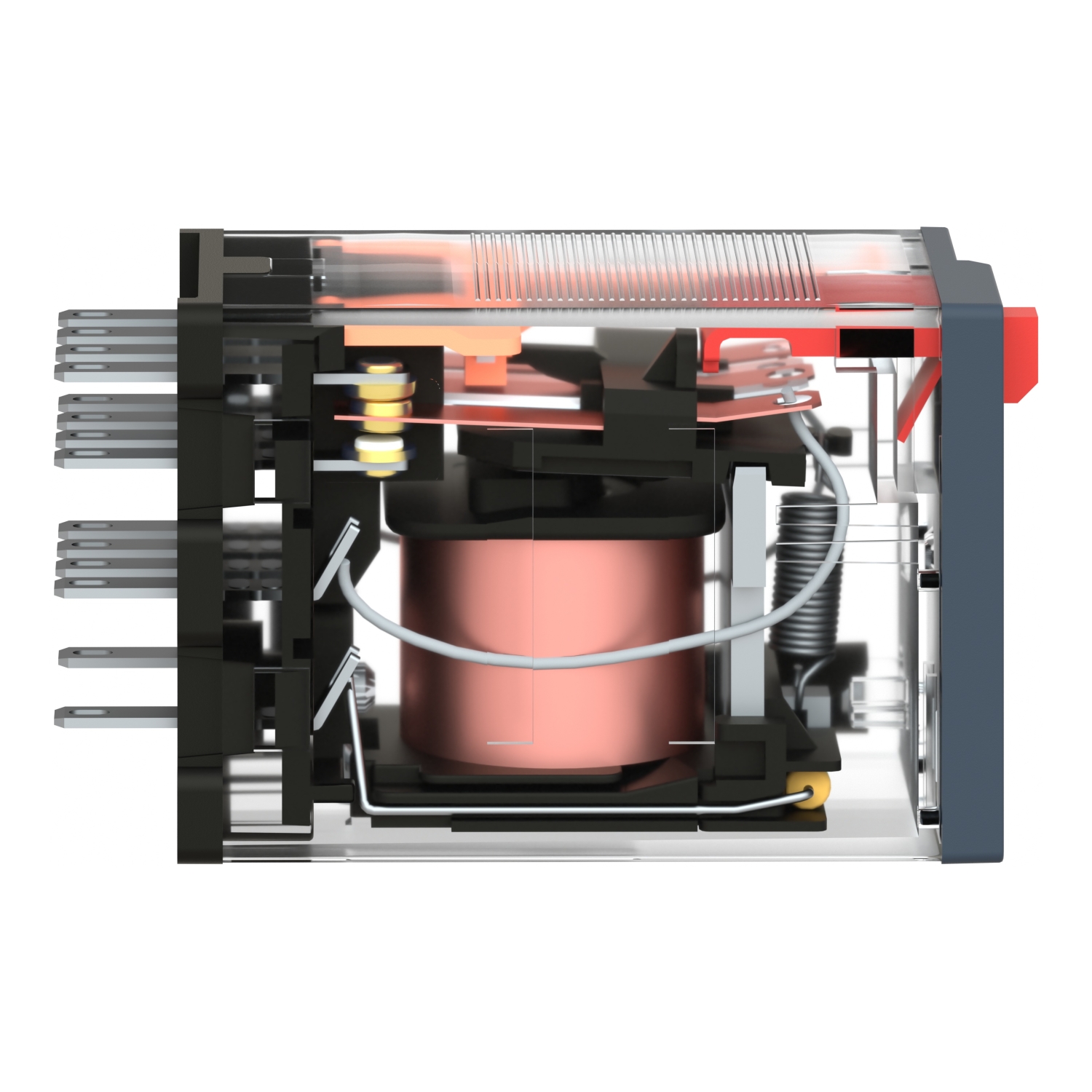

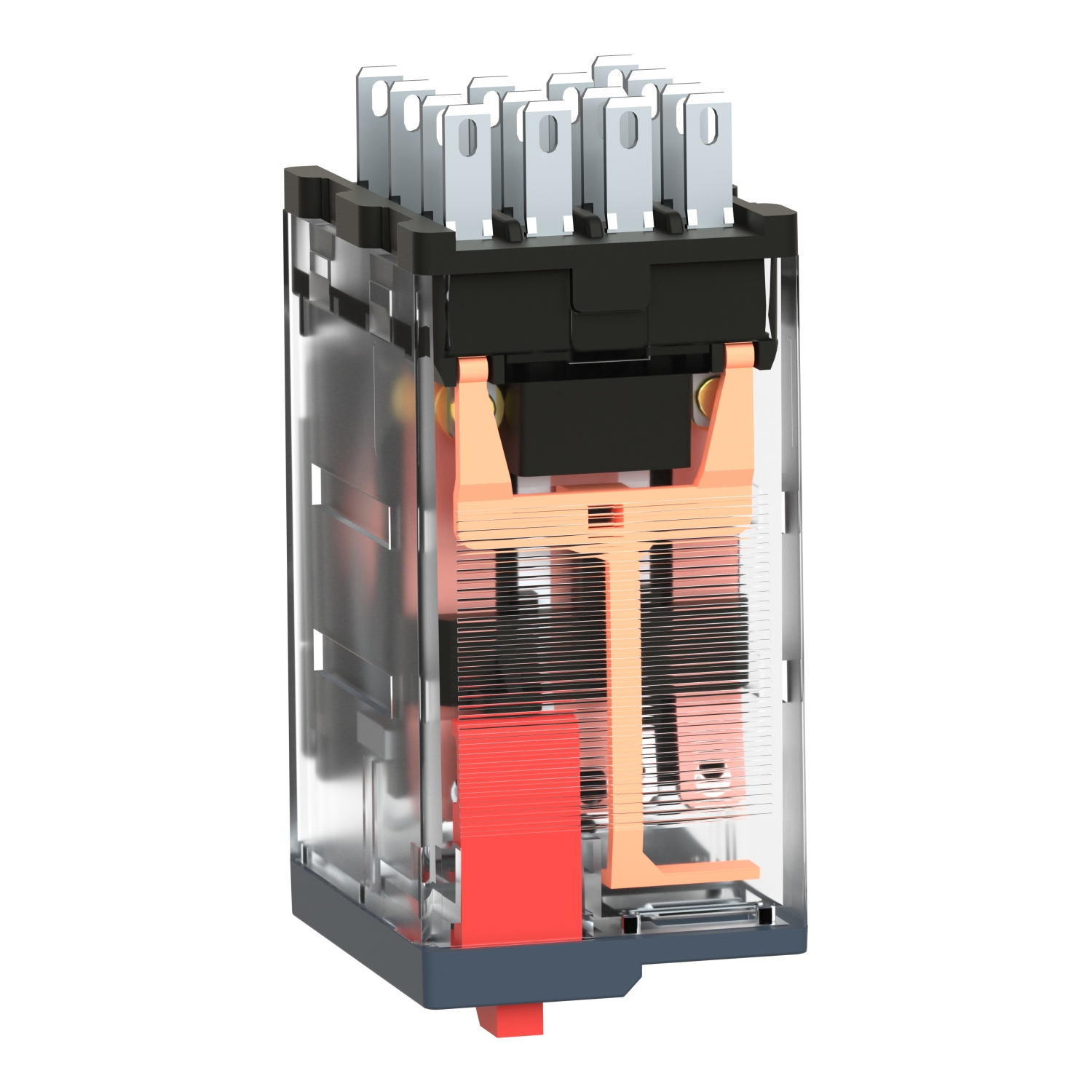

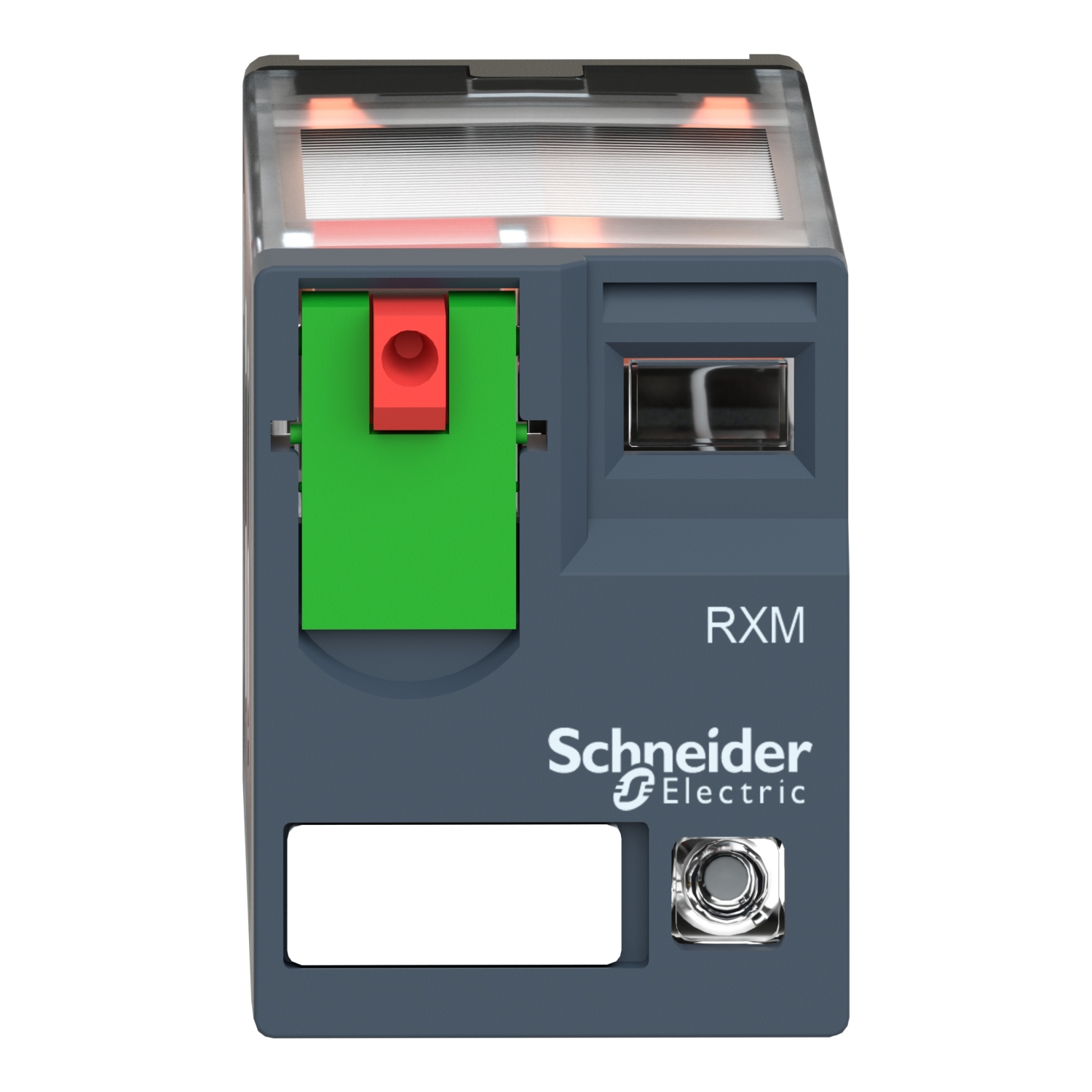

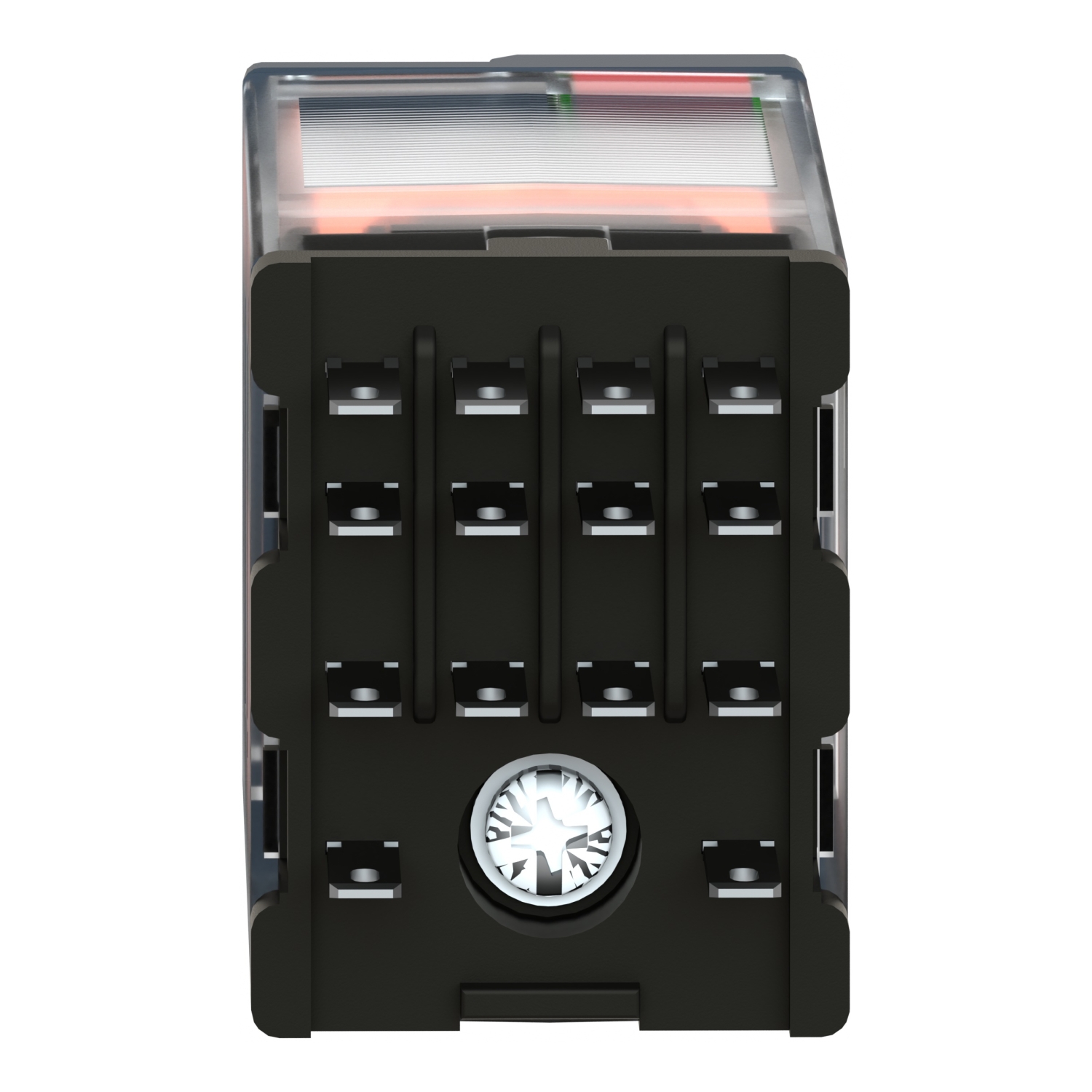

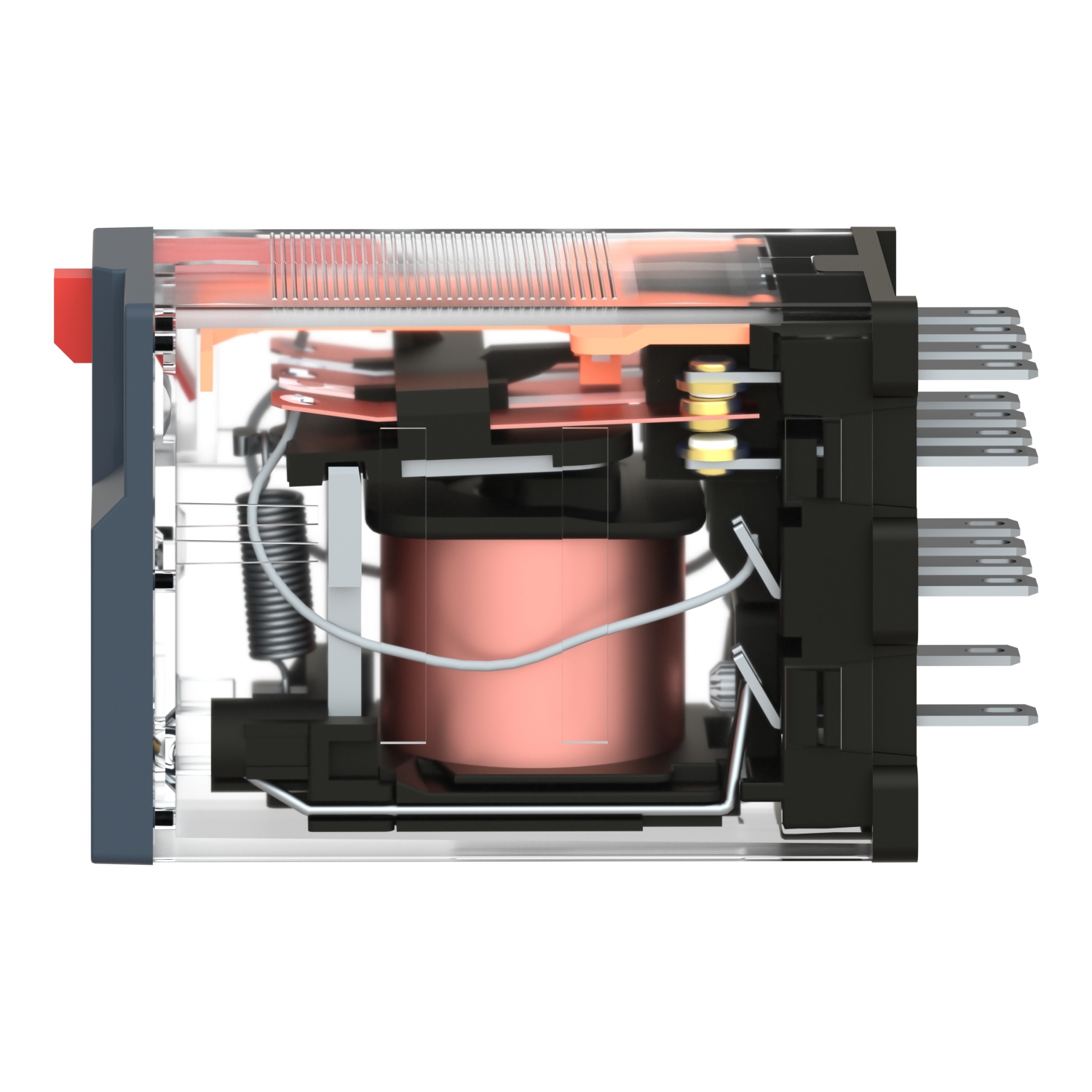

Releu Conectabil Miniatura, Zelio Rxm, 4 C/O, 230 V C.A., 6 A, cu Led
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | 21 mm |
| Depth | 55 mm |
| Height | 27 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Nominal current | 6 A |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 4 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Model/type | |
| With forced-guided contacts | No |
| With LED indication | Yes |
| Type of switch contact | Other |
| With detachable clamps | No |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact insert | Other |
| Material of contact surface | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 27,216 cm3 |
| weight | 35 g |
| length | 4,8 cm |
| width | 2,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119403887 |
| Package 2 | |
| volume | 375 cm3 |
| weight | 391 g |
| length | 12,5 cm |
| width | 10 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119403884 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 9,835 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 240 |
| qmin | 240 |
| um | CT |
| gtin | 43389119403885 |
| Package 4 | |
| weight | 152,975 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 3840 |
| qmin | 3840 |
| um | PF |
