Descriere

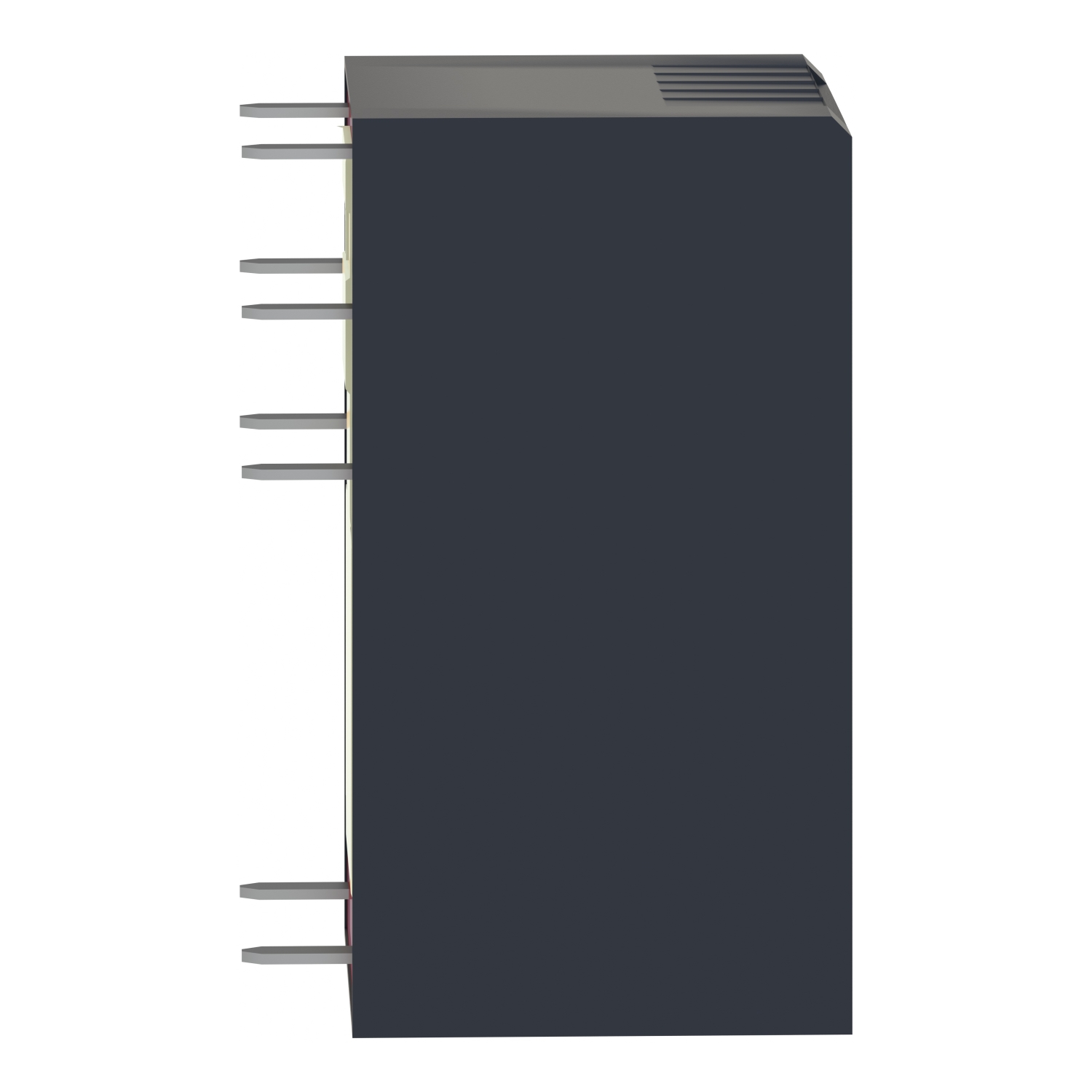

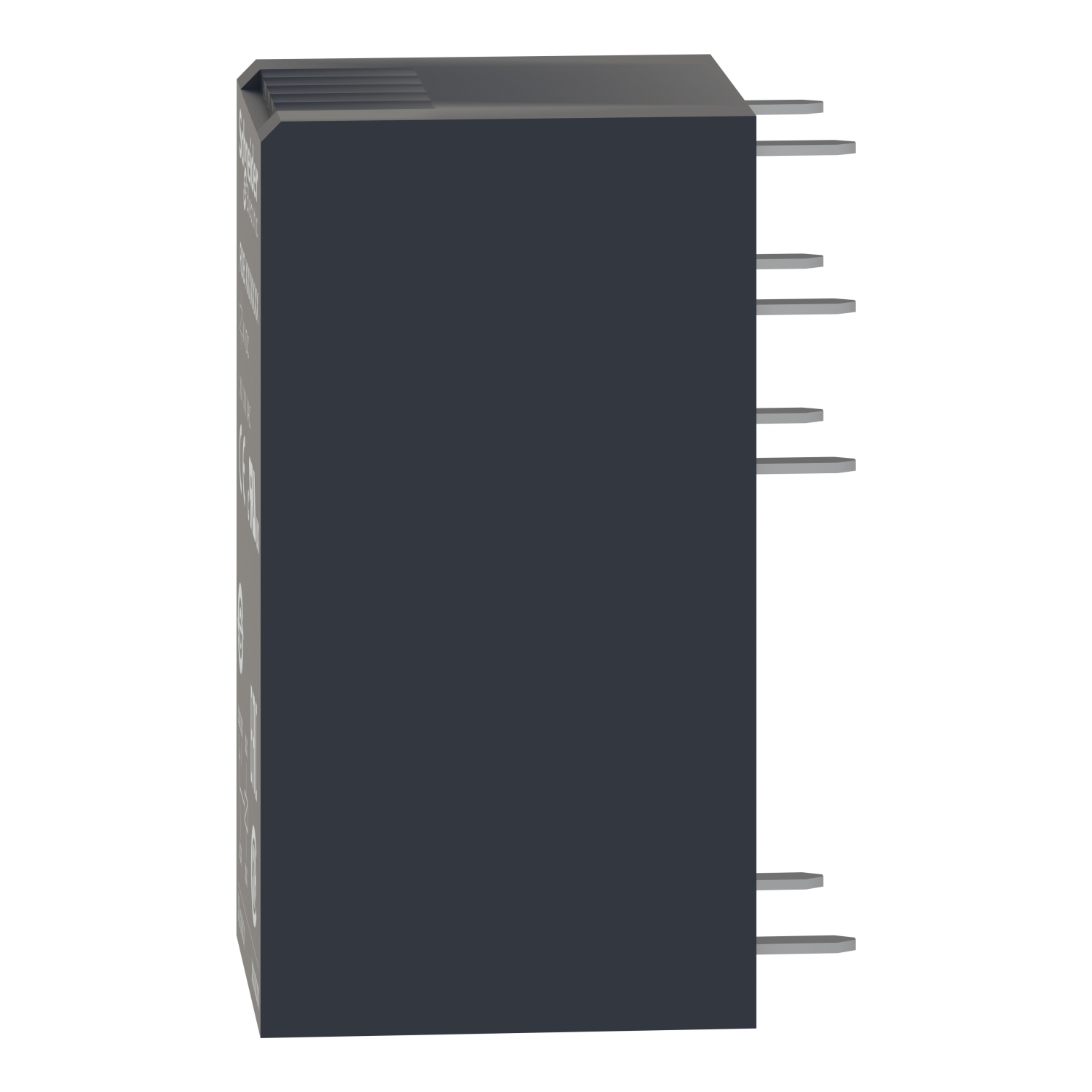

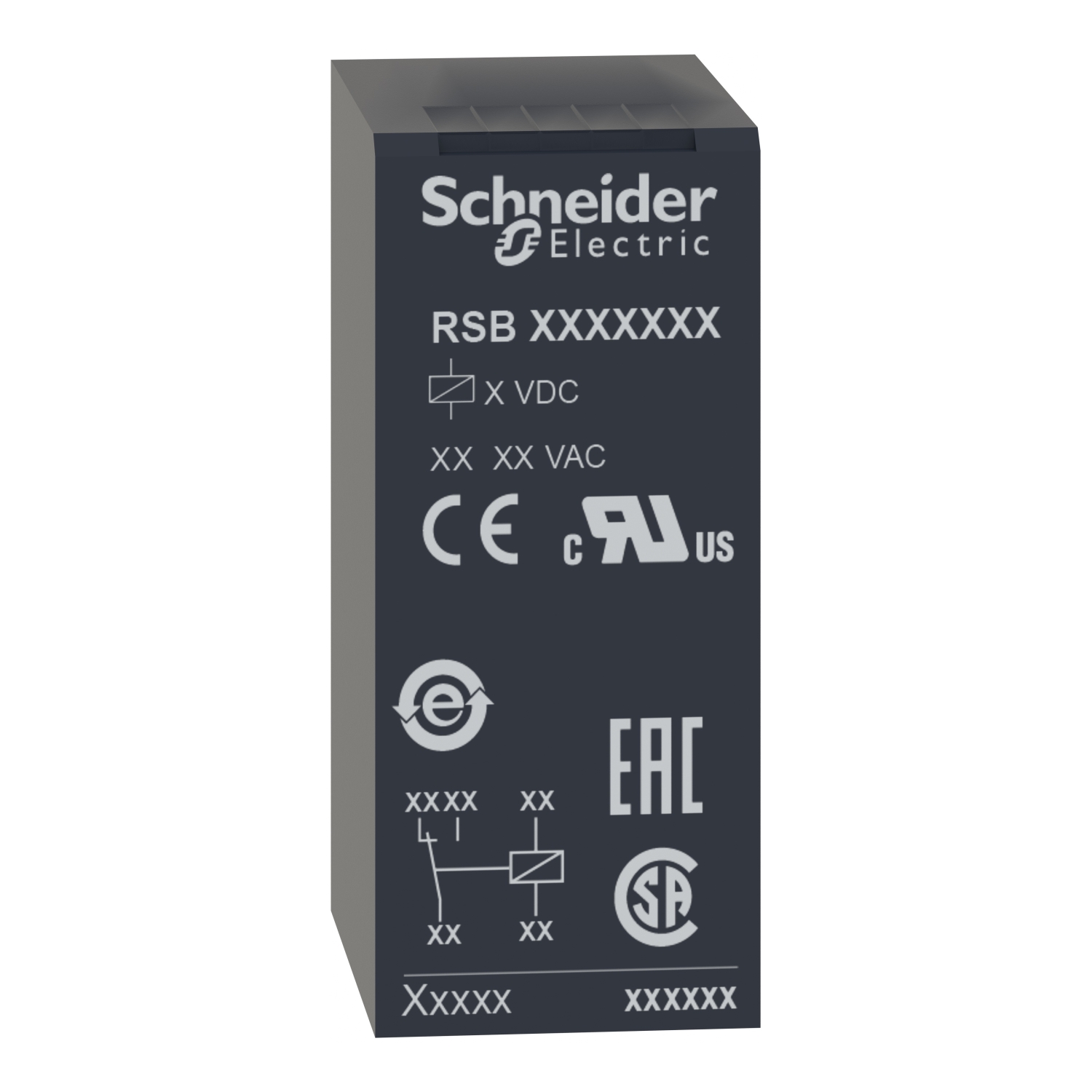

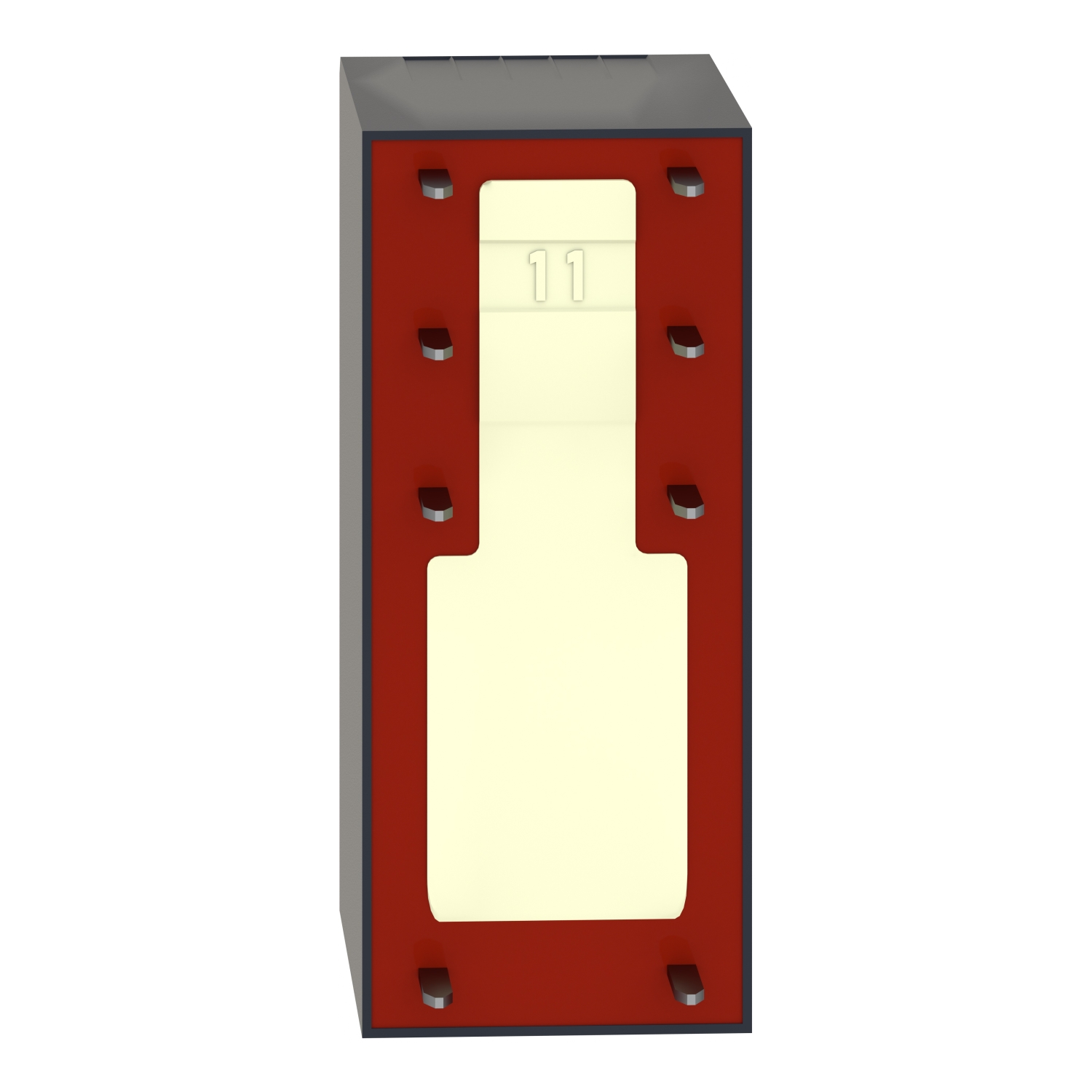

Releu de Interfata, Zelio Rsb, 2 C/O, 24 V C.A., 8 A
Documente
Fisa tehnica
Specificatii
| Measurements | |
| Width | 12.5 mm |
| Depth | 19.6 mm |
| Height | 29 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Nominal current | 8 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Model/type | |
| With forced-guided contacts | No |
| With LED indication | No |
| Type of switch contact | Double contact |
| With detachable clamps | Yes |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact insert | Other |
| Material of contact surface | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 132,175 cm3 |
| weight | 12 g |
| length | 31,1 cm |
| width | 2,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110255836 |
| Package 2 | |
| volume | 162,69 cm3 |
| weight | 143 g |
| length | 33 cm |
| width | 2,9 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110255833 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 5,25 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 350 |
| qmin | 350 |
| um | CT |
| gtin | 23389110255830 |
