Descriere

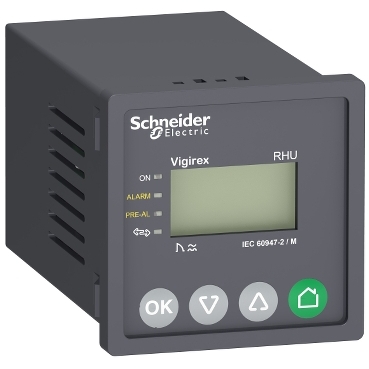

Releu de prot.imp. scurg erilor RHU - 0.03 - 30 A - 0 - 5 s - 240 V
Documente
Specificatii
| Measurements | |
| Width | 72 mm |
| Depth | 117 mm |
| Height | 72 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated control supply voltage AC 60 Hz | 220 V |
| Response value amperage 2 | - |
| Rated voltage | 0 V |
| Response value amperage 1 | 0.03 mA |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Error registration possible | Yes |
| Indication of difference current | Yes |
| Other | |
| Rated frequency | 50 Hz |
| Model/type | |
| Function | For AC-current system |
| With detachable clamps | Yes |
| Operating conditions | |
| Max. permitted delay-on energization time | 4.5 s |
| Setting/control | |
| Min. adjustable delay-on energization time | 0 s |
| Package 1 | |
| volume | 1449,25 cm3 |
| weight | 430 g |
| length | 15,5 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485434728 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 11,086 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 43606485434726 |
