Descriere

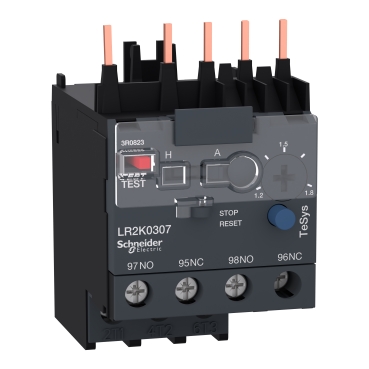

Releu Suprasarcina Termica Motor - Tesys Lr2 K - 1,2 - 1,8 A - Clasa 10A
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Options | |
| Reset function automatic | Yes |
| Reset function input | No |
| Reset function push-button | Yes |
| Electrical | |
| Max. rated operation voltage Ue | 690 V |
| Adjustable current range | 1.2 A |
| Other | |
| Release class | CLASS 10 A |
| Mounting/installation | |
| Mounting method | Direct attachment |
| Package 1 | |
| volume | 290,5 cm3 |
| weight | 157 g |
| length | 5 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110230437 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,76 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 41 |
| qmin | 41 |
| um | CT |
| gtin | 23389110230431 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 119,428 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 656 |
| qmin | 656 |
| um | PF |
