Descriere

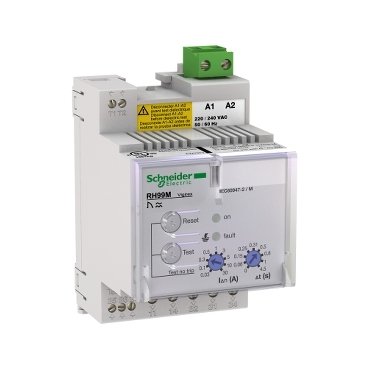

Releu De Protectie Diferentiala Rh99M Cu Resetare Aut.-0,03..30 A-0..4,5 S-240 V
Documente
Specificatii
| Measurements | |
| Width | 54 mm |
| Depth | 74 mm |
| Height | 97 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 220 V |
| Rated control supply voltage AC 60 Hz | 220 V |
| Response value amperage 2 | - |
| Rated voltage | 0 V |
| Response value amperage 1 | 0.03 mA |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Error registration possible | No |
| Indication of difference current | No |
| Other | |
| Rated frequency | 50 Hz |
| Model/type | |
| Function | For AC-current system |
| With detachable clamps | No |
| Operating conditions | |
| Max. permitted delay-on energization time | 4.82 s |
| Setting/control | |
| Min. adjustable delay-on energization time | 0 s |
| Package 1 | |
| volume | 617,136 cm3 |
| weight | 263,4 g |
| length | 9,2 cm |
| width | 8,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430561934 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 9,882 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 43303430561932 |
