Descriere

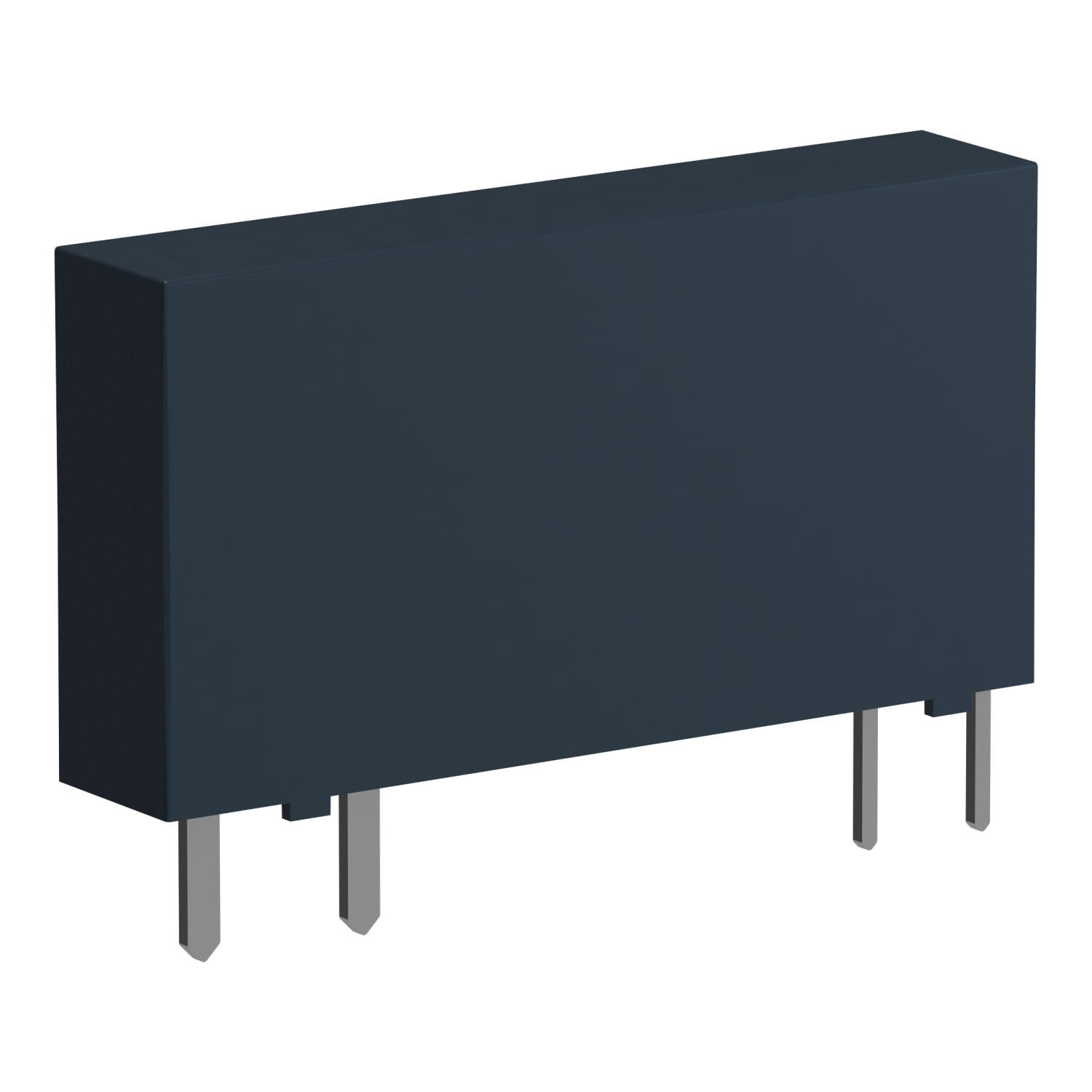

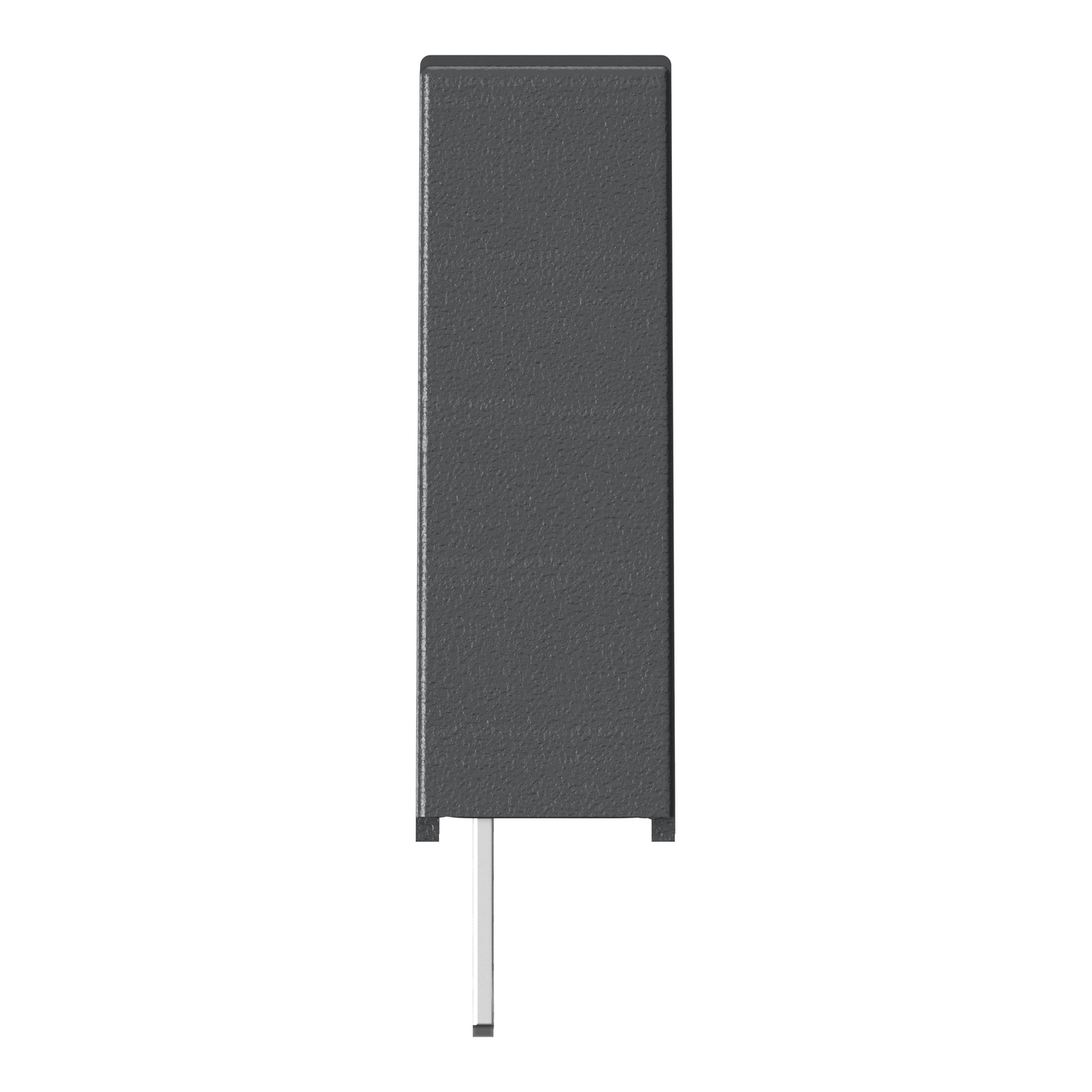

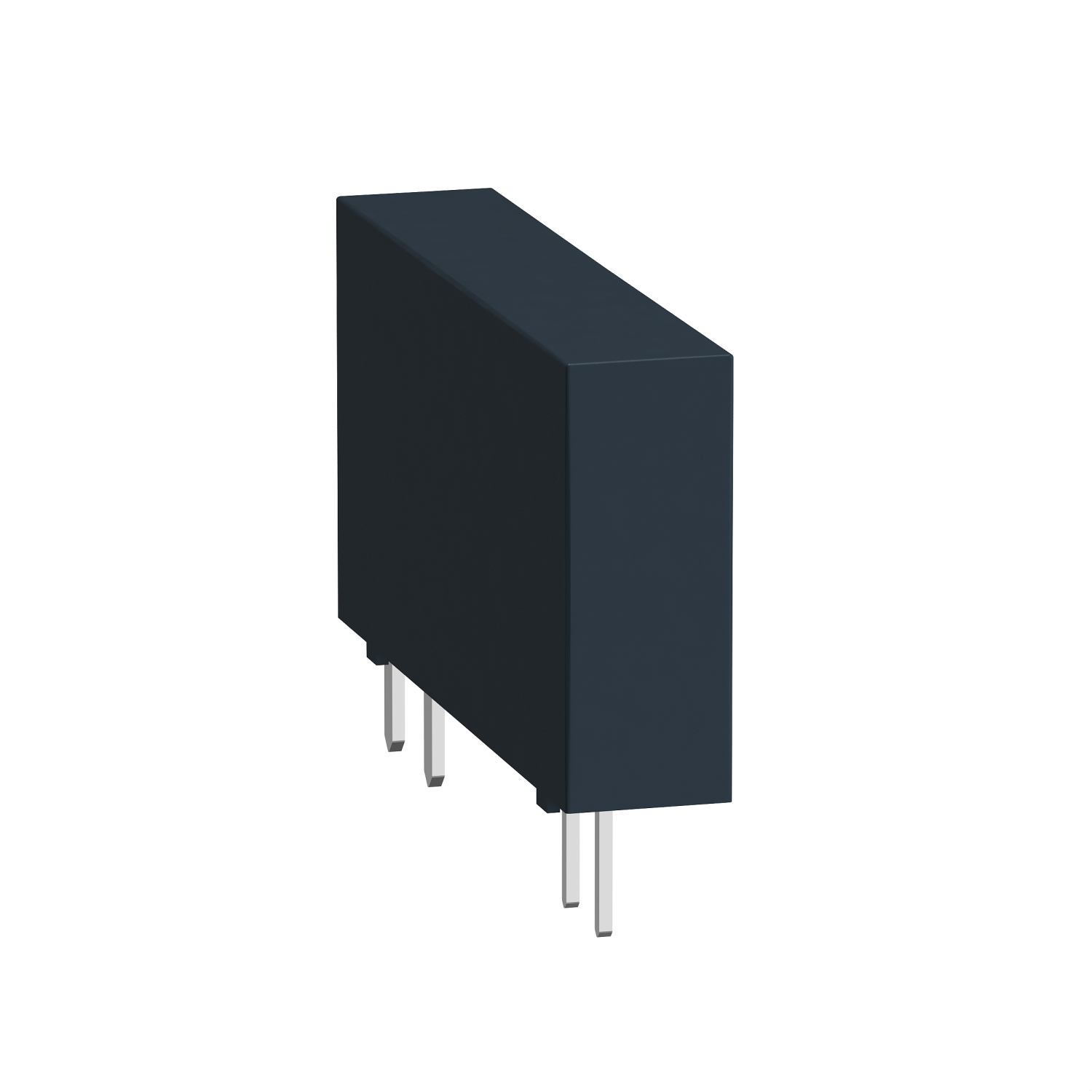

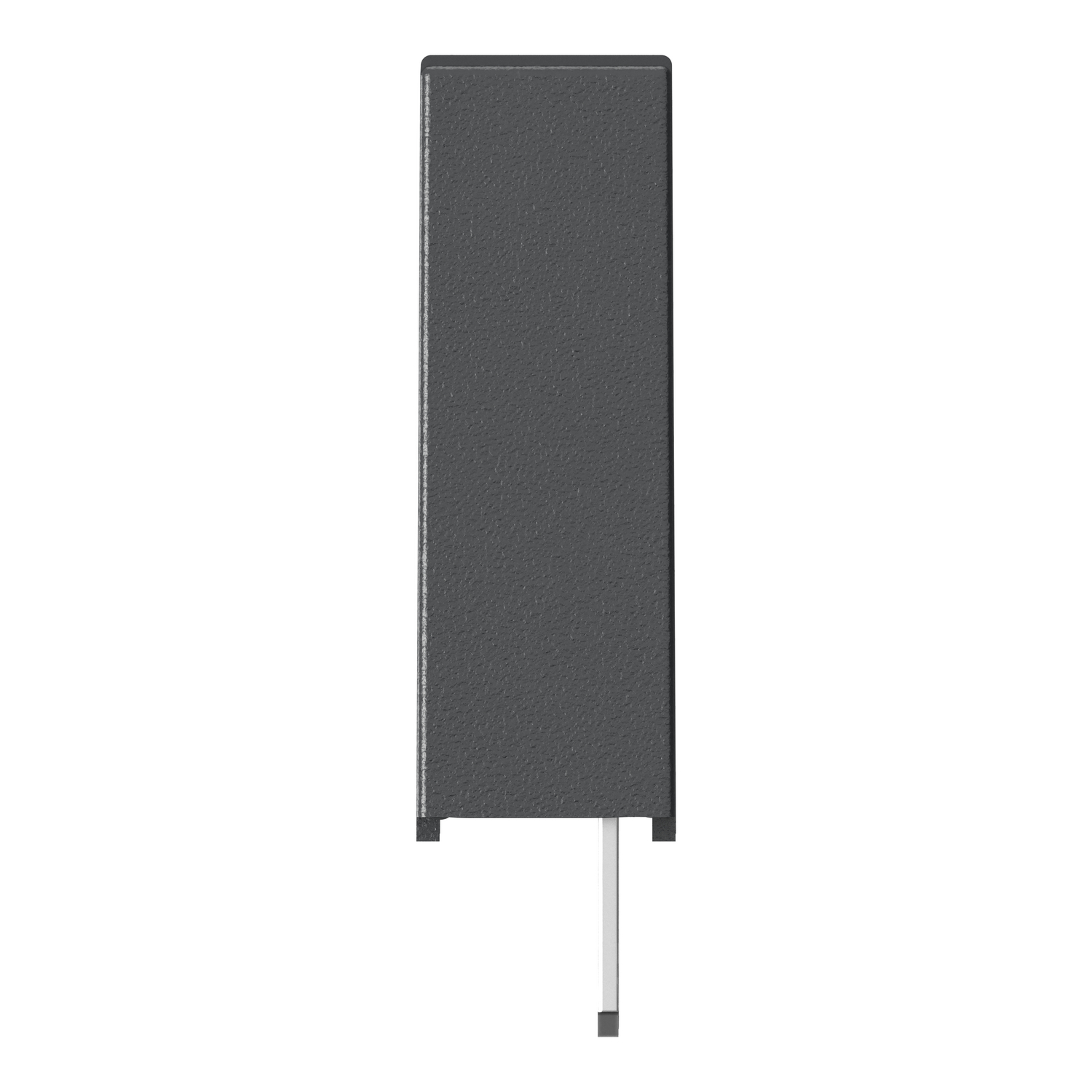

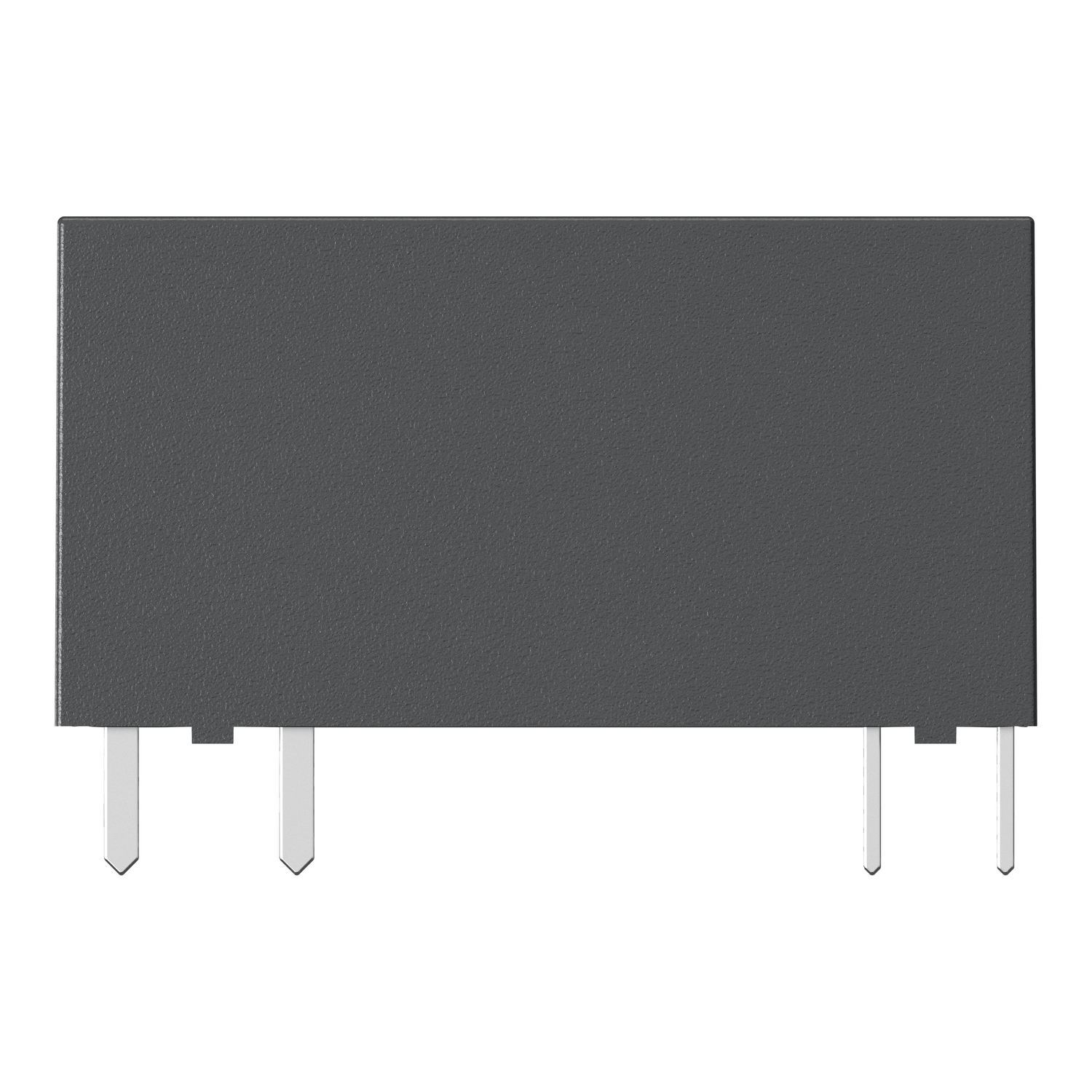

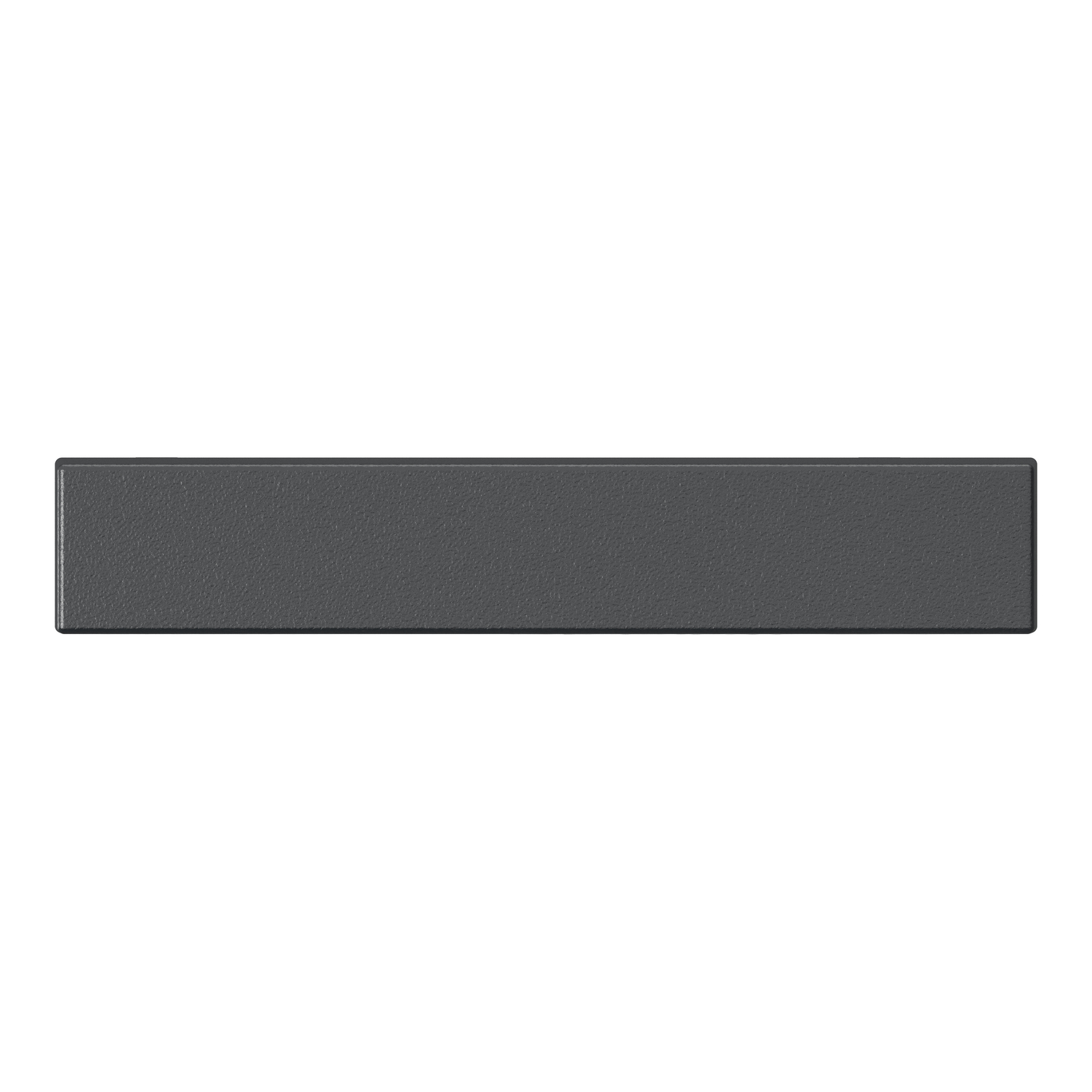

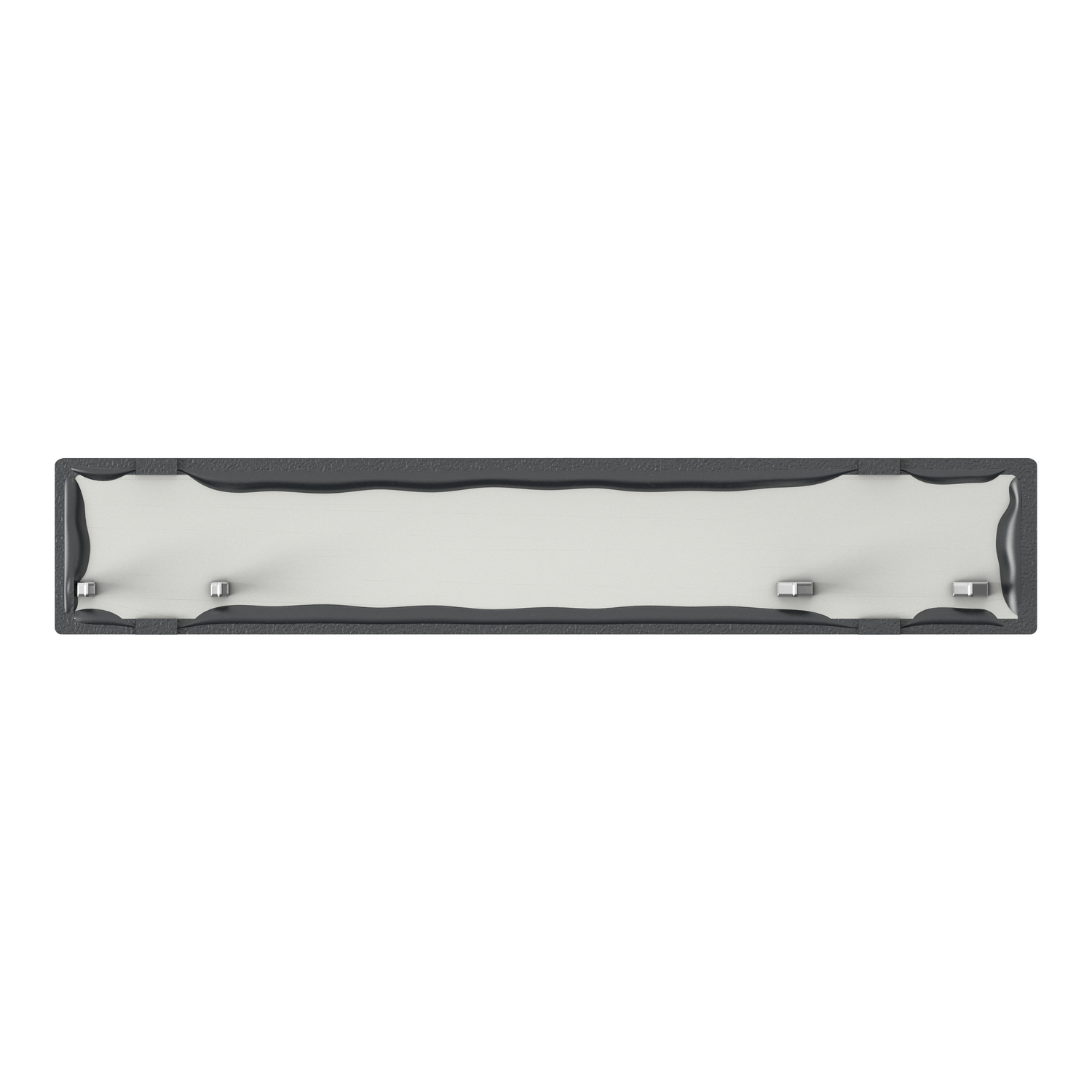

Releu Static,Ambrosabil,Intrare 15-30 V Cc, Iesire 24-280 V Ca, 2A
Documente
Fisa tehnica
Altele
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Operating voltage | 24 V |
| Number of phases | 1 |
| Rated operation current Ie at AC-53a | 2 A |
| Rated operation current Ie at AC-51 | 2 A |
| Rated operation current Ie at AC-53b | 2 A |
| Rated operation current Ie at AC-1 | 2 A |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage DC | 15 V |
| Rated operation current Ie at AC-3 | 2 A |
| Options | |
| Suitable for distribution board | Yes |
| Switching at zero-crossing | Yes |
| Package 1 | |
| volume | 2,1 cm3 |
| weight | 3 g |
| length | 2,8 cm |
| width | 0,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480579721 |
| Package 2 | |
| volume | 187,5 cm3 |
| weight | 55 g |
| length | 12,5 cm |
| width | 5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480579728 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 1,802 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 280 |
| qmin | 280 |
| um | CT |
| gtin | 43606480579729 |
