Descriere

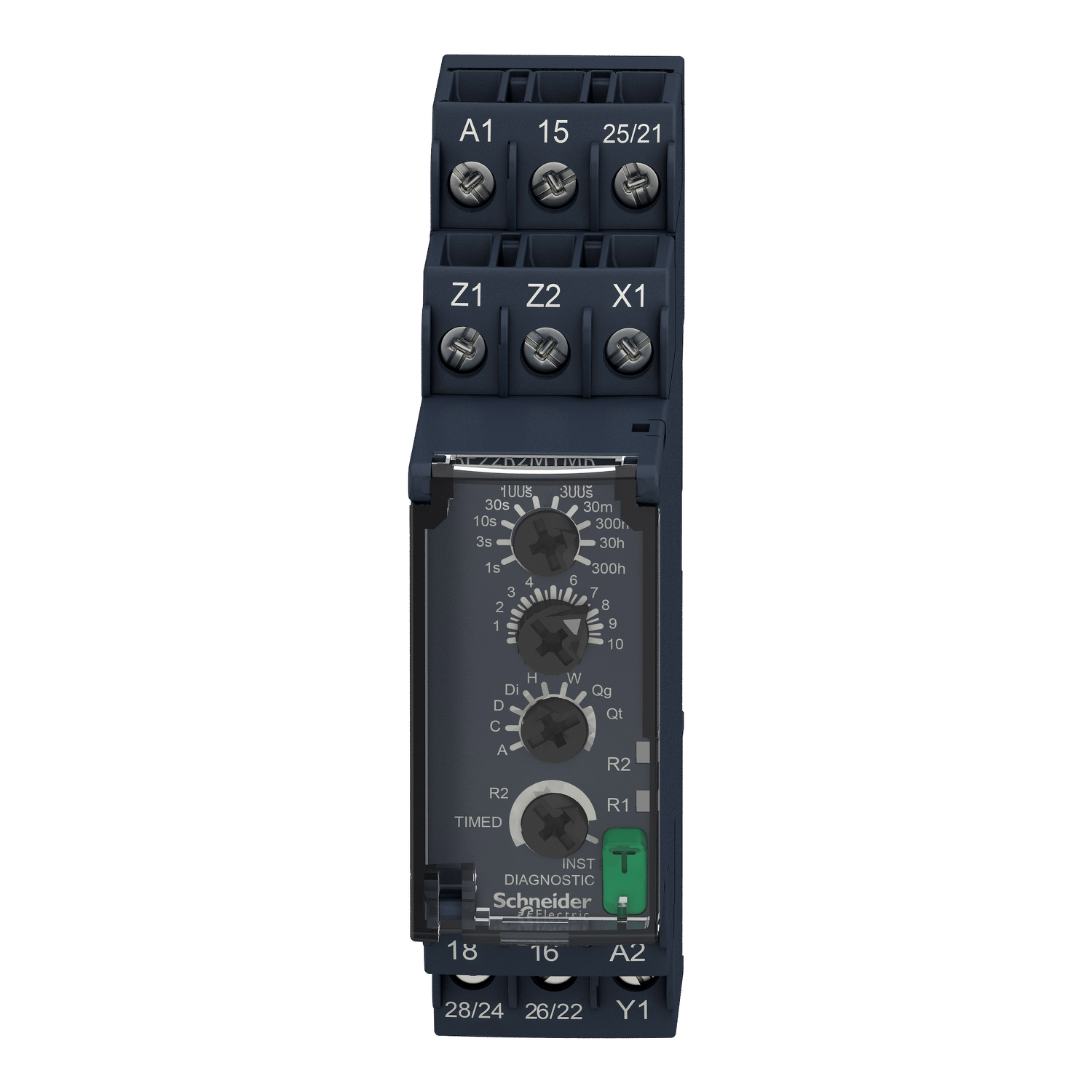

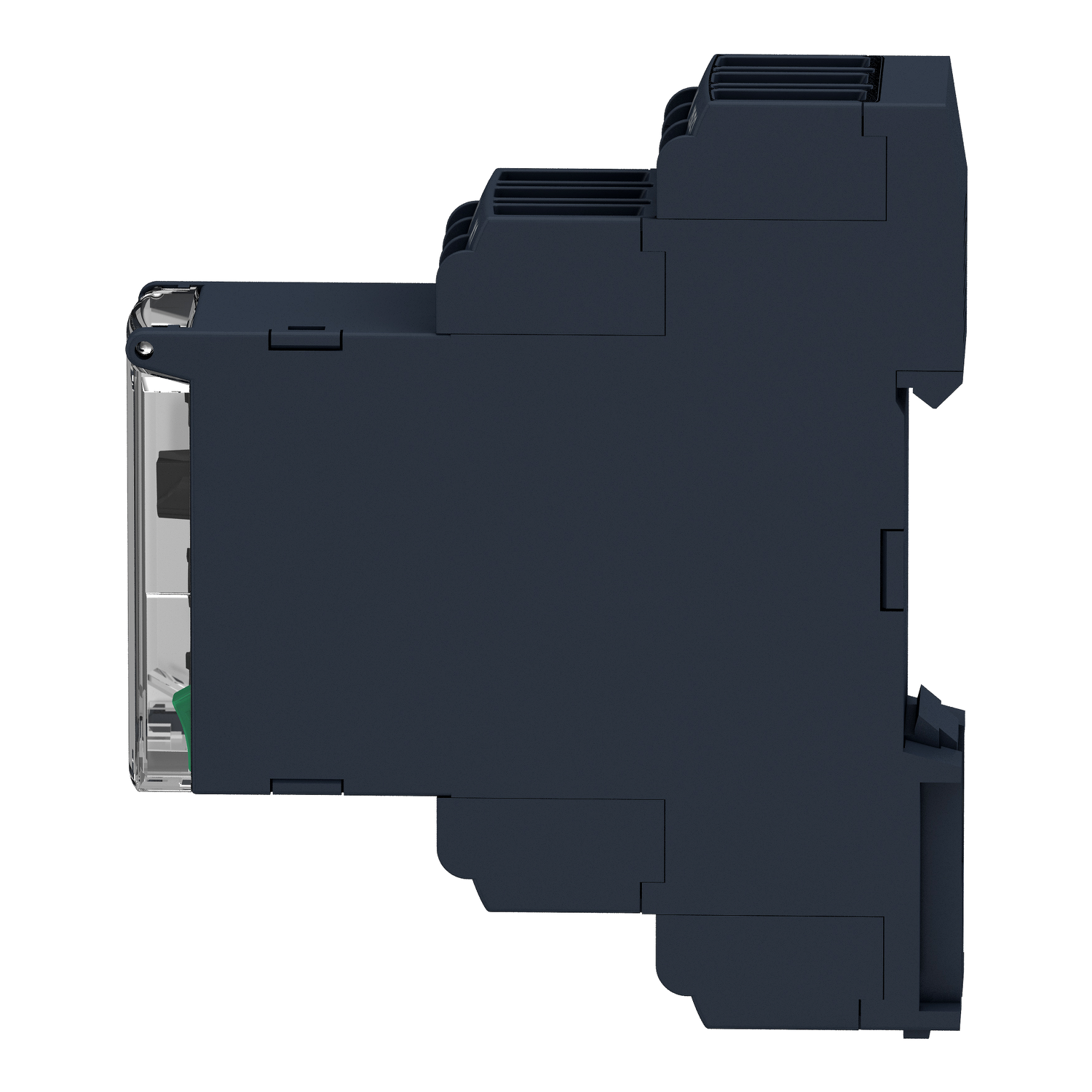

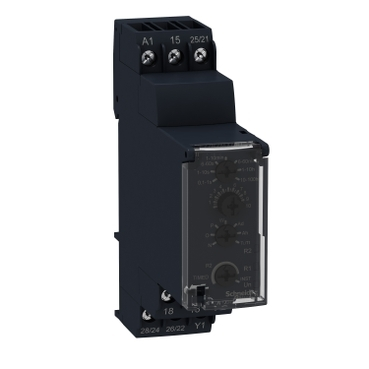

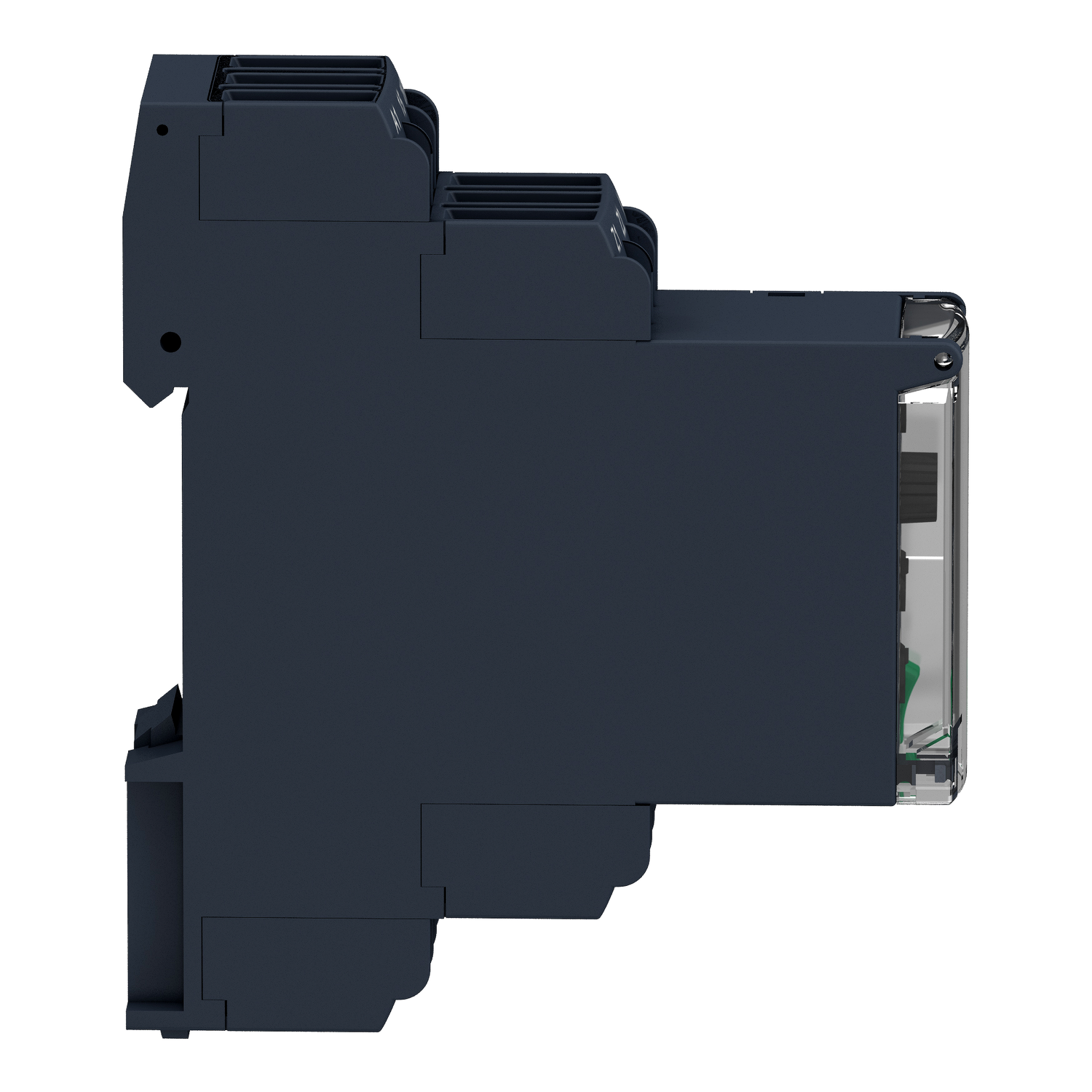

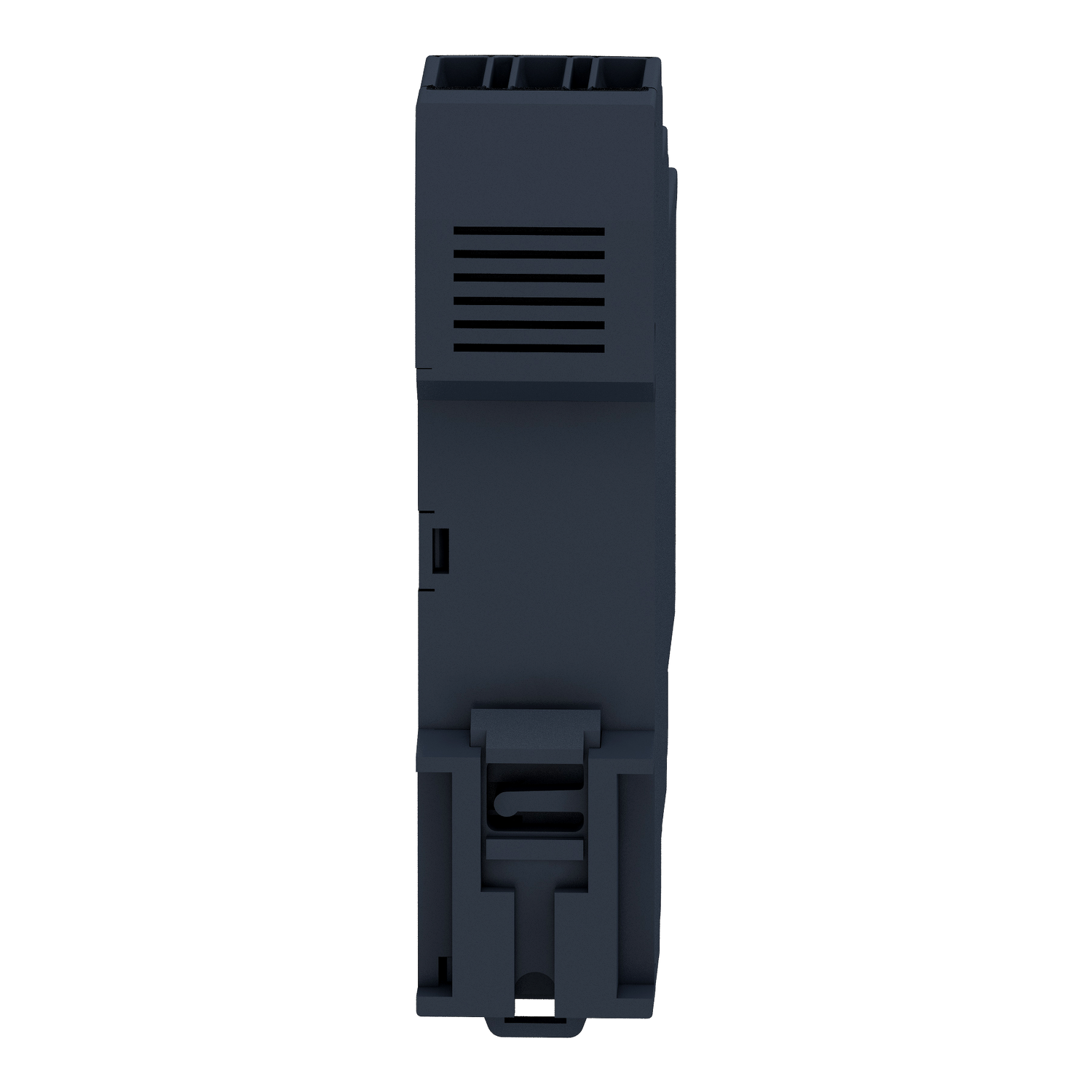

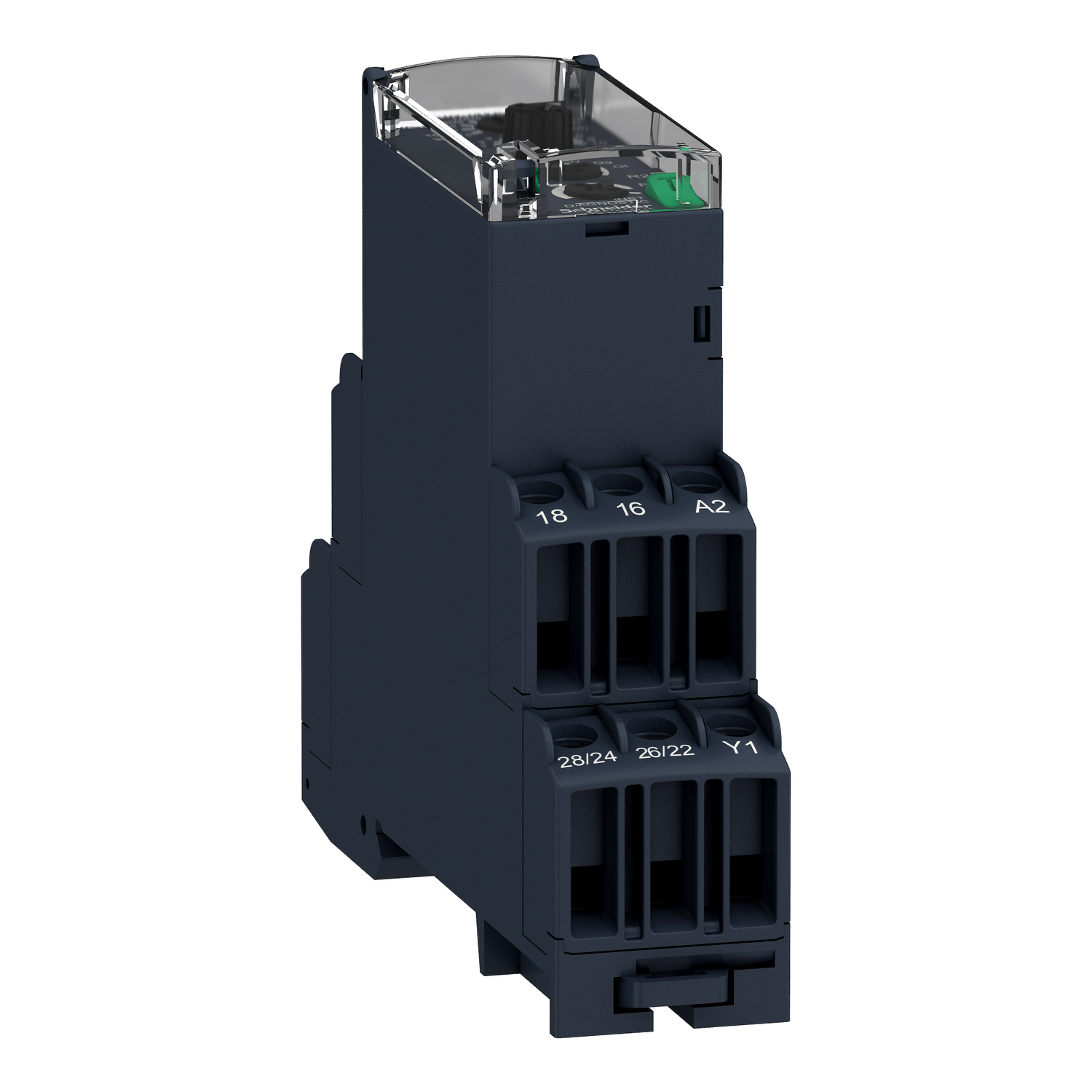

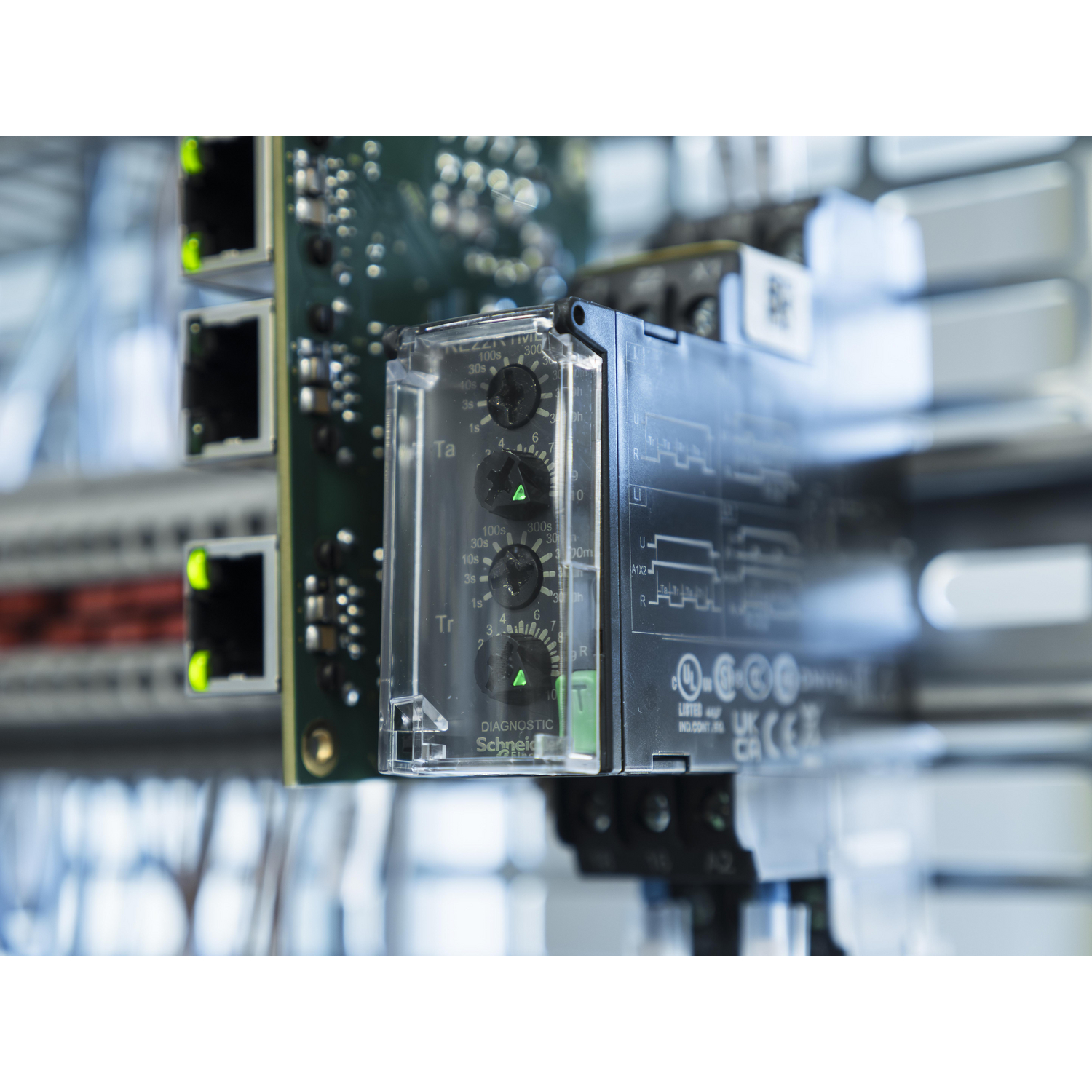

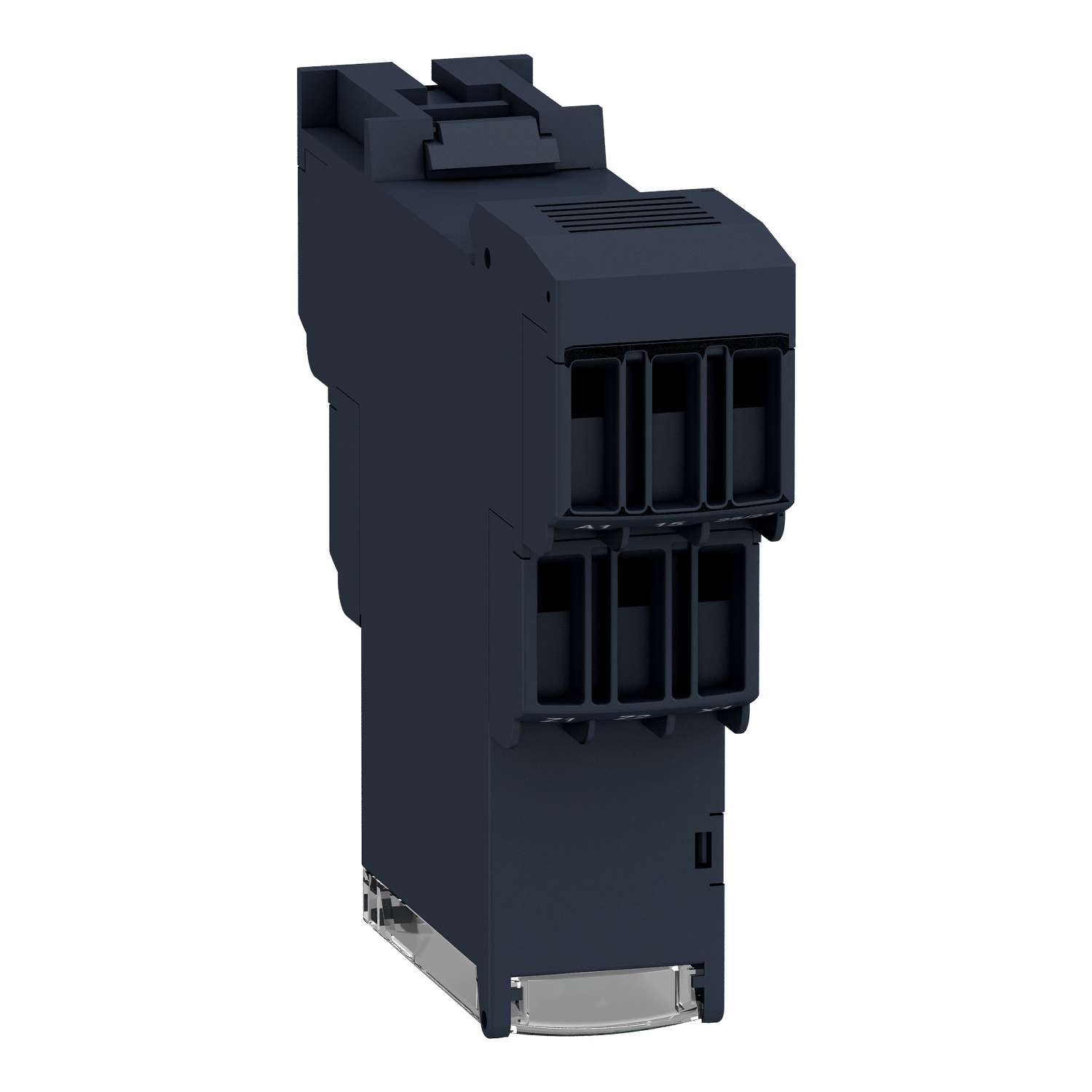

Releu de Timp, 0.05S…300H, 24…240V Ac/Dc, 2C/O
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Number of outputs, delayed, normally open contact | 2 |
| Number of outputs, delayed, normally closed contact | 2 |
| Type of electric connection | Screw connection |
| Number of outputs, undelayed, change-over contact | 1 |
| Number of outputs, undelayed, normally open contact | 1 |
| Number of outputs, undelayed, normally closed contact | 1 |
| Number of outputs, delayed, change-over contact | 2 |
| Outputs, reversible delayed/undelayed | Yes |
| Options | |
| Function delay on de-energization | Yes |
| Clock function, starting with pause, variable | No |
| Clock function, starting with pulse, variable | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | No |
| Function delay-on energization | Yes |
| Function floating contact on energization | Yes |
| Function star-delta | Yes |
| Function flashing, starting with pause, fixed time | Yes |
| Function flashing, starting with pulse, fixed time | Yes |
| Mounting/installation | |
| Pluggable on auxiliary contact block | No |
| Suitable for front mounting | No |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Electrical | |
| Voltage type for actuating | AC/DC |
| Rated control supply voltage AC 50 Hz | 24 V |
| Rated control supply voltage AC 60 Hz | 24 V |
| Nominal current | 8 A |
| Rated control supply voltage DC | 24 V |
| Measurements | |
| Height | 90 mm |
| Width | 22.5 mm |
| Depth | 73 mm |
| Model/type | |
| With semiconductor output | No |
| With plug-in socket | No |
| Setting/control | |
| Remote operation possible | No |
| Suitable as remote control | No |
| Other | |
| Time range | 0.05 s |
| Package 1 | |
| volume | 202,54 cm3 |
| weight | 116 g |
| length | 9,5 cm |
| width | 8,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480792533 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,153 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43606480792531 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 74,24 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 640 |
| qmin | 640 |
| um | PF |
