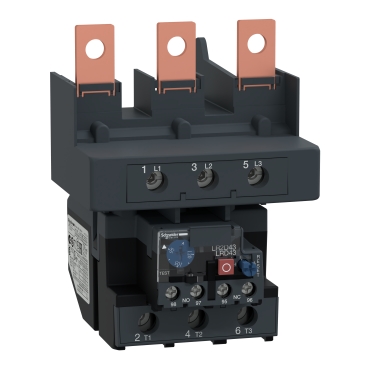

Releu Suprasarcina Termica Motor Tesys - 95 - 120 A - Clasa 10A
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Options | |
| Reset function automatic | Yes |
| Reset function input | No |
| Reset function push-button | Yes |
| Electrical | |
| Max. rated operation voltage Ue | 1000 V |
| Adjustable current range | 95 A |
| Other | |
| Release class | CLASS 10 A |
| Mounting/installation | |
| Mounting method | Direct attachment |
| Package 1 | |
| volume | 2301,75 cm3 |
| weight | 830 g |
| length | 11 cm |
| width | 13,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110523348 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,88 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43389110523346 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 81,324 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
