Descriere

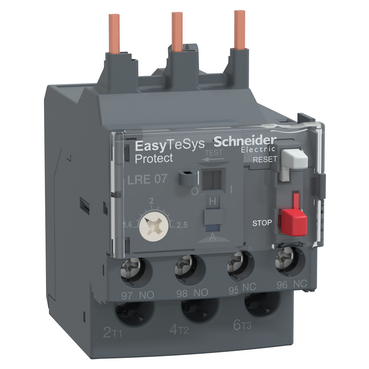

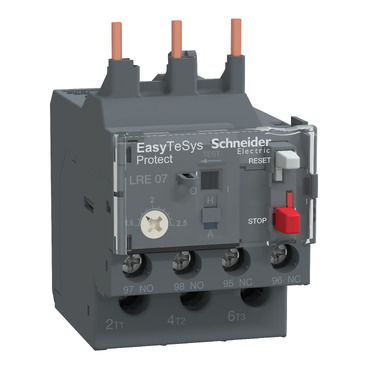

Releu de suprasarcina termica diferential EasyPact TVS 1.6 - 2.5 A - clasa 10A
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Reset function automatic | No |
| Reset function input | No |
| Reset function push-button | Yes |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Max. rated operation voltage Ue | 690 V |
| Adjustable current range | 1.6 A |
| Other | |
| Release class | CLASS 10 A |
| Mounting/installation | |
| Mounting method | Direct attachment |
| Package 1 | |
| volume | 392,37 cm3 |
| weight | 145 g |
| length | 8,7 cm |
| width | 8,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480329746 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,189 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 33 |
| qmin | 33 |
| um | CT |
| gtin | 43606480329744 |
