Descriere

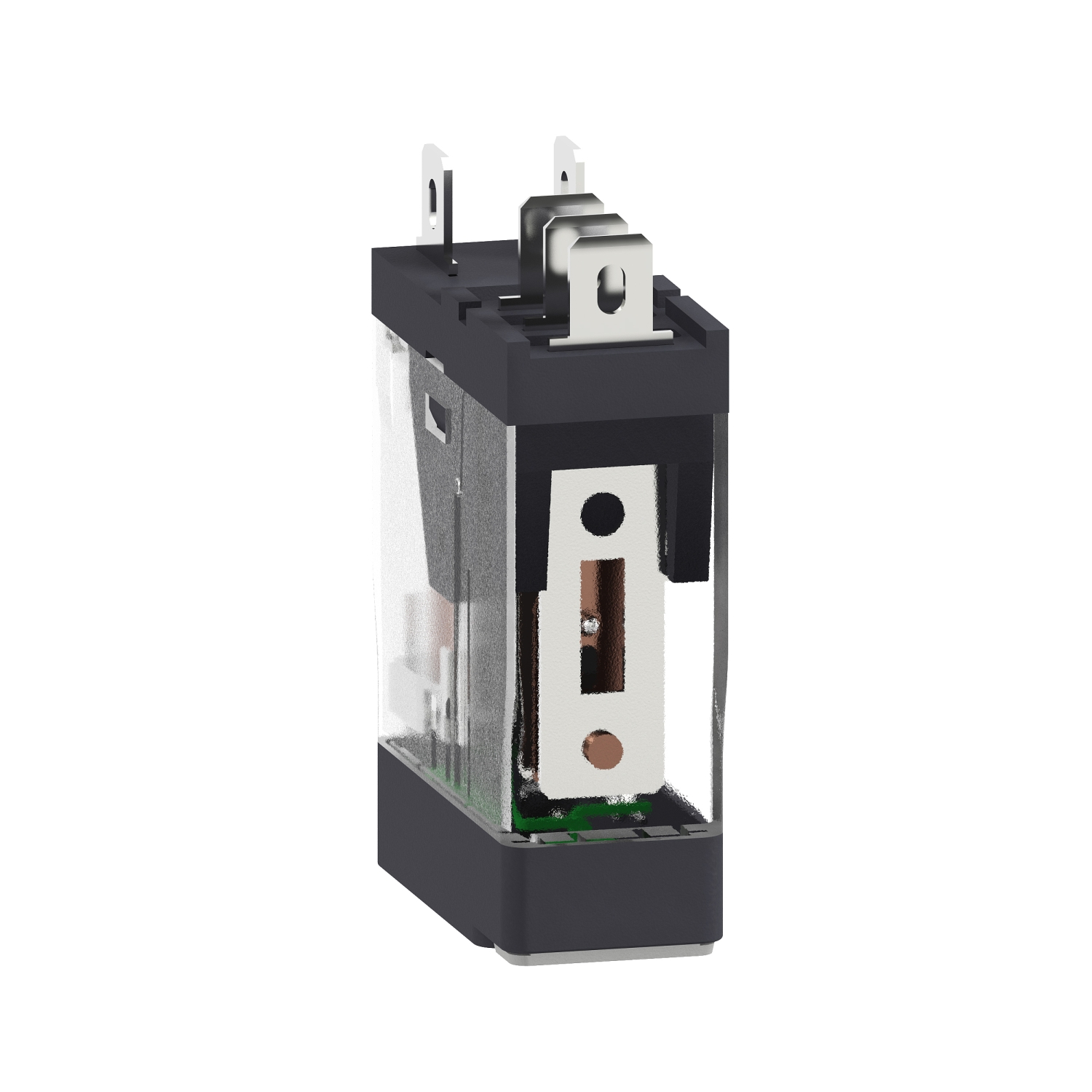

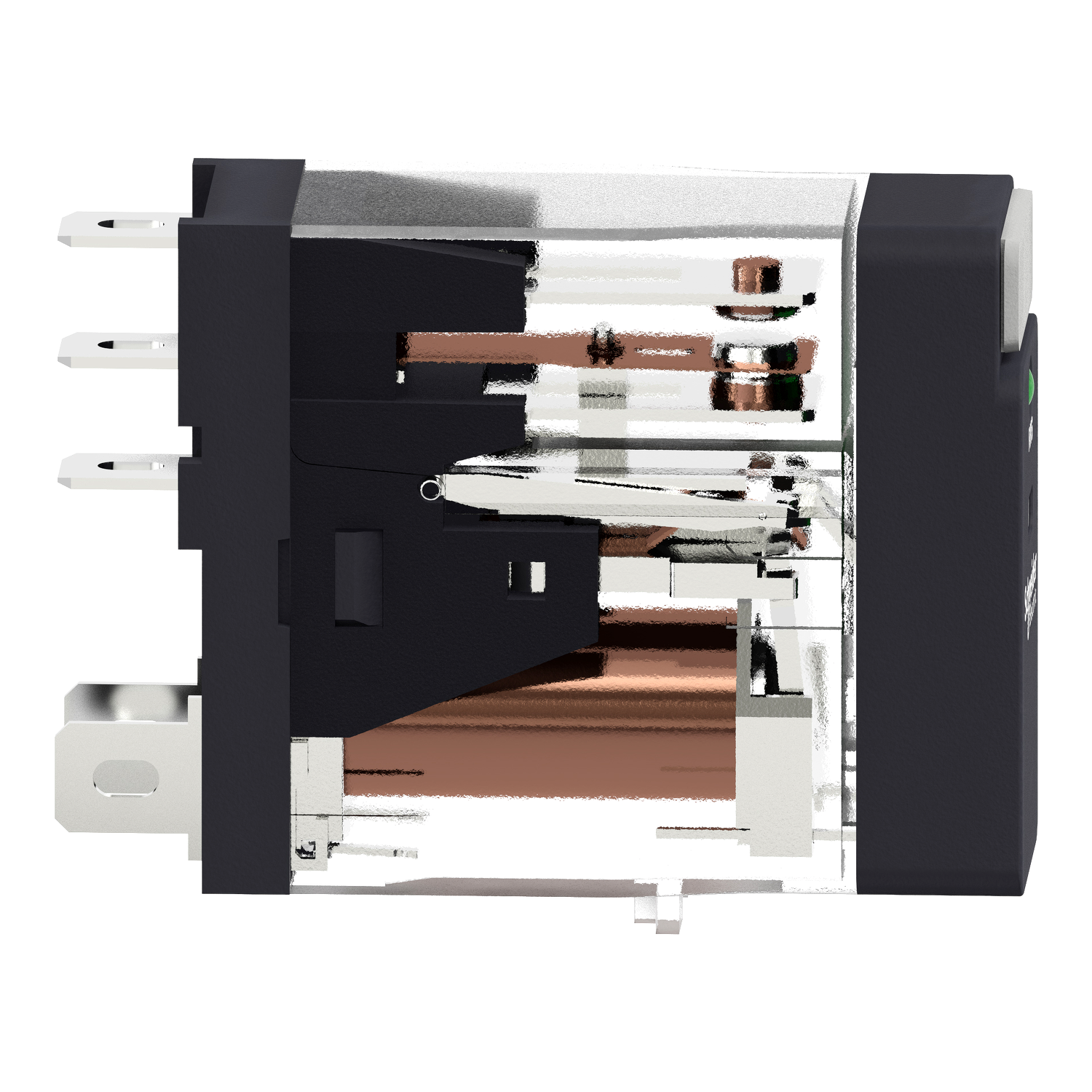

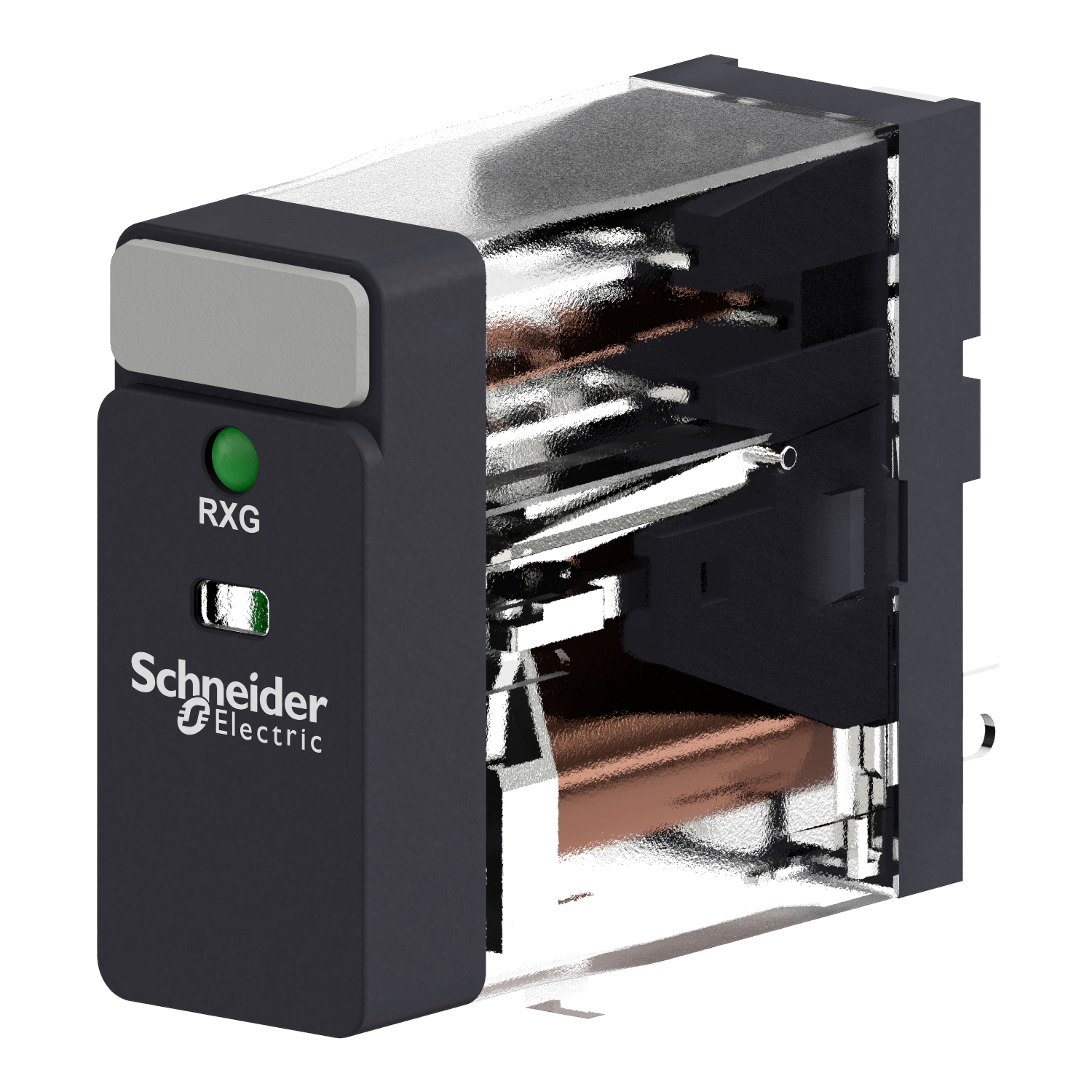

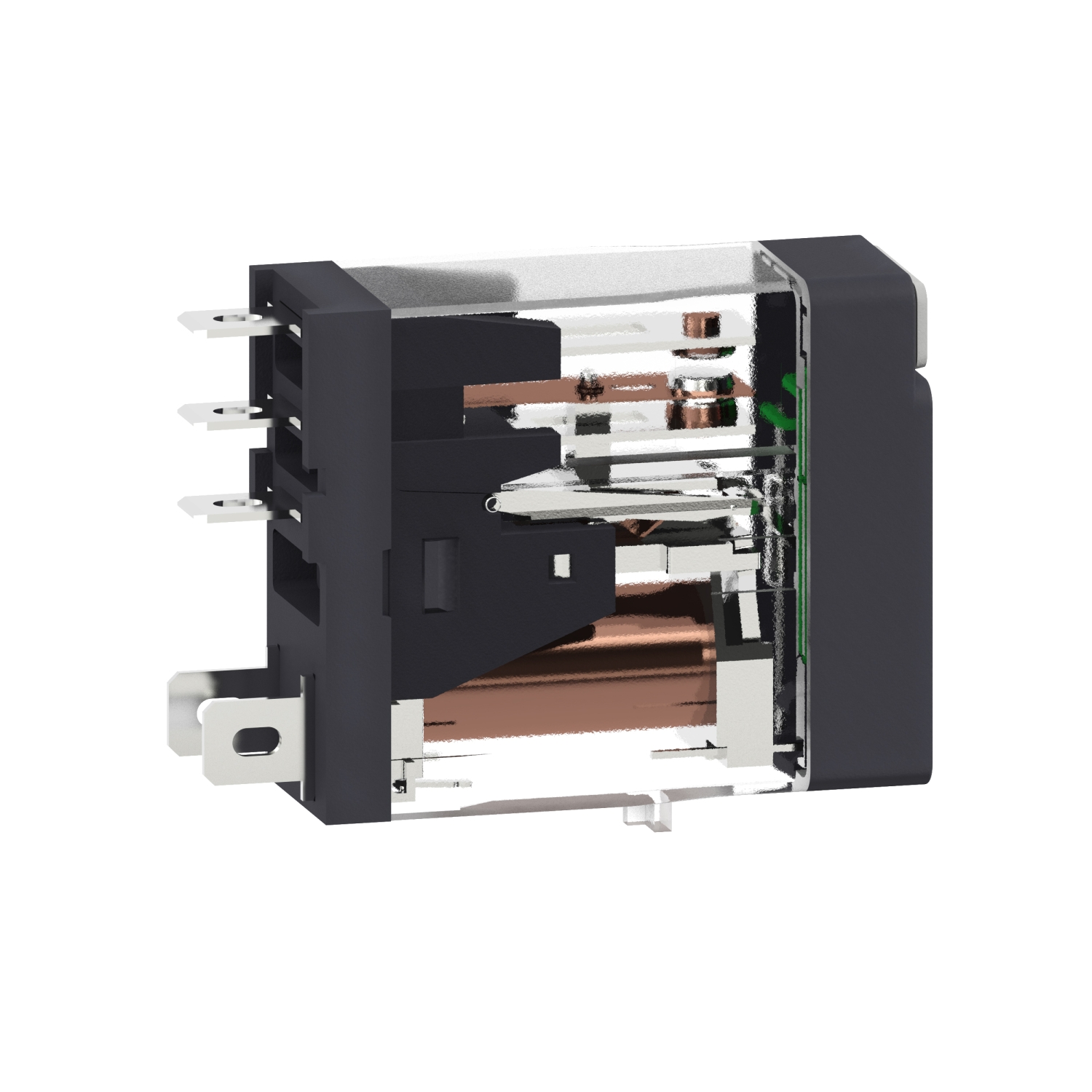

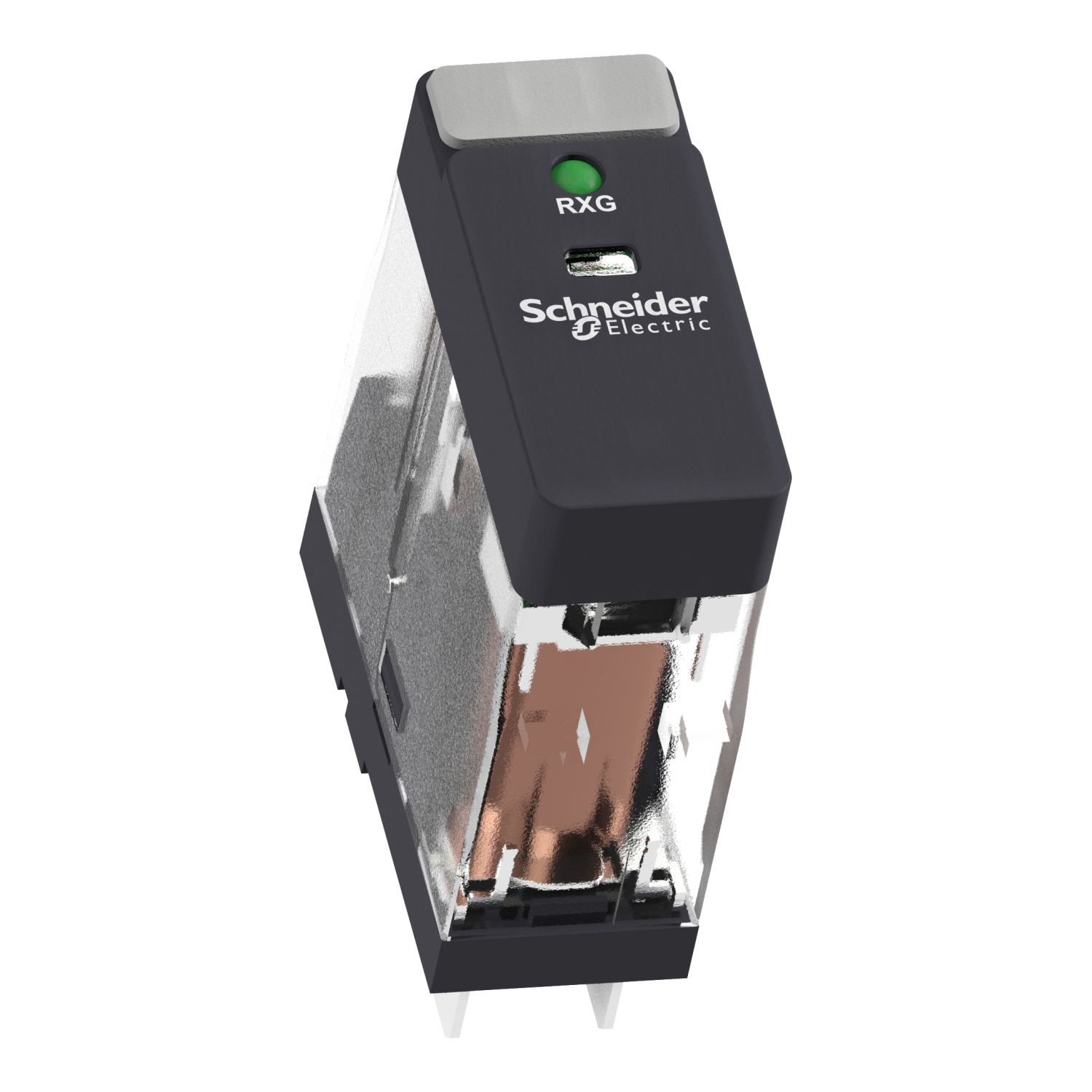

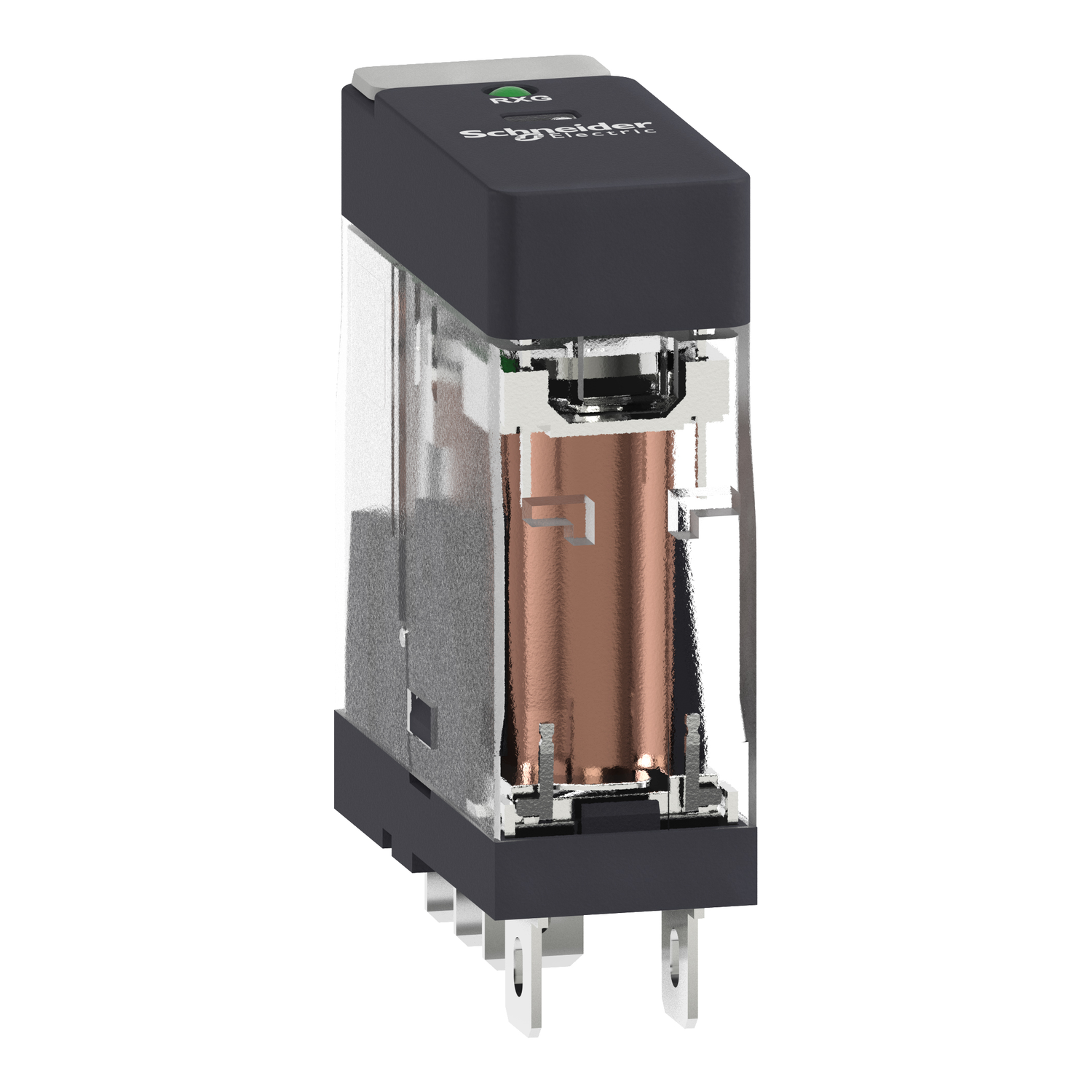

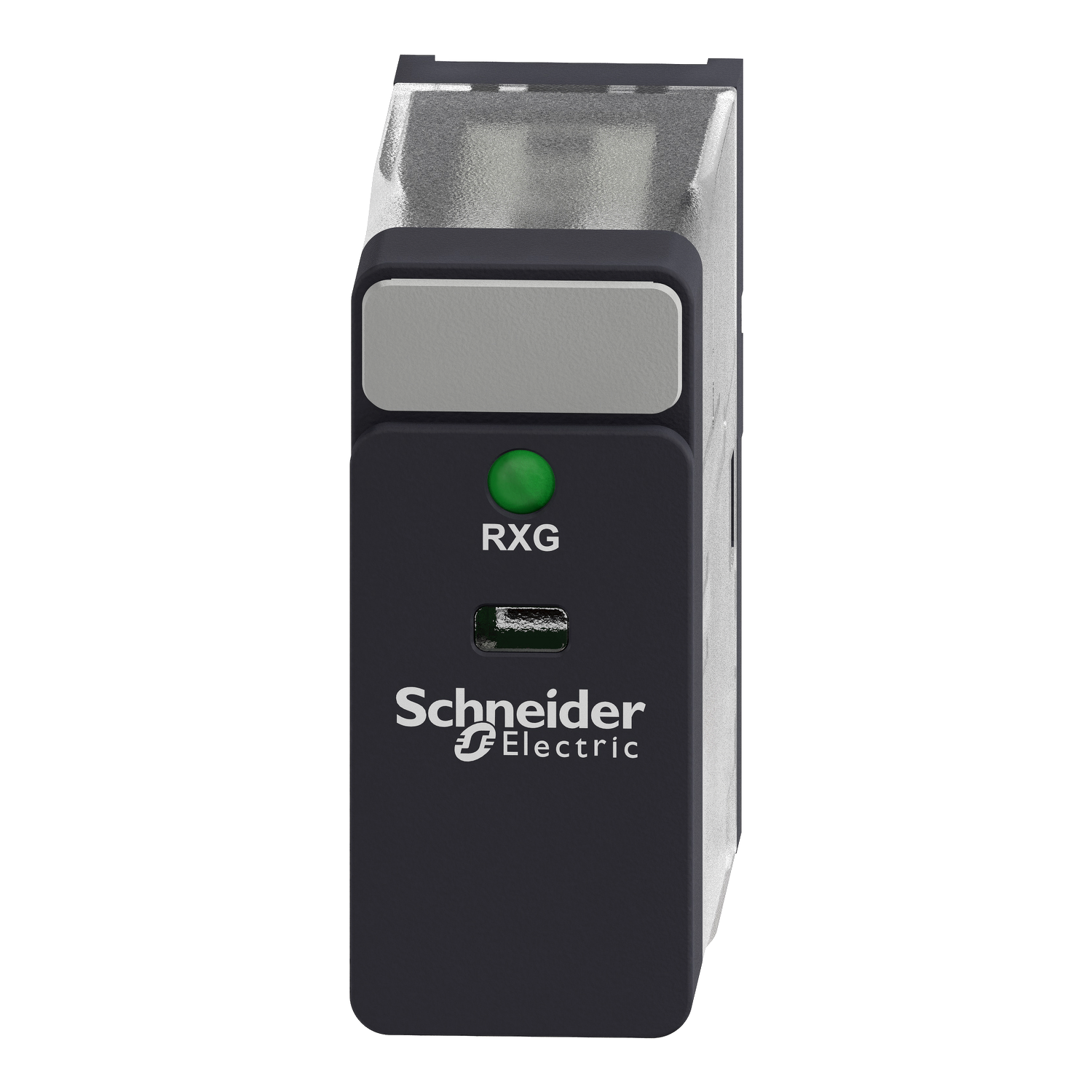

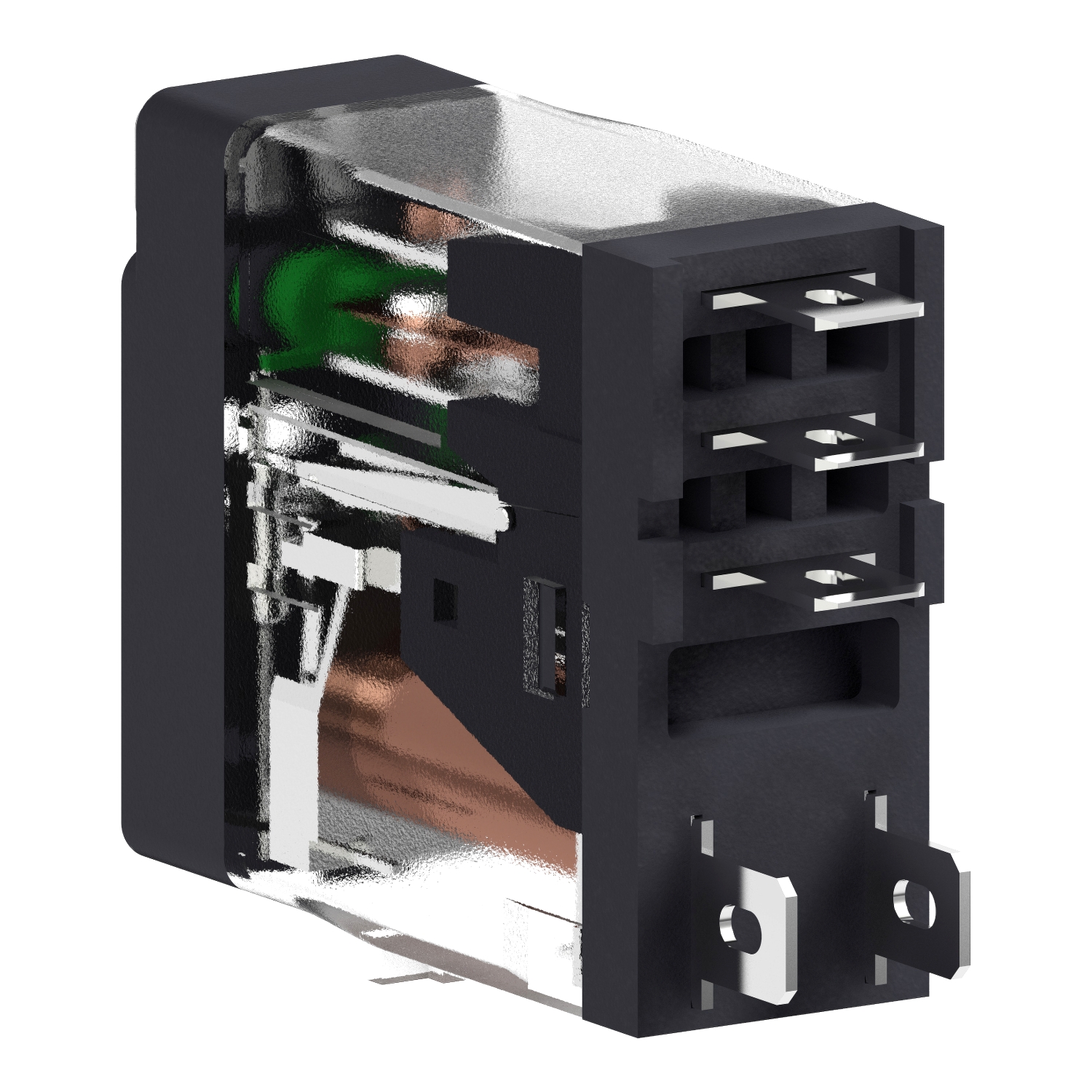

Releu Ambrosabil de Interfata, Zelio Rxg, 1C/O Standard, 120 Vca, 10A -cu Led
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | 13 mm |
| Depth | 28.8 mm |
| Height | 34.5 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 120 V |
| Rated control supply voltage AC 60 Hz | 120 V |
| Nominal current | 10 A |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | - |
| Connection | |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Model/type | |
| With forced-guided contacts | No |
| With LED indication | Yes |
| Type of switch contact | Single contact |
| With detachable clamps | No |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact insert | Other |
| Material of contact surface | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 17,794 cm3 |
| weight | 20 g |
| length | 3,1 cm |
| width | 1,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480688799 |
| Package 2 | |
| volume | 256,802 cm3 |
| weight | 224 g |
| length | 9,1 cm |
| width | 8,3 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480688796 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 4,948 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 43606480688797 |
