Descriere

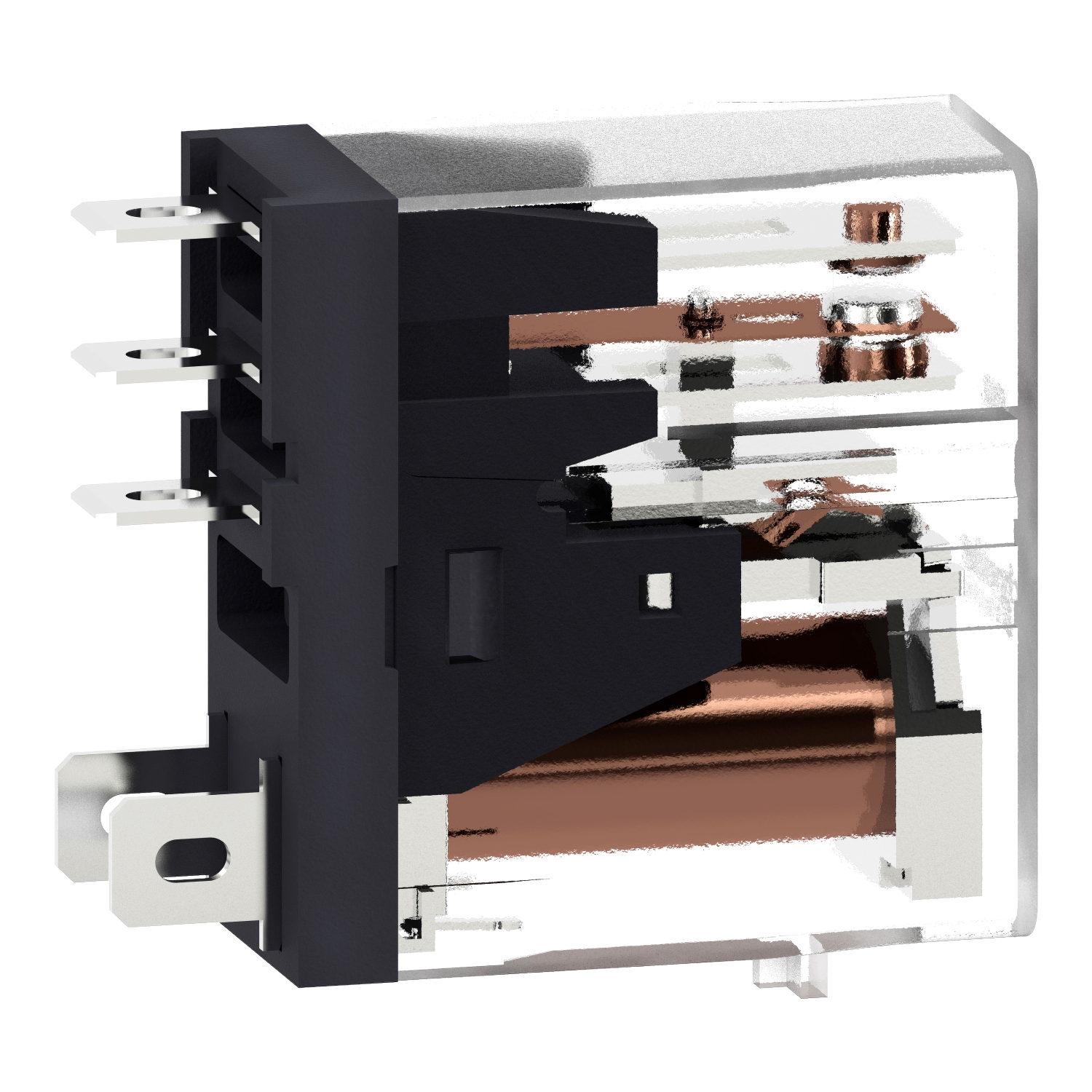

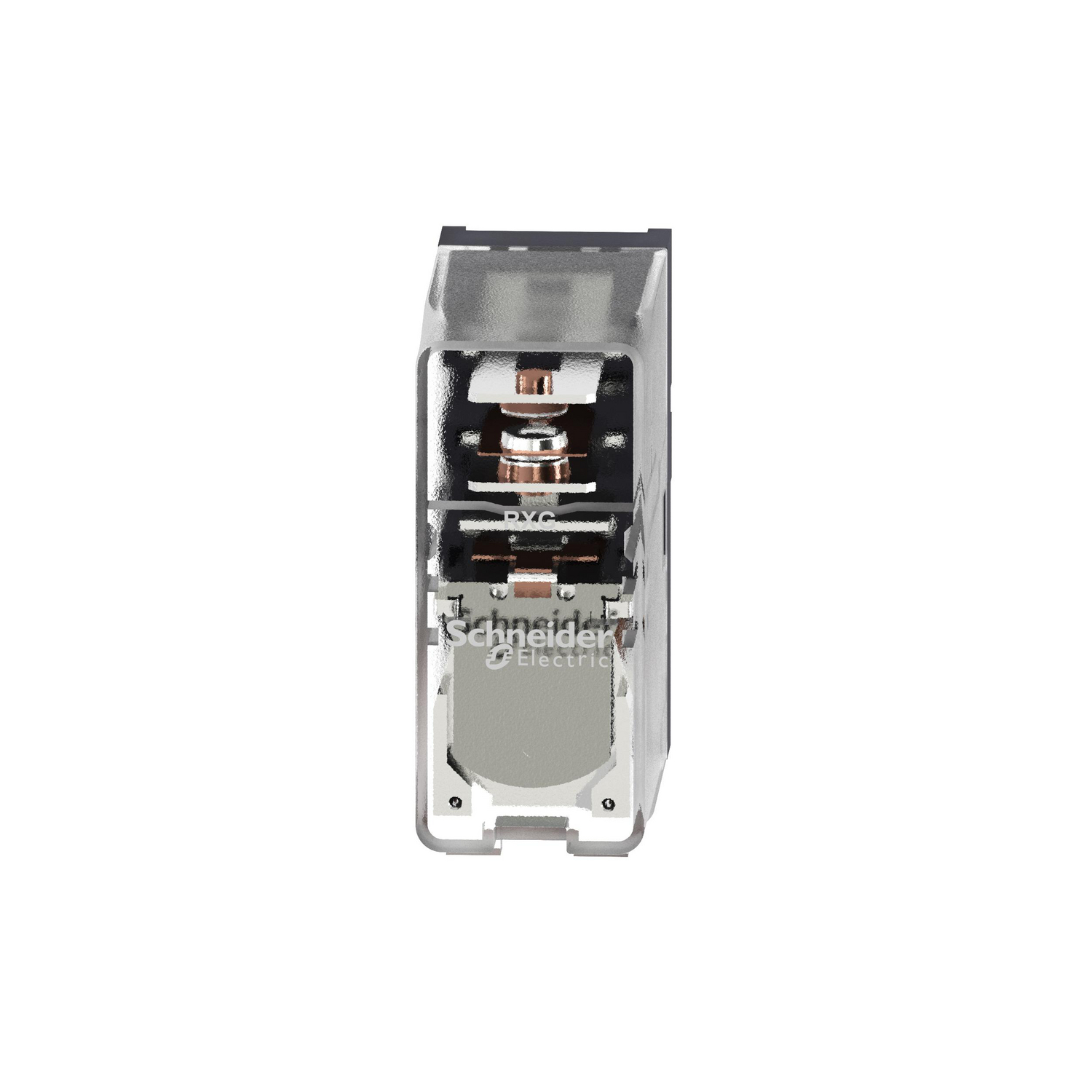

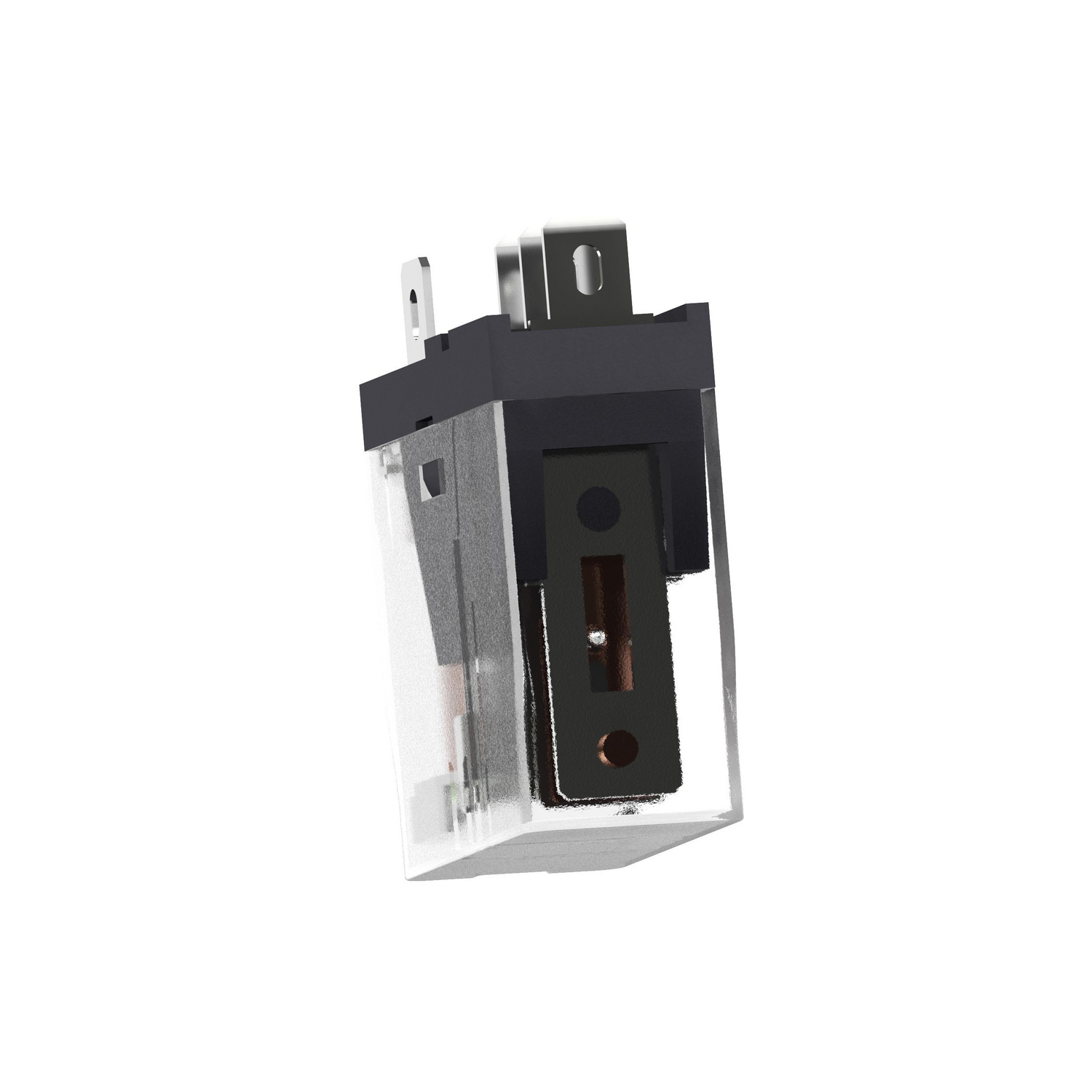

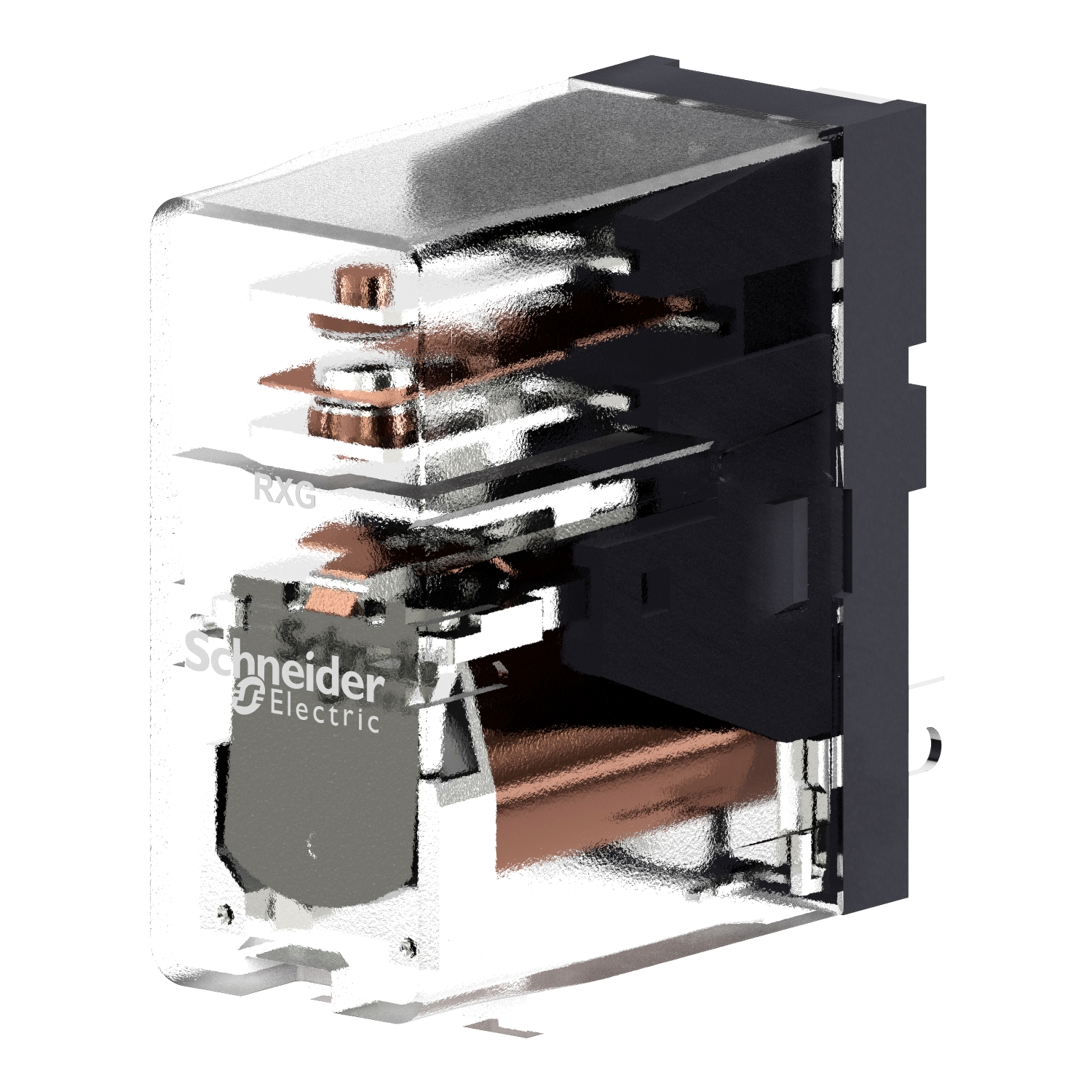

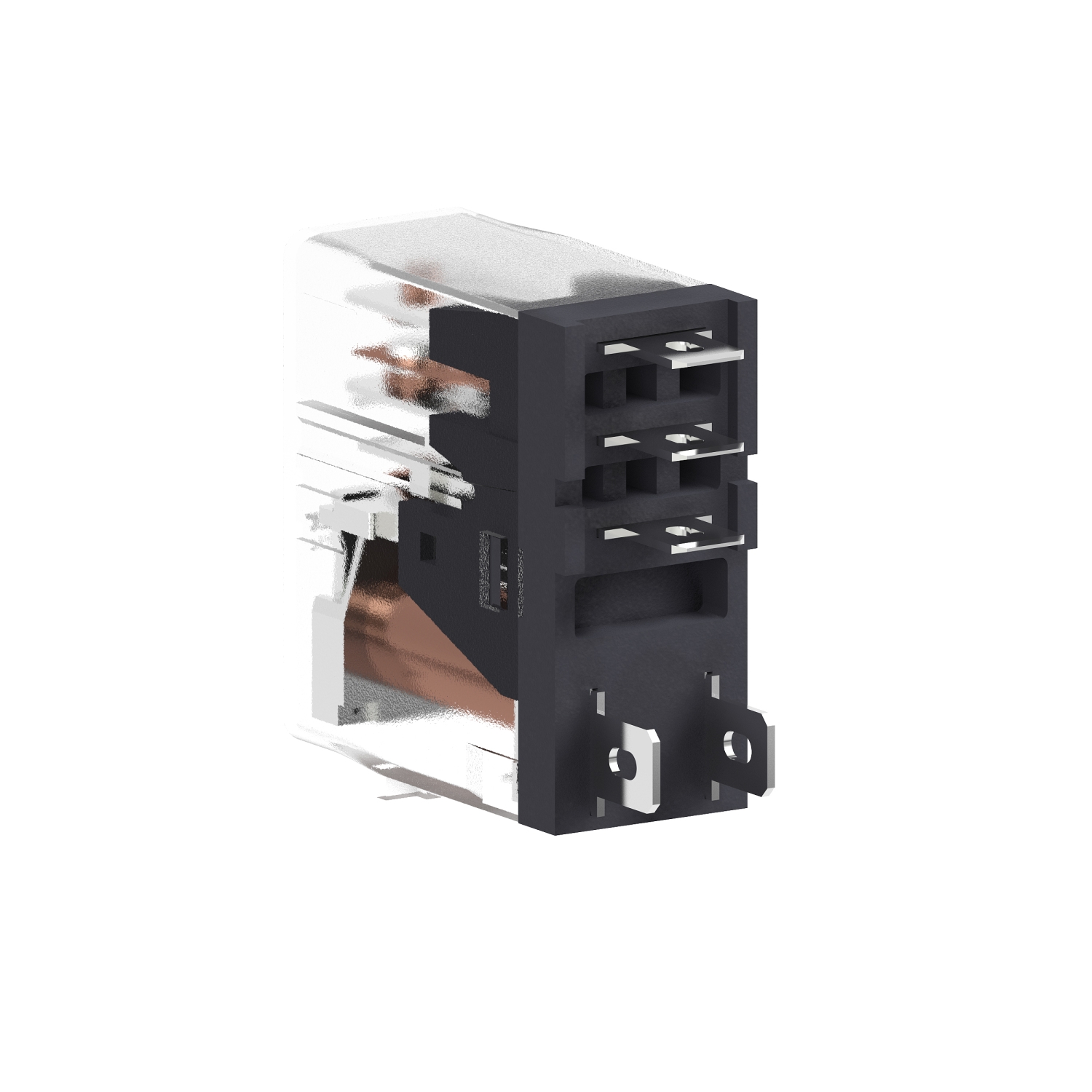

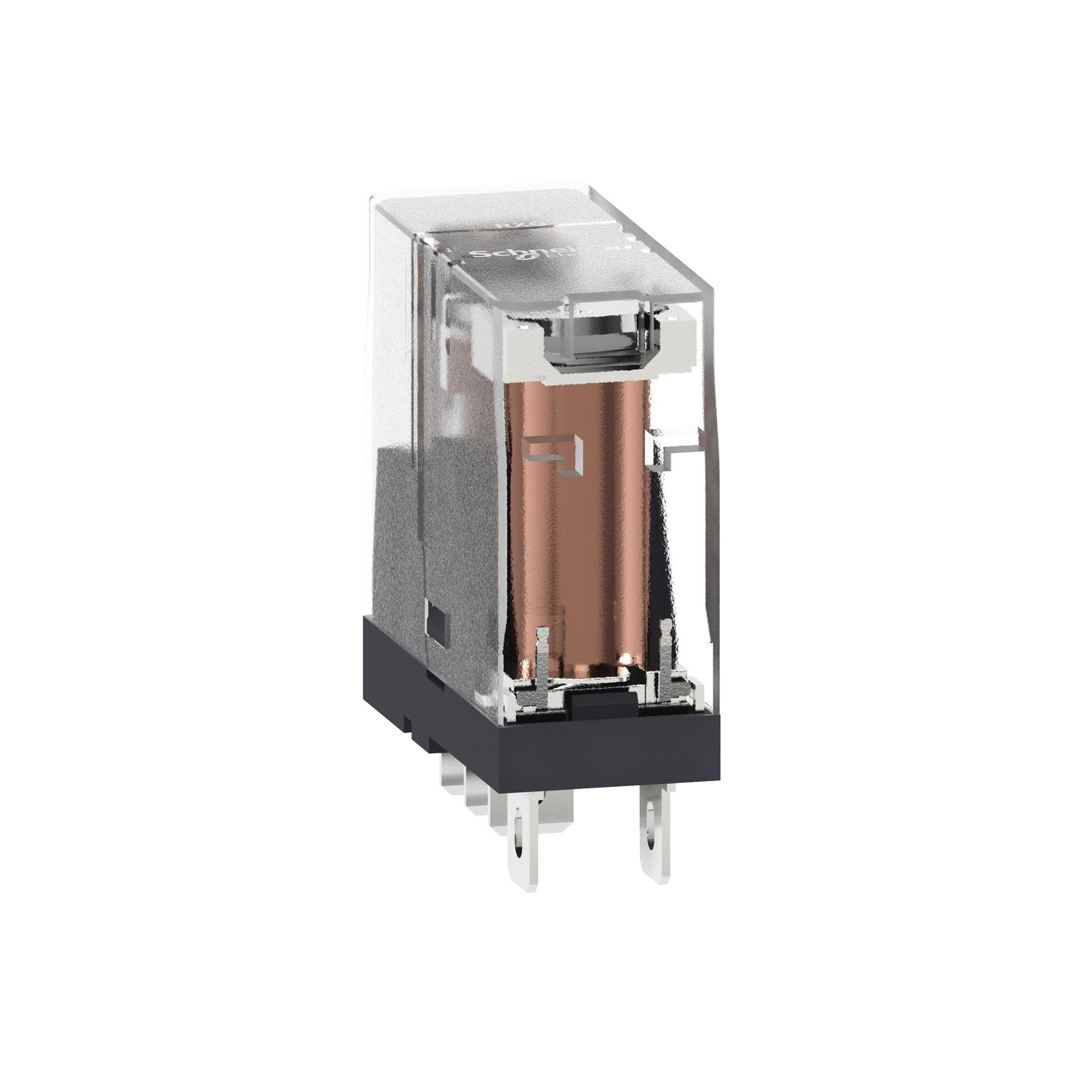

Releu Ambrosabil de Interfata, Zelio Rxg, 1 C/O Transparent, 24 V Cc, 10 A
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | 13 mm |
| Depth | 29 mm |
| Height | 28 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Nominal current | 10 A |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| Connection | |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarized |
| Model/type | |
| With forced-guided contacts | No |
| With LED indication | No |
| Type of switch contact | Single contact |
| With detachable clamps | No |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact surface | Other |
| Material of contact insert | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 13,65 cm3 |
| weight | 19 g |
| length | 3 cm |
| width | 1,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480688959 |
| Package 2 | |
| volume | 209,79 cm3 |
| weight | 207 g |
| length | 8,1 cm |
| width | 7,4 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480688956 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 5,221 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 240 |
| qmin | 240 |
| um | CT |
| gtin | 43606480688957 |
