Descriere

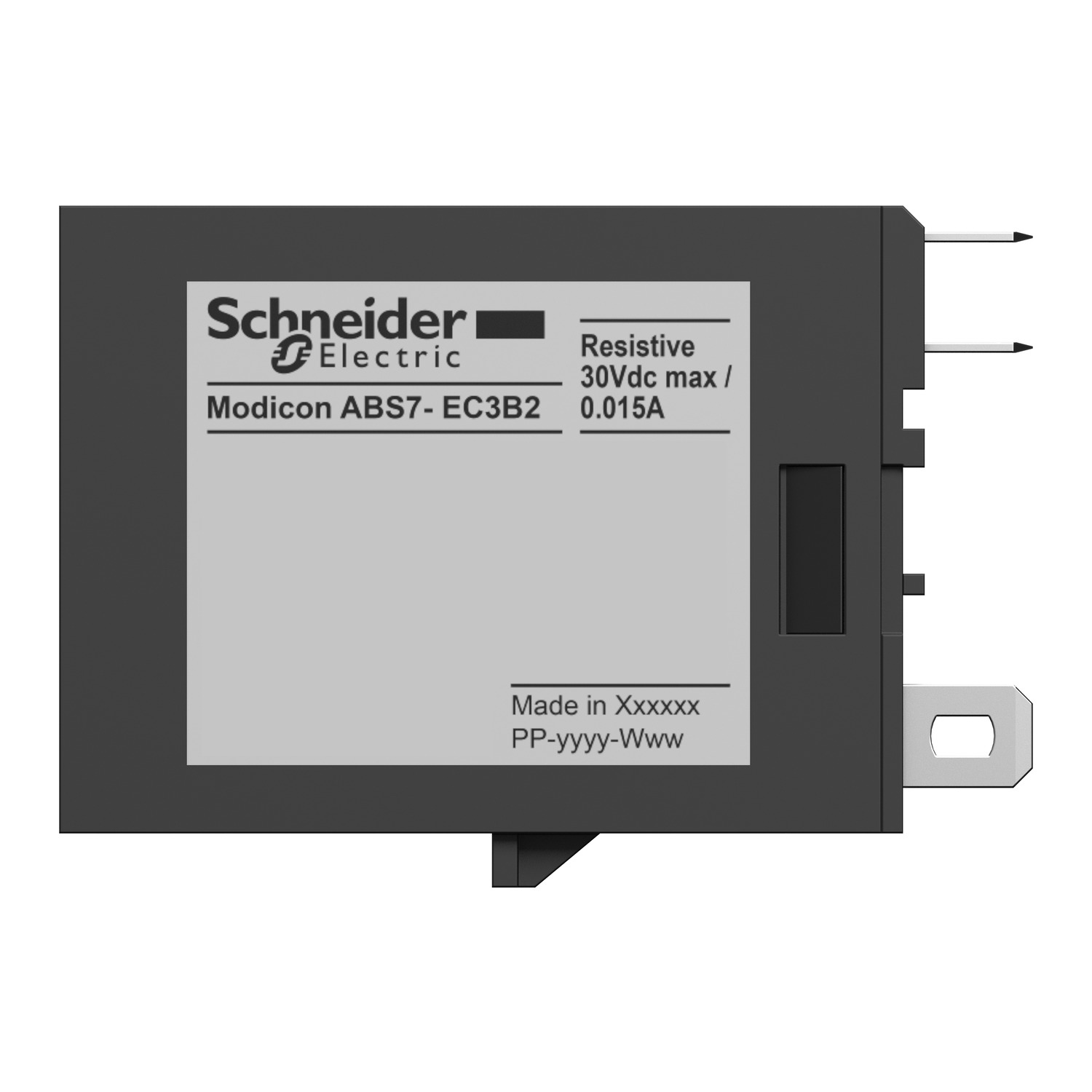

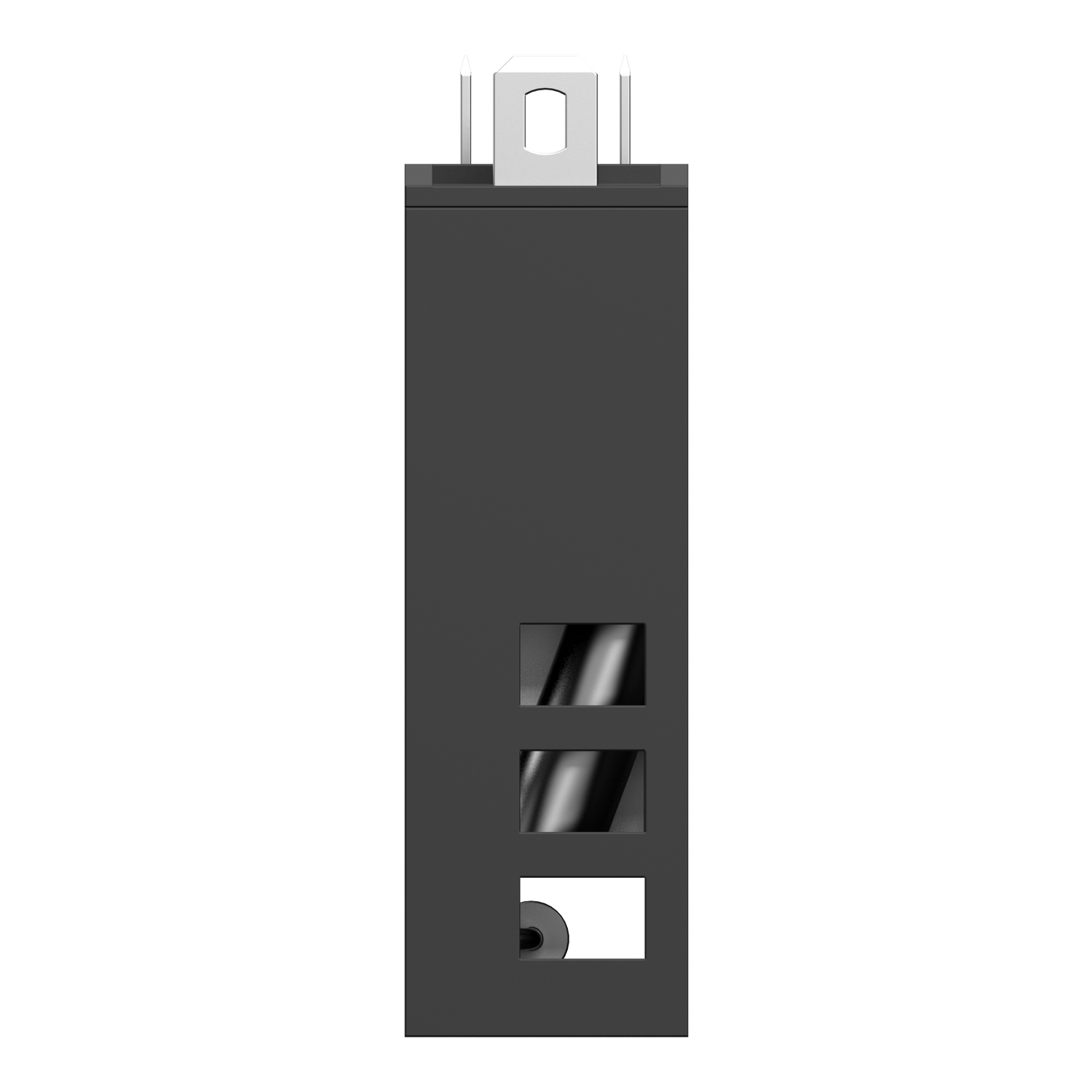

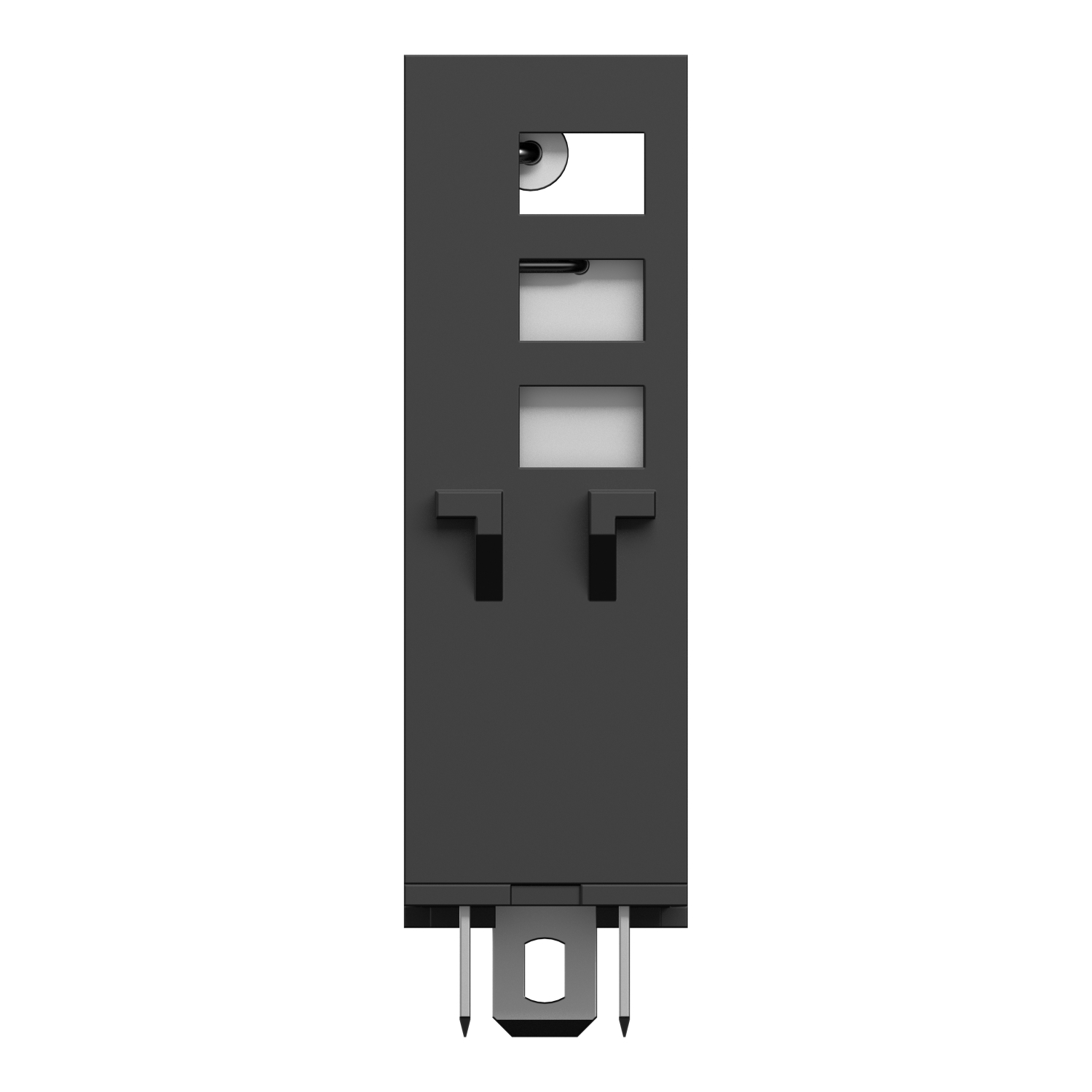

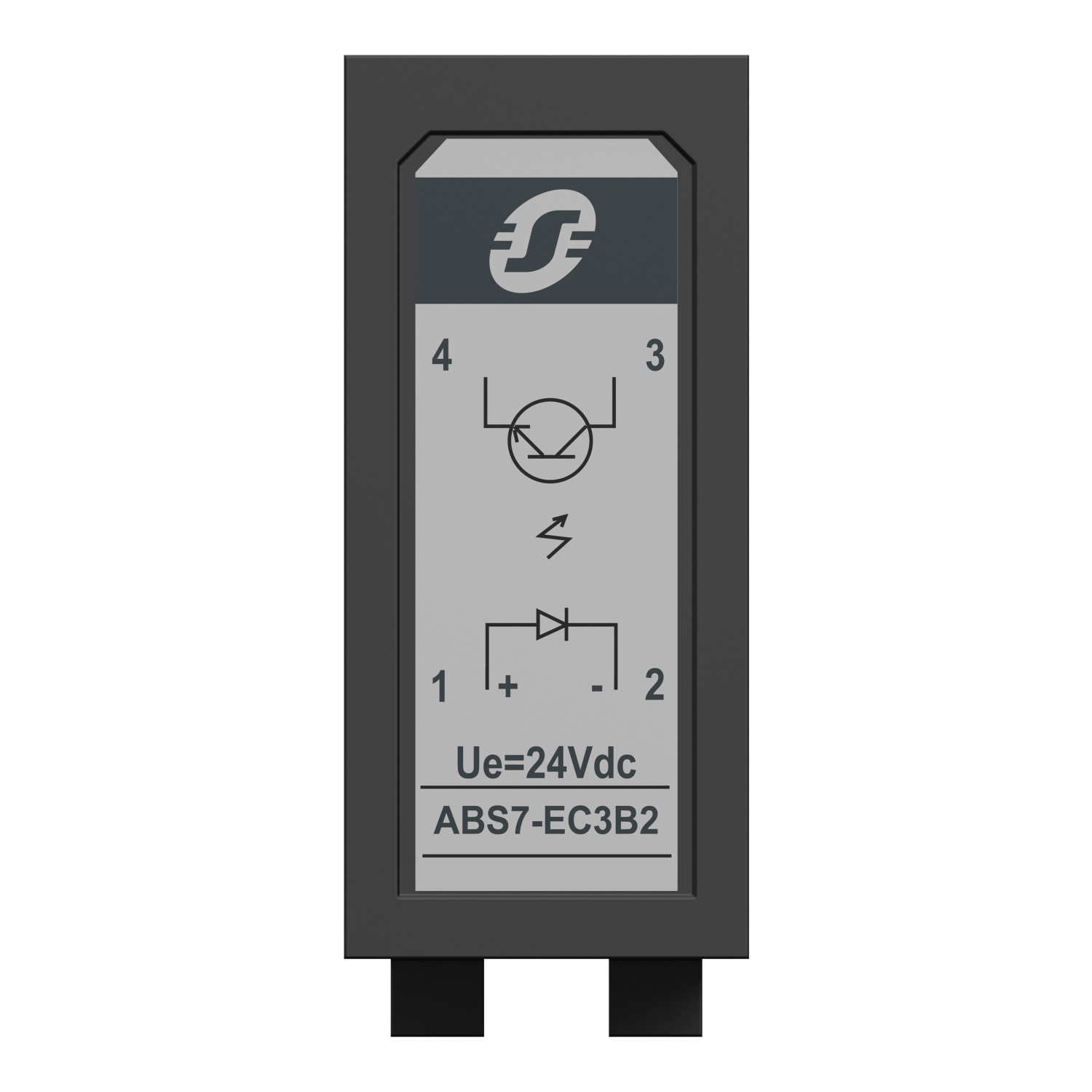

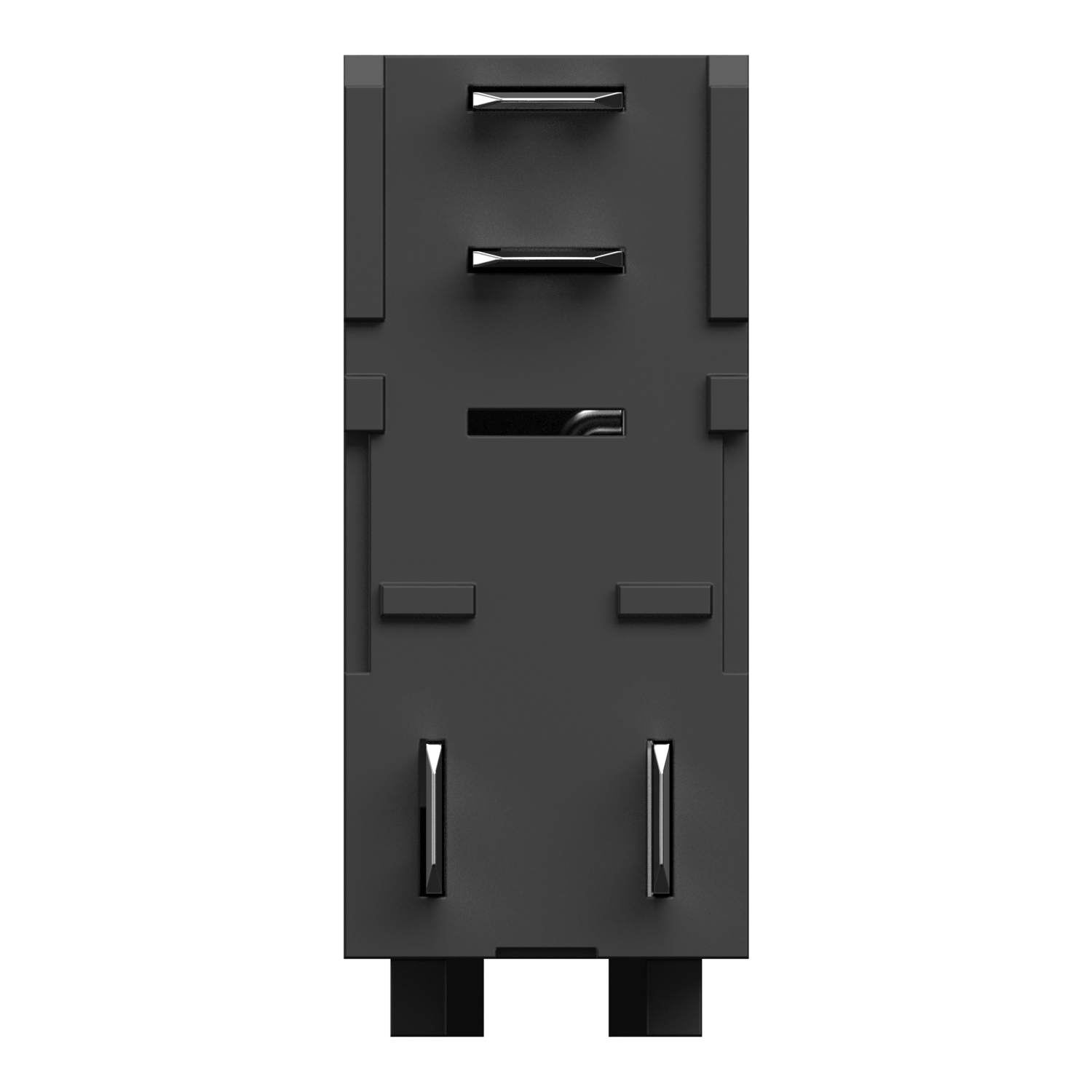

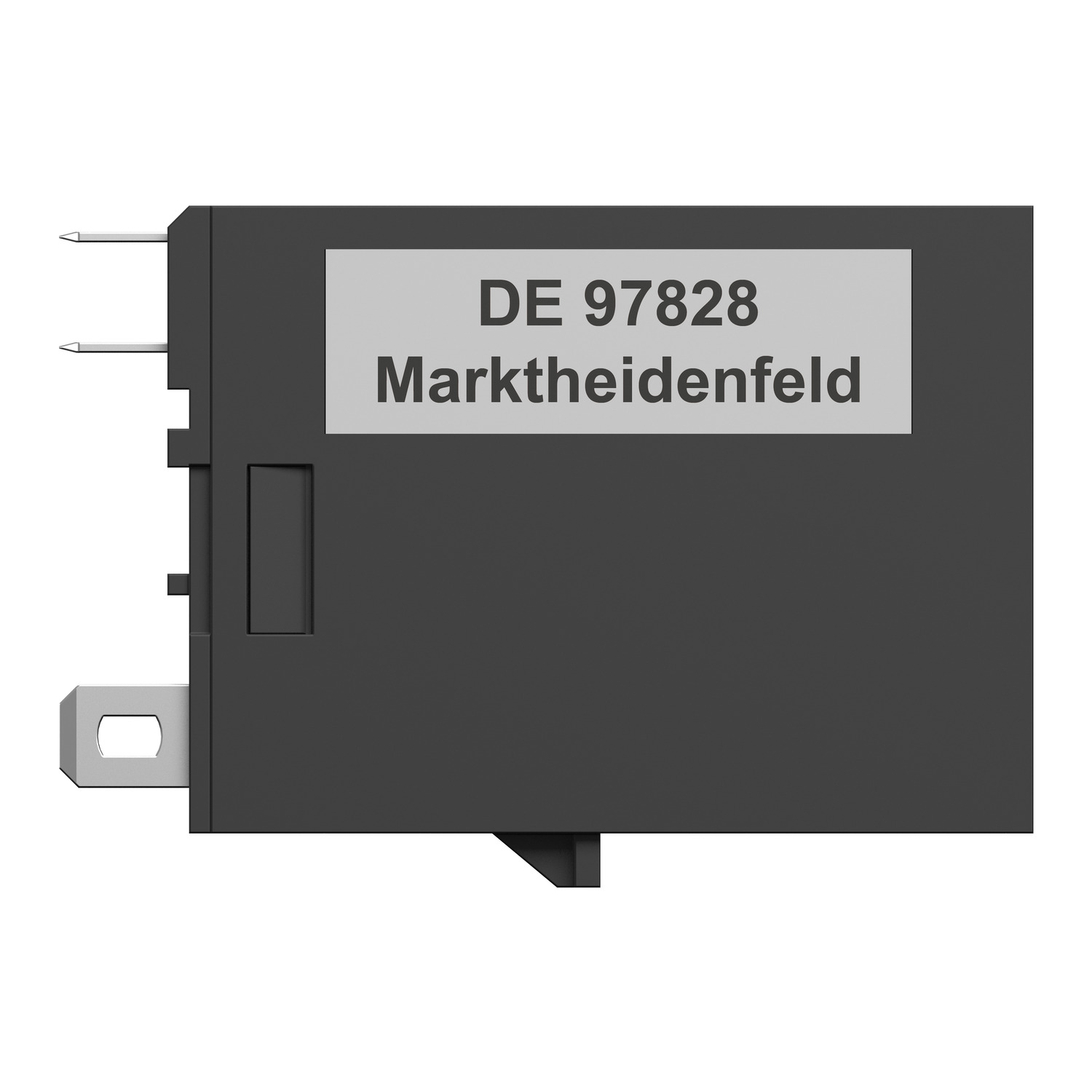

Releu Semicond. Conectabil, 12,5 Mm, Intrare, 24 V C.C. Tip 2
Documente
Fisa tehnica
Altele
Specificatii
| Electrical | |
| Rated current | 0.5 A |
| Frequency control voltage 1 | - |
| Type of control voltage 2 | - |
| Frequency control voltage 2 | - |
| Max. load fluorescent lamp (parallel compensated) | - |
| Supply voltage | 19 V |
| Voltage type (supply voltage) | AC/DC |
| Max. incandescent lamp load | - |
| Max. load fluorescent lamp | - |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 5 V |
| Type of control voltage 1 | AC/DC |
| Max. switching current (cos phi = 0.6) | - |
| Control voltage 2 | - |
| Measurements | |
| Built-in depth | 55 mm |
| Width in number of modular spacings | 0 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Completely electronic |
| Package 1 | |
| volume | 25,92 cm3 |
| weight | 9 g |
| length | 4,5 cm |
| width | 3,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110720808 |
| Package 2 | |
| volume | 162,5 cm3 |
| weight | 46 g |
| length | 6,5 cm |
| width | 5 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13389110720805 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 1,848 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 128 |
| qmin | 128 |
| um | CT |
| gtin | 43389110720806 |
