Descriere

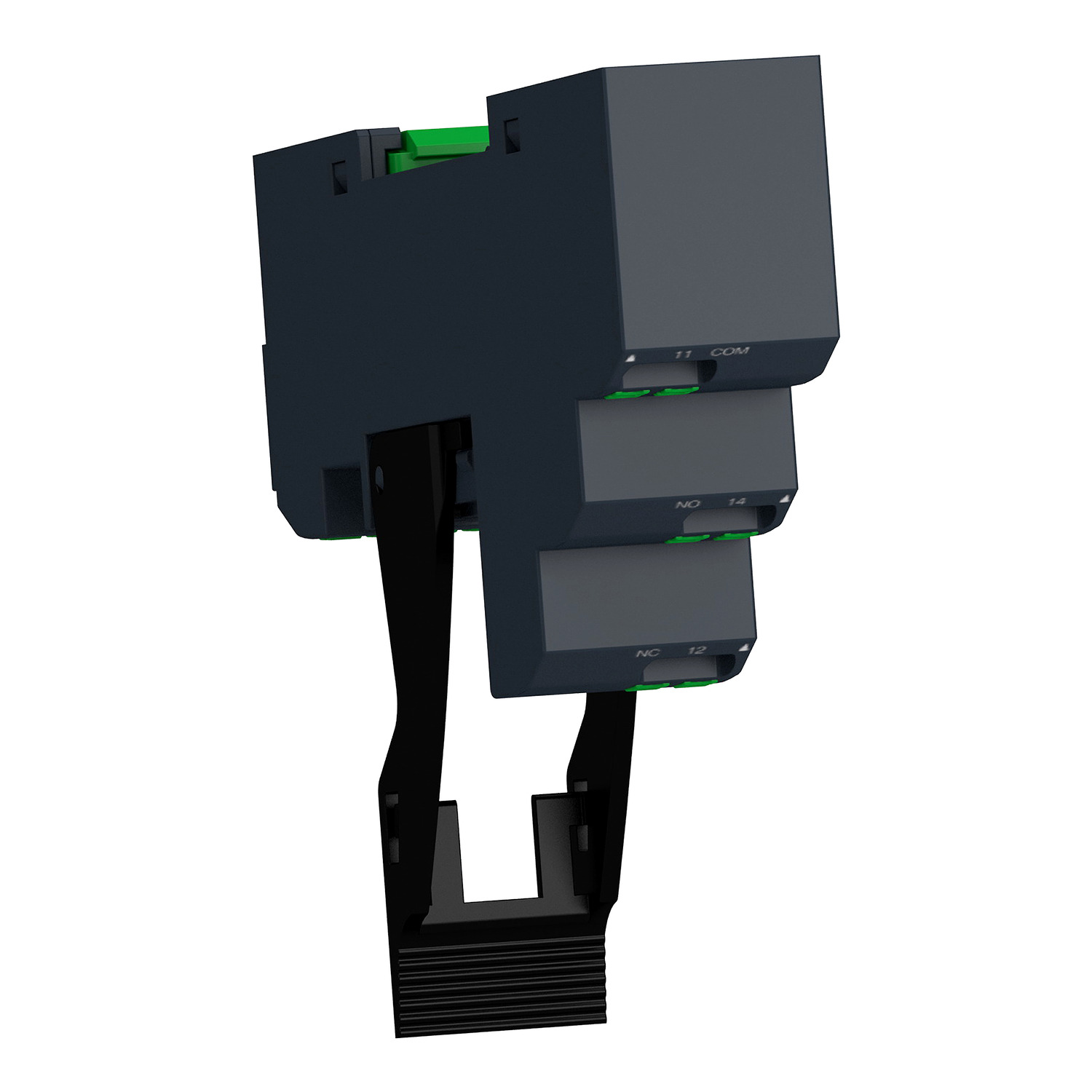

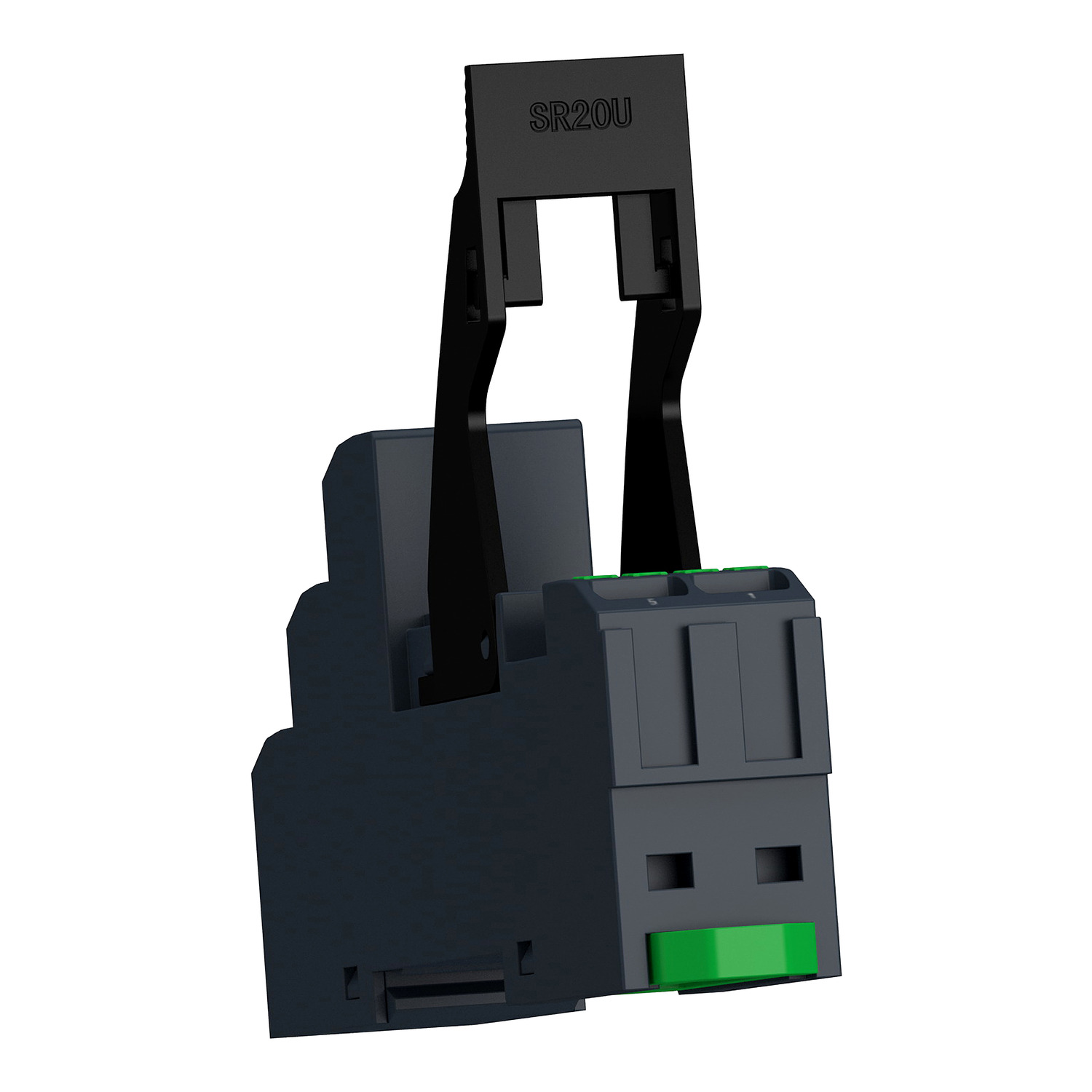

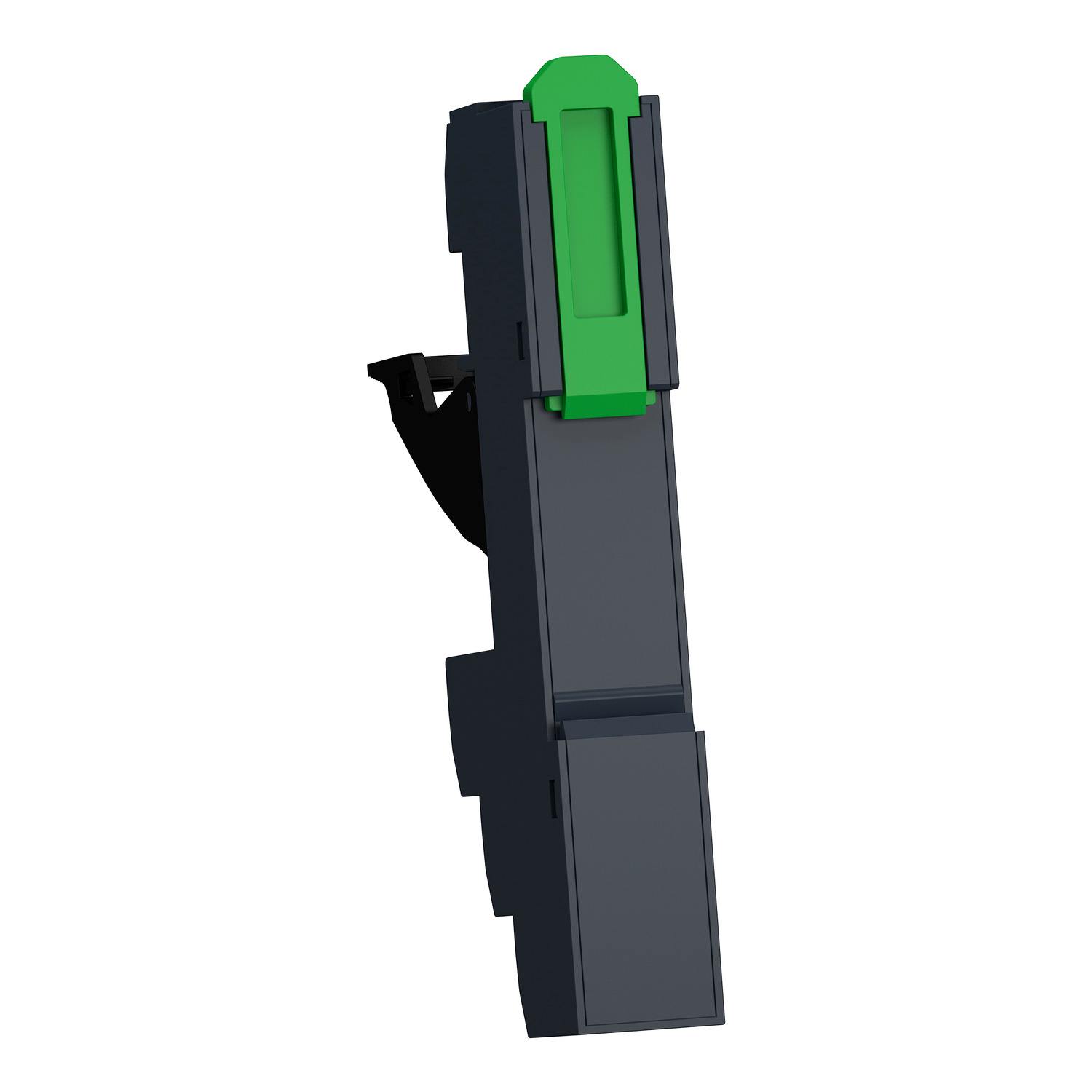

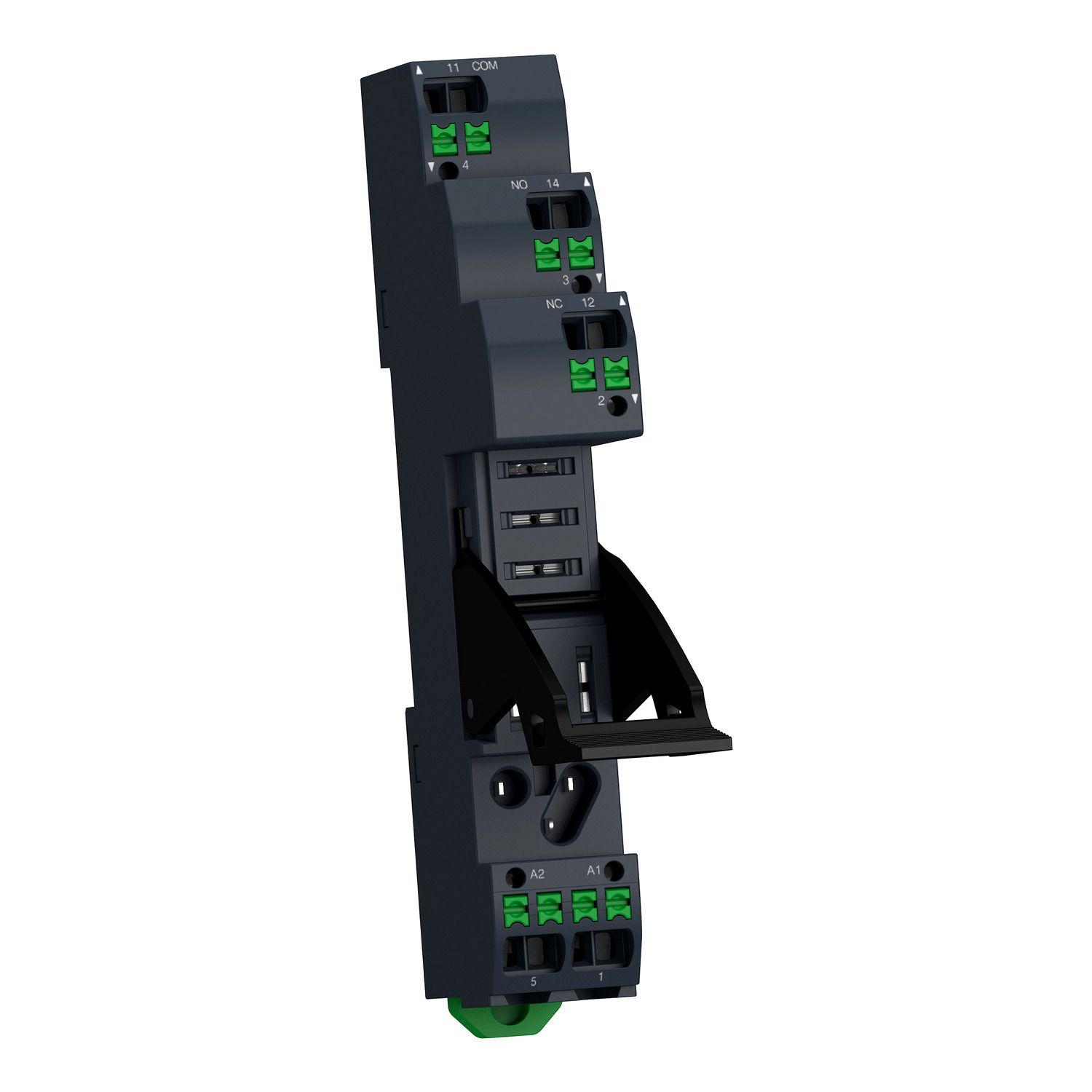

push in socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, push in terminals, separate contact
Documente
Fisa tehnica
Altele
Specificatii
| Measurements | |
| Width | 16 mm |
| Height | 67 mm |
| Depth | 98 mm |
| Model/type | |
| Number of pins | 5 |
| With detachable clamps | Yes |
| Connection | |
| Type of electric connection | Spring clamp connection |
| Options | |
| Function extension possible | Yes |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Package 1 | |
| volume | 104,544 cm3 |
| weight | 36 g |
| length | 9,9 cm |
| width | 6,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481465702 |
| Package 2 | |
| volume | 1375,913 cm3 |
| weight | 410 g |
| length | 16,7 cm |
| width | 10,7 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481465709 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 7,116 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 160 |
| qmin | 160 |
| um | CT |
| gtin | 43606481465700 |
| Package 4 | |
| weight | 67,823 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1280 |
| qmin | 1280 |
| um | PF |
